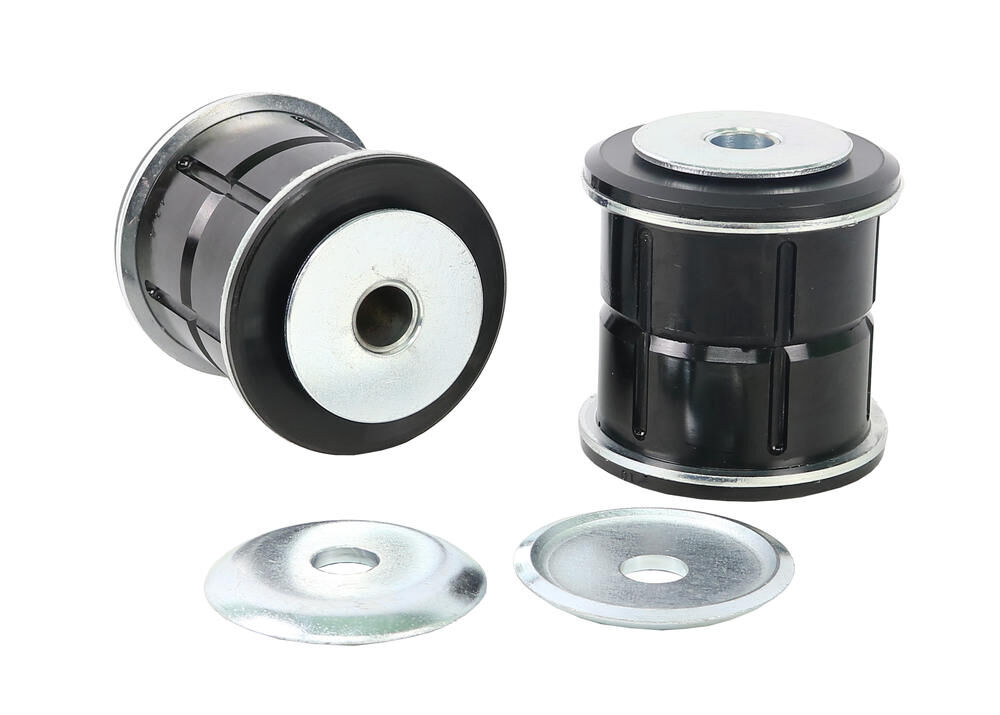

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Holden Adventra, Crewman VY, VZ and HSV

SKU: W53482

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 80 mm 80 mm
ID (B) 32 mm 32 mm
Length (C) 43.5 mm 56.5 mm
Flange Thickness (D) 7.5 mm 18 mm
Flange OD (E) 84 mm 84 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 32x18.2x100 mm 32x18.2x100 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 80 80
ID (B) 32 32
Length (C) 43.5 56.5
FL (D) 7.5 18
FLOD (E) 84 84
C/Tube Qty 2 2
C/Tube Size 32x18.2x100 32x18.2x100
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.1kg4.63lbs
Length30cm11.81"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW53482

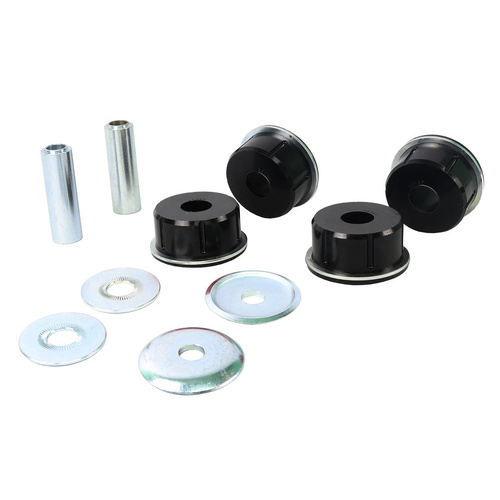

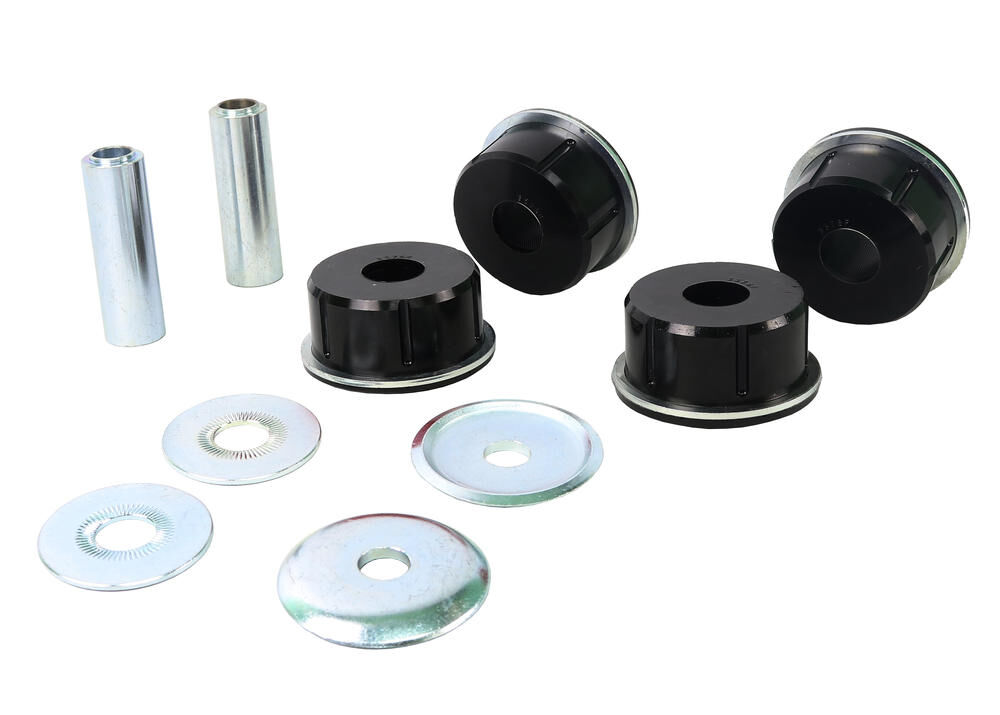

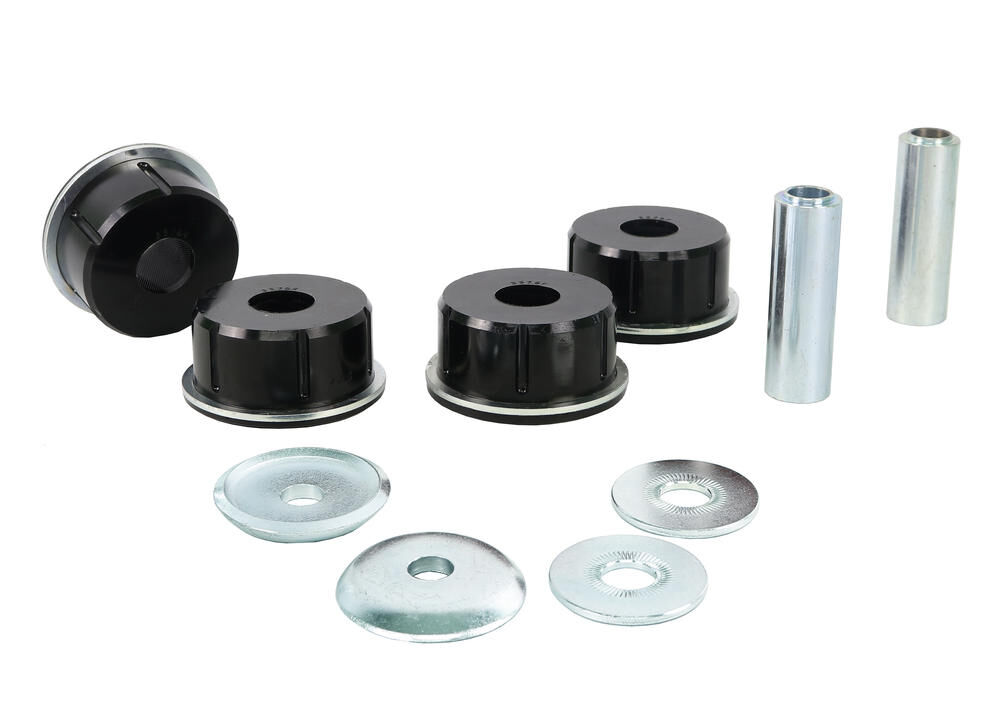

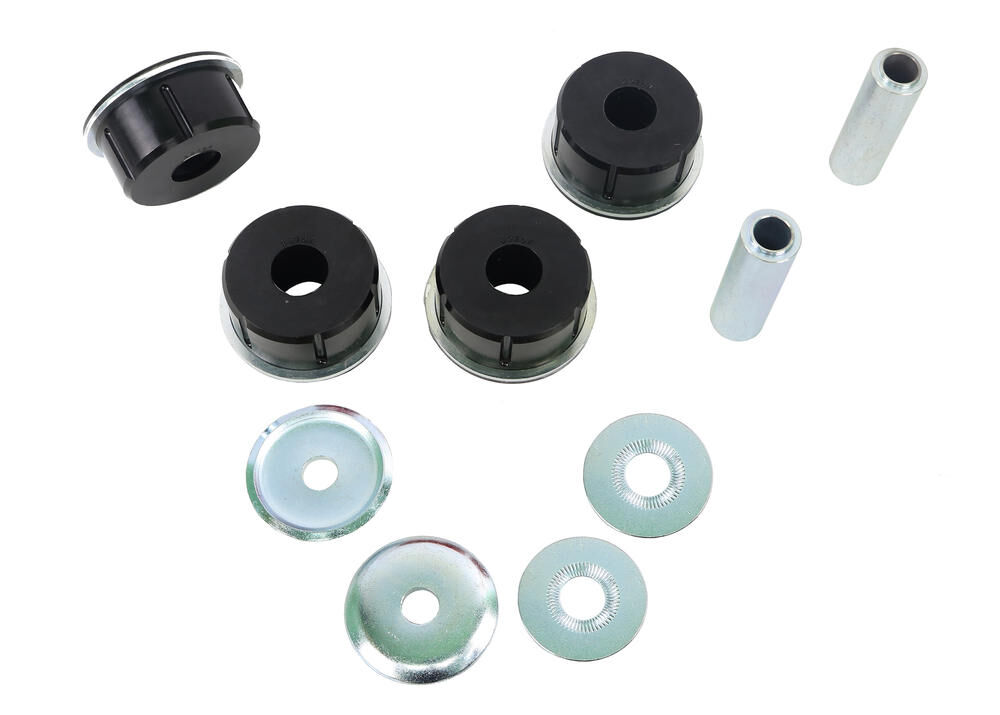

Components Per4 Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes, 2 Washers
EAN9319924388622
  • Lifetime Warranty
Brand Whiteline
SKU W53482
Unit Of Measure Kit
