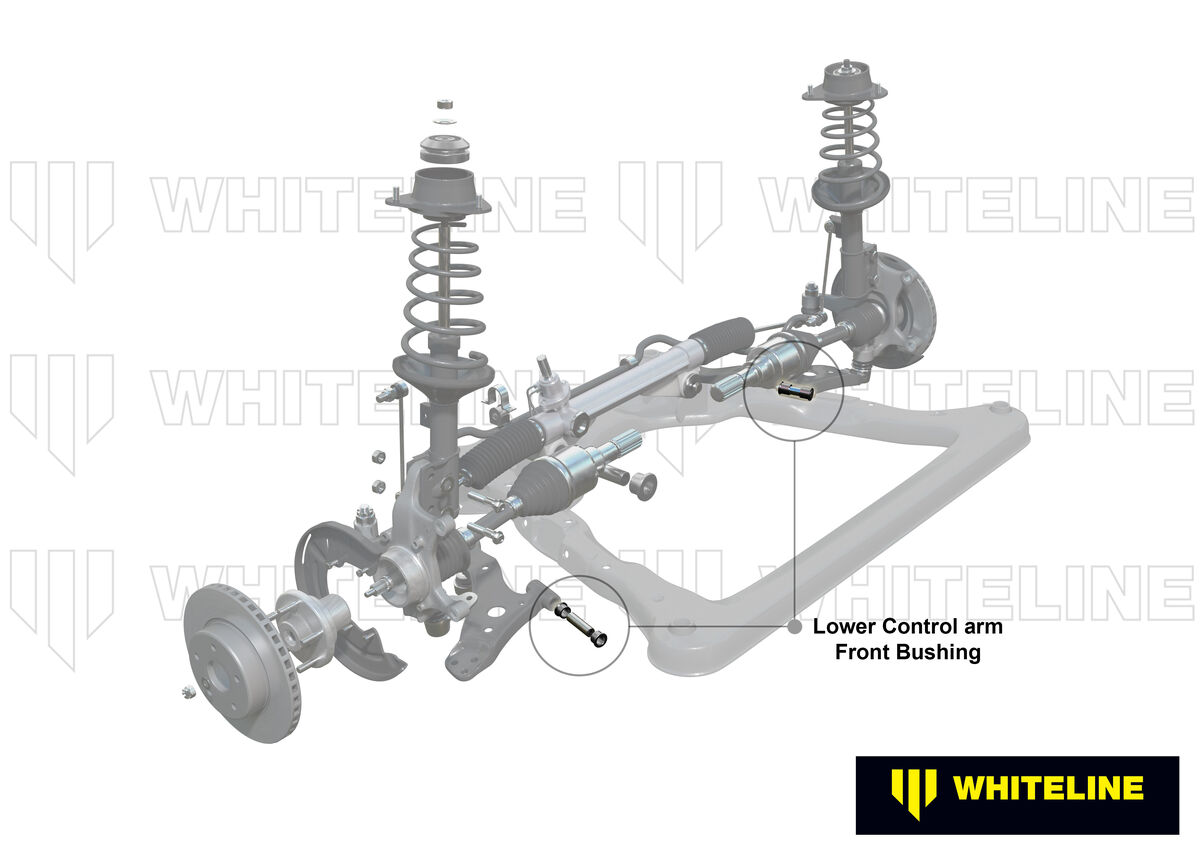

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Nissan X-Trail, Renault Megane and Scenic

SKU: W53424

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

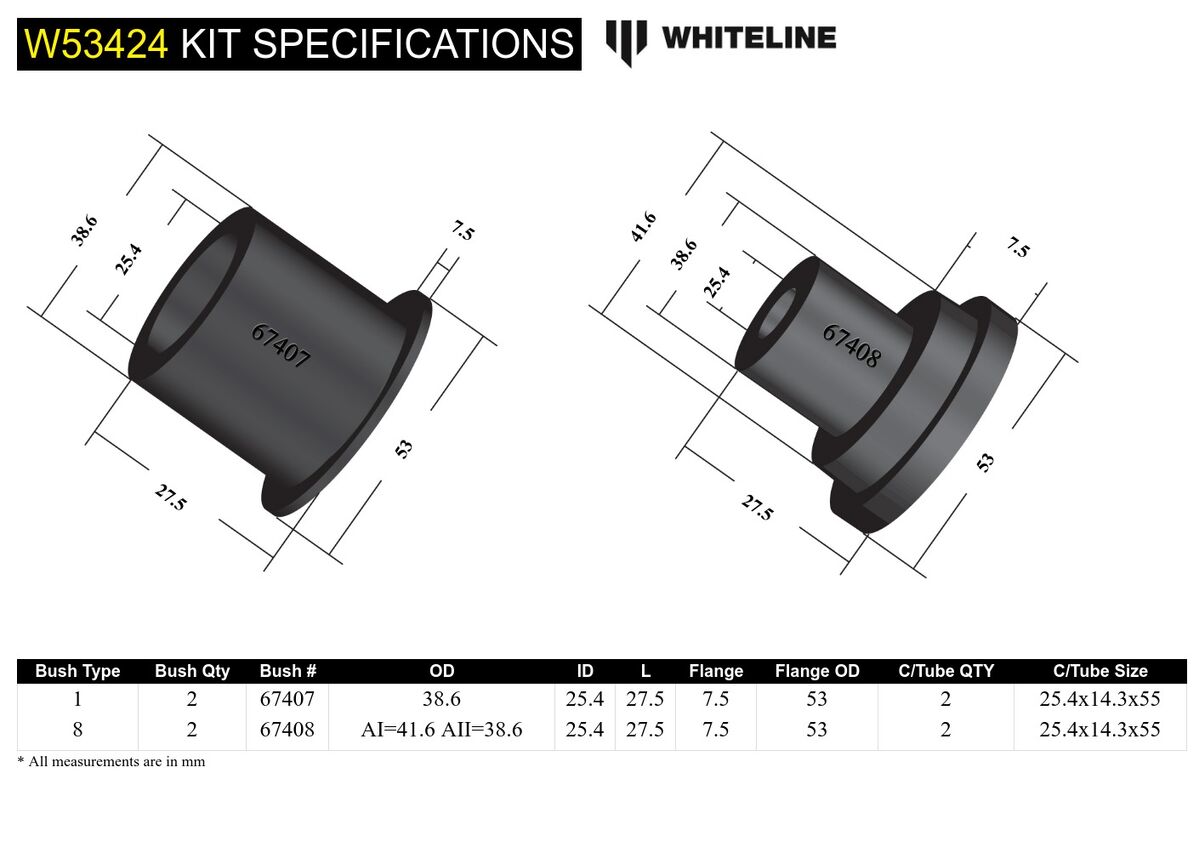

Kit Specifications

Bush Type 1 - Shackle Bushing 8 - Stepped OD Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 38.6 mm AI=41.6 AII=38.6 mm
ID (B) 25.4 mm 25.4 mm
Length (C) 27.5 mm 27.5 mm
Flange Thickness (D) 7.5 mm 7.5 mm
Flange OD (E) 53 mm 53 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x14.3x55 mm 25.4x14.3x55 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 8 - Stepped OD Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 8
QTY 2 2
OD (A) 38.6 AI=41.6 AII=38.6
ID (B) 25.4 25.4
Length (C) 27.5 27.5
FL (D) 7.5 7.5
FLOD (E) 53 53
C/Tube Qty 2 2
C/Tube Size 25.4x14.3x55 25.4x14.3x55
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 8

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.36kg0.79lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53424

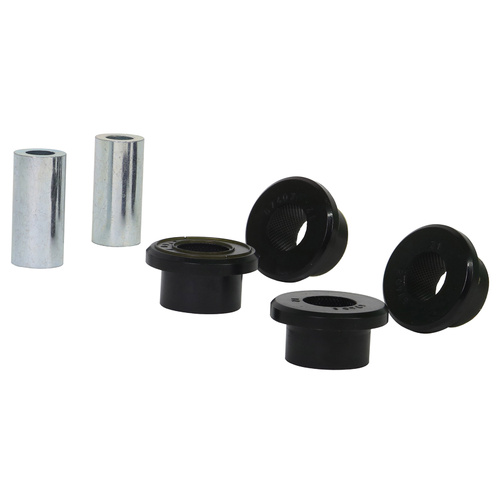

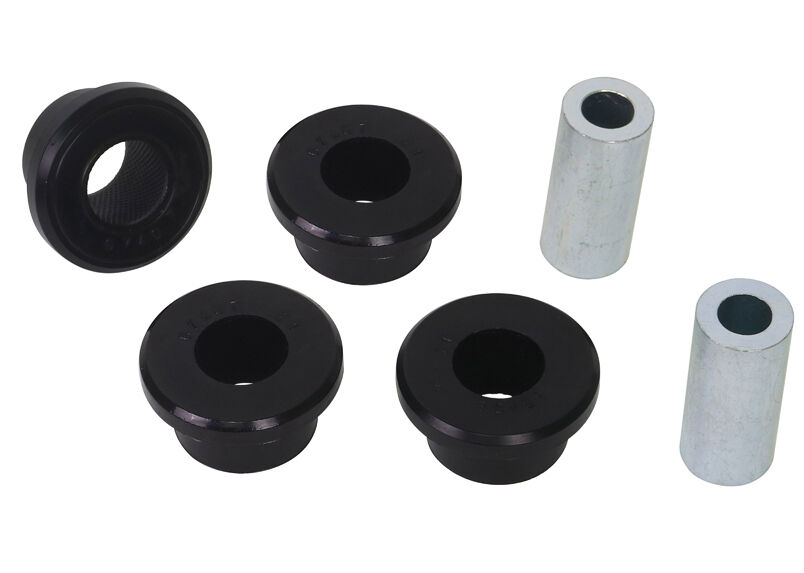

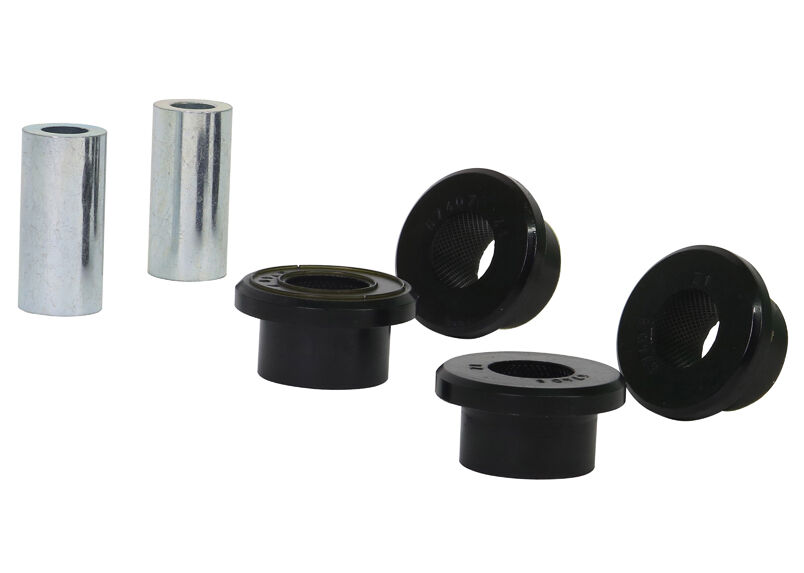

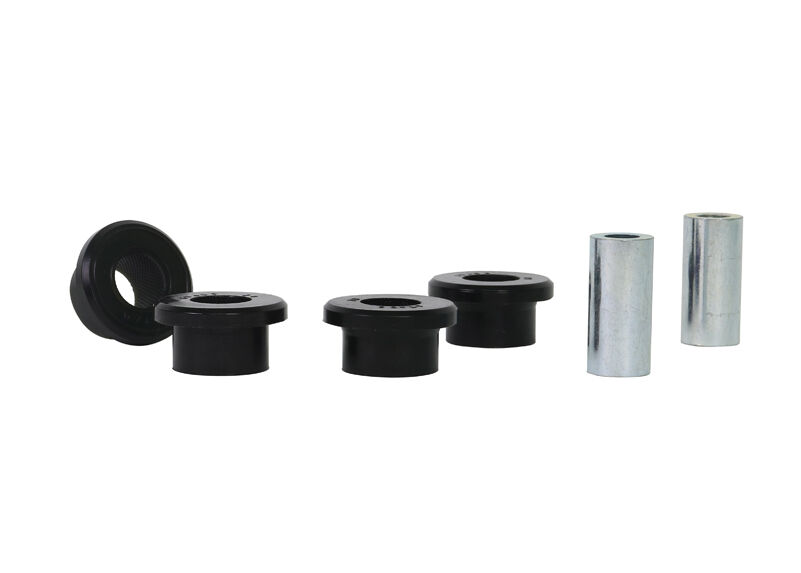

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924383870
  • Lifetime Warranty
Brand Whiteline
SKU W53424
Unit Of Measure Kit
