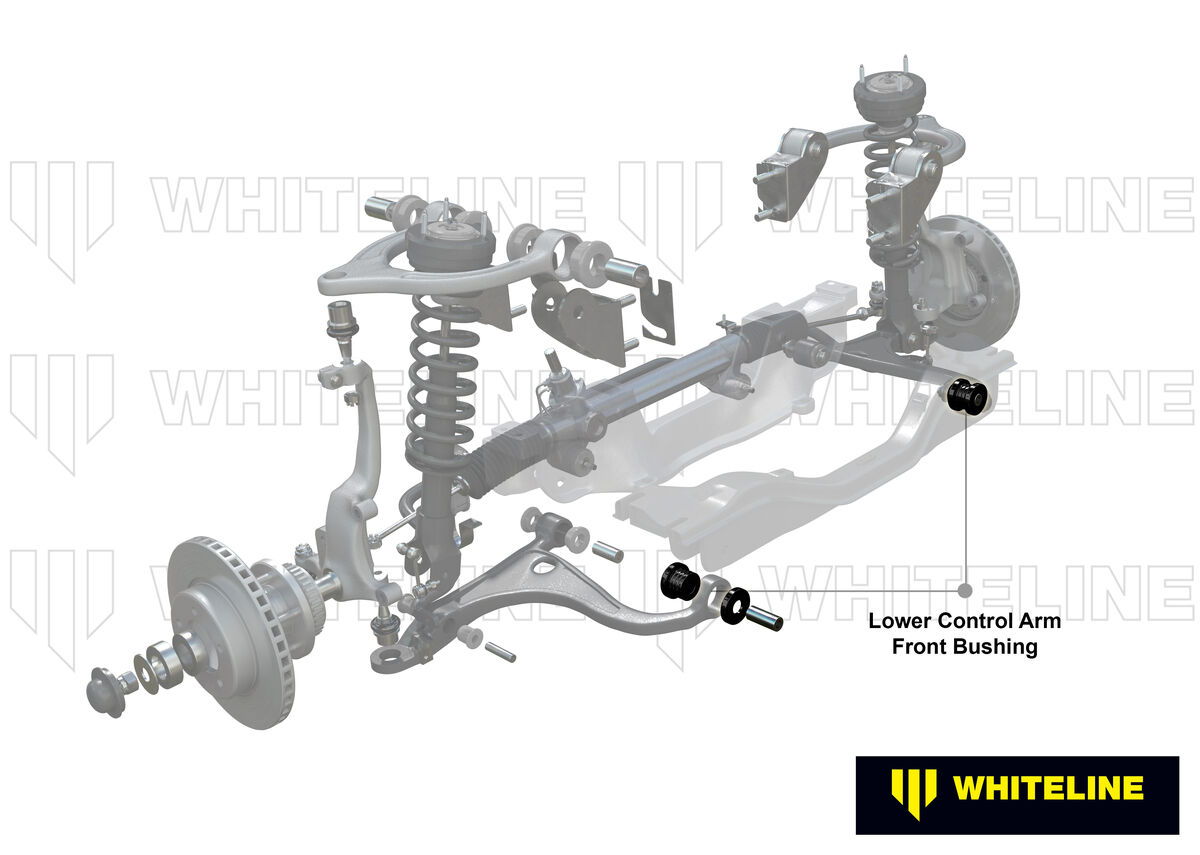

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	47.7 mm	47.7 mm
ID (B)	27.6 mm	27.6 mm
Length (C)	24.8 mm	33.8 mm
Flange Thickness (D)	6 mm	15.2 mm
Flange OD (E)	59.2 mm	59.2 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	28.6x14.3x60 mm	28.6x14.3x60 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	1	1
QTY	2	2
OD (A)	47.7	47.7
ID (B)	27.6	27.6
Length (C)	24.8	33.8
FL (D)	6	15.2
FLOD (E)	59.2	59.2
C/Tube Qty	2	2
C/Tube Size	28.6x14.3x60	28.6x14.3x60
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.649kg	1.43lbs
Length	7cm	2.76"
Width	14cm	5.51"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	W53413

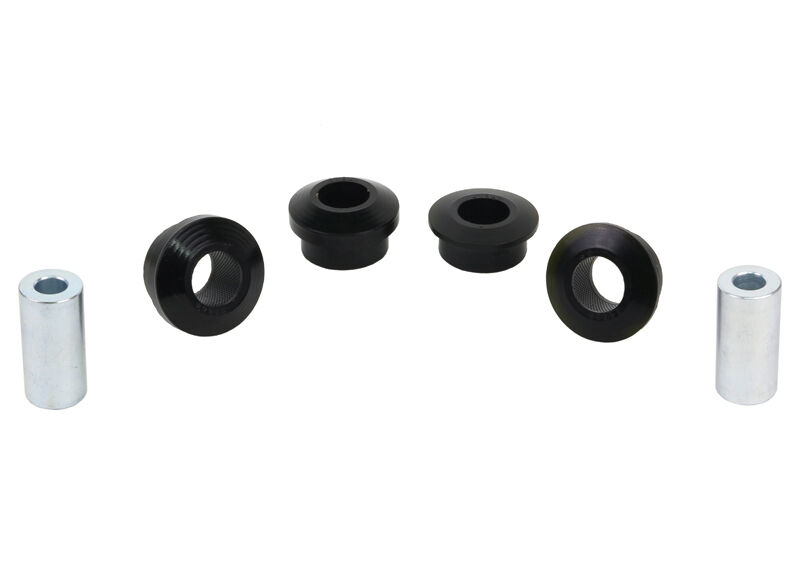

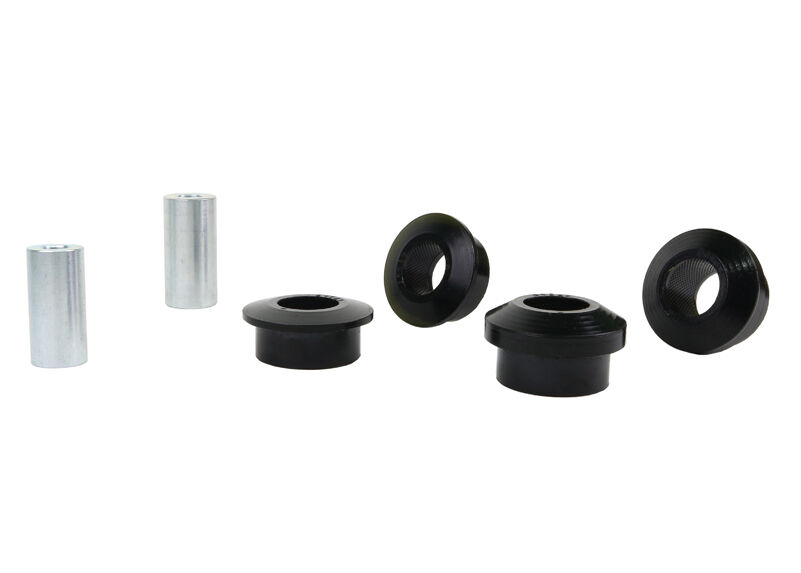

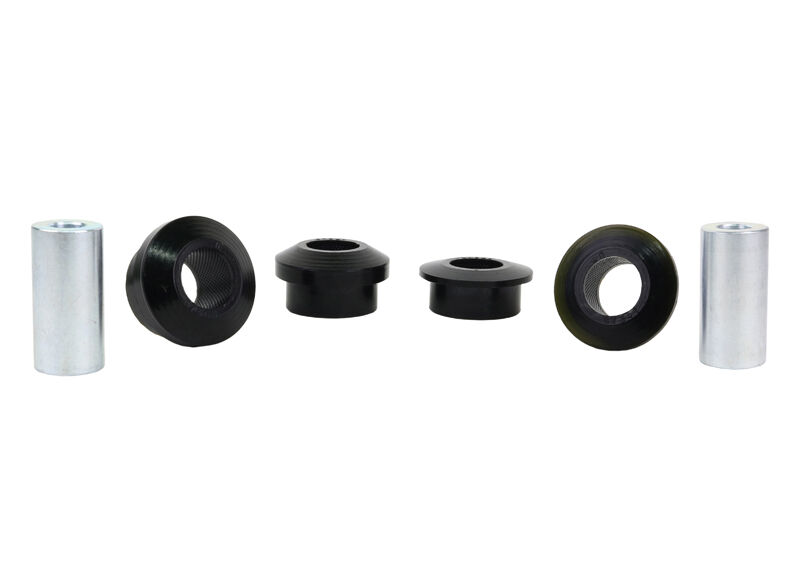

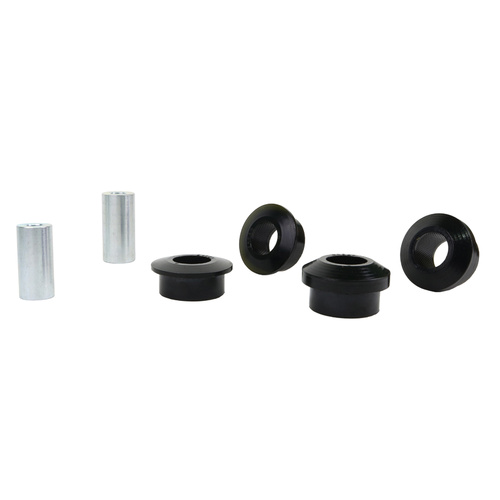

Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Ensures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9319924383177
