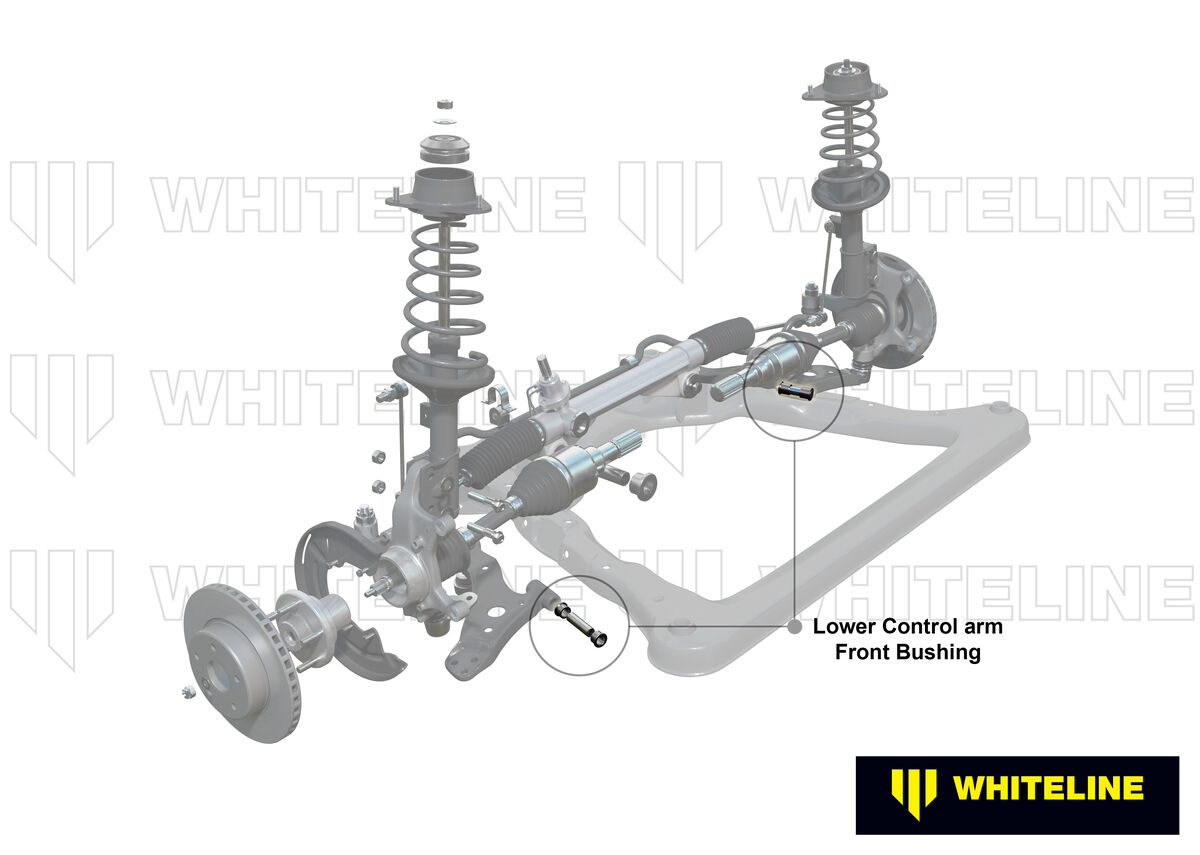

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Toyota MR2 ZZW30 and Echo NCP10

SKU: W53374

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

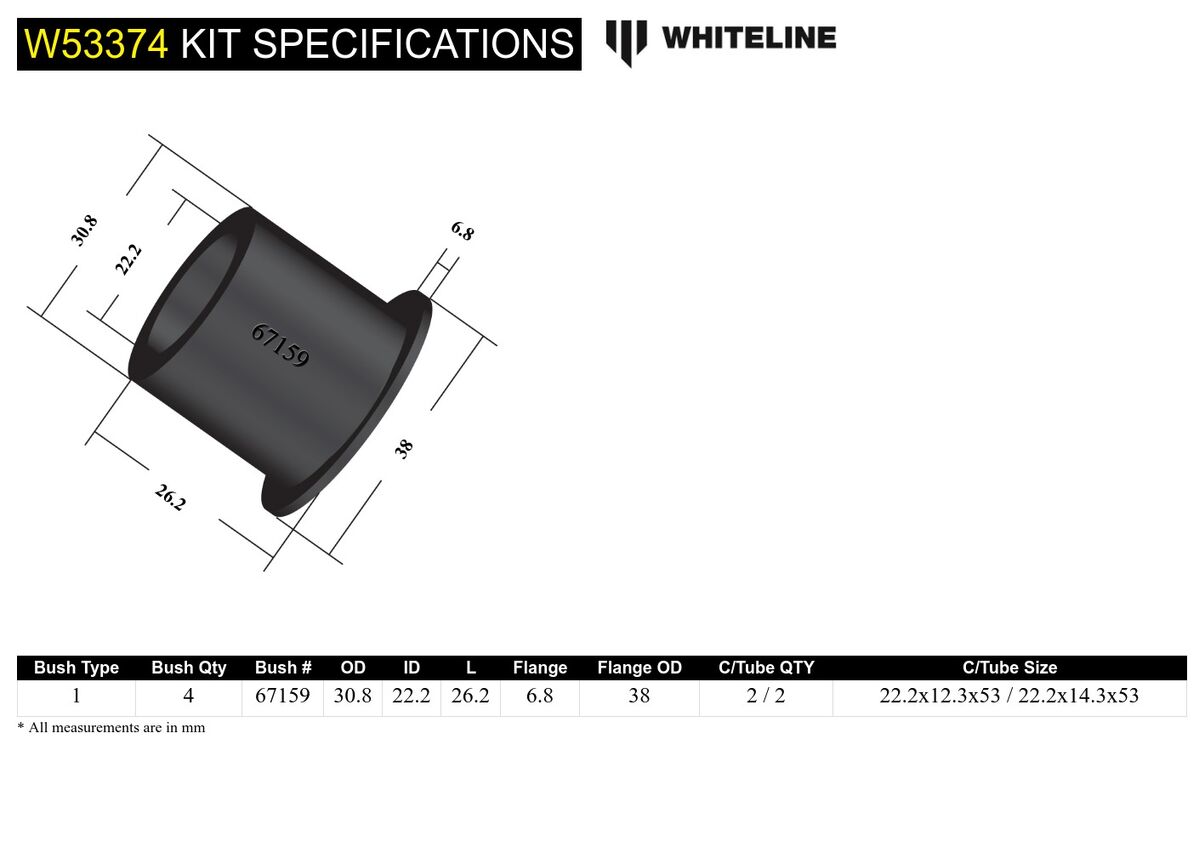

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 30.8 mm
ID (B) 22.2 mm
Length (C) 26.2 mm
Flange Thickness (D) 6.8 mm
Flange OD (E) 38 mm
C/Tube Quantity 2 / 2
C/Tube ODxIDxL 22.2x12.3x53 / 22.2x14.3x53 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 30.8
ID (B) 22.2
Length (C) 26.2
FL (D) 6.8
FLOD (E) 38
C/Tube Qty 2 / 2
C/Tube Size 22.2x12.3x53 / 22.2x14.3x53
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.295kg0.65lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53374

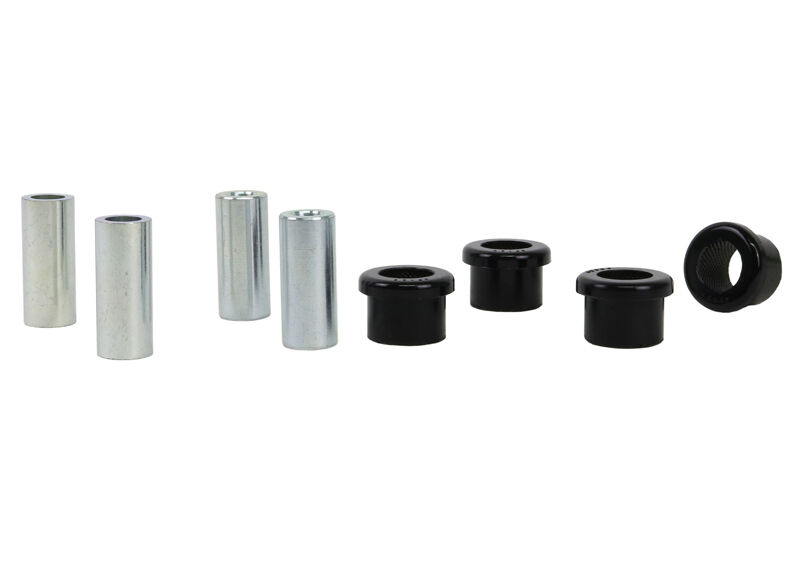

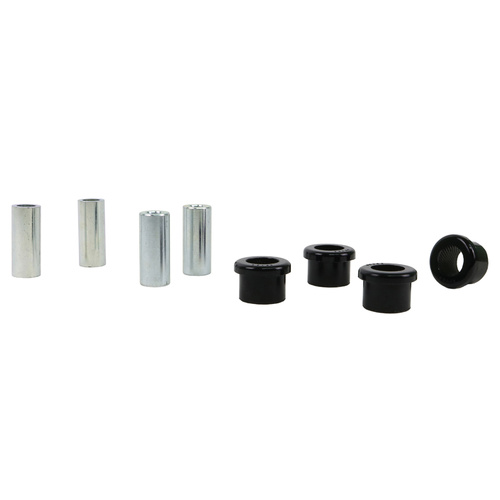

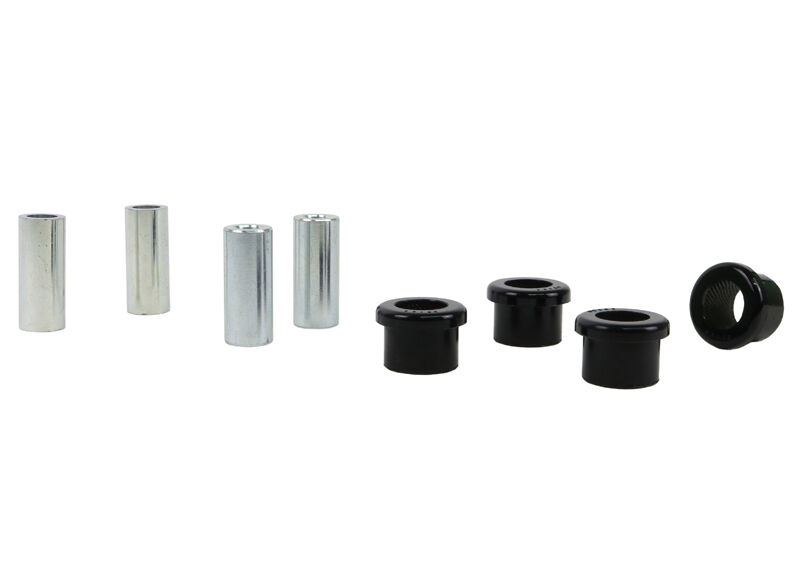

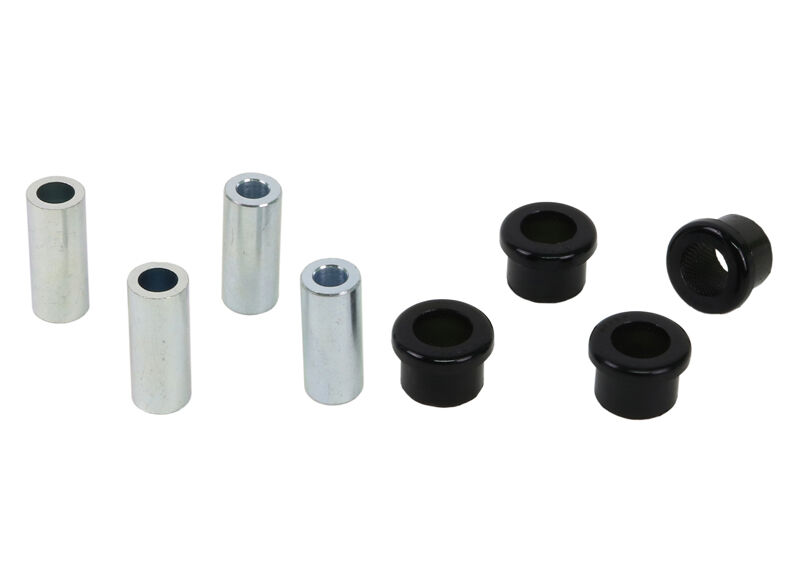

Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924379309
  • Lifetime Warranty
Brand Whiteline
SKU W53374
Unit Of Measure Kit
