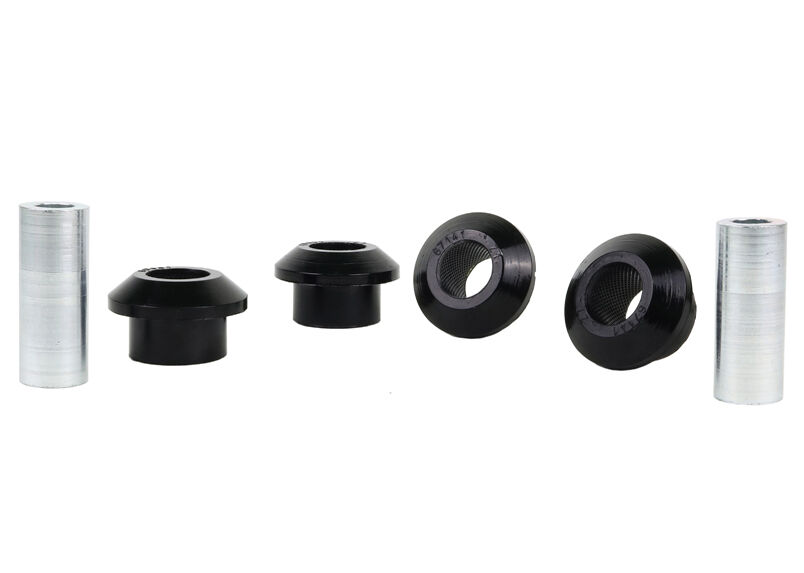

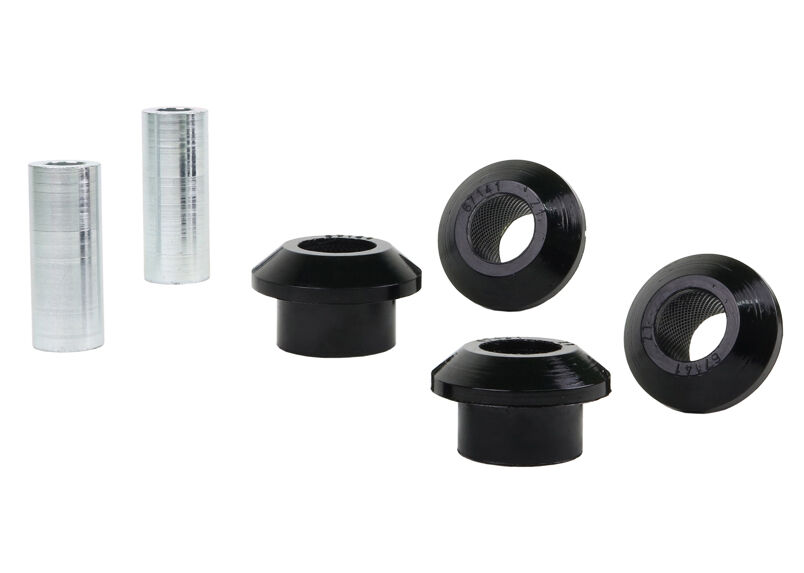

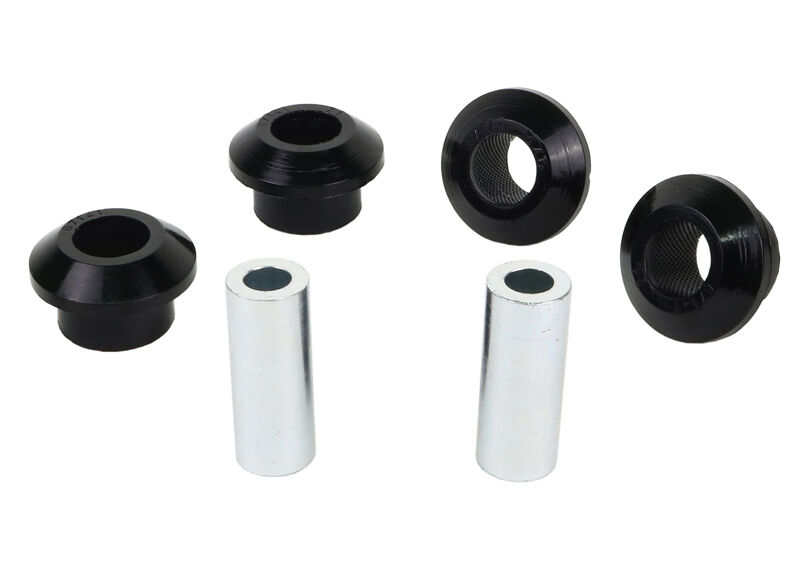

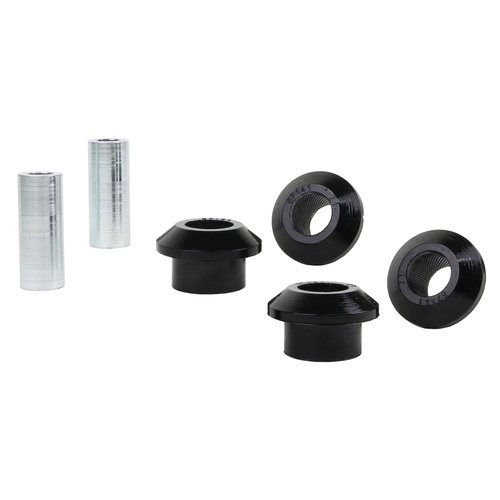

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Ford Focus, Mazda3 and Volvo C30, S40

SKU: W53286

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 38 mm
ID (B) 24.8 mm
Length (C) 32.5 mm
Flange Thickness (D) 13.5 mm
Flange OD (E) 54.2 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25x14.3x65 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 38
ID (B) 24.8
Length (C) 32.5
FL (D) 13.5
FLOD (E) 54.2
C/Tube Qty 2
C/Tube Size 25x14.3x65
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.495kg1.09lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53286
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924375950
  • Lifetime Warranty
Brand Whiteline
SKU W53286
Unit Of Measure Kit
