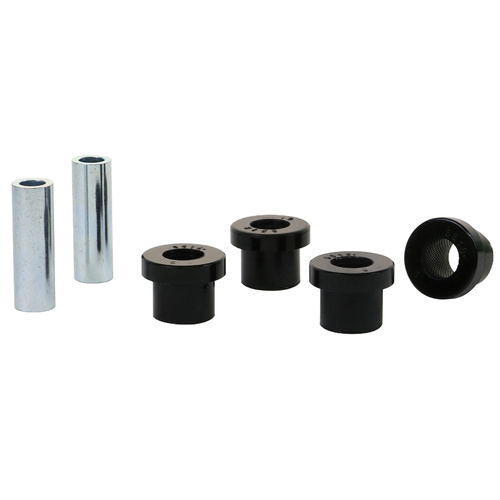

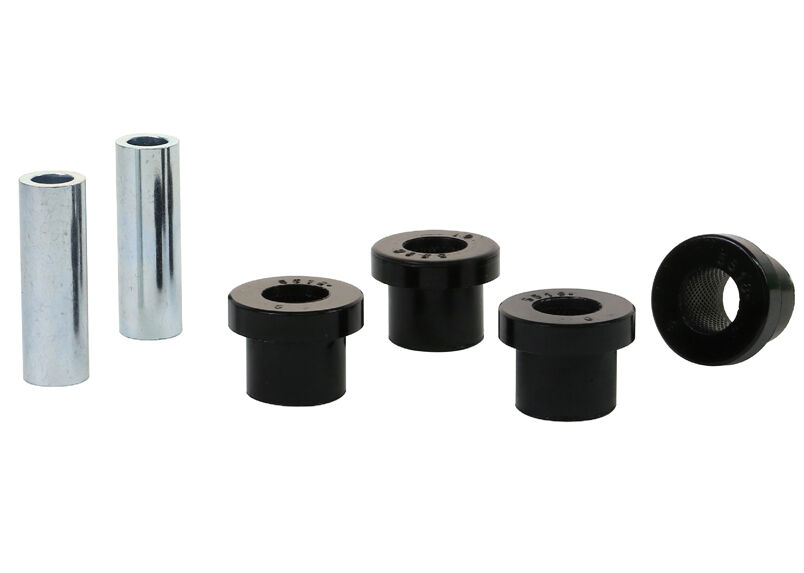

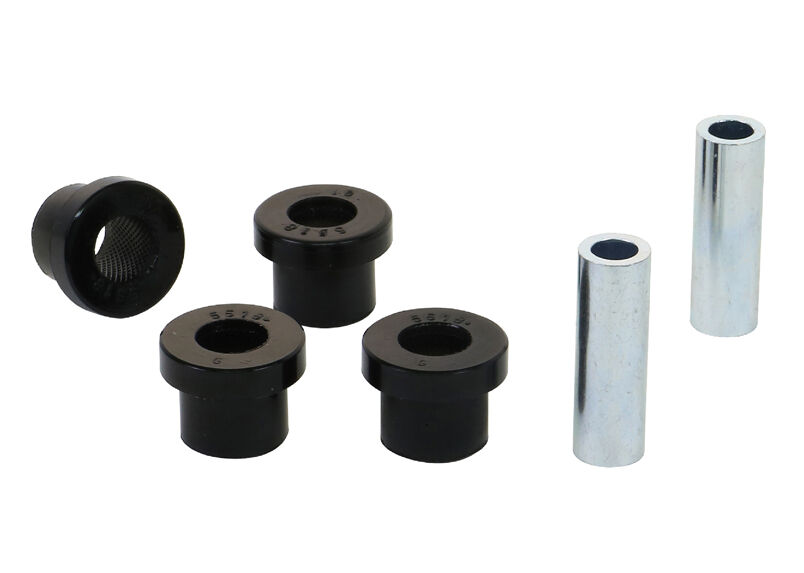

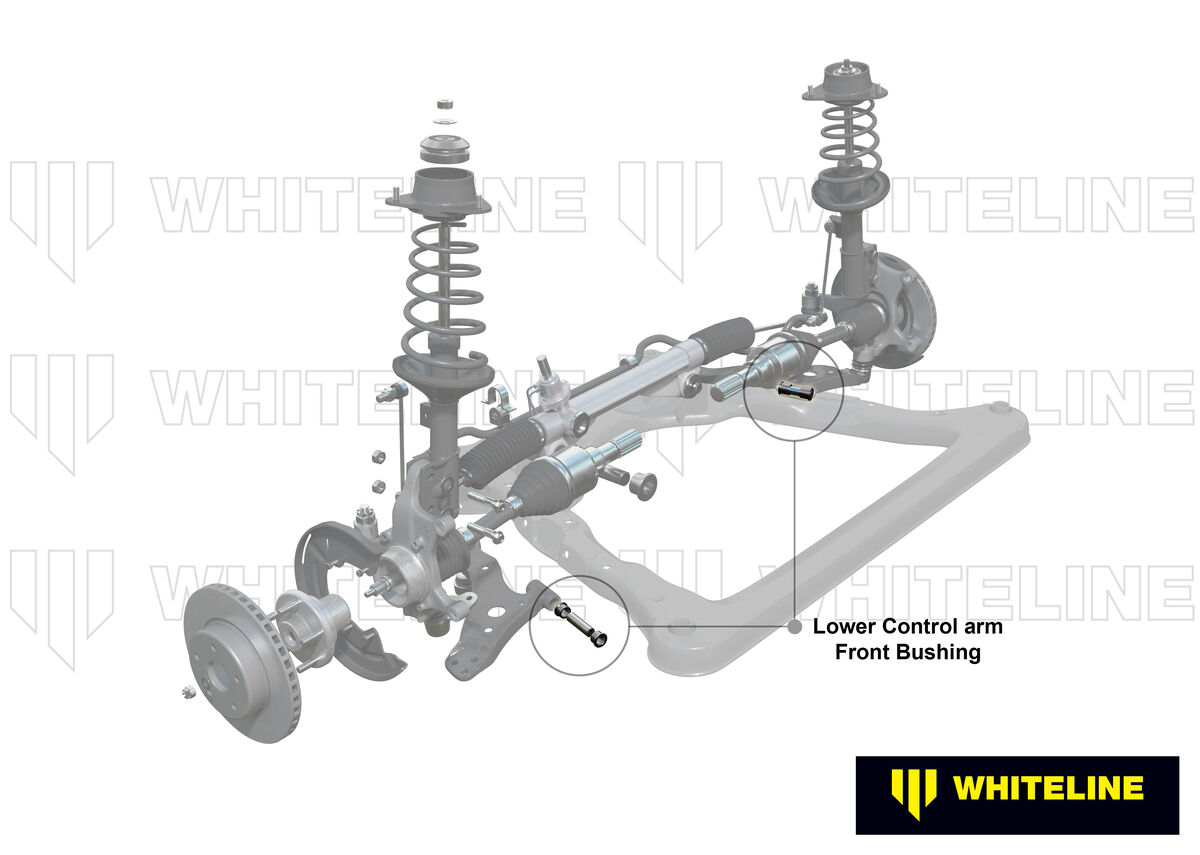

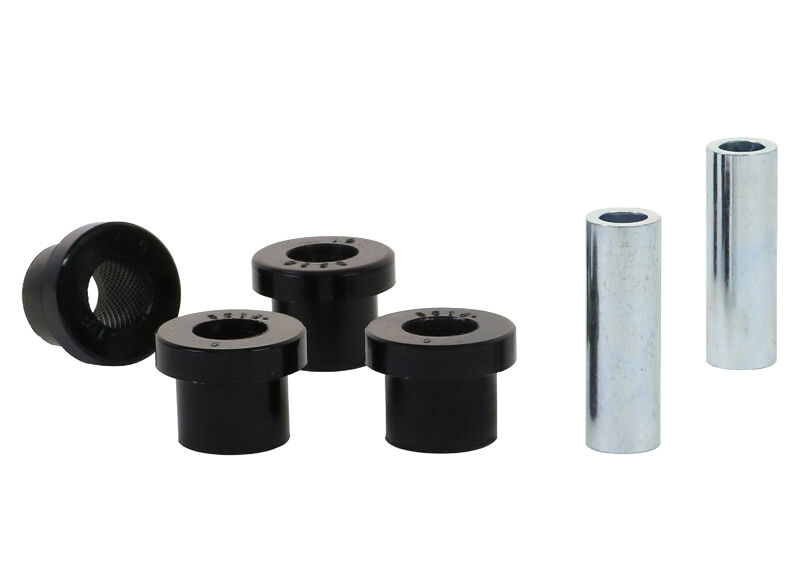

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Ford Laser KN, KQ and Mazda 323 BJ

SKU: W52432

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 28.5 mm
ID (B) 18.7 mm
Length (C) 30 mm
Flange Thickness (D) 9 mm
Flange OD (E) 39 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.2x59 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 28.5
ID (B) 18.7
Length (C) 30.0
FL (D) 9
FLOD (E) 39
C/Tube Qty 2
C/Tube Size 19x12.2x59
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.244kg0.54lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW52432
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924353071
  • Lifetime Warranty
Brand Whiteline
SKU W52432
Unit Of Measure Kit
