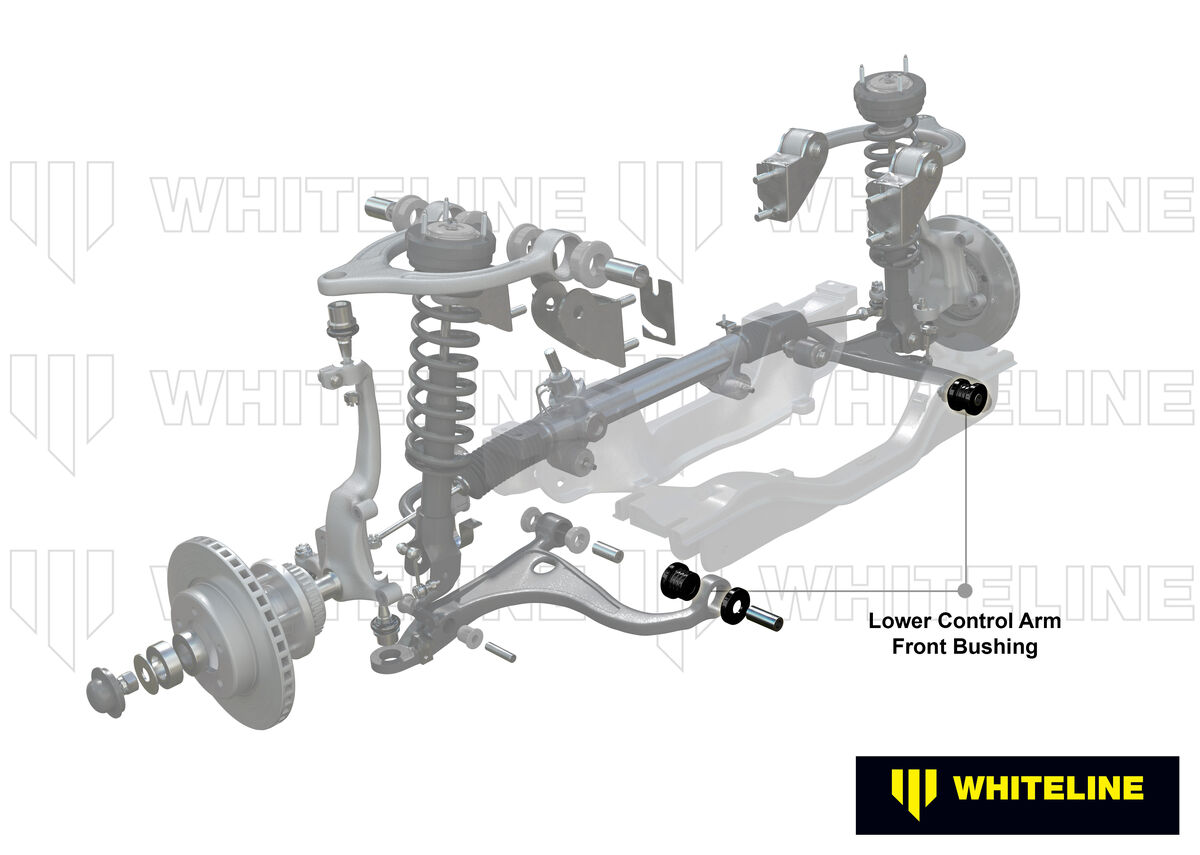

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Lexus SC, Toyota Soarer and Supra

SKU: W51231A

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 49.5 mm 49.5 mm
ID (B) 21 mm 21 mm
Length (C) 36.3 mm 32.8 mm
Flange Thickness (D) 12.4 mm 8.7 mm
Flange OD (E) 69.5 mm 58.3 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 22.2x16.2x68 mm 22.2x16.2x68 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 49.5 49.5
ID (B) 21 21
Length (C) 36.3 32.8
FL (D) 12.4 8.7
FLOD (E) 69.5 58.3
C/Tube Qty 2 2
C/Tube Size 22.2x16.2x68 22.2x16.2x68
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.526kg1.16lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW51231A

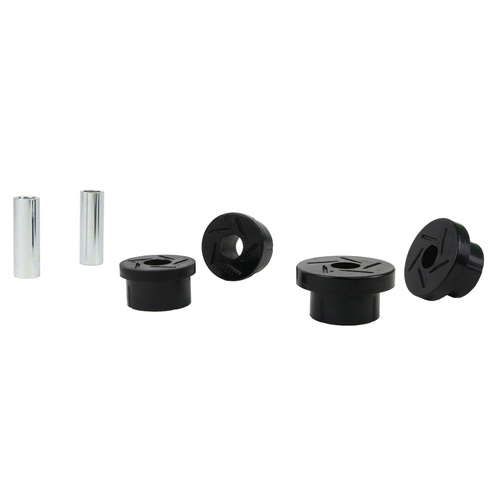

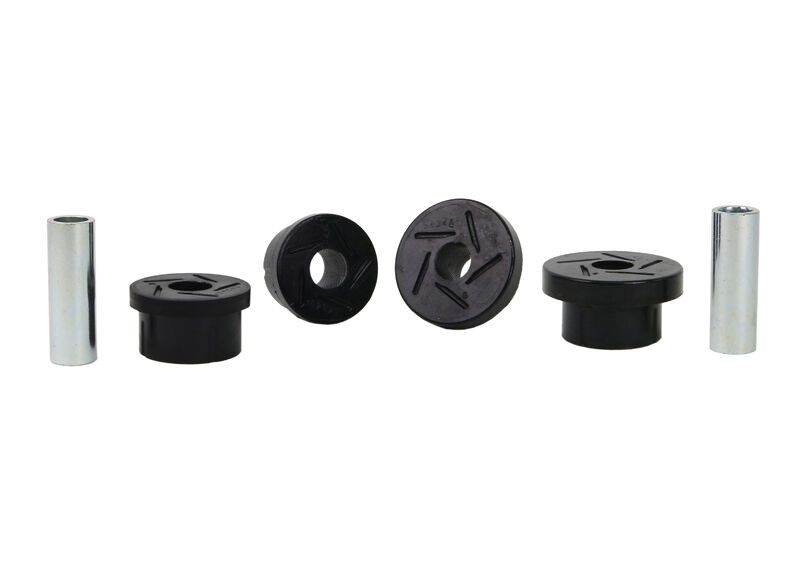

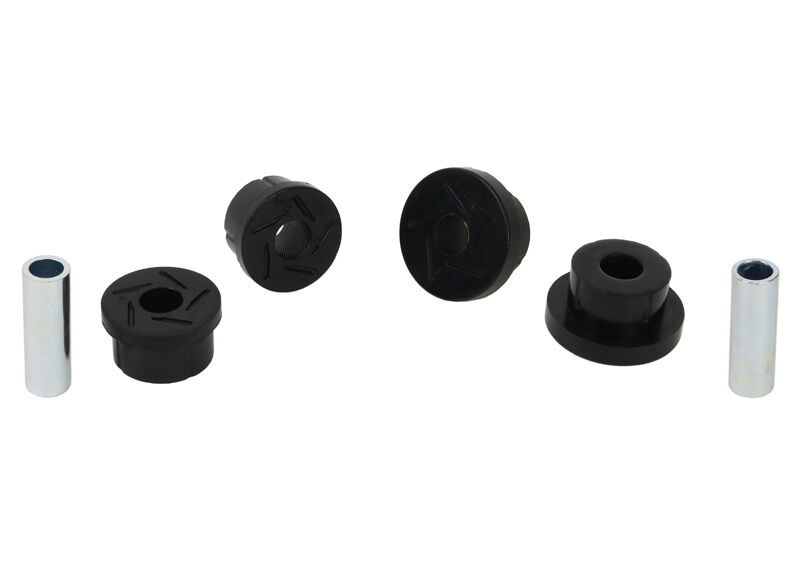

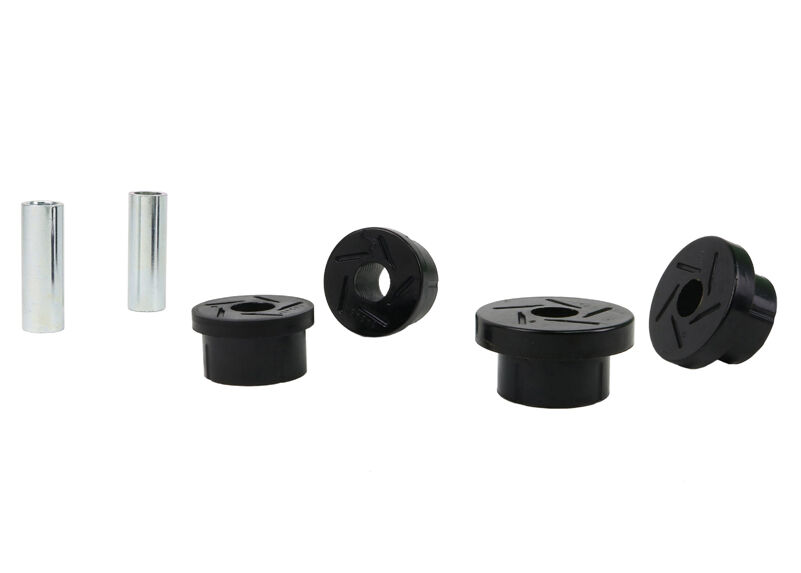

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924396351
  • Lifetime Warranty
Brand Whiteline
SKU W51231A
Unit Of Measure Kit
