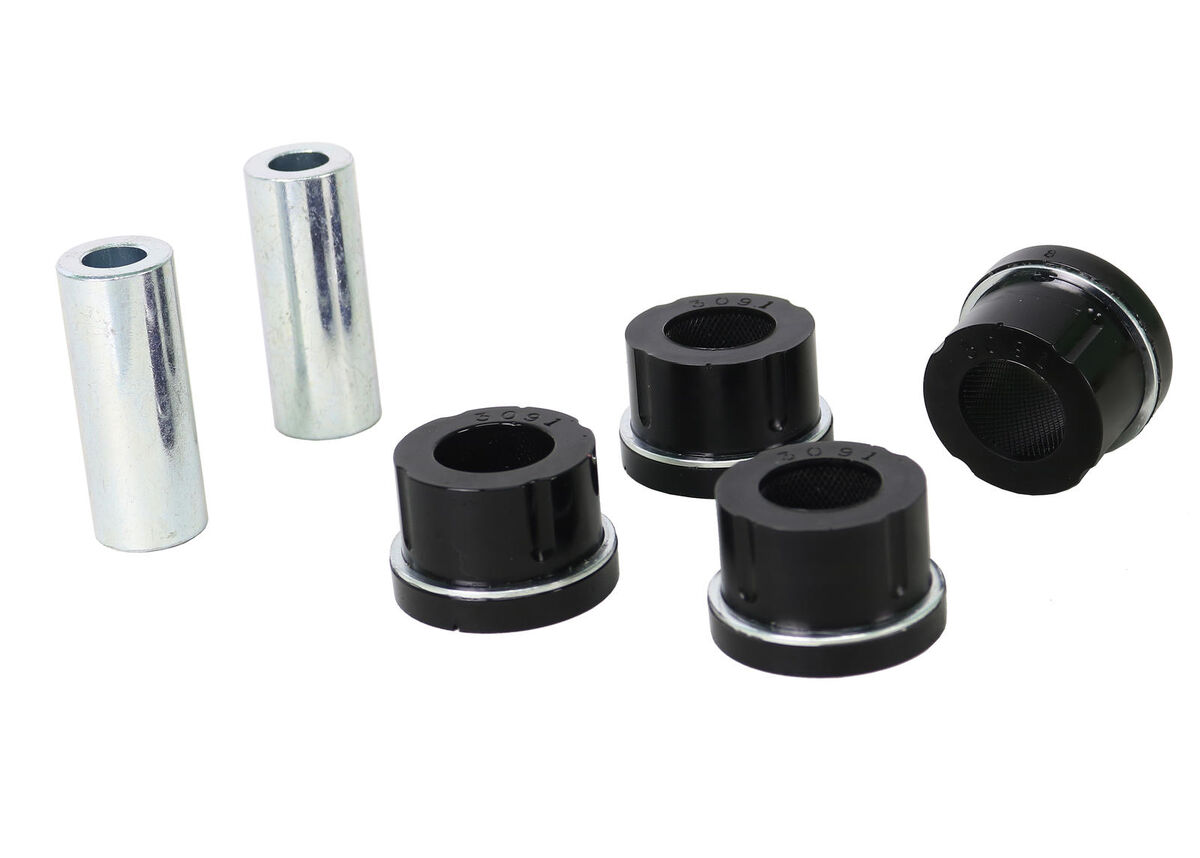

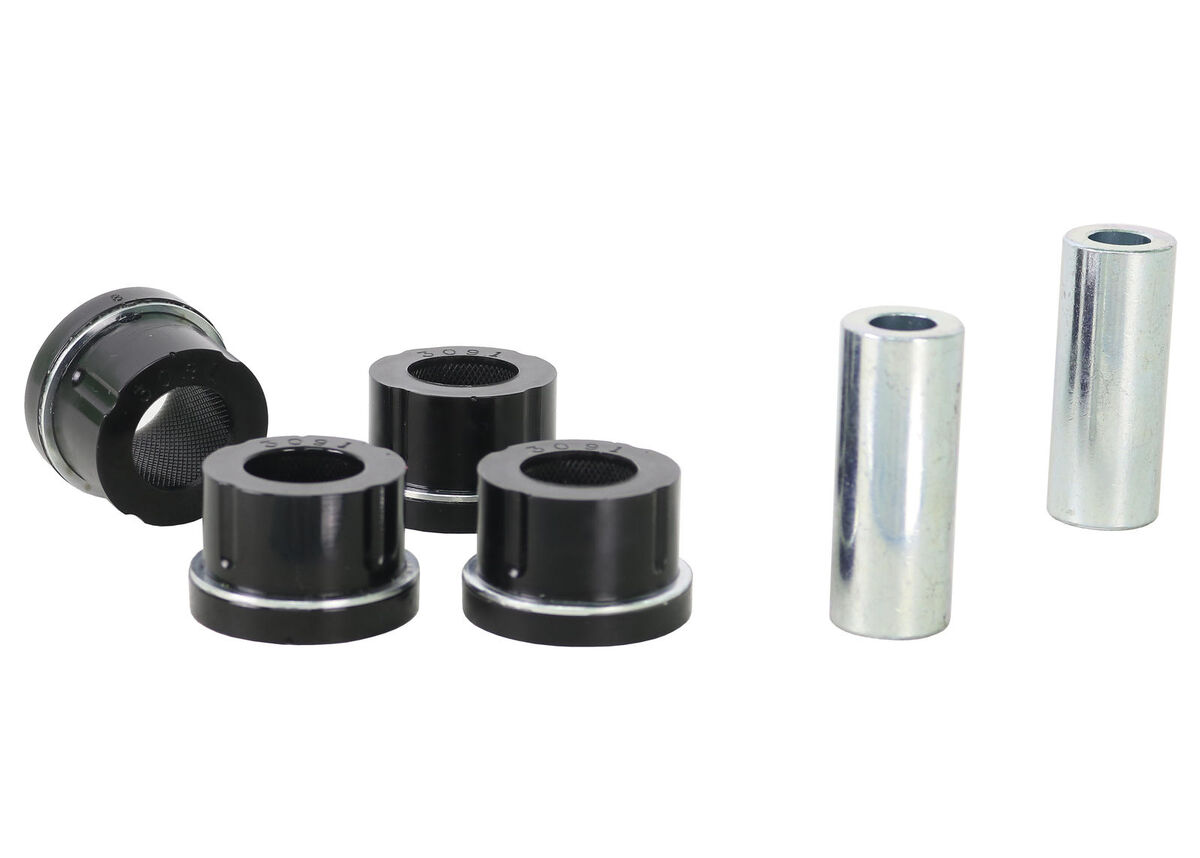

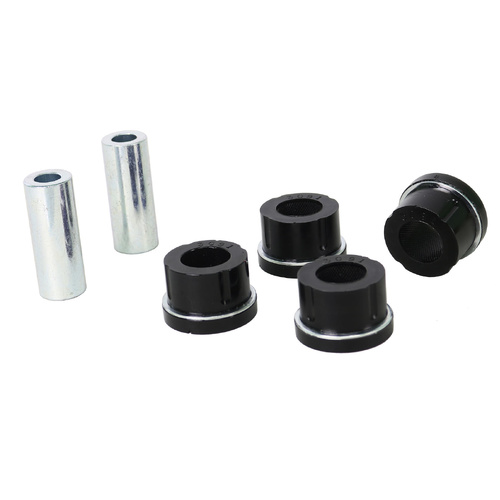

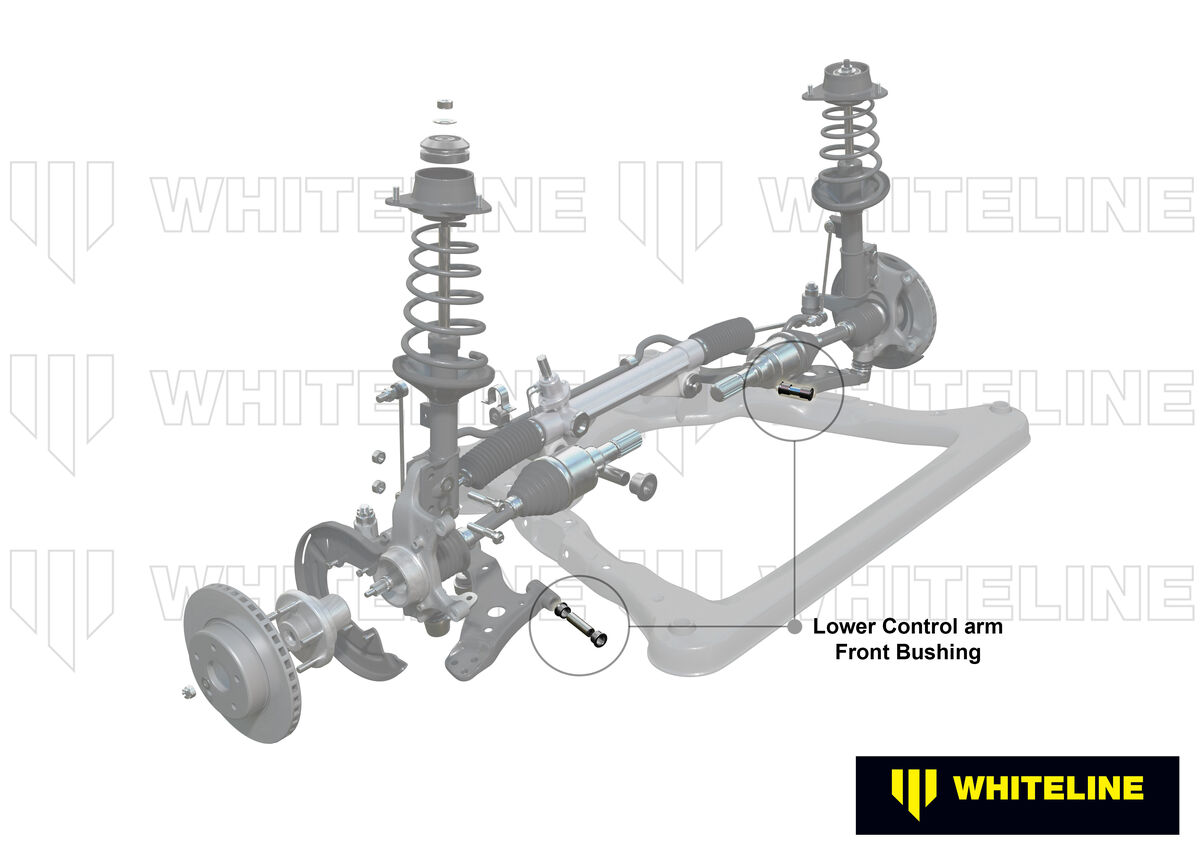

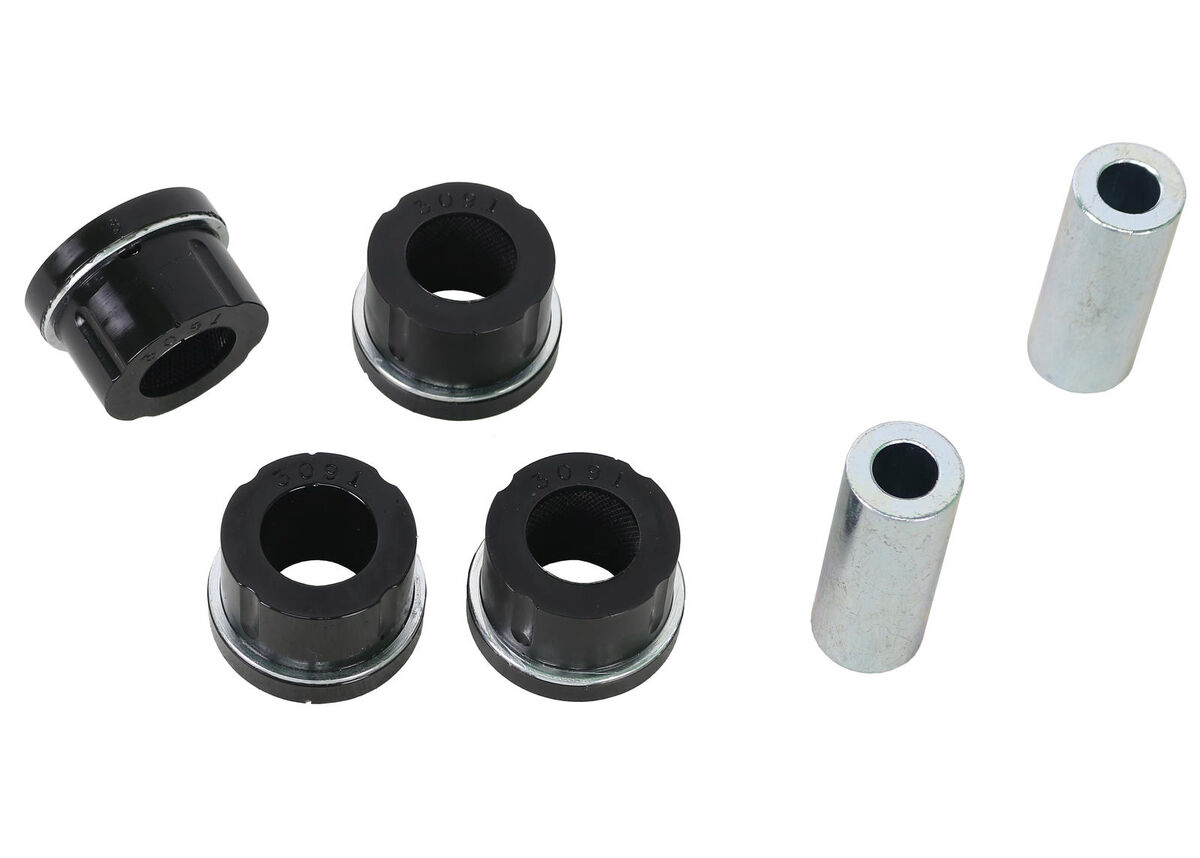

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Subaru Forester, Impreza, Liberty, Outback and XV

SKU: W0506

Benefit Note: Over compliant front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Whiteline's kit is specially designed to improve deflection rates for improved response and chassis control.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 37 mm
ID (B) 22.2 mm
Length (C) 27 mm
Flange Thickness (D) 8 mm
Flange OD (E) 42 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.3x57 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 37
ID (B) 22.2
Length (C) 27.0
FL (D) 8
FLOD (E) 42
C/Tube Qty 2
C/Tube Size 22.2x12.3x57
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.389kg0.86lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0506
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924358809
  • Lifetime Warranty
Brand Whiteline
SKU W0506
Unit Of Measure Kit
