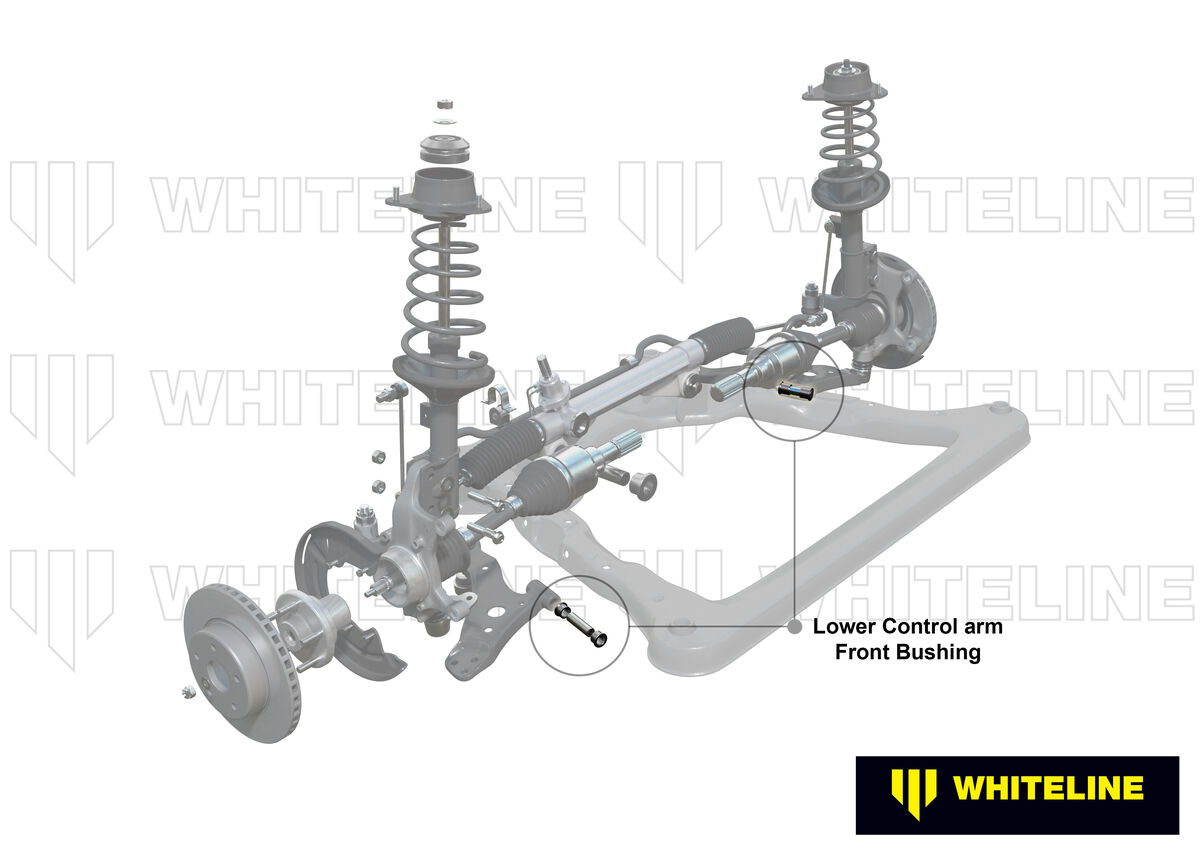

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Audi, Seat, Skoda and Volkswagen PQ35/MQB Fwd/Awd

SKU: W0503

Benefit Note: Over compliant front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Whiteline's kit is specially designed to improve deflection rates for improved response and chassis control.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 37 mm
ID (B) 26.8 mm
Length (C) 26.7 mm
Flange Thickness (D) 7.7 mm
Flange OD (E) 48 mm
C/Tube Quantity 2
C/Tube ODxIDxL 27x12.2x54 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

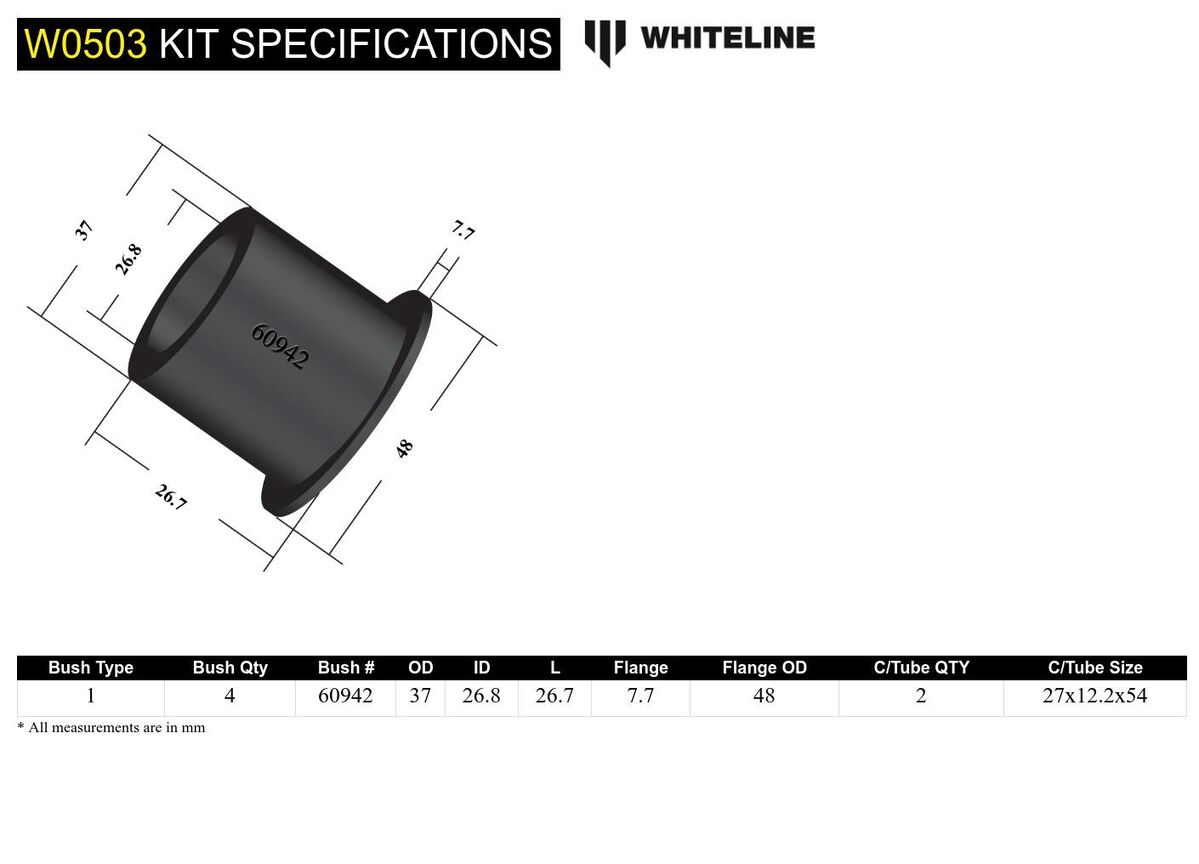

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 37
ID (B) 26.8
Length (C) 26.7
FL (D) 7.7
FLOD (E) 48
C/Tube Qty 2
C/Tube Size 27x12.2x54
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.49kg1.08lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0503

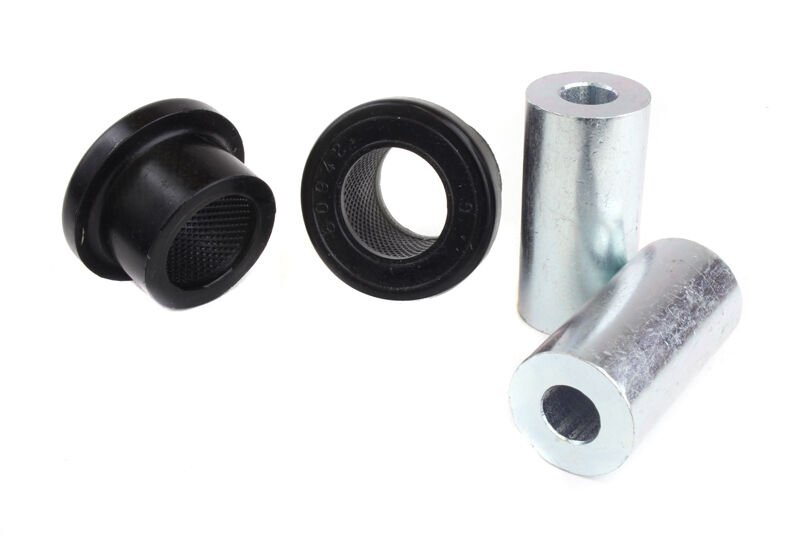

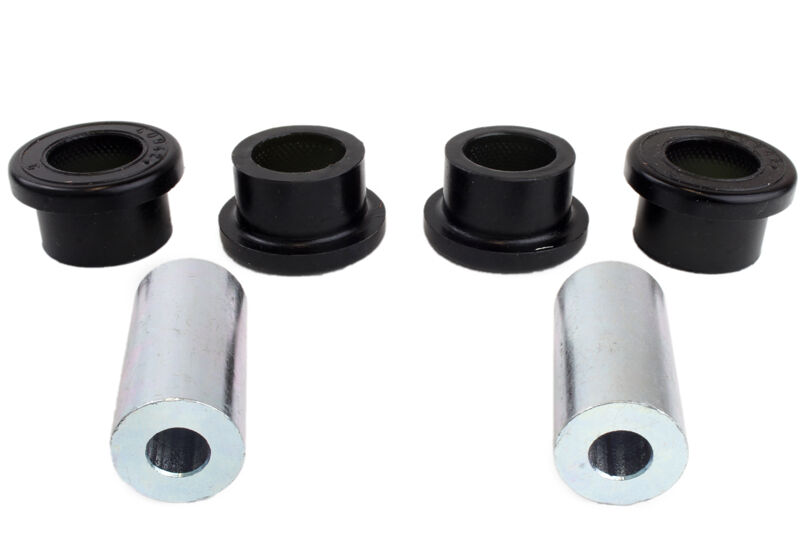

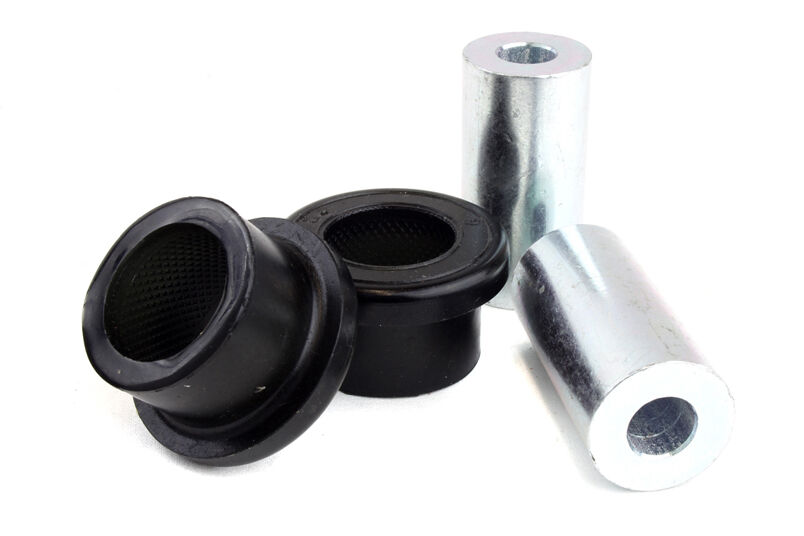

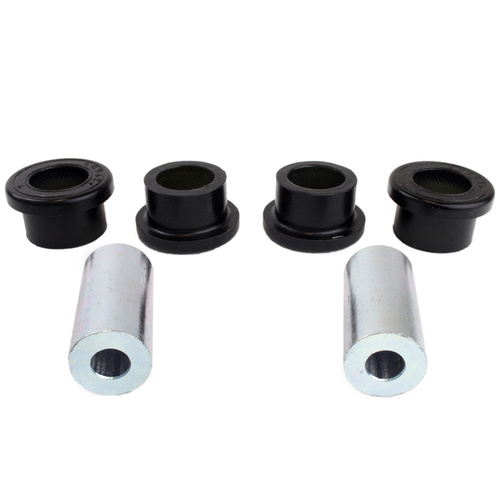

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924358748
  • Lifetime Warranty
Brand Whiteline
SKU W0503
Unit Of Measure Kit
