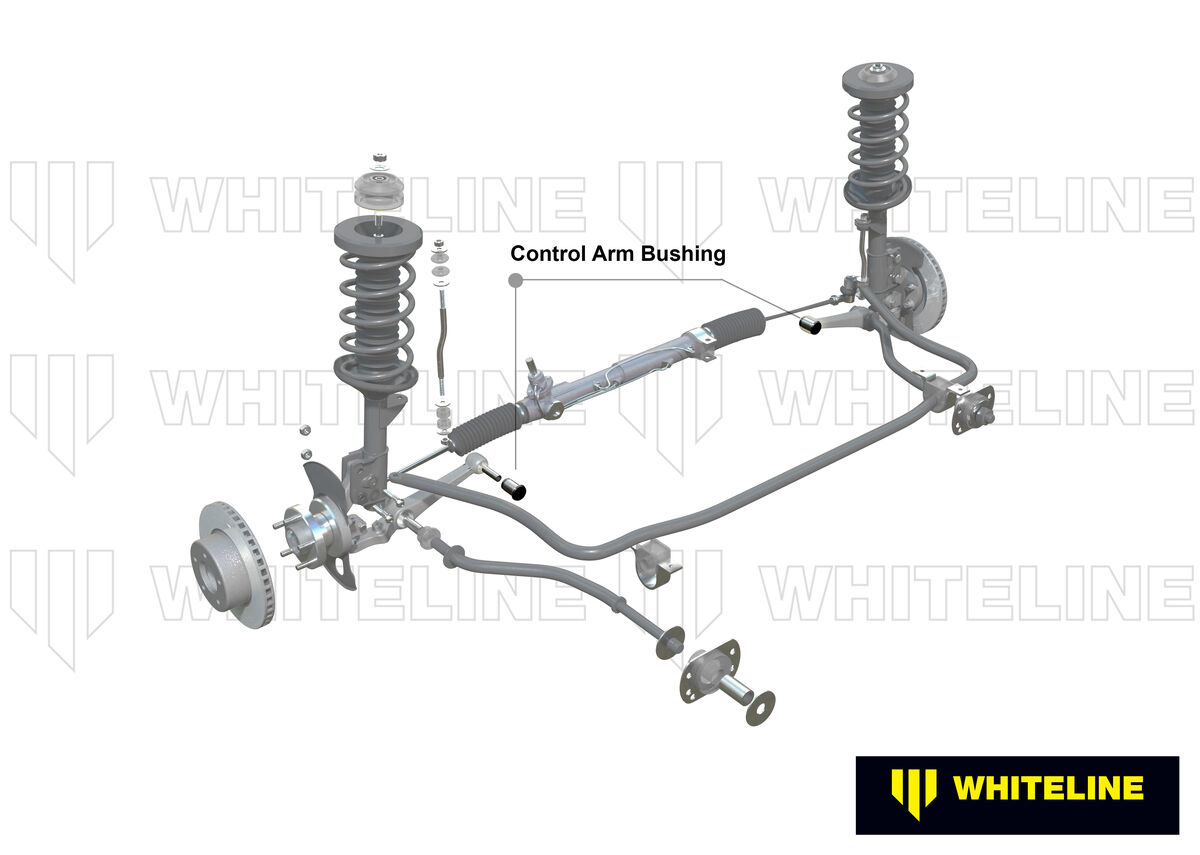

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm	2 mm
OD (A)	40.7 mm	39.7 mm	39.7 mm
ID (B)	22 mm	22 mm	22 mm
Length (C)	34 mm	25.5 mm	20 mm
Flange Thickness (D)	8 mm	13.5 mm	8 mm
Flange OD (E)	50 mm	50 mm	50 mm
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	22.2x12.2x61 mm	22.2x12.2x61 mm	22.2x12.2x61 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

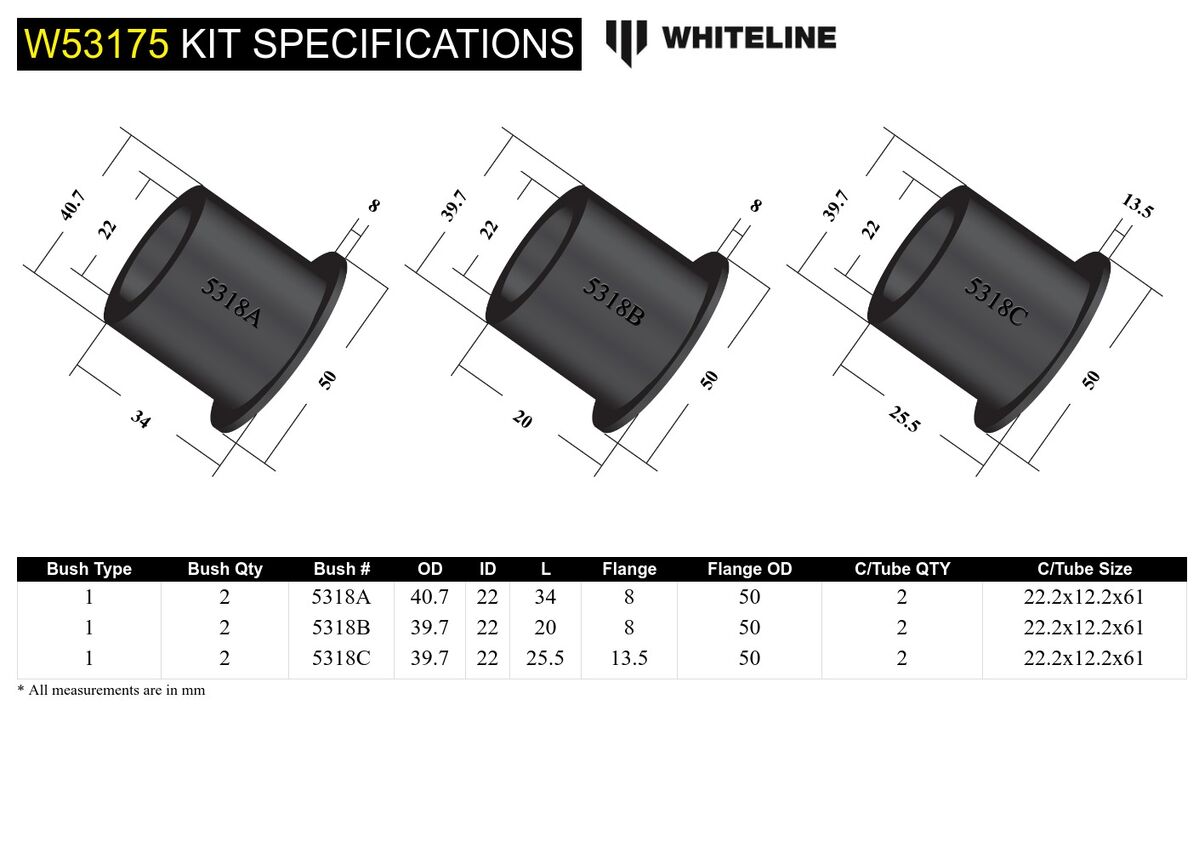

Bushing Design Dimensions (mm)

Bush Type	1	1	1
QTY	2	2	2
OD (A)	40.7	39.7	39.7
ID (B)	22	22	22
Length (C)	34.0	25.5	20.0
FL (D)	8	13.5	8
FLOD (E)	50	50	50
C/Tube Qty	2	2	2
C/Tube Size	22.2x12.2x61	22.2x12.2x61	22.2x12.2x61
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.502kg	1.11lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	W53175

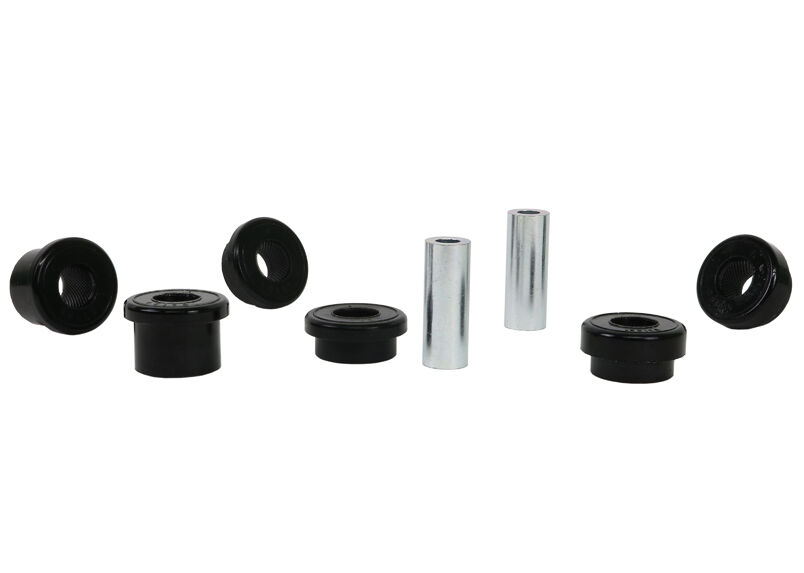

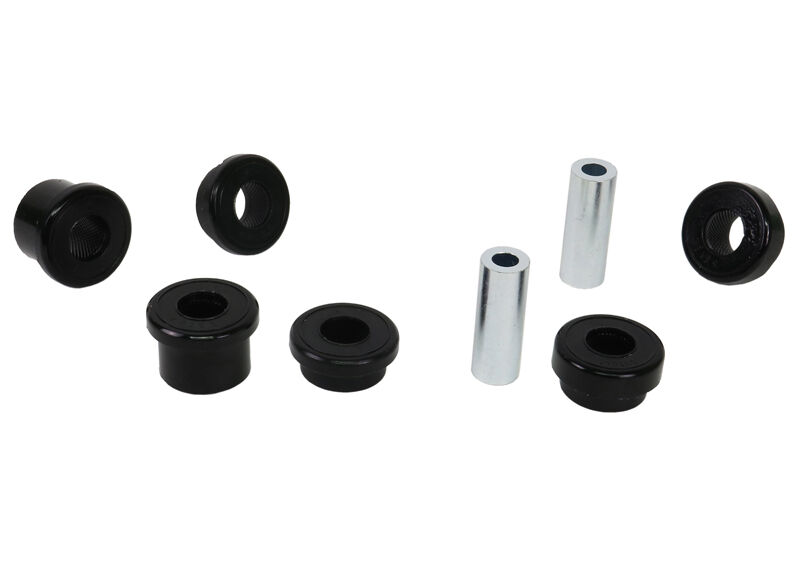

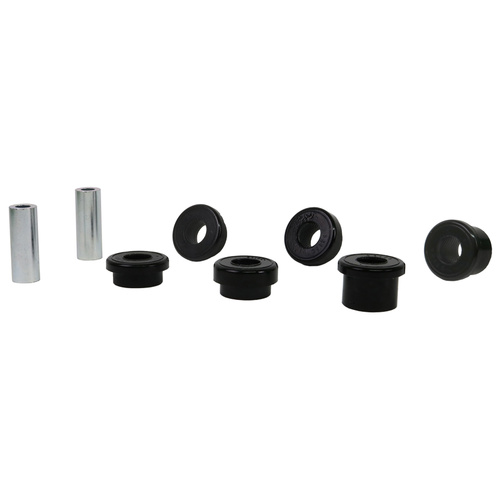

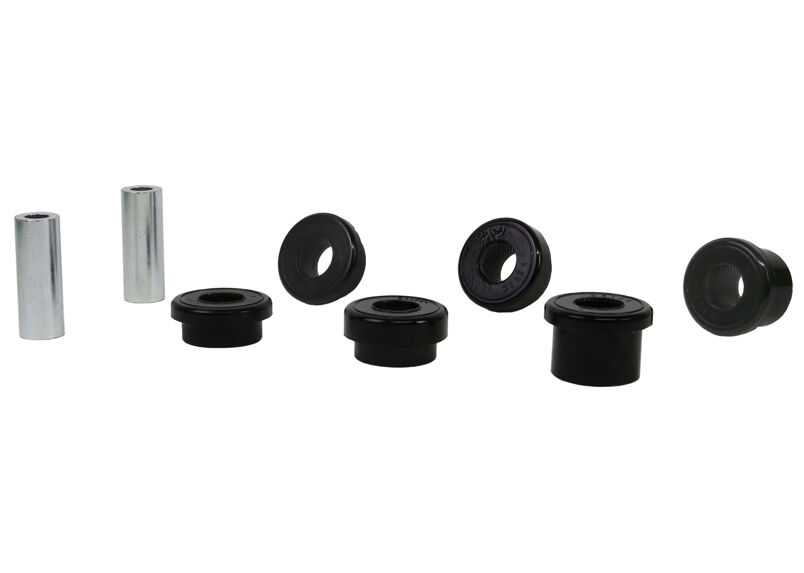

Components Per	6 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Delivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 6 Bushings, 2 Tubes
EAN	9319924353538
