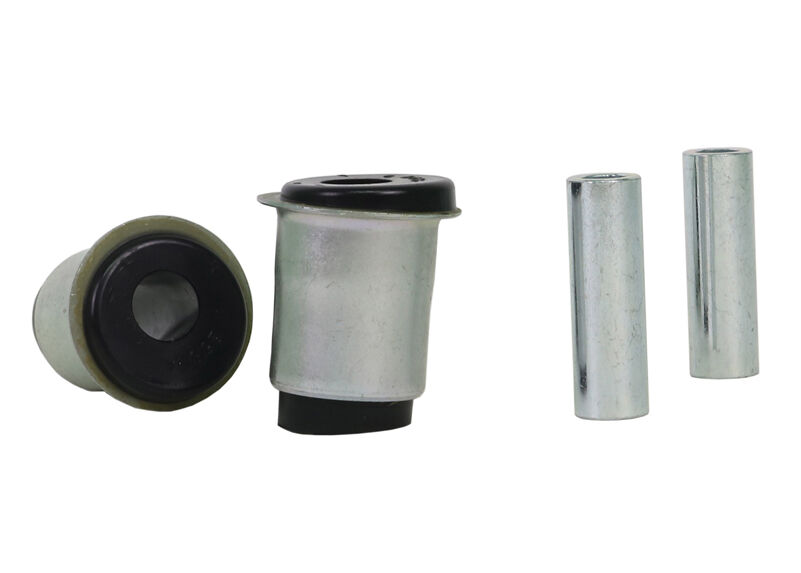

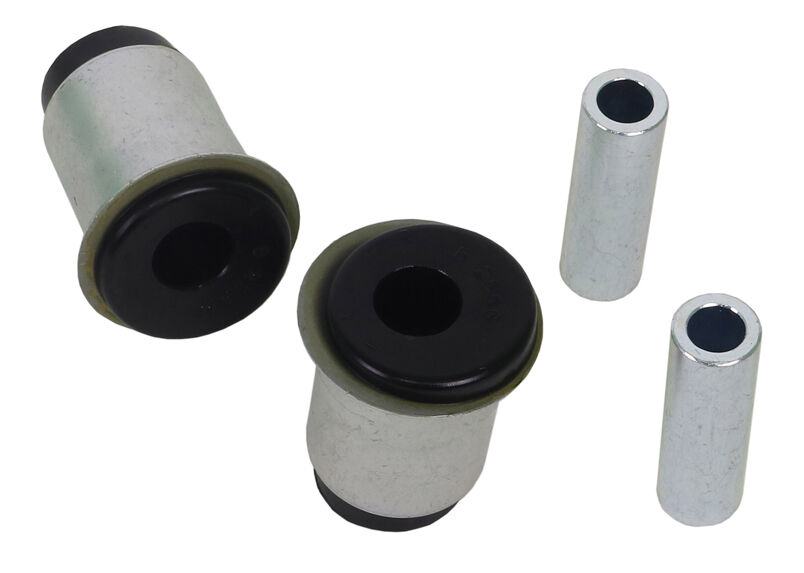

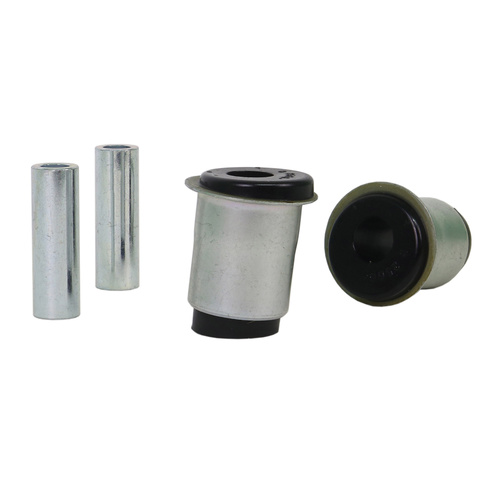

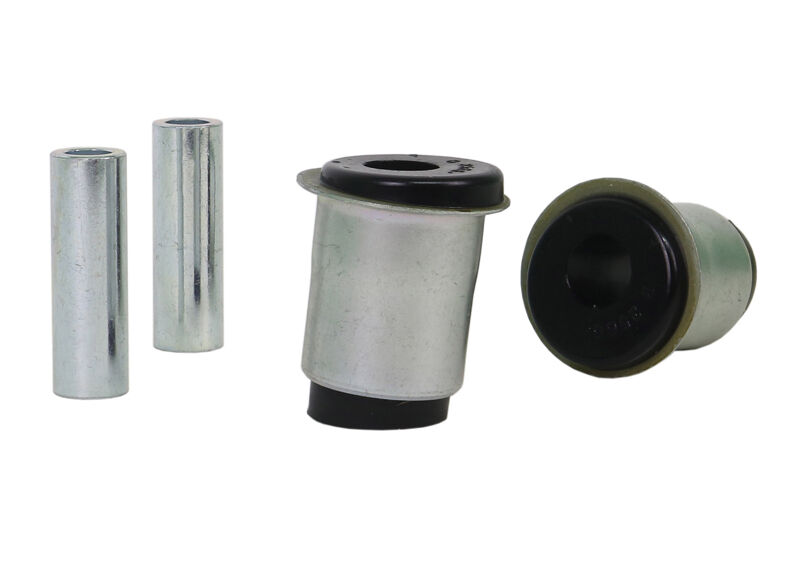

Whiteline Front Lower Control Arm - Inner Bushing Kit Double Offset to Suit Holden Commodore VR, VS and HSV

SKU: W52566

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) AI=41 AII=39.9 mm
ID (B) 18.9 mm
Length (C) 61.5 mm
Flange Thickness (D) 7.7 mm
Flange OD (E) 44 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.2x61 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric No

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) AI=41 AII=39.9
ID (B) 18.9
Length (C) 61.5
FL (D) 7.7
FLOD (E) 44
C/Tube Qty 2
C/Tube Size 19x12.2x61
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.46kg1.01lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW52566
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924353156
  • Lifetime Warranty
Brand Whiteline
SKU W52566
Unit Of Measure Kit
