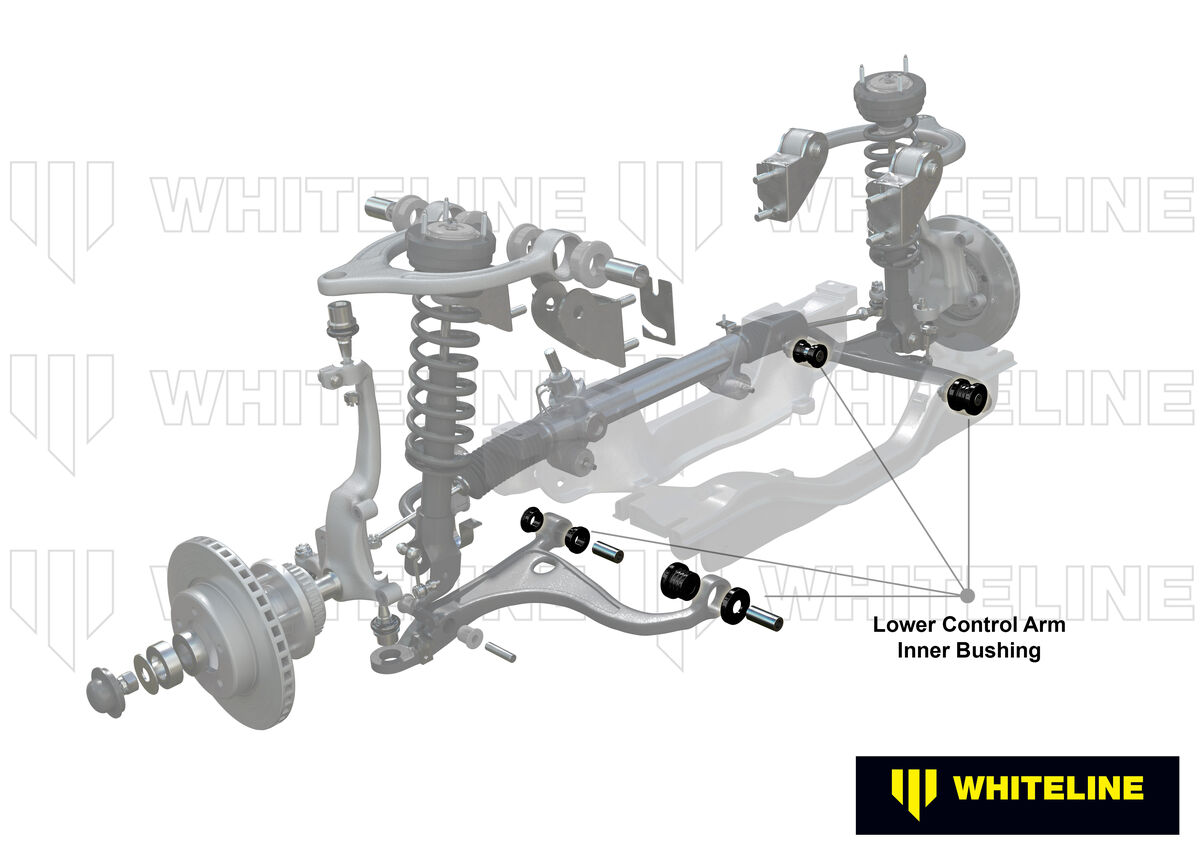

Whiteline Front Lower Control Arm - Inner Bushing Kit to Suit Toyota Supra MA70, 71

SKU: W52099

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 4 mm
OD (A) 47 mm
ID (B) 22.2 mm
Length (C) 75.5 mm
Flange Thickness (D) 8 mm
Flange OD (E) 43.8 mm
C/Tube Quantity 4
C/Tube ODxIDxL 22.2x16.2x75 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 4
OD (A) 47
ID (B) 22.2
Length (C) 75.5
FL (D) 8
FLOD (E) 43.8
C/Tube Qty 4
C/Tube Size 22.2x16.2x75
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.21kg2.67lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW52099
Components Per4 Shell Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes
EAN9319924352814
  • Lifetime Warranty
Brand Whiteline
SKU W52099
Unit Of Measure Kit
