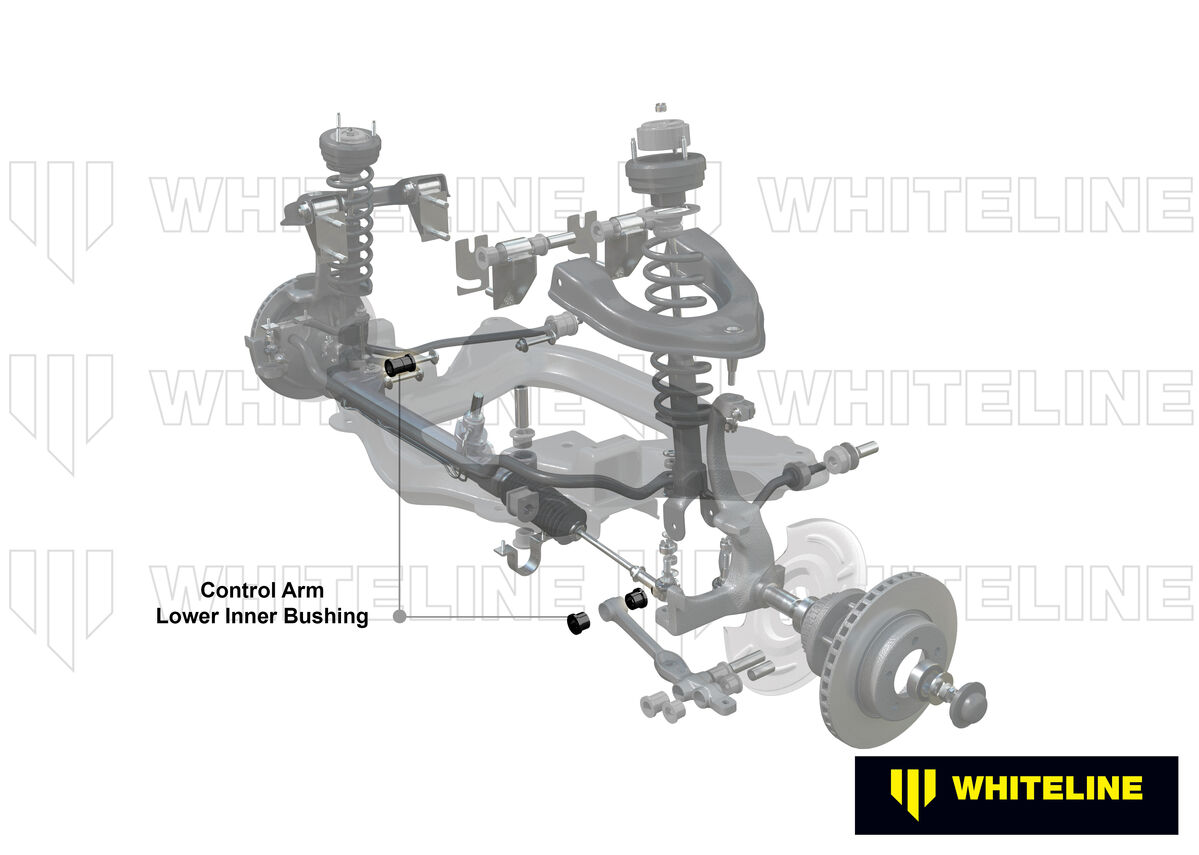

Whiteline Front Lower Control Arm - Inner Bushing Kit to Suit Ford Falcon/Fairlane EF-EL

SKU: W51304A

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

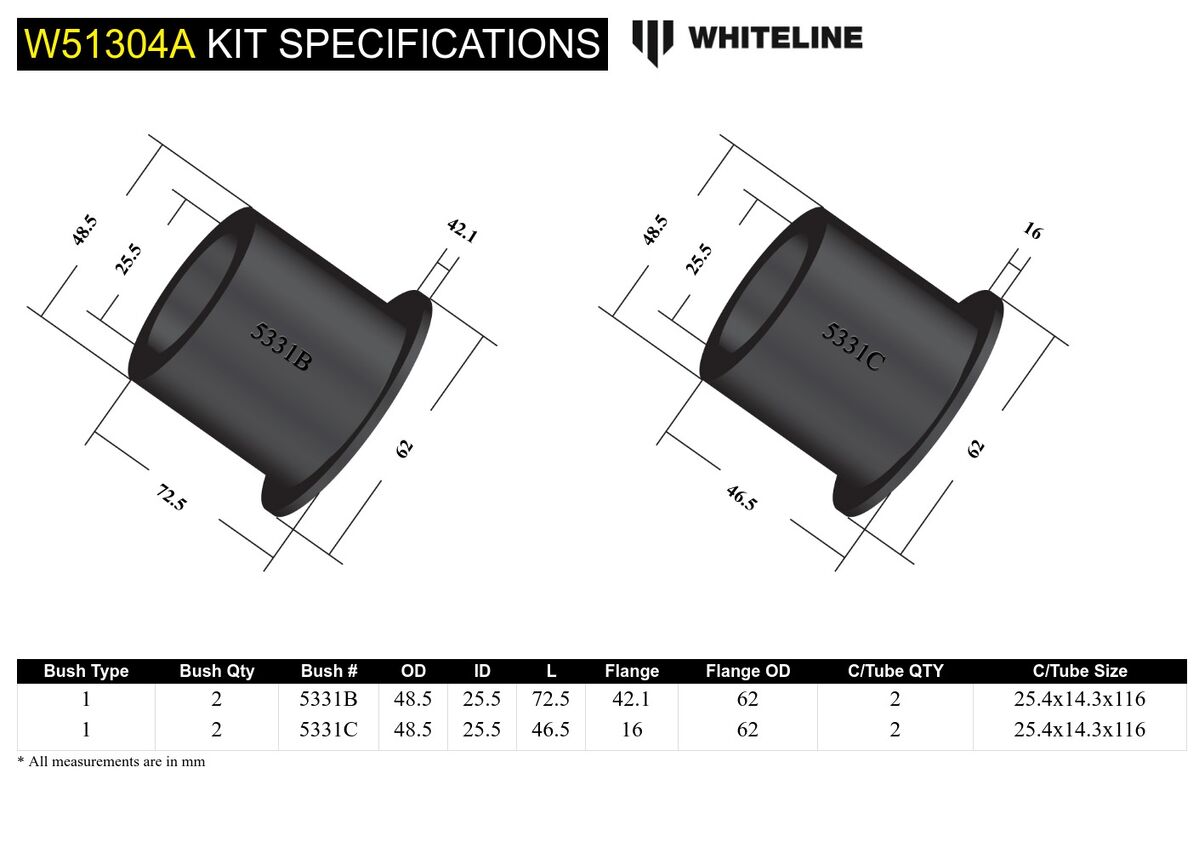

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 48.5 mm 48.5 mm
ID (B) 25.5 mm 25.5 mm
Length (C) 72.5 mm 46.5 mm
Flange Thickness (D) 42.1 mm 16 mm
Flange OD (E) 62 mm 62 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x14.3x116 mm 25.4x14.3x116 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 48.5 48.5
ID (B) 25.5 25.5
Length (C) 72.5 46.5
FL (D) 42.1 16
FLOD (E) 62 62
C/Tube Qty 2 2
C/Tube Size 25.4x14.3x116 25.4x14.3x116
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.18kg2.6lbs
Length35cm13.78"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW51304A

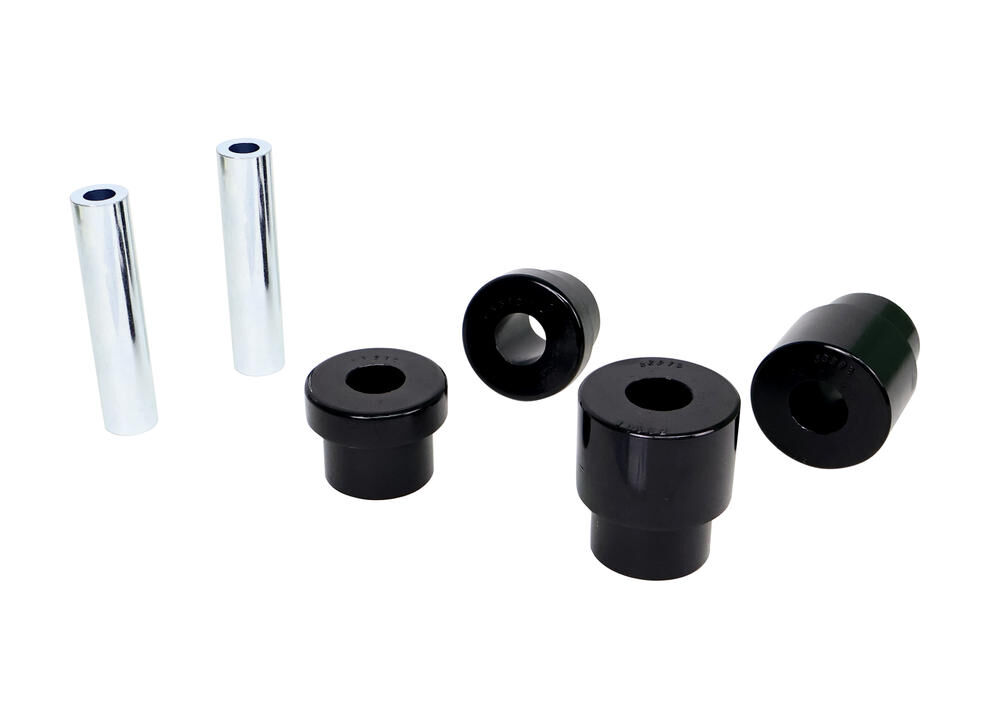

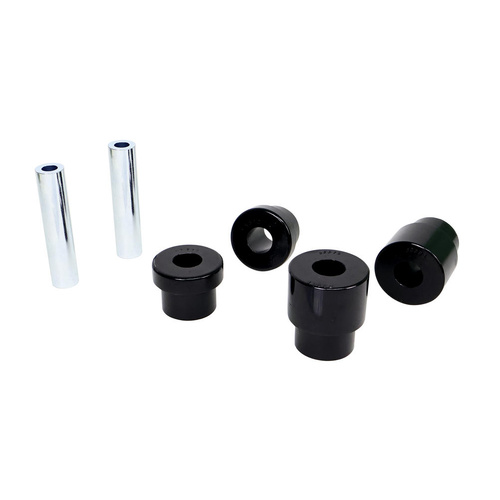

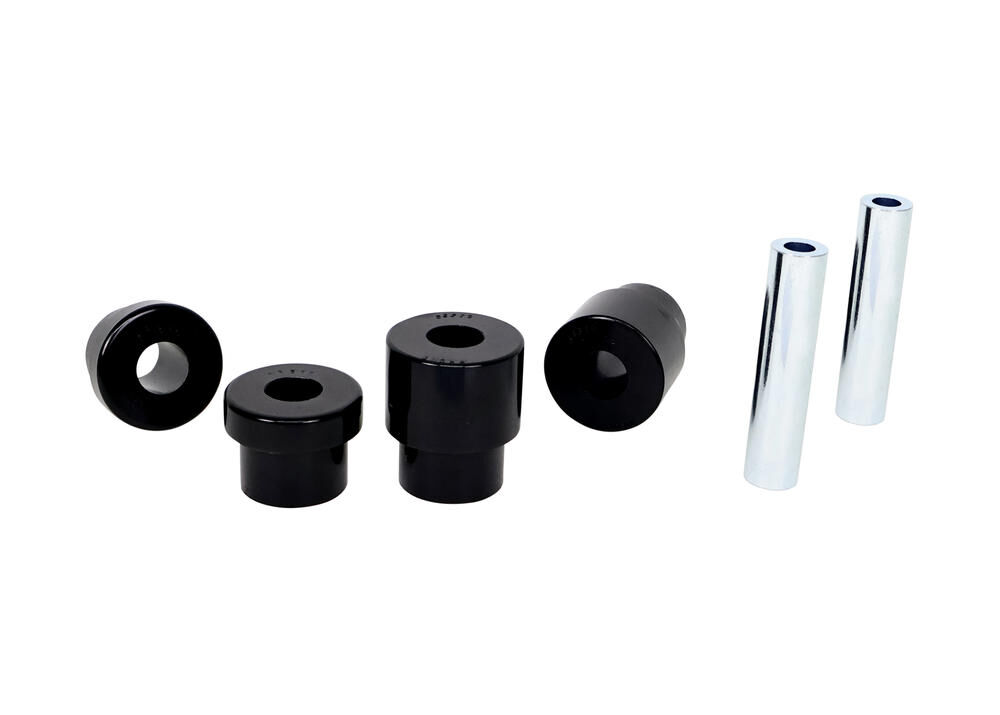

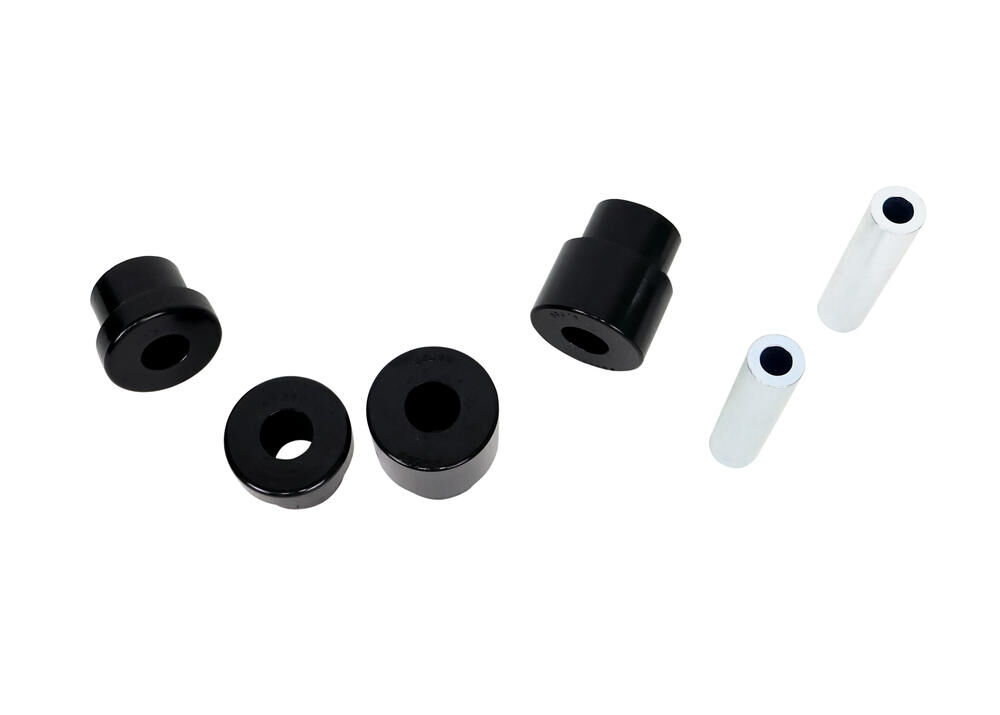

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924396375
  • Lifetime Warranty
Brand Whiteline
SKU W51304A
Unit Of Measure Kit
