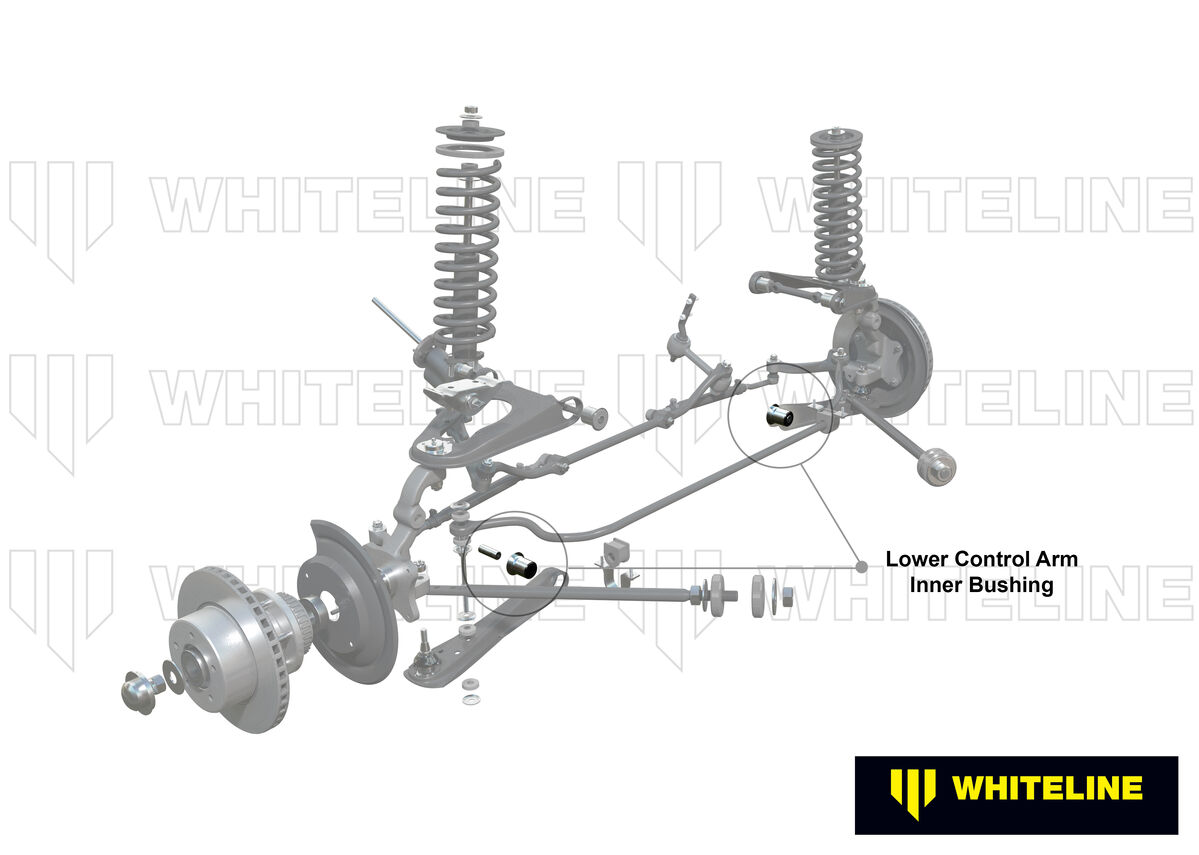

Whiteline Front Lower Control Arm - Inner Bushing Kit to Suit Ford Falcon/Fairlane XD-XF

SKU: W51016L

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) AI=37 AII=36.4 mm
ID (B) 19 mm
Length (C) 47 mm
Flange Thickness (D) 8.4 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 19x14.3x53 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) AI=37 AII=36.4
ID (B) 19
Length (C) 47.0
FL (D) 8.4
FLOD (E)
C/Tube Qty 2
C/Tube Size 19x14.3x53
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.374kg0.82lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW51016L

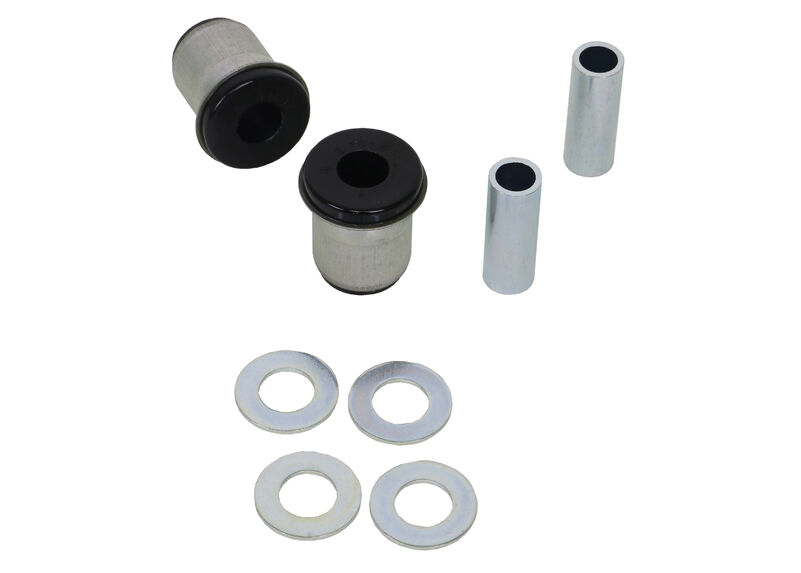

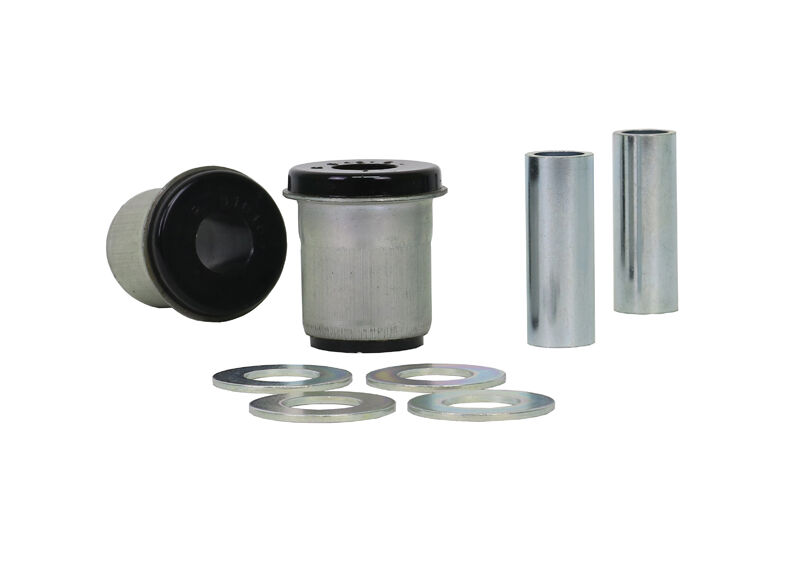

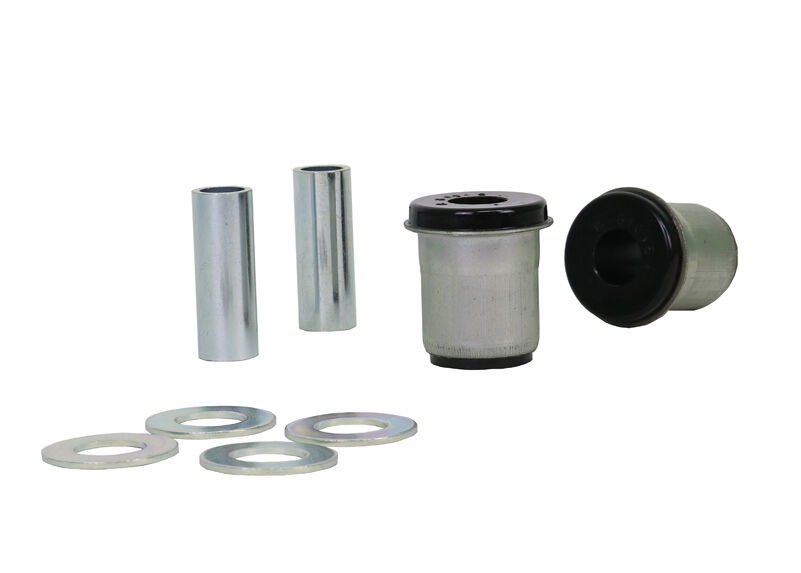

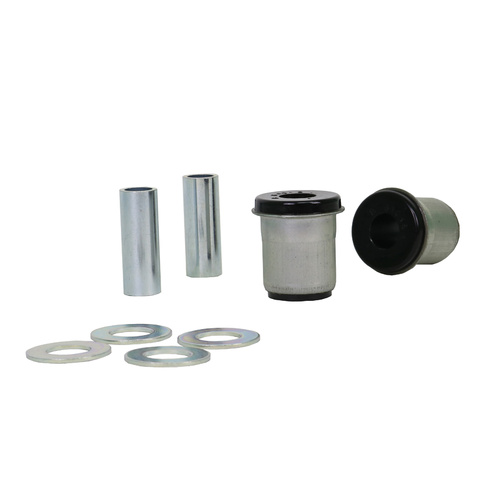

Components Per2 Shell Bushings, 2 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 4 Washers
EAN9319924351503
  • Lifetime Warranty
Brand Whiteline
SKU W51016L
Unit Of Measure Kit
