Whiteline Front Lower Control Arm - Inner Bushing Kit-Double Offset to Suit Honda Civic and Integra

SKU: KCA547

Benefit Note: Whiteline camber and caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing 16 - Shell Without Flange Bushing
Bush Quantity 2 mm 2 mm 2 mm
OD (A) 42 mm 42 mm 65 mm
ID (B) 30.8 mm 30.8 mm 14.3 mm
Length (C) 25 mm 30 mm 63 mm
Flange Thickness (D) 4 mm 9 mm 15.5 mm
Flange OD (E) 50 mm 50 mm
C/Tube Quantity 2 2 2
C/Tube ODxIDxL 31x14.3x50 mm 31x14.3x50 mm 31x14.3x50 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber / Caster Eccentric Yes
Camber / Caster Eccentric Yes
Camber / Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 1 1 16
QTY 2 2 2
OD (A) 42 42 65
ID (B) 30.8 30.8 14.3
Length (C) 25.0 30.0 63.0
FL (D) 4 9 15.5
FLOD (E) 50 50
C/Tube Qty 2 2 2
C/Tube Size 31x14.3x50 31x14.3x50 31x14.3x50
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.869kg4.12lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA547

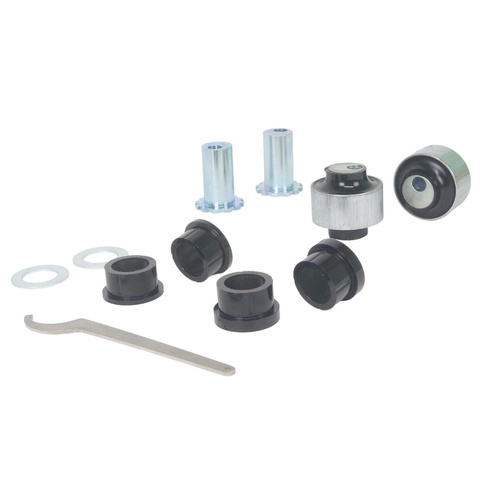

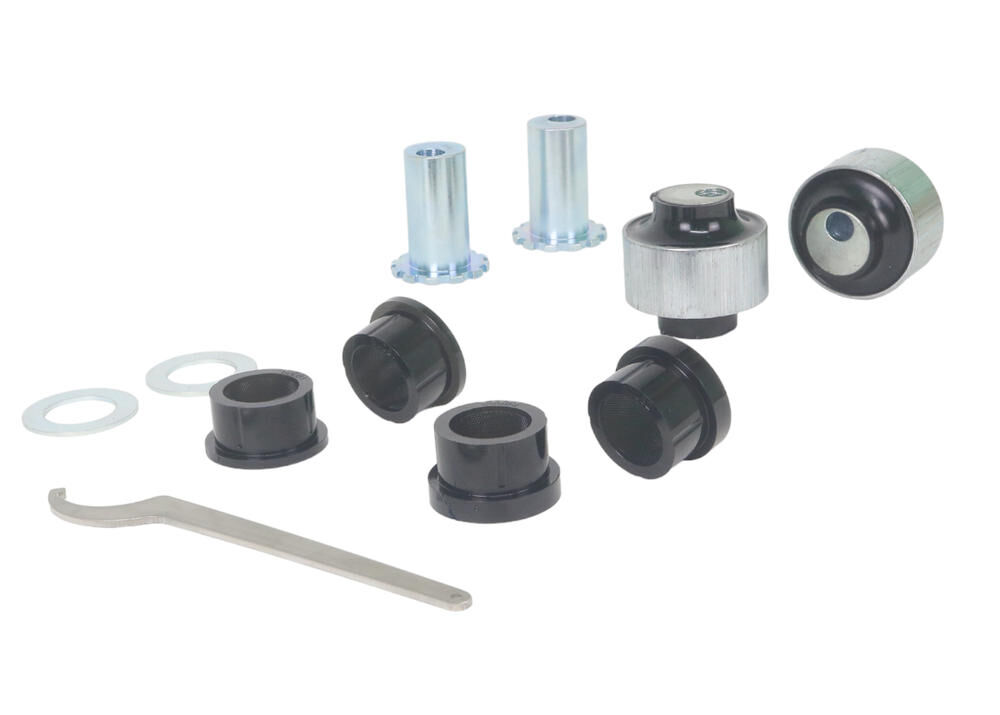

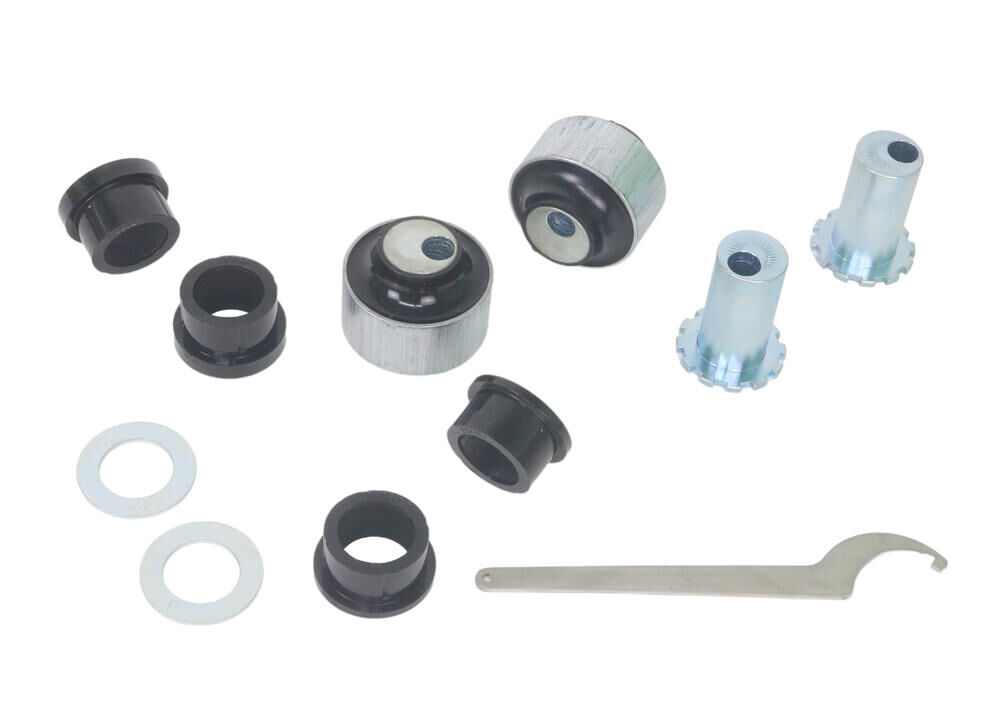

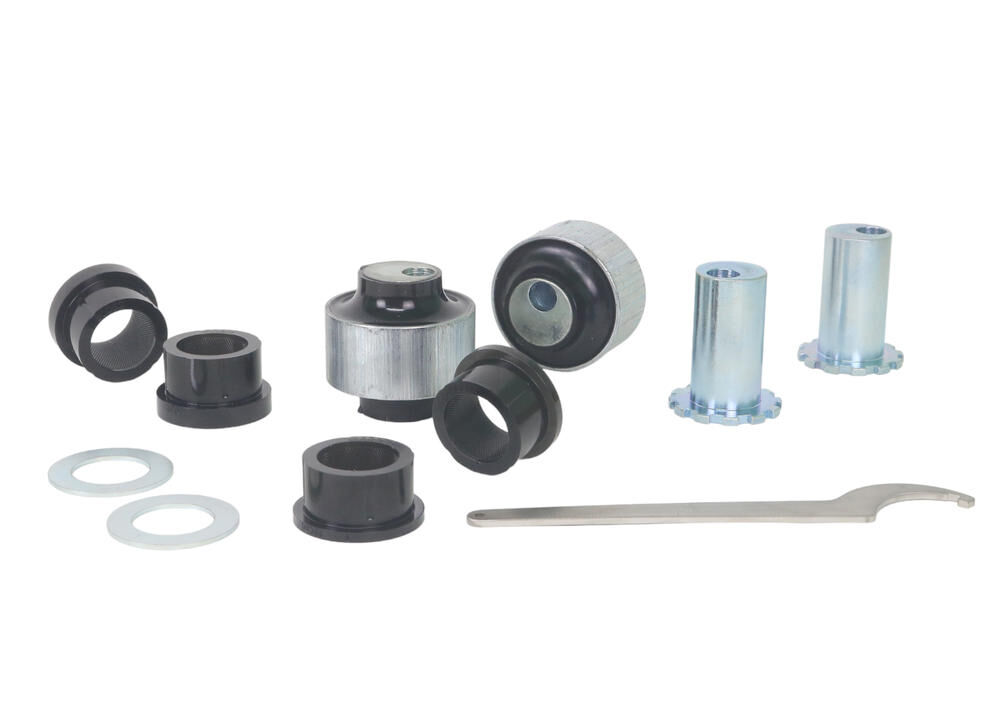

Components Per2 Shell Bushings, 4 Bushings, 2 Tubes, 2 Washers, 1 Spanner
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes, 2 Washers, 1 Spanner
EAN9319924476268
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA547
Unit Of Measure Kit
