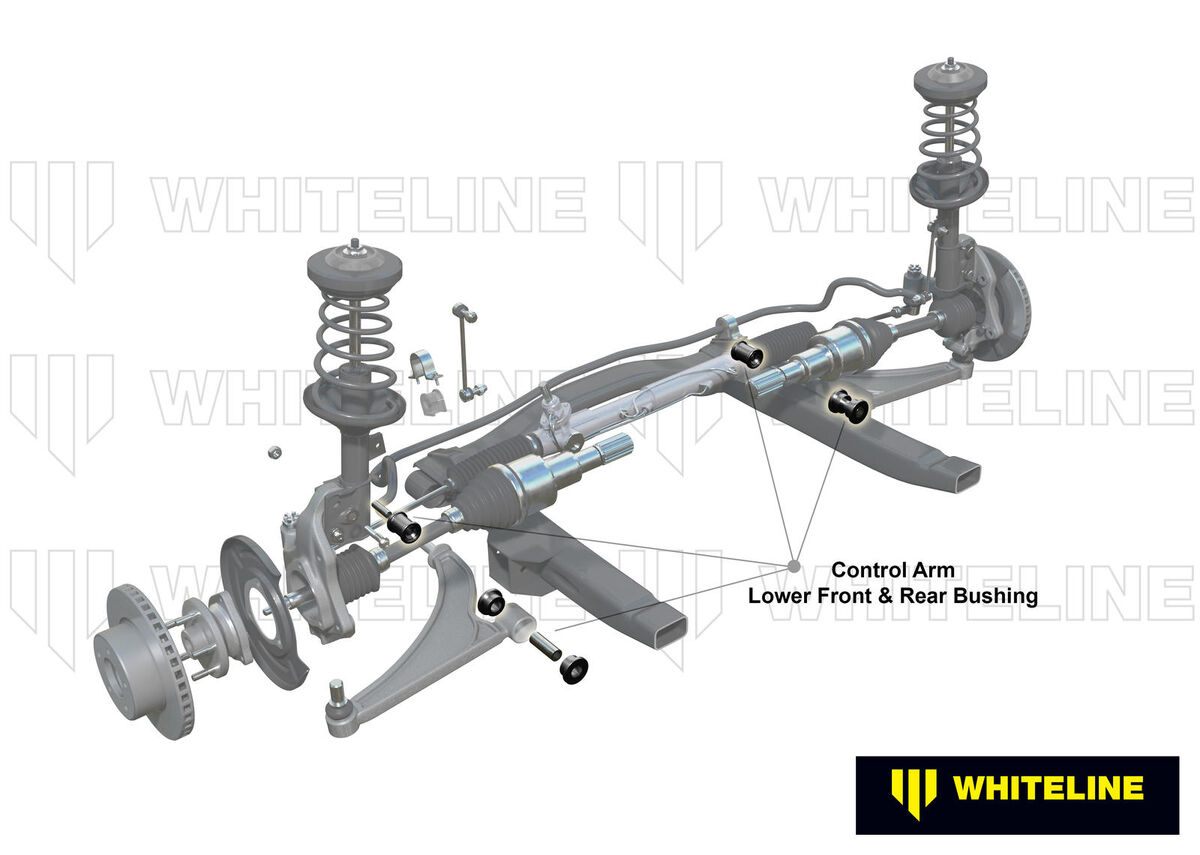

Whiteline Front Lower Control Arm - Inner Bushing Kit Double Offset to Suit Holden Barina and Suzuki Baleno, Swift

SKU: KCA302

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

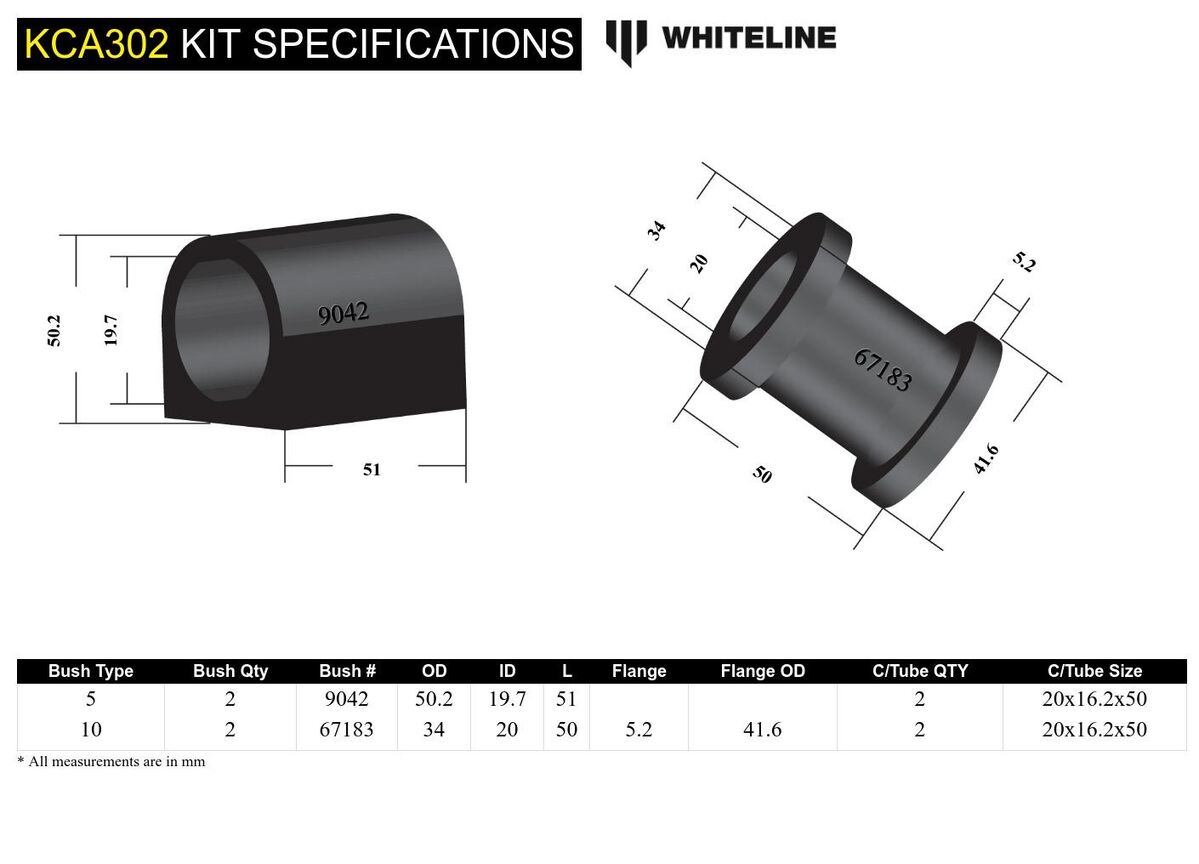

Kit Specifications

Bush Type 5 - D-bushing Without Flange 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm 2 mm
OD (A) 50.2 mm 34 mm
ID (B) 19.7 mm 20 mm
Length (C) 51 mm 50 mm
Flange Thickness (D) 5.2 mm
Flange OD (E) 41.6 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 20x16.2x50 mm 20x16.2x50 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 5 - D-bushing Without Flange
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 5 10
QTY 2 2
OD (A) 50.2 34
ID (B) 19.7 20
Length (C) 51.0 50.0
FL (D) 5.2
FLOD (E) 41.6
C/Tube Qty 2 2
C/Tube Size 20x16.2x50 20x16.2x50
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 5
Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.48kg1.06lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA302

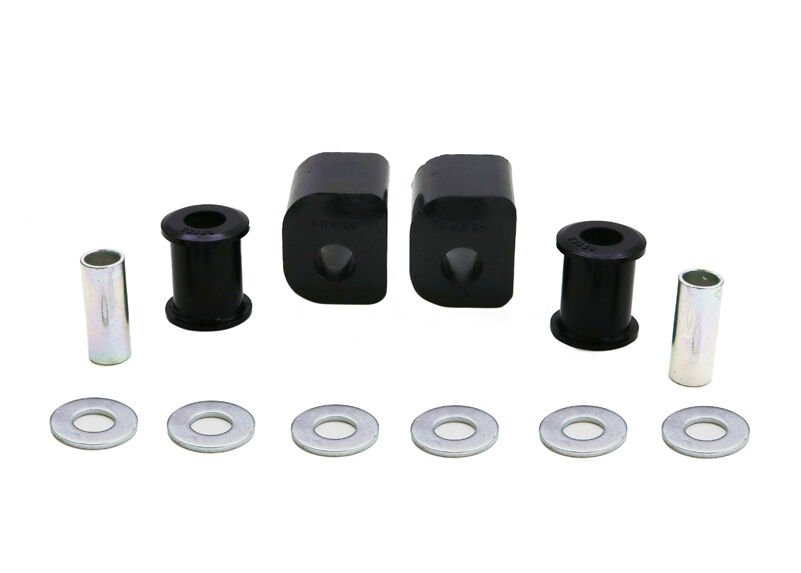

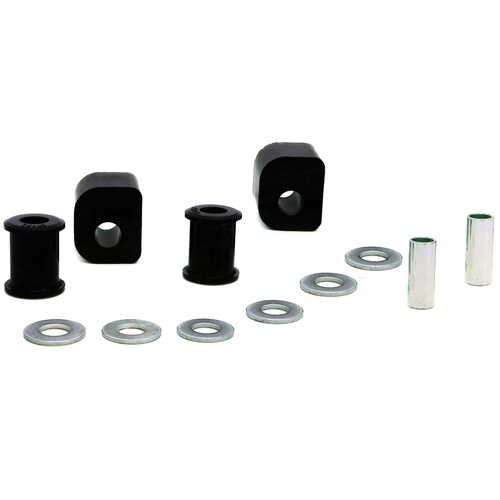

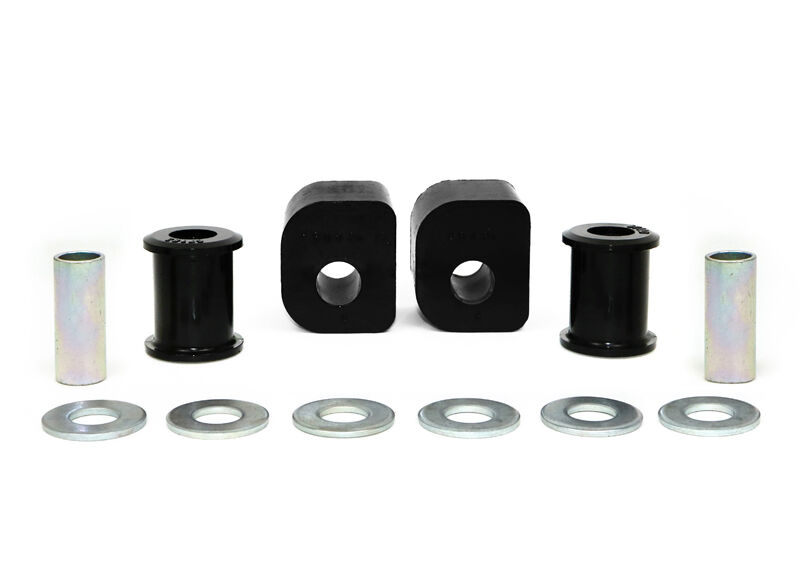

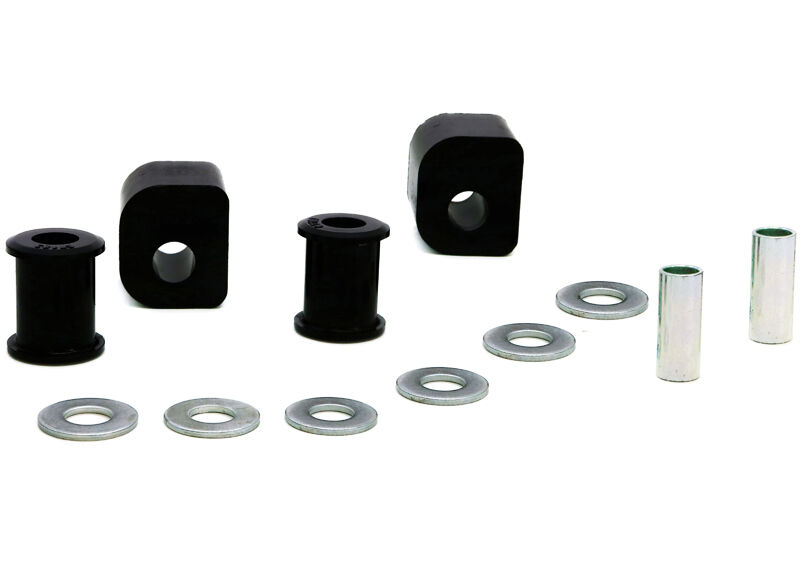

Components Per4 Bushings, 2 Tubes, 6 Washers
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes, 6 Washers
EAN9319924044832
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA302
Unit Of Measure Kit
