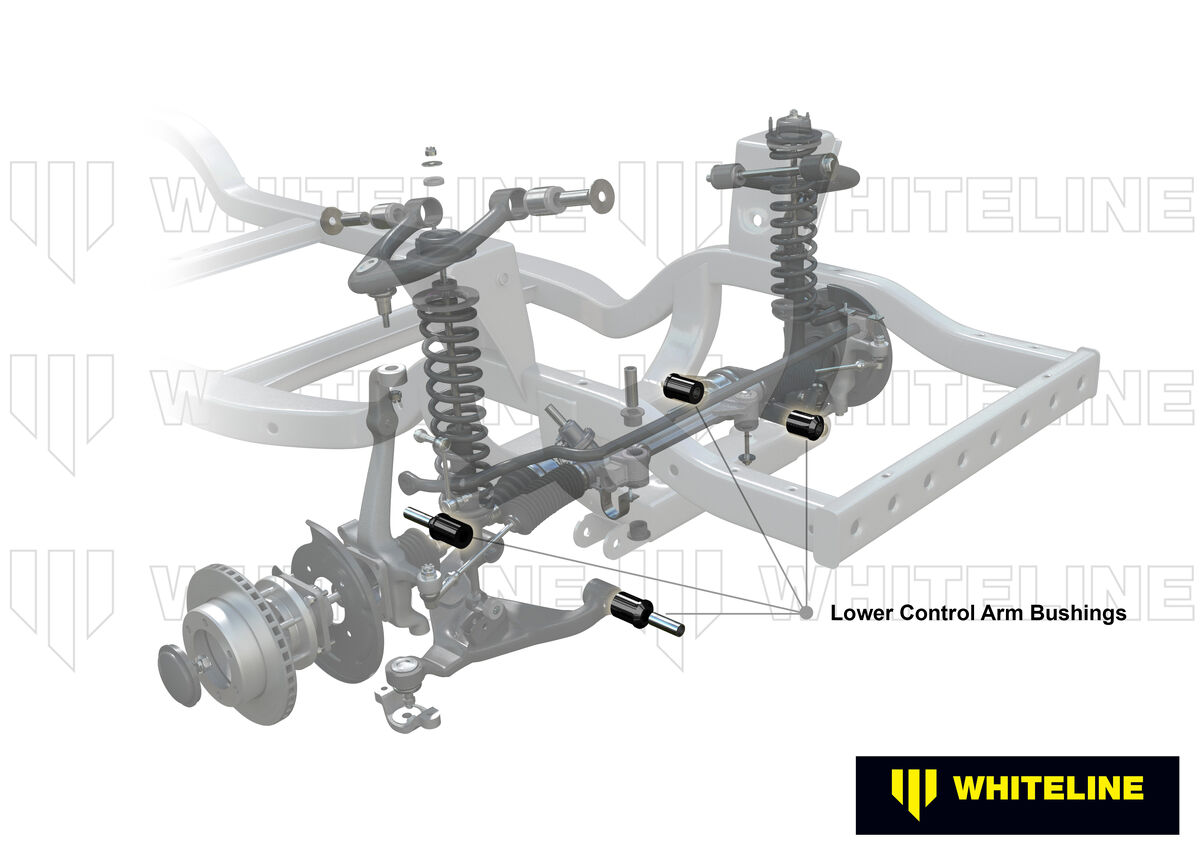

Whiteline Front Lower Control Arm - Bushing Kit to Suit Toyota HiLux 2015-on and Fortuner GUN156 4wd

SKU: W53655

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 56.1 mm 48.1 mm
ID (B) 25.3 mm 25.3 mm
Length (C) 83.5 mm 65.6 mm
Flange Thickness (D) 12.8 mm 10.8 mm
Flange OD (E) 66.5 mm 56 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 25.4x16.2x65 / 25.4x16.2x83 mm 25.4x16.2x65 / 25.4x16.2x83 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 56.1 48.1
ID (B) 25.3 25.3
Length (C) 83.5 65.6
FL (D) 12.8 10.8
FLOD (E) 66.5 56
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 25.4x16.2x65 / 25.4x16.2x83 25.4x16.2x65 / 25.4x16.2x83
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.7kg3.75lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53655

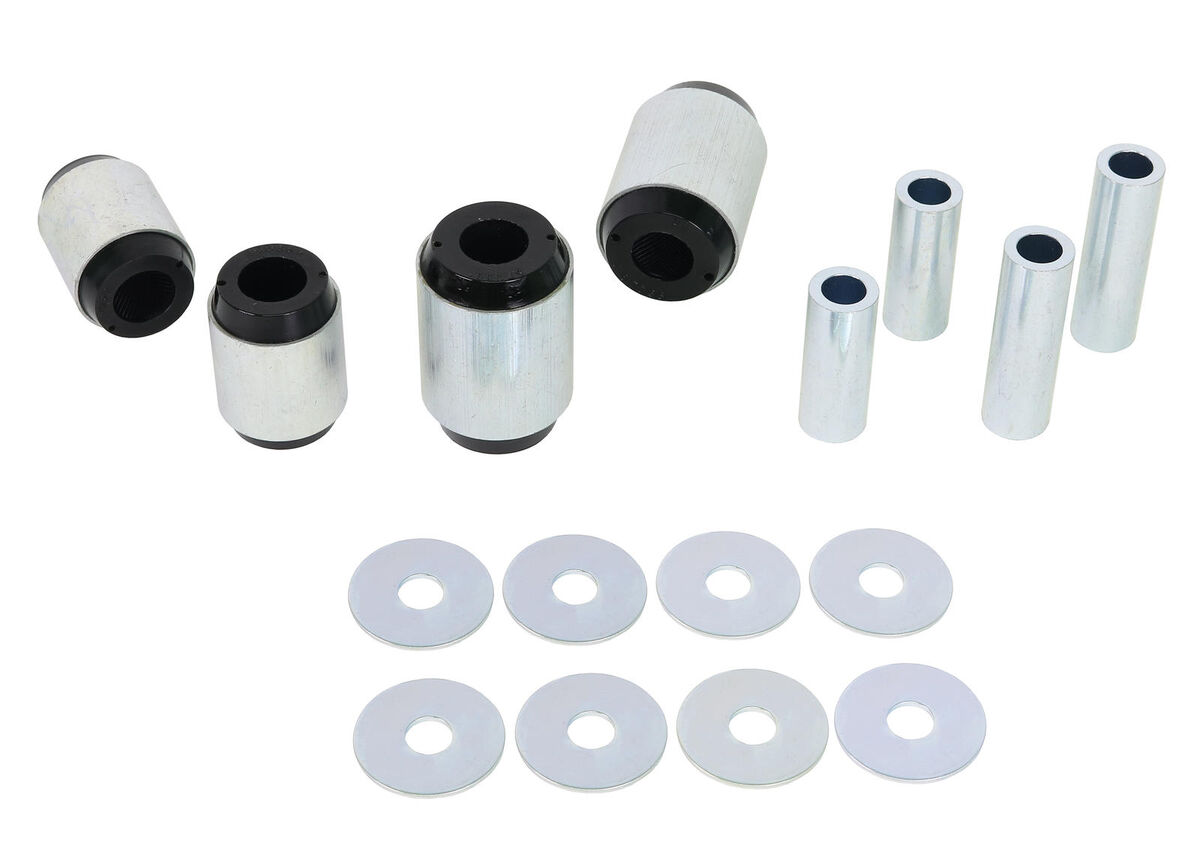

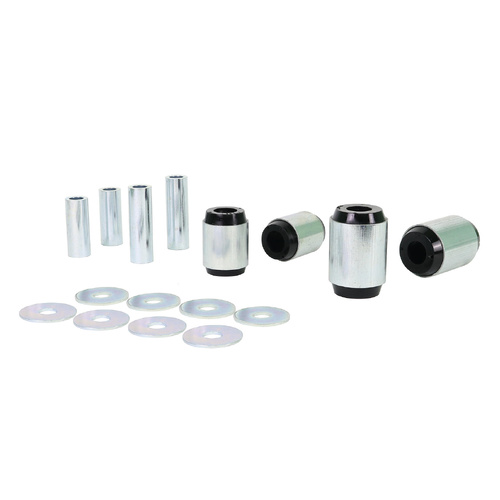

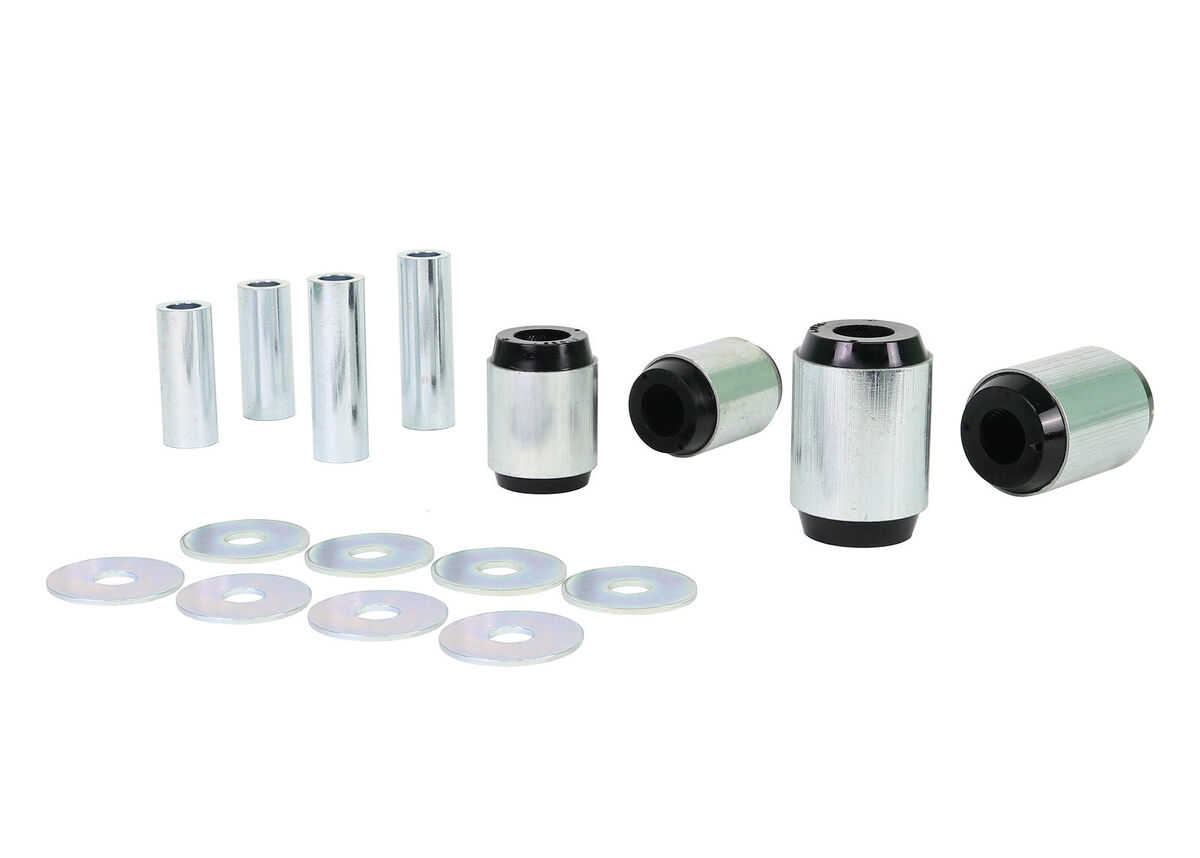

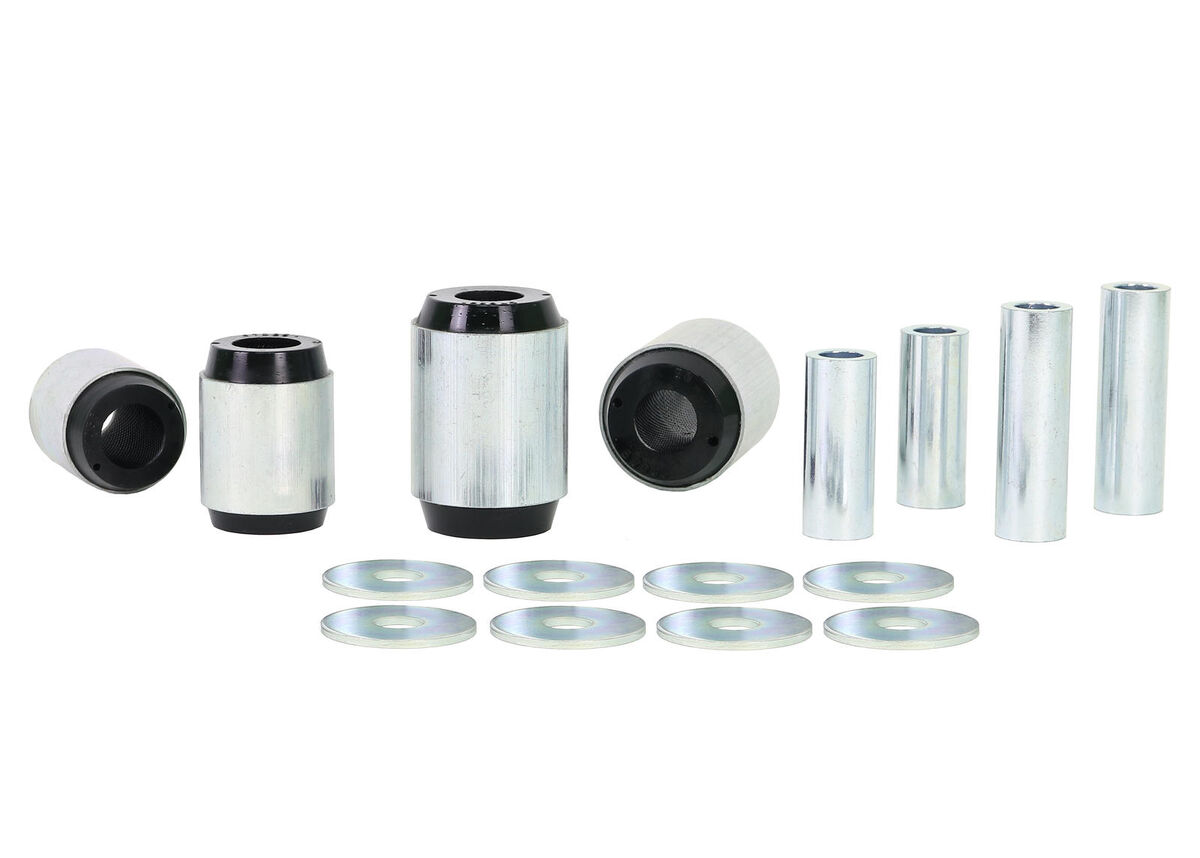

Components Per4 Bushings, 4 Tubes, 8 Washers
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes, 8 Washers
EAN9319924464364
  • Lifetime Warranty
Brand Whiteline
SKU W53655
Unit Of Measure Kit
