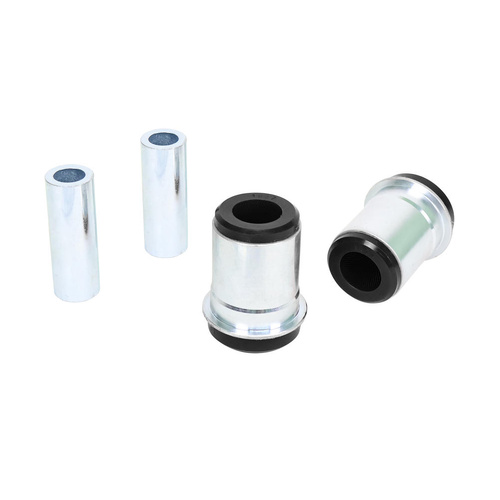

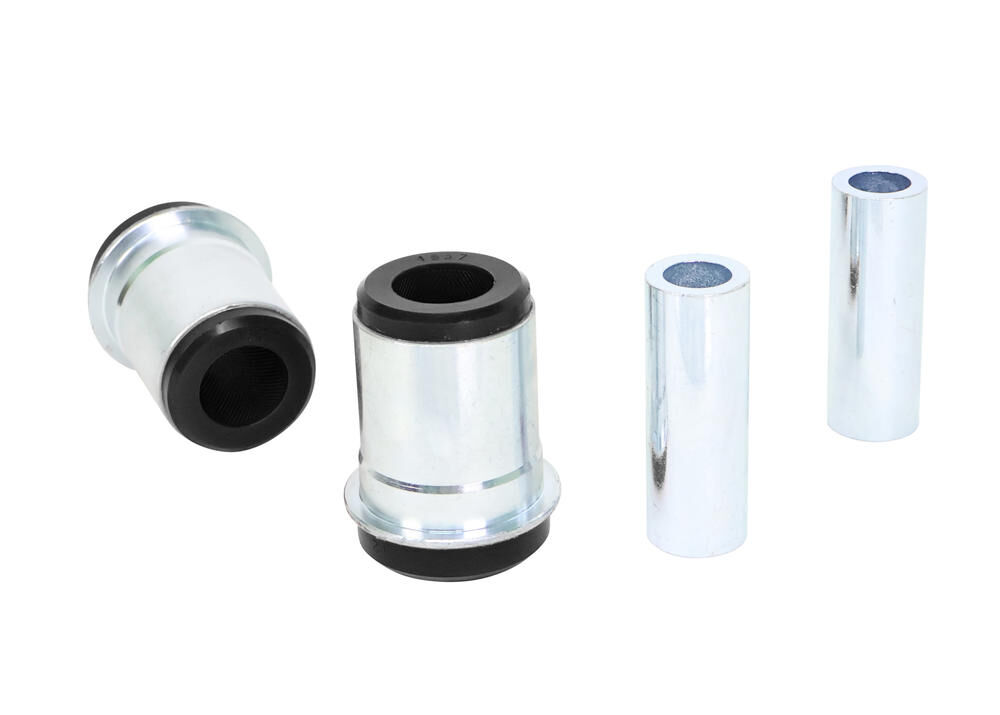

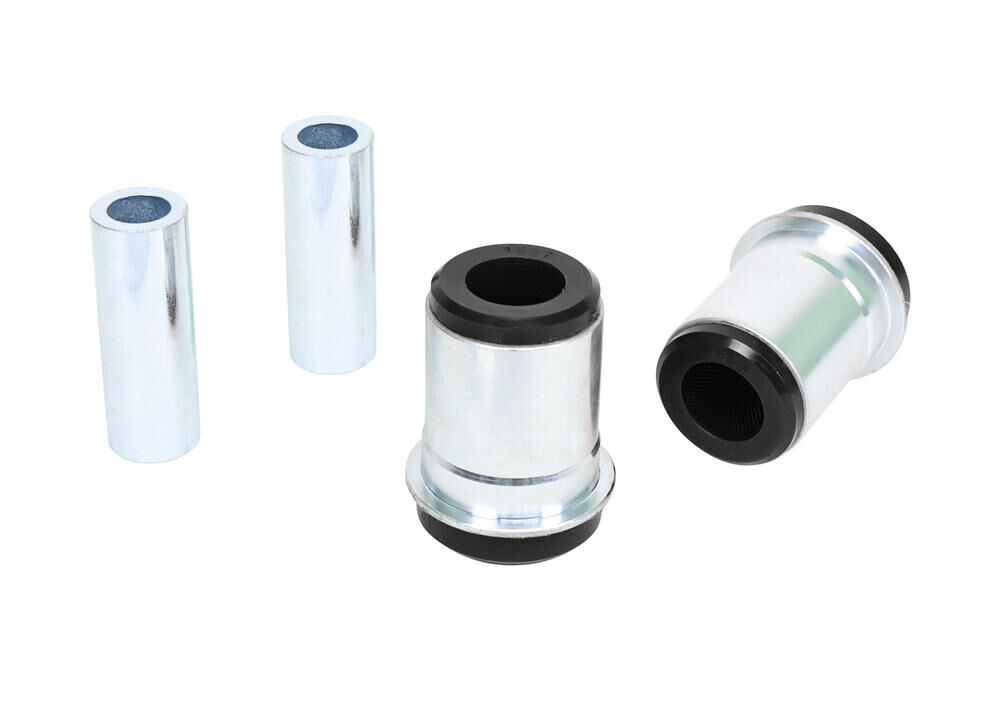

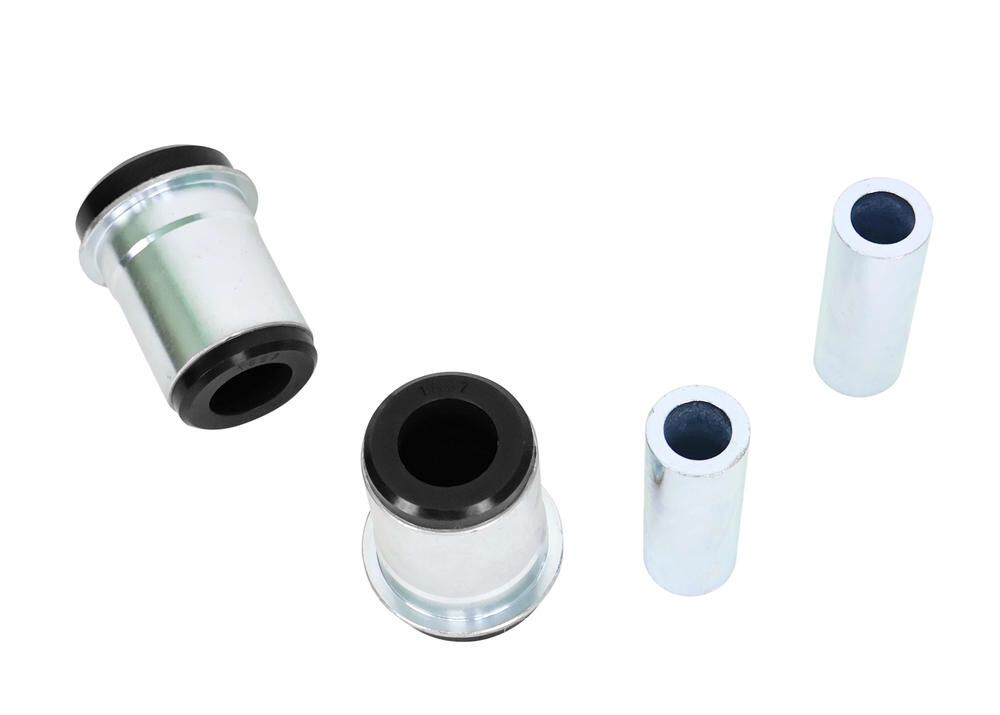

Whiteline Front Lower Control Arm - Bushing Kit to Suit Toyota HiAce

SKU: W53572

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) AI=44.6 AII=43.2 mm
ID (B) 25.4 mm
Length (C) 63.7 mm
Flange Thickness (D) 10.1 mm
Flange OD (E) 48 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x16.2x63.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) AI=44.6 AII=43.2
ID (B) 25.4
Length (C) 63.7
FL (D) 10.1
FLOD (E) 48
C/Tube Qty 2
C/Tube Size 25.4x16.2x63.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.7kg1.54lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53572
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924402717
  • Lifetime Warranty
Brand Whiteline
SKU W53572
Unit Of Measure Kit
