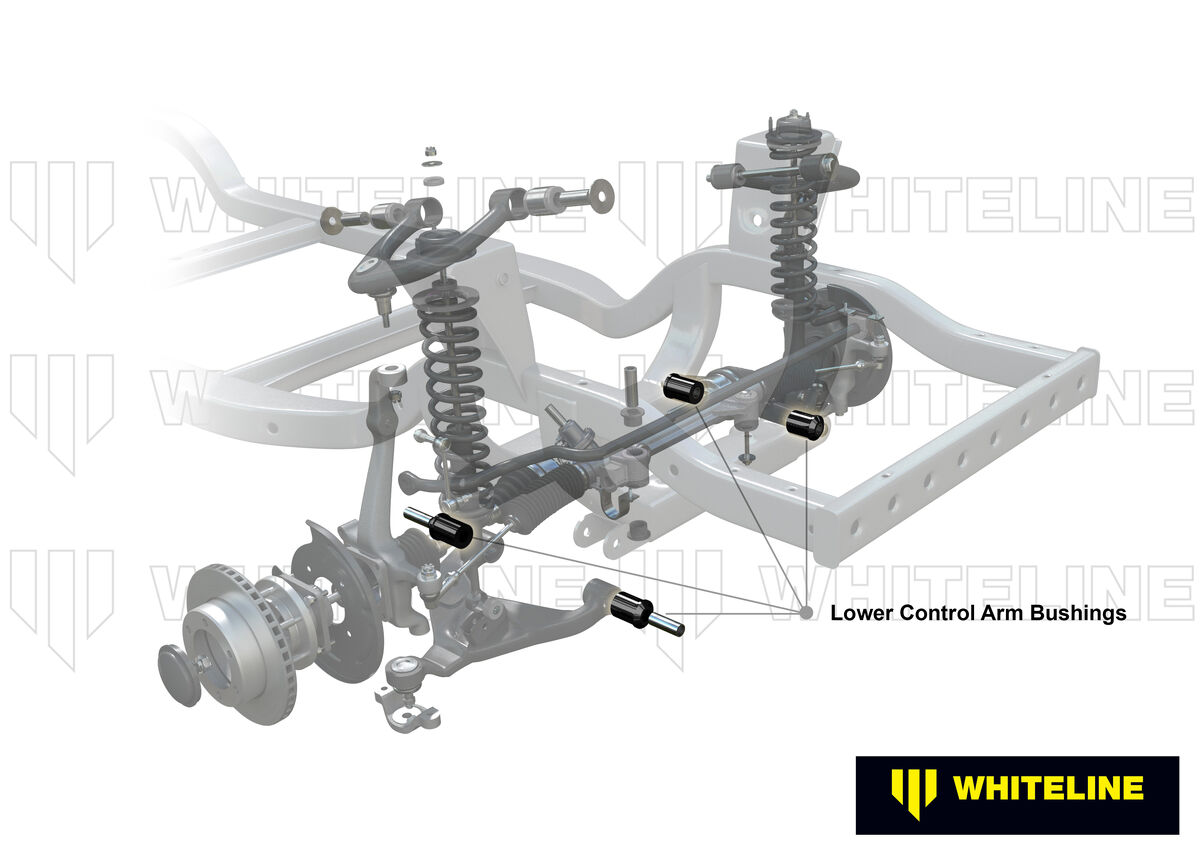

Whiteline Front Lower Control Arm - Bushing Kit to Suit Ford Everest, Ranger and Mazda BT-50

SKU: W53571

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 49.9 mm 49.9 mm
ID (B) 25.3 mm 25.3 mm
Length (C) 70 mm 70 mm
Flange Thickness (D) 8.8 mm 8.8 mm
Flange OD (E) 58 mm 58 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 25.4x16.2x70 mm 25.4x16.2x70 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 49.9 49.9
ID (B) 25.3 25.3
Length (C) 70.0 70.0
FL (D) 8.8 8.8
FLOD (E) 58 58
C/Tube Qty 4 4
C/Tube Size 25.4x16.2x70 25.4x16.2x70
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.5kg3.31lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53571

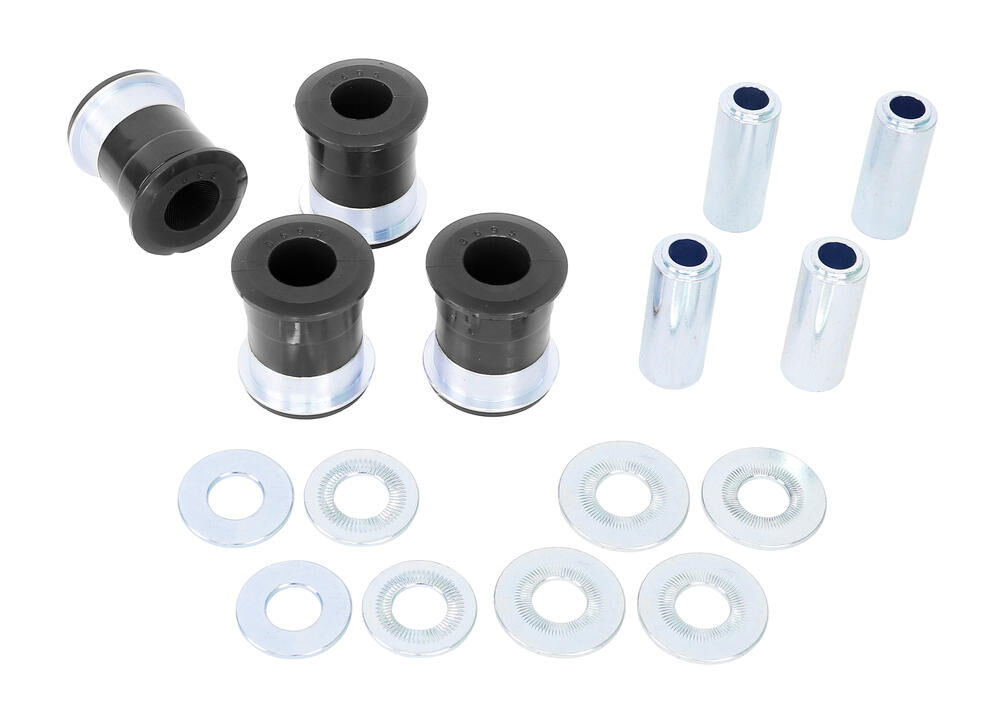

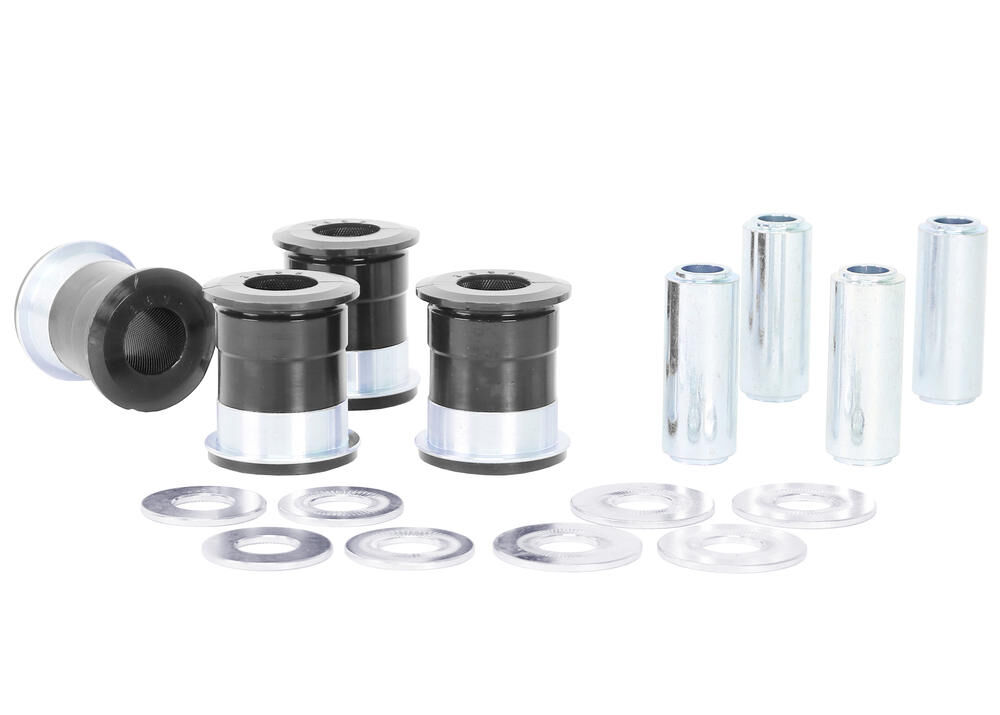

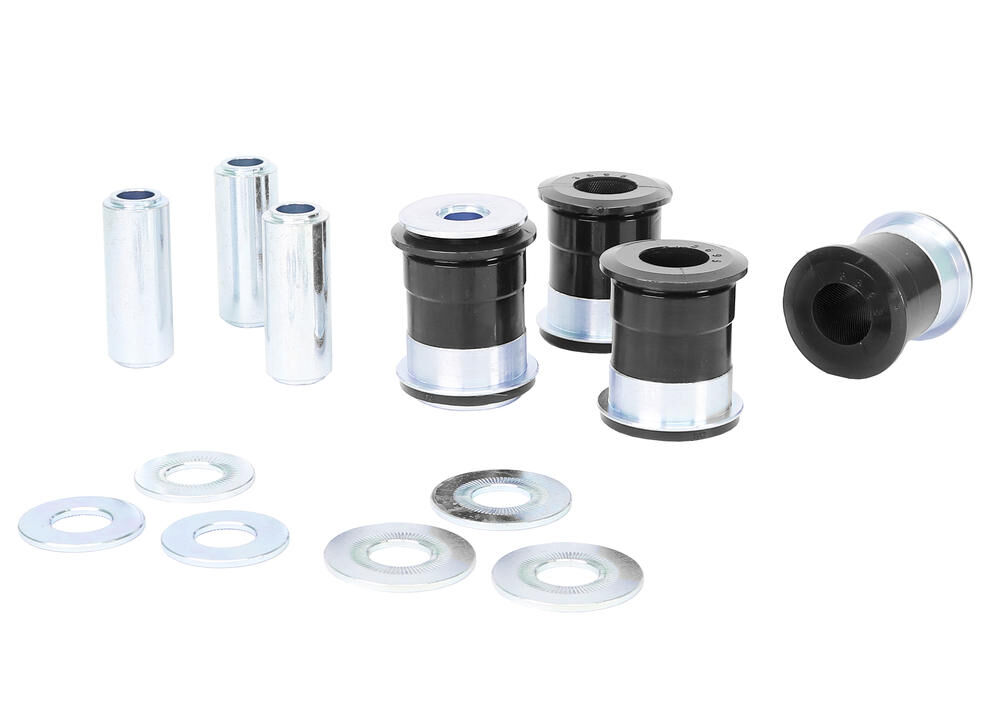

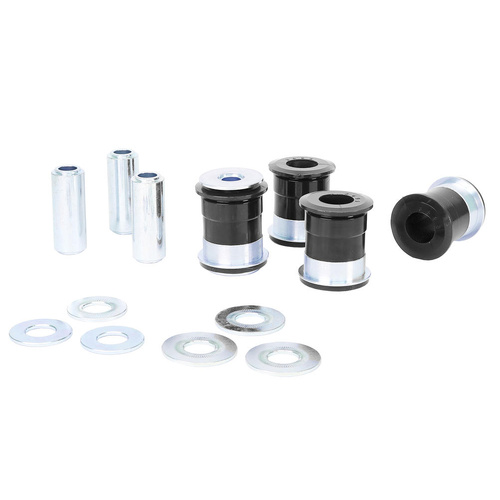

Components Per4 Bushings, 4 Tubes, 8 Washers
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes, 8 Washers
EAN9319924402700
  • Lifetime Warranty
Brand Whiteline
SKU W53571
Unit Of Measure Kit
