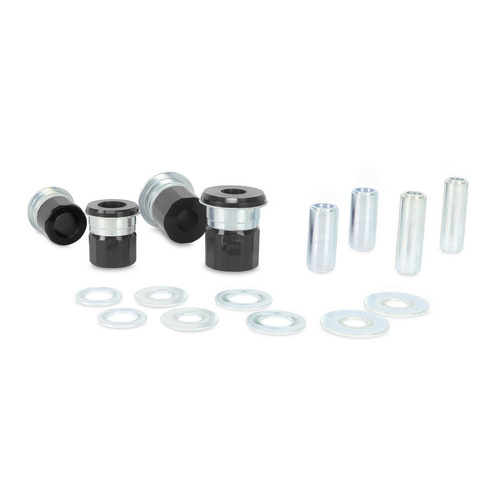

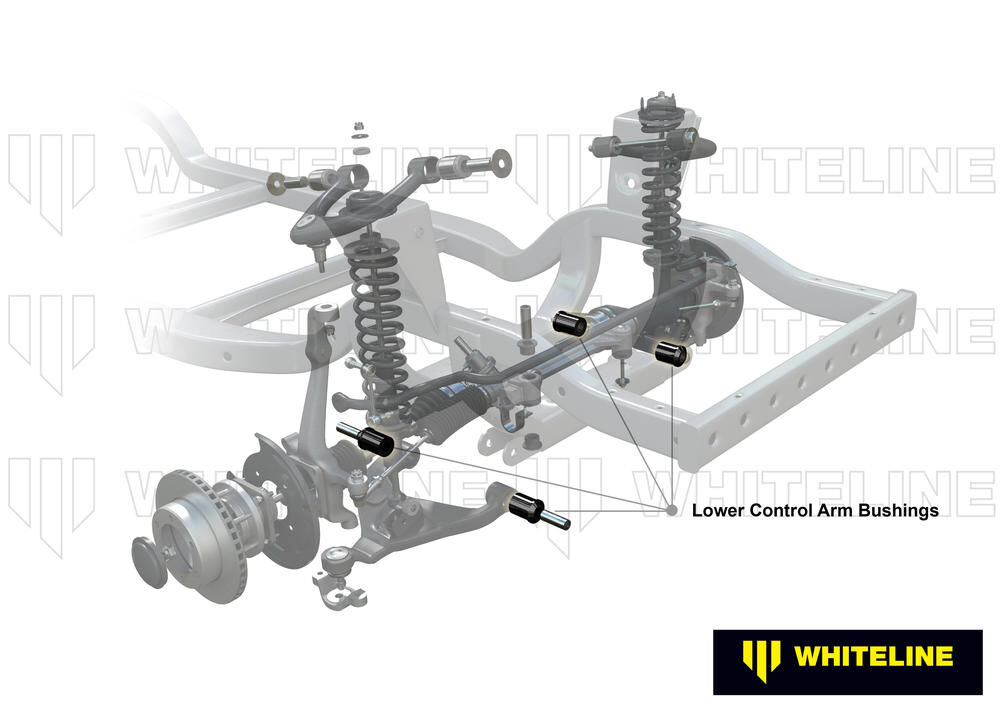

Whiteline Front Lower Control Arm - Bushing Kit to Suit Toyota Prado 150 Series and FJ Cruiser GSJ15

SKU: W53522

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

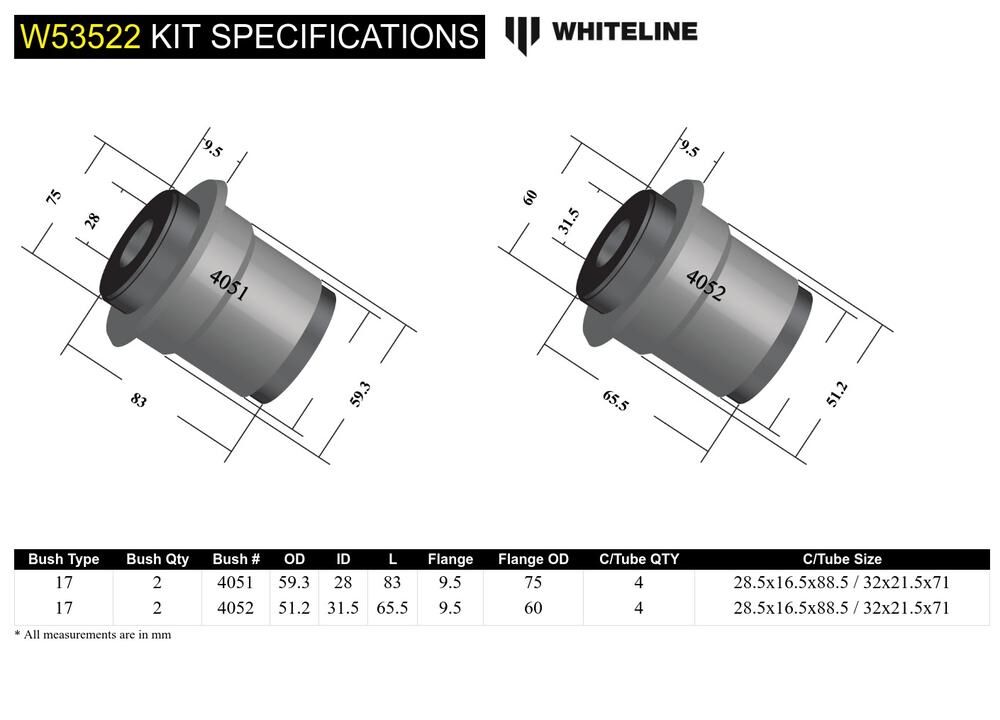

Kit Specifications

Bush Type 17 - Shell With Flange Bushing 17 - Shell With Flange Bushing
Bush Quantity 2 mm 2 mm
OD (A) 59.3 mm 51.2 mm
ID (B) 28 mm 31.5 mm
Length (C) 83 mm 65.5 mm
Flange Thickness (D) 9.5 mm 9.8 mm
Flange OD (E) 75 mm 60 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 28.5x16.5x88.5 / 32x21.5x71 mm 28.5x16.5x88.5 / 32x21.5x71 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17 17
QTY 2 2
OD (A) 59.3 51.2
ID (B) 28 31.5
Length (C) 83.0 65.5
FL (D) 9.5 9.8
FLOD (E) 75 60
C/Tube Qty 4 4
C/Tube Size 28.5x16.5x88.5 / 32x21.5x71 28.5x16.5x88.5 / 32x21.5x71
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.3kg5.07lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW53522

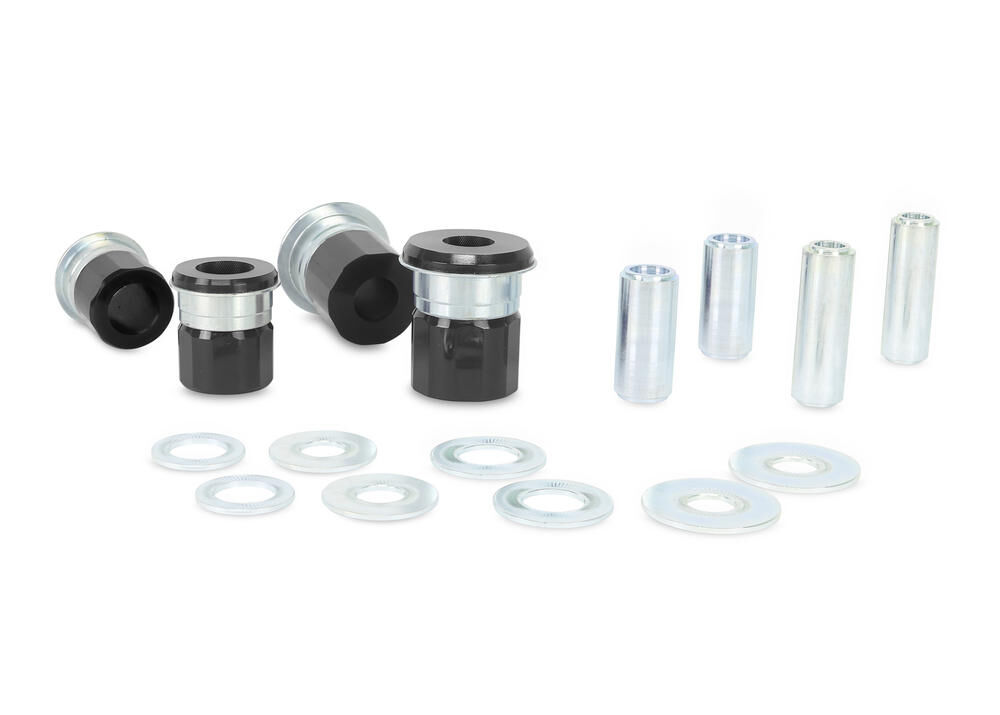

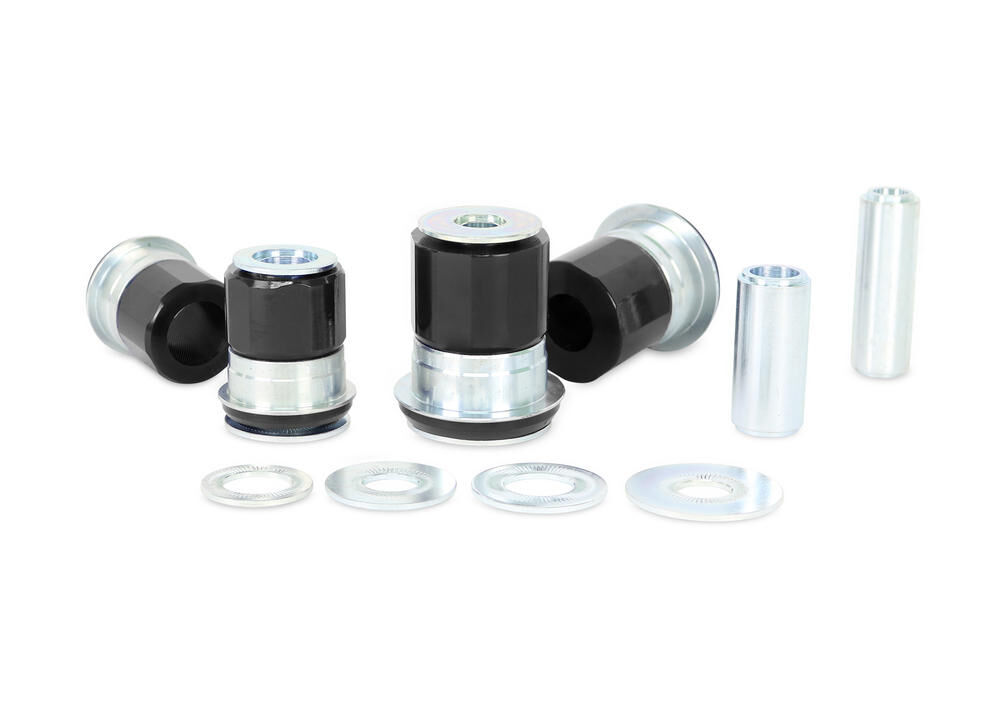

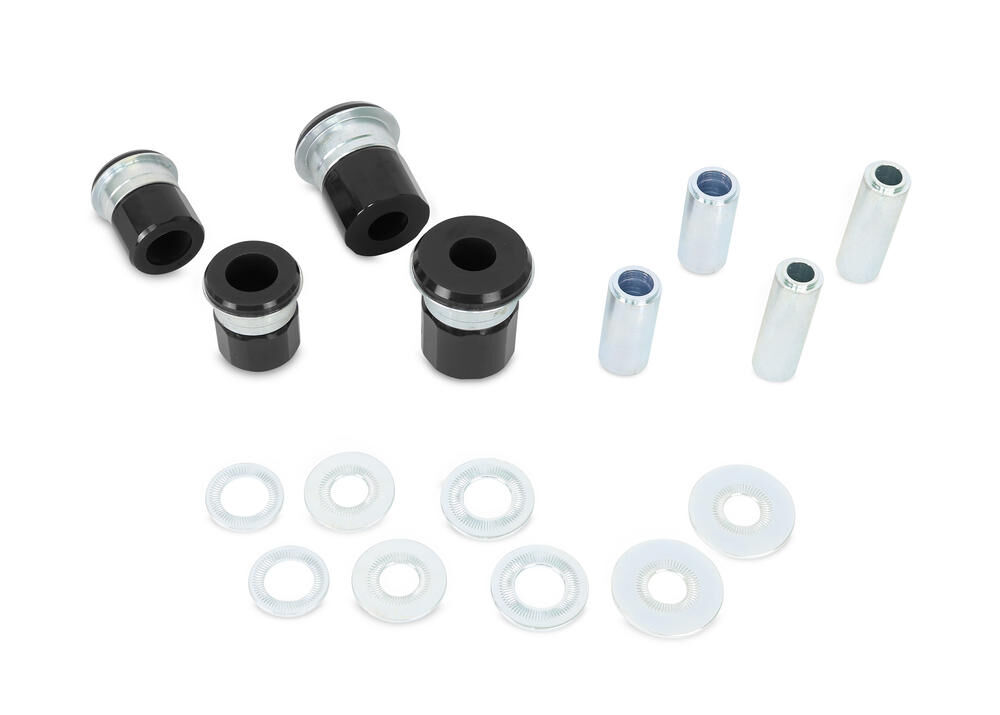

Components Per4 Shell Bushings, 4 Tubes, 8 Washers
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes, 8 Washers
EAN9319924401949
  • Lifetime Warranty
Brand Whiteline
SKU W53522
Unit Of Measure Kit
