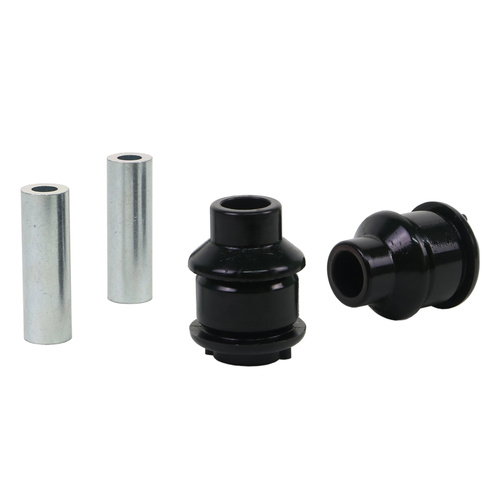

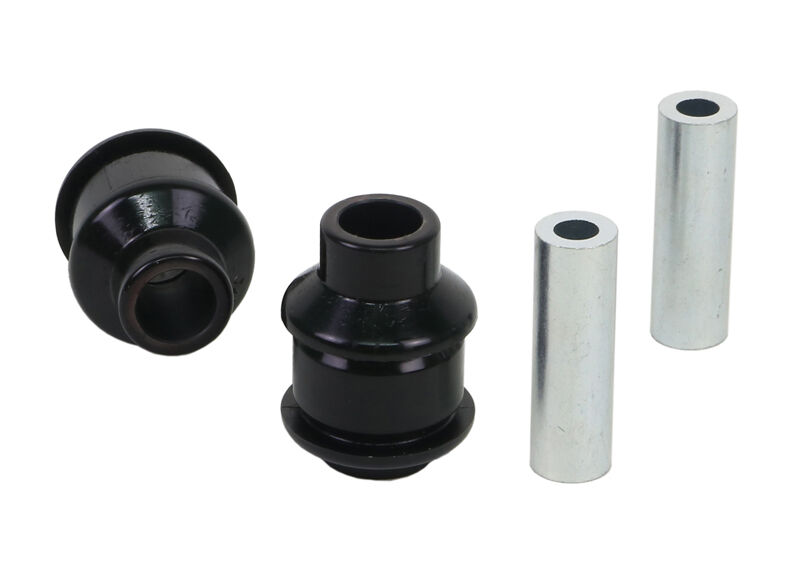

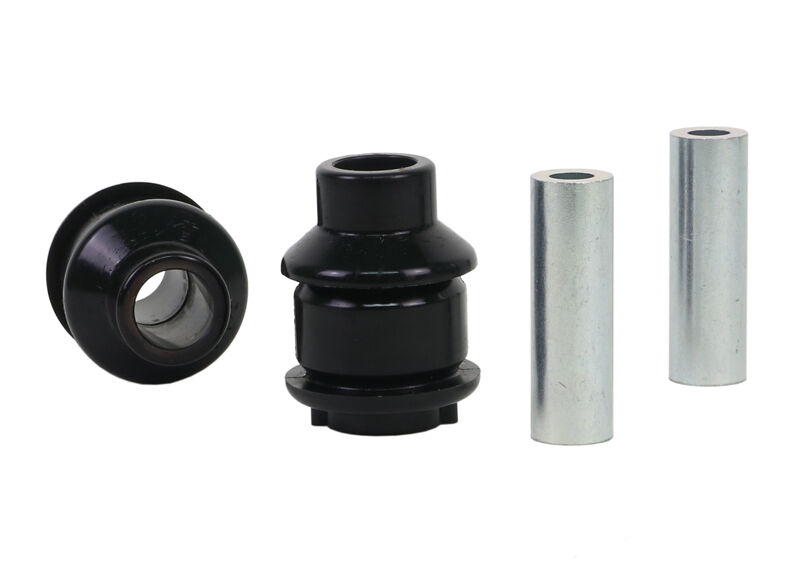

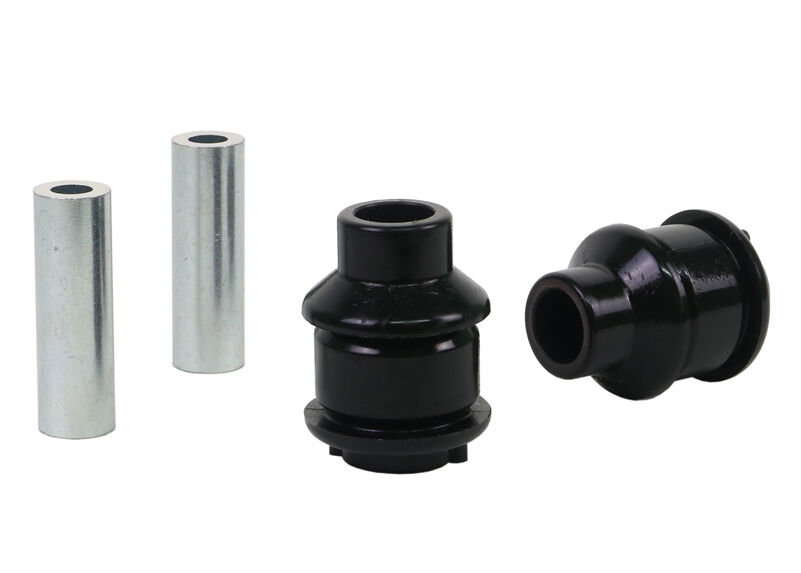

Whiteline Front Lower Control Arm - Bushing Kit to Suit BMW 1, 3 Series and Z4

SKU: W53453

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 45.8 mm 45.8 mm
ID (B) 26.6 mm 26.6 mm
Length (C) 43.4 mm 25.8 mm
Flange Thickness (D) 29.5 mm 11.7 mm
Flange OD (E) 50 mm 50 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 27x12.2x71 mm 27x12.2x71 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 45.8 45.8
ID (B) 26.6 26.6
Length (C) 43.4 25.8
FL (D) 29.5 11.7
FLOD (E) 50 50
C/Tube Qty 2 2
C/Tube Size 27x12.2x71 27x12.2x71
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.705kg1.55lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53453
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924387625
  • Lifetime Warranty
Brand Whiteline
SKU W53453
Unit Of Measure Kit
