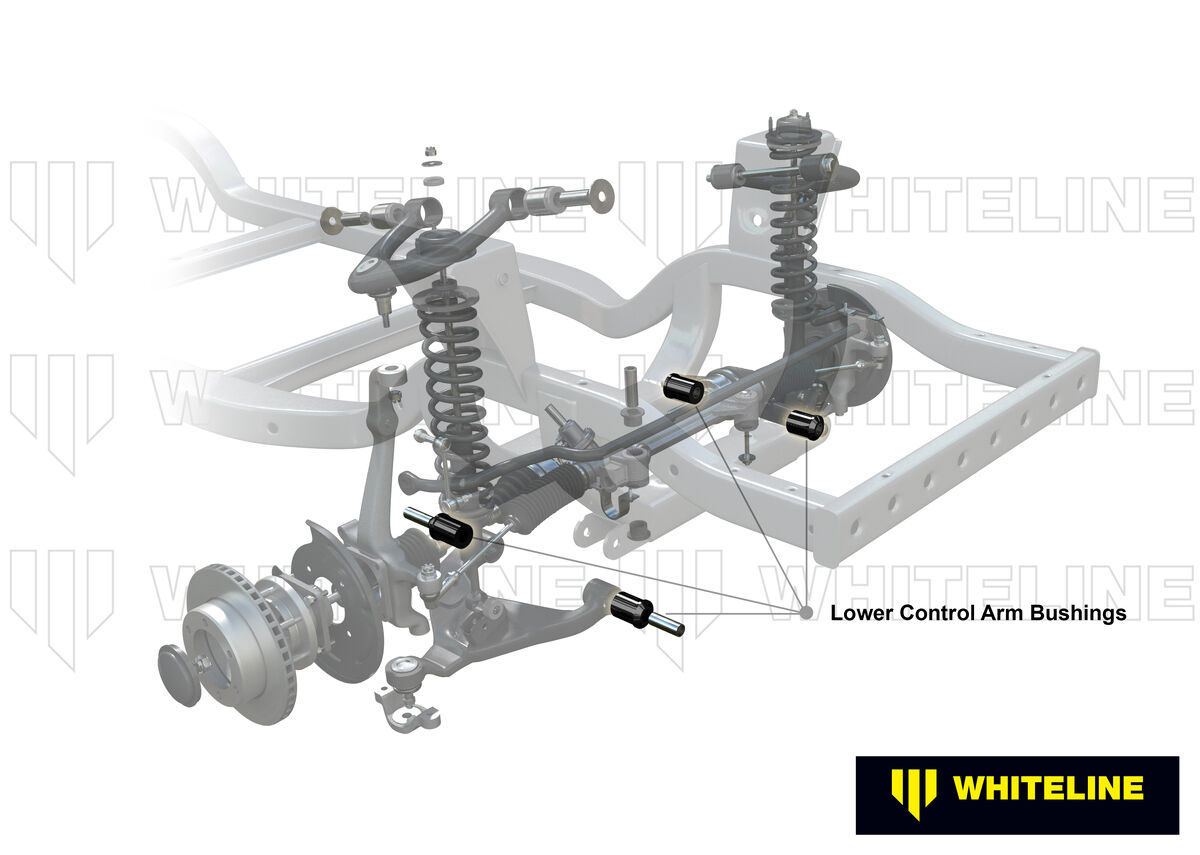

Whiteline Front Lower Control Arm - Bushing Kit to Suit Toyota HiLux, Prado, 4Runner and Foton Tunland

SKU: W53312

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

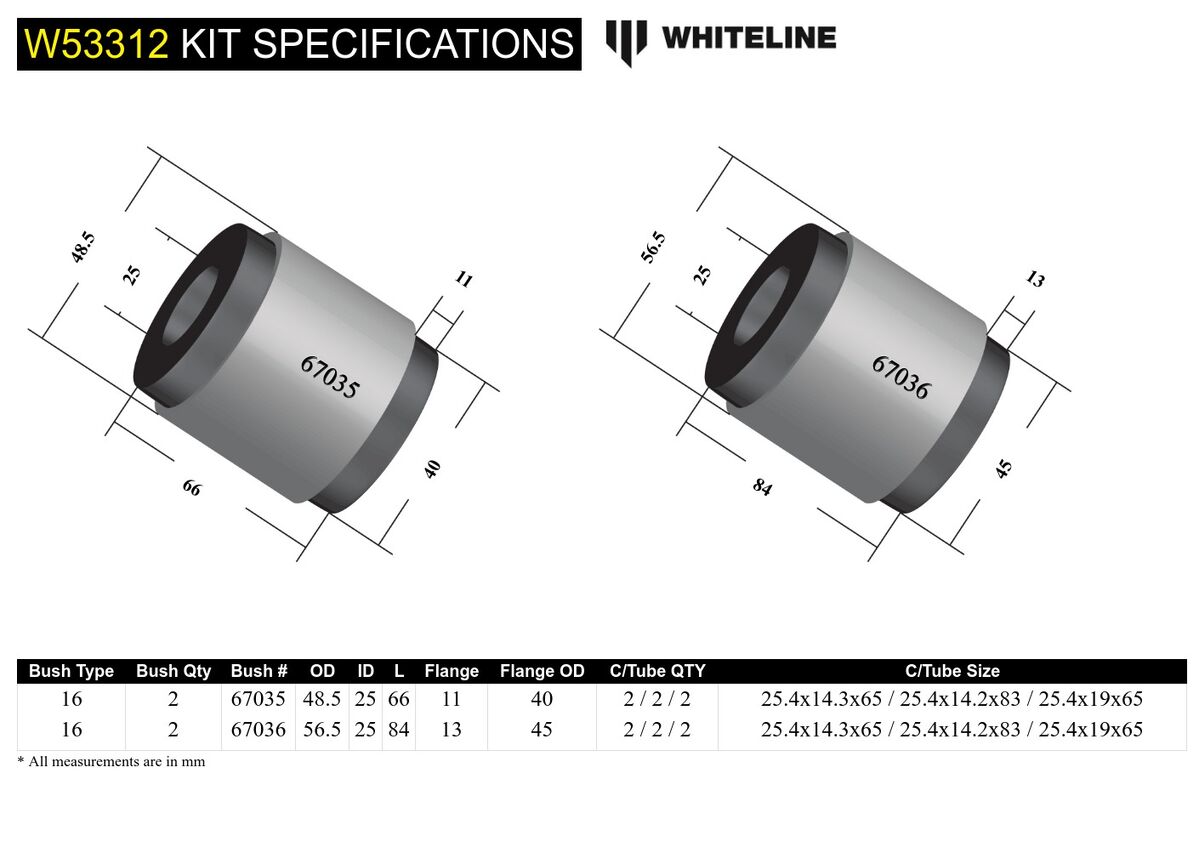

Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 16 - Shell Without Flange Bushing
Bush Quantity 2 mm 2 mm
OD (A) 48.5 mm 56.5 mm
ID (B) 25 mm 25 mm
Length (C) 66 mm 84 mm
Flange Thickness (D) 11 mm 13 mm
Flange OD (E) 40 mm 45 mm
C/Tube Quantity 2 / 2 / 2 2 / 2 / 2
C/Tube ODxIDxL 25.4x14.3x65 / 25.4x14.2x83 / 25.4x19x65 mm 25.4x14.3x65 / 25.4x14.2x83 / 25.4x19x65 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16 16
QTY 2 2
OD (A) 48.5 56.5
ID (B) 25 25
Length (C) 66.0 84.0
FL (D) 11 13
FLOD (E) 40 45
C/Tube Qty 2 / 2 / 2 2 / 2 / 2
C/Tube Size 25.4x14.3x65 / 25.4x14.2x83 / 25.4x19x65 25.4x14.3x65 / 25.4x14.2x83 / 25.4x19x65
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.226kg4.91lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53312

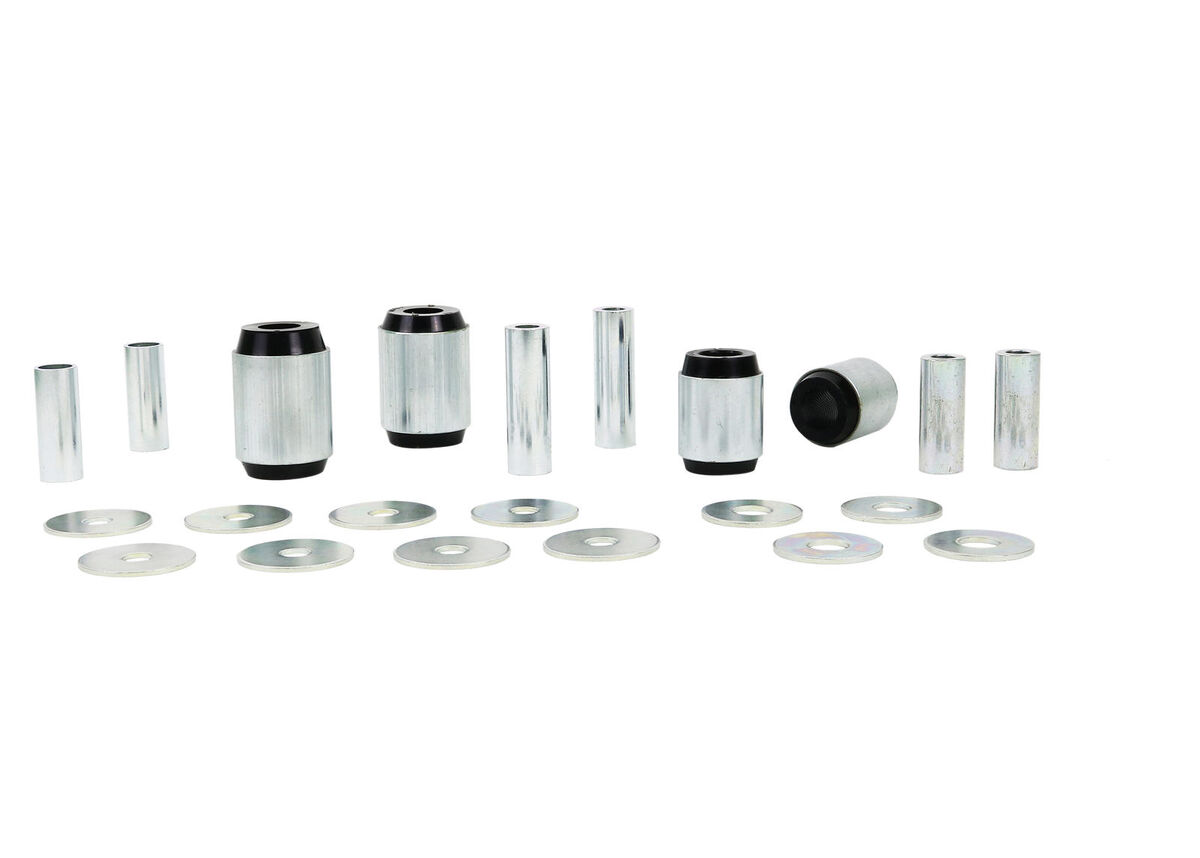

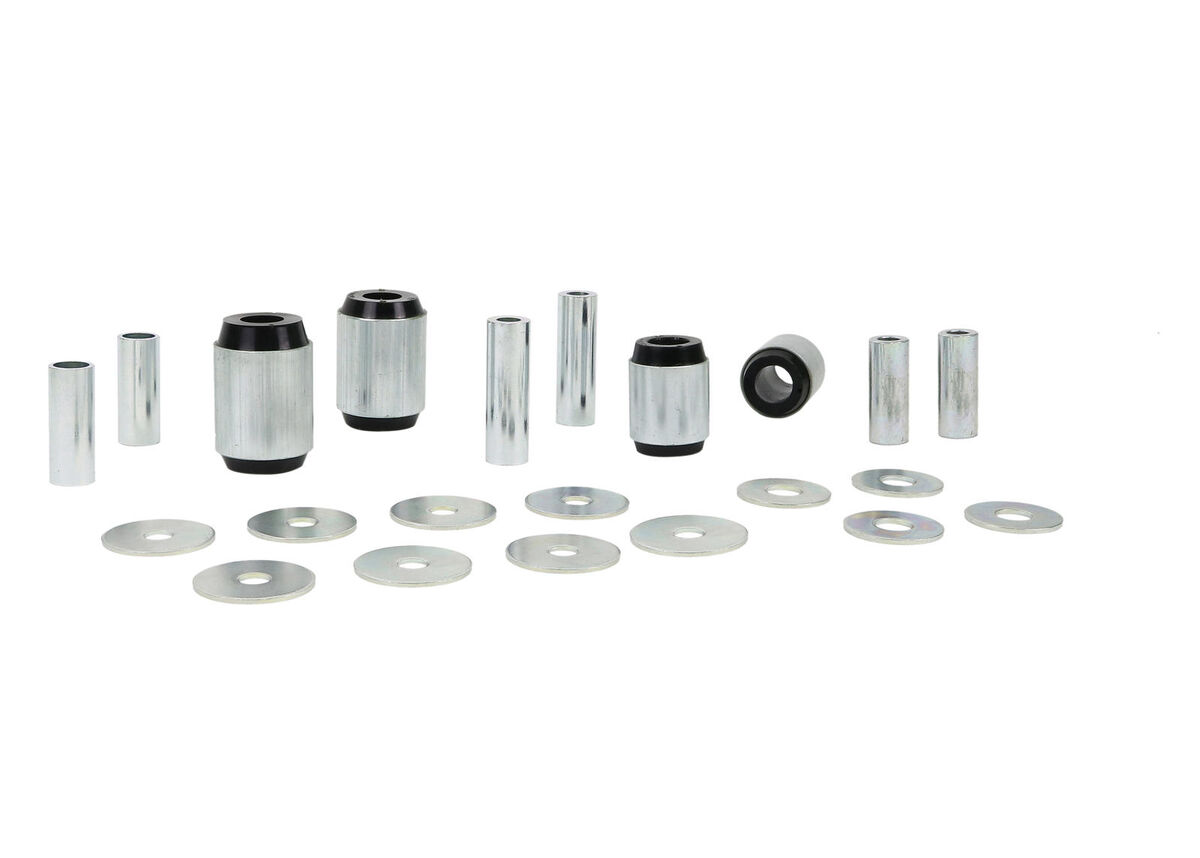

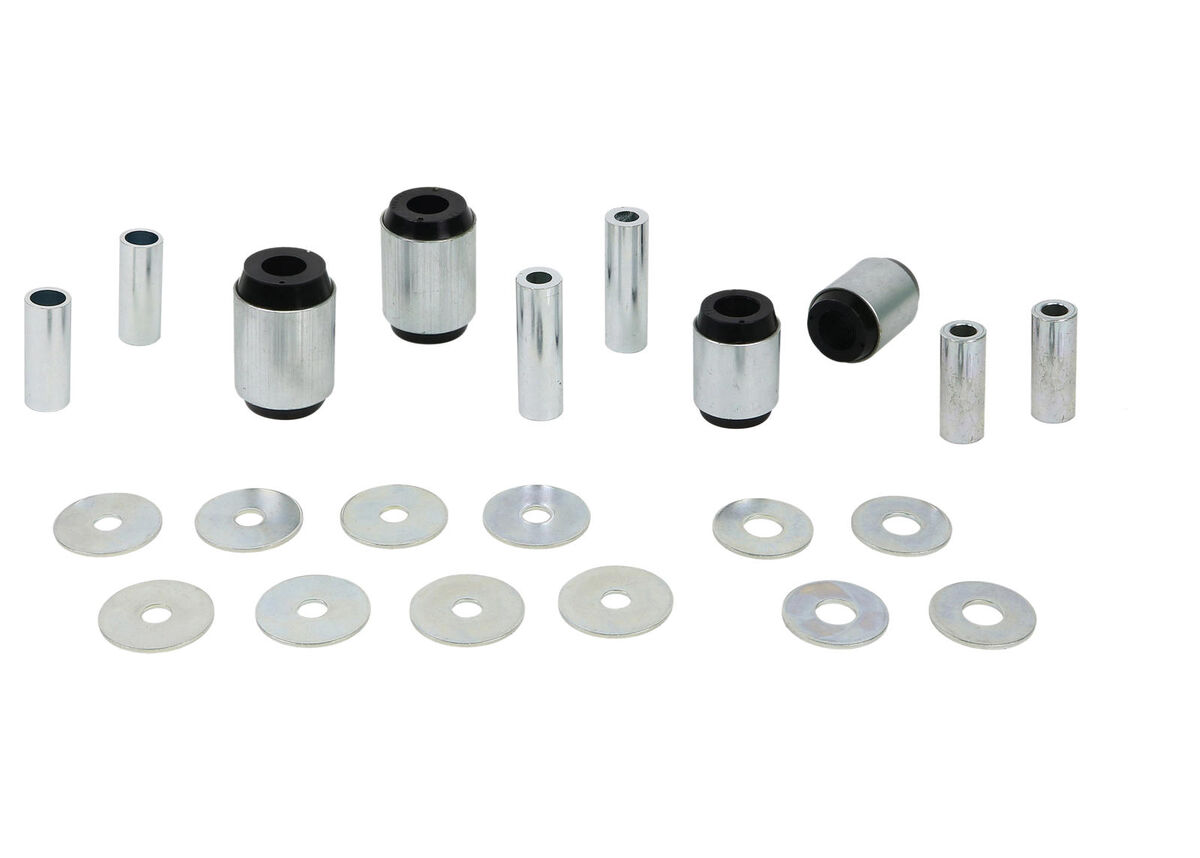

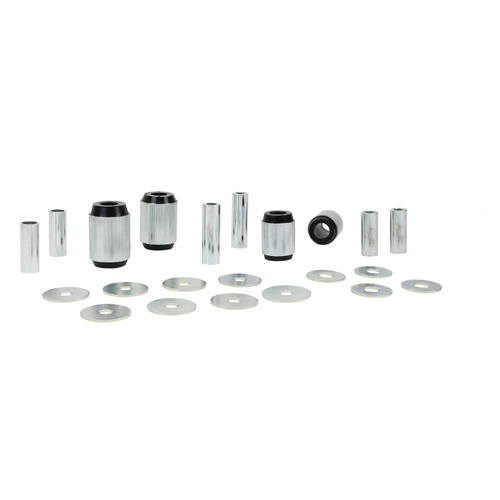

Components Per4 Bushings, 6 Tubes, 12 Washers
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Bushings, 6 Tubes, 12 Washers
EAN9319924375714
  • Lifetime Warranty
Brand Whiteline
SKU W53312
Unit Of Measure Kit
