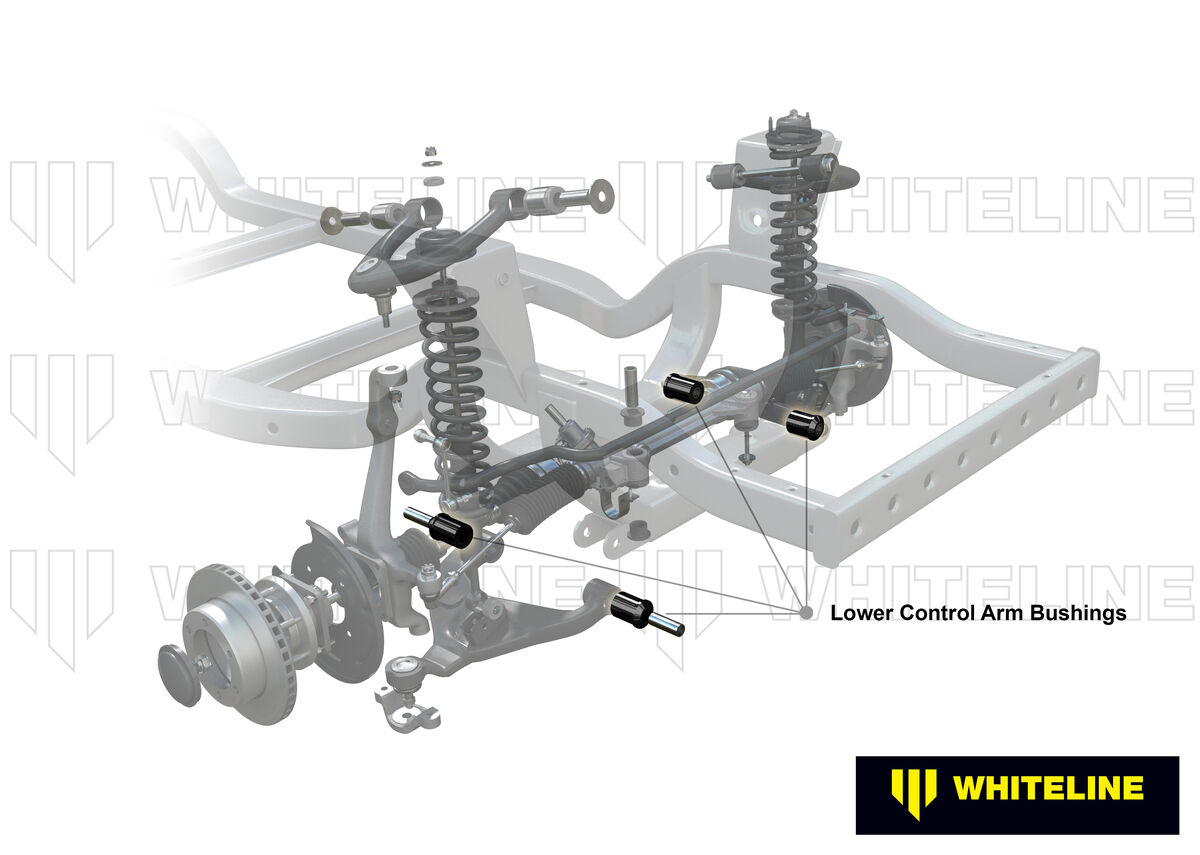

Whiteline Front Lower Control Arm - Bushing Kit to Suit Toyota HiLux 2005-on and Foton Tunland P201 2wd

SKU: W53304

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

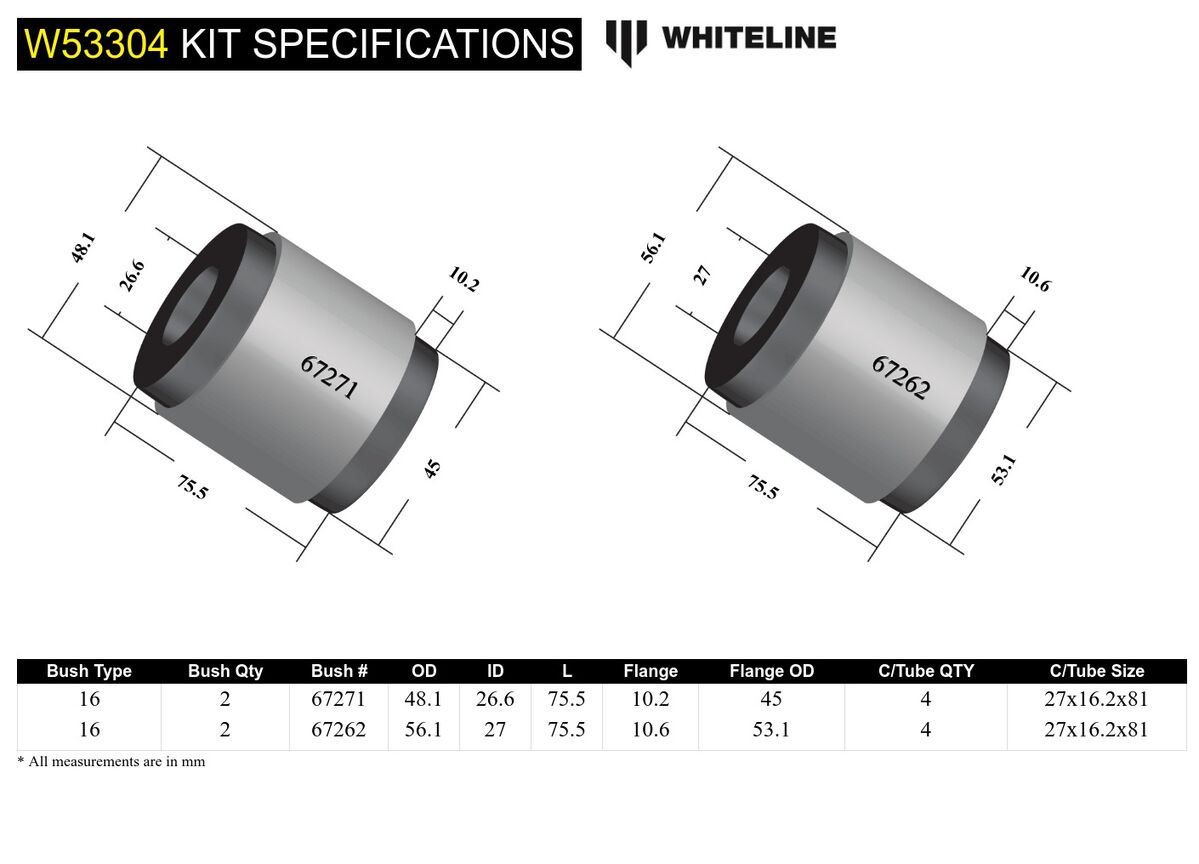

Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 16 - Shell Without Flange Bushing
Bush Quantity 2 mm 2 mm
OD (A) 48.1 mm 56.1 mm
ID (B) 26.6 mm 27 mm
Length (C) 75.5 mm 75.5 mm
Flange Thickness (D) 10.2 mm 10.6 mm
Flange OD (E) 45 mm 53.1 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 27x16.2x81 mm 27x16.2x81 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16 16
QTY 2 2
OD (A) 48.1 56.1
ID (B) 26.6 27
Length (C) 75.5 75.5
FL (D) 10.2 10.6
FLOD (E) 45 53.1
C/Tube Qty 4 4
C/Tube Size 27x16.2x81 27x16.2x81
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.205kg4.86lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53304

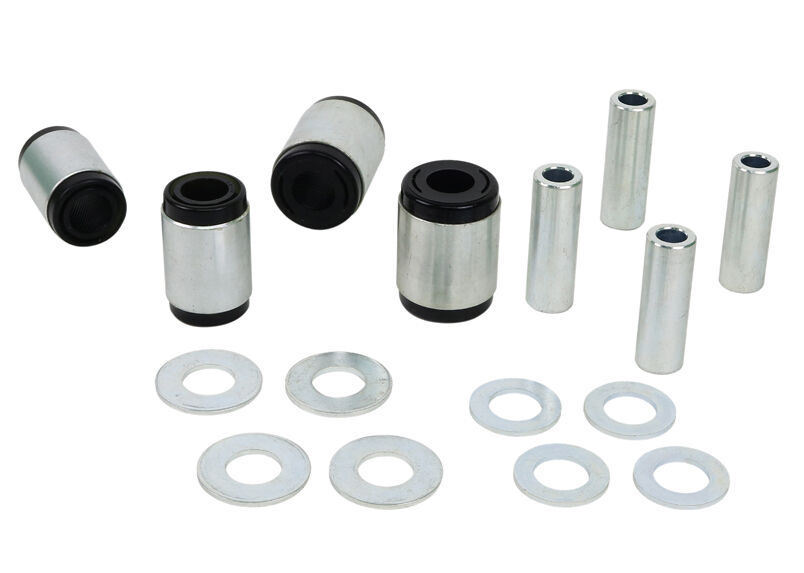

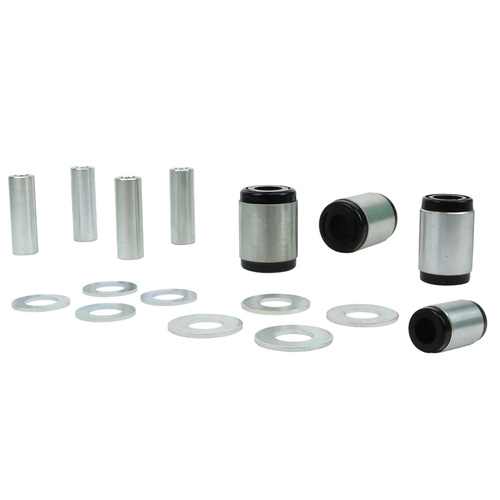

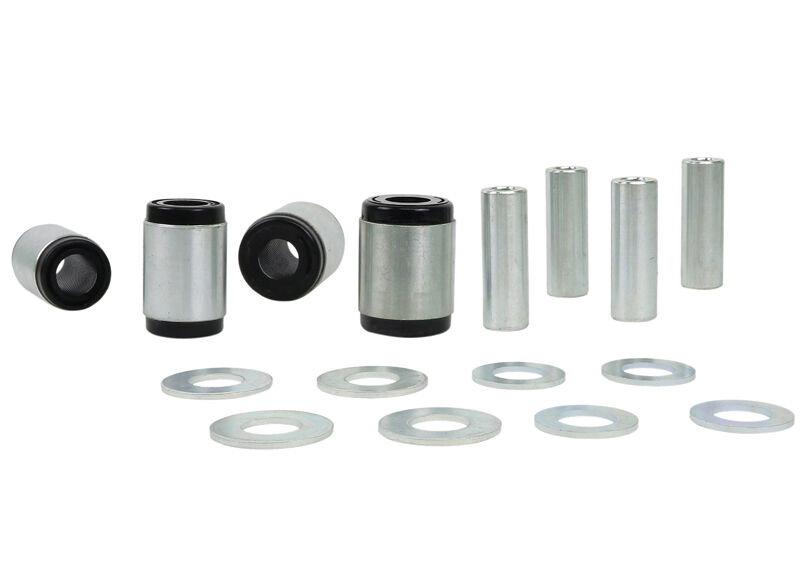

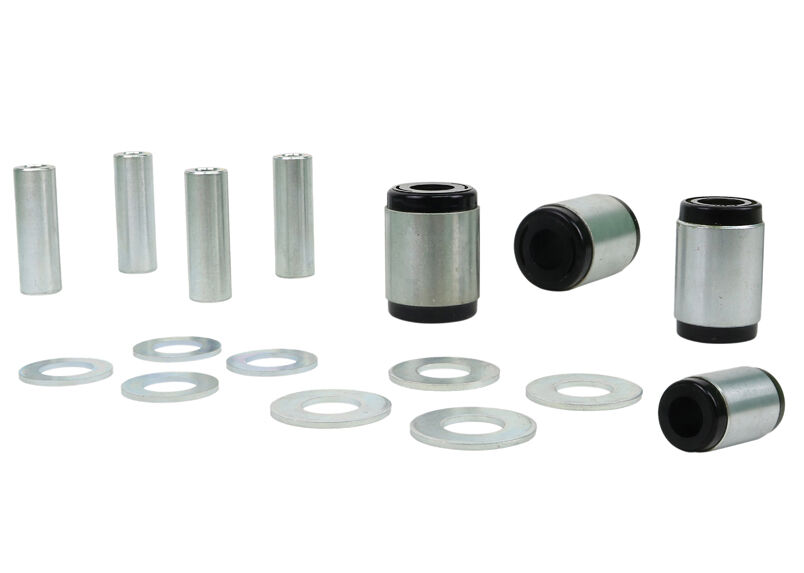

Components Per4 Shell Bushings, 4 Tubes, 8 Washers
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes, 8 Washers
EAN9319924376292
  • Lifetime Warranty
Brand Whiteline
SKU W53304
Unit Of Measure Kit
