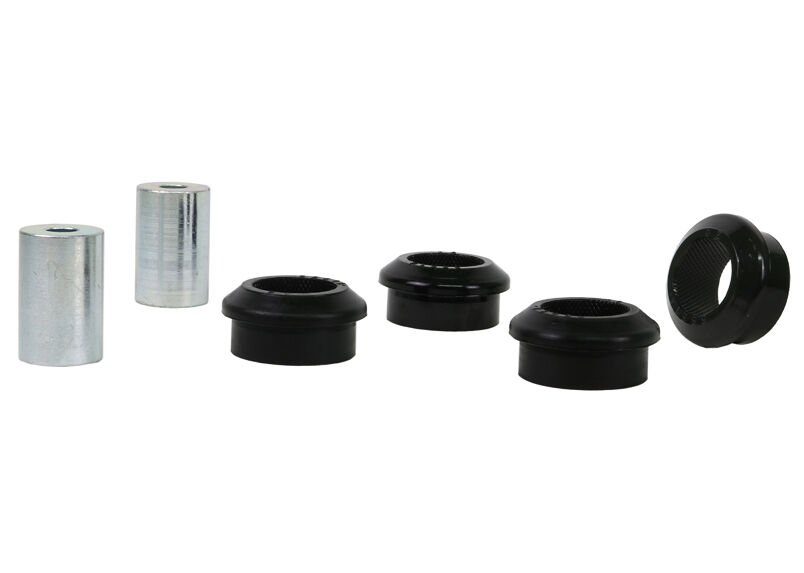

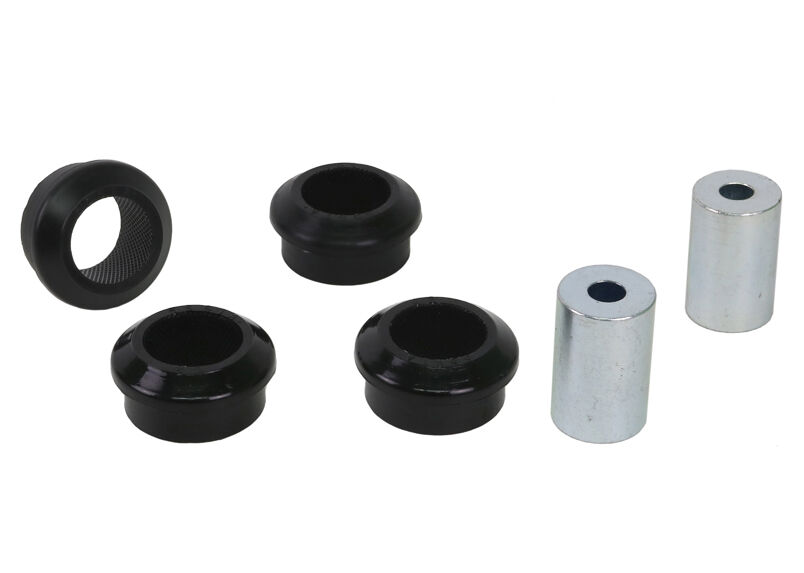

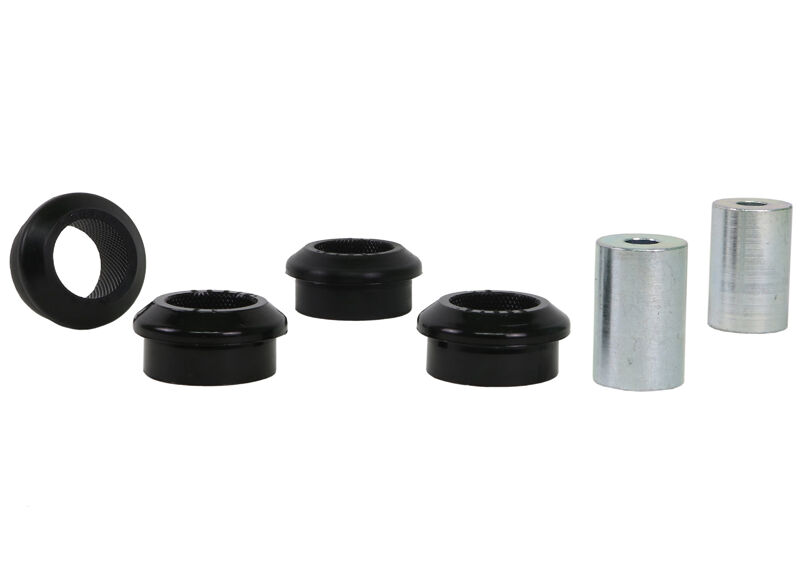

Whiteline Front Lower Control Arm - Bushing Kit to Suit Holden Commodore VE, VF and HSV

SKU: W53150

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

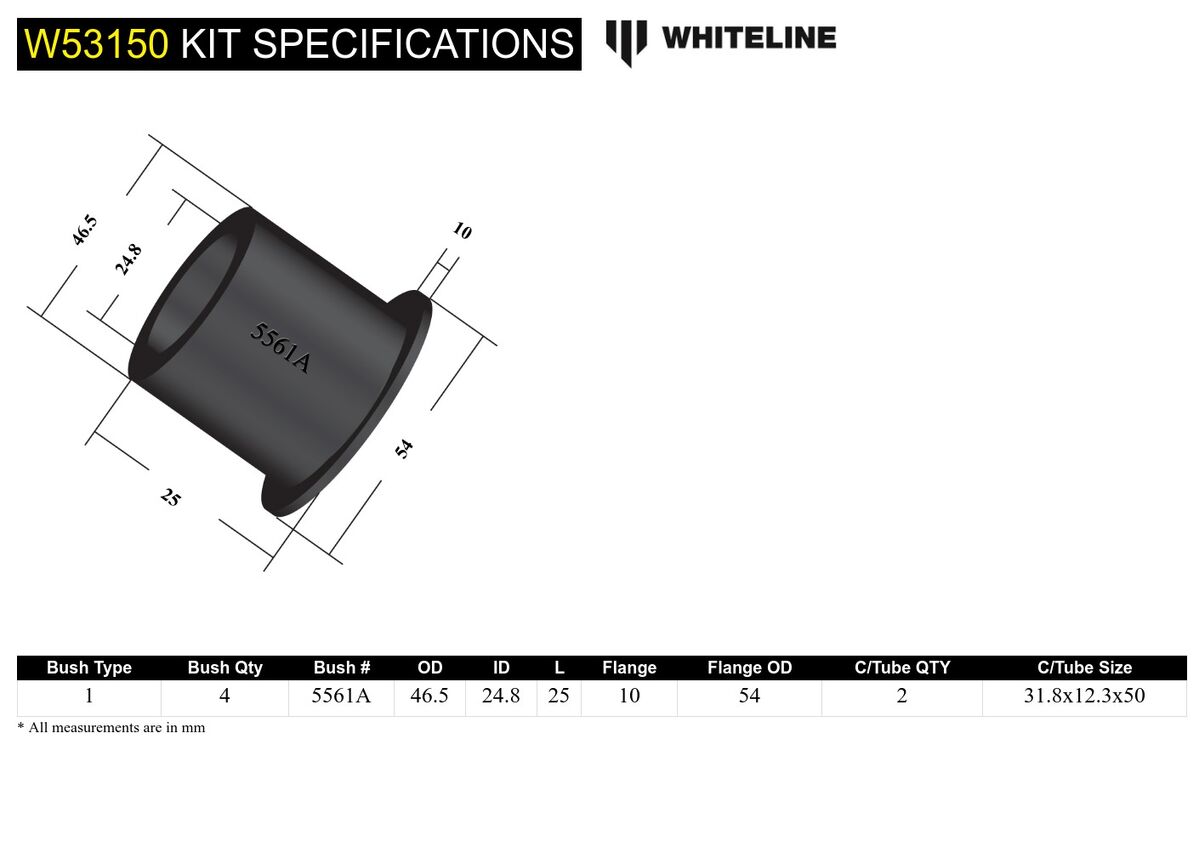

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 46.5 mm
ID (B) 24.8 mm
Length (C) 25 mm
Flange Thickness (D) 10 mm
Flange OD (E) 54 mm
C/Tube Quantity 2
C/Tube ODxIDxL 31.8x12.3x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 46.5
ID (B) 24.8
Length (C) 25.0
FL (D) 10
FLOD (E) 54
C/Tube Qty 2
C/Tube Size 31.8x12.3x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.485kg1.07lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53150
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924353484
  • Lifetime Warranty
Brand Whiteline
SKU W53150
Unit Of Measure Kit
