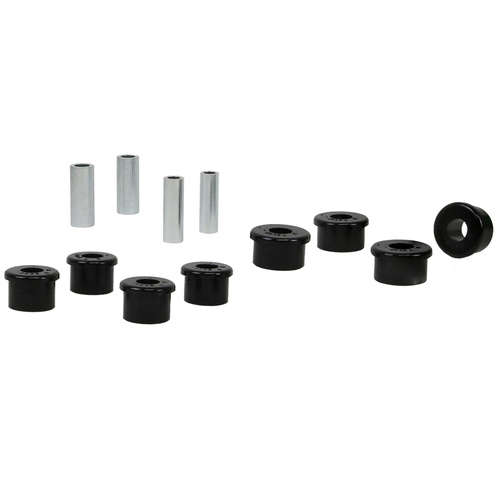

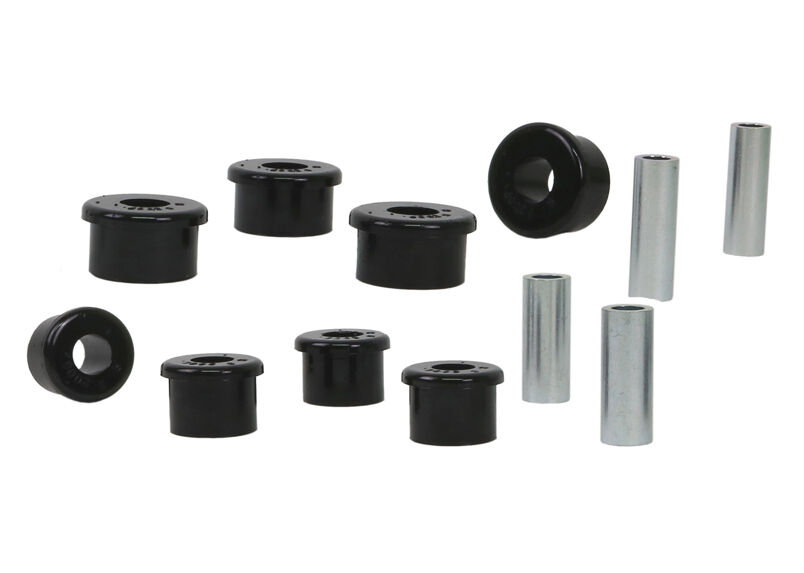

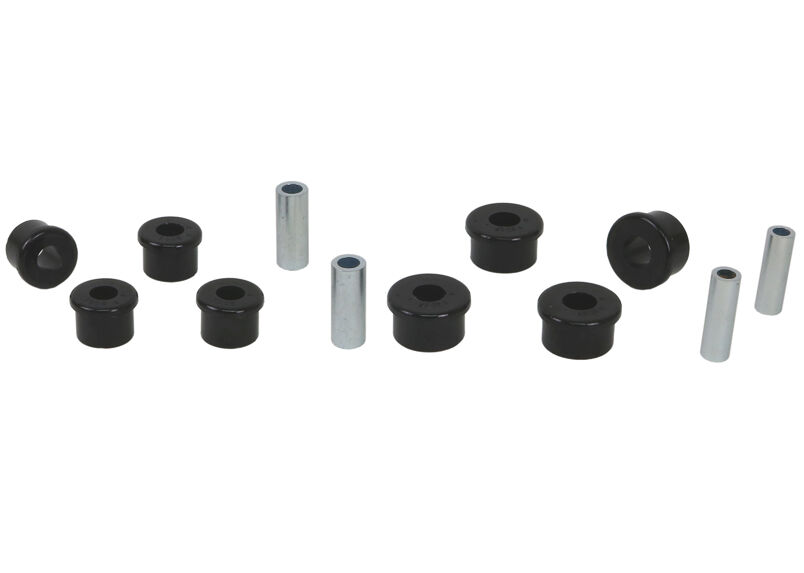

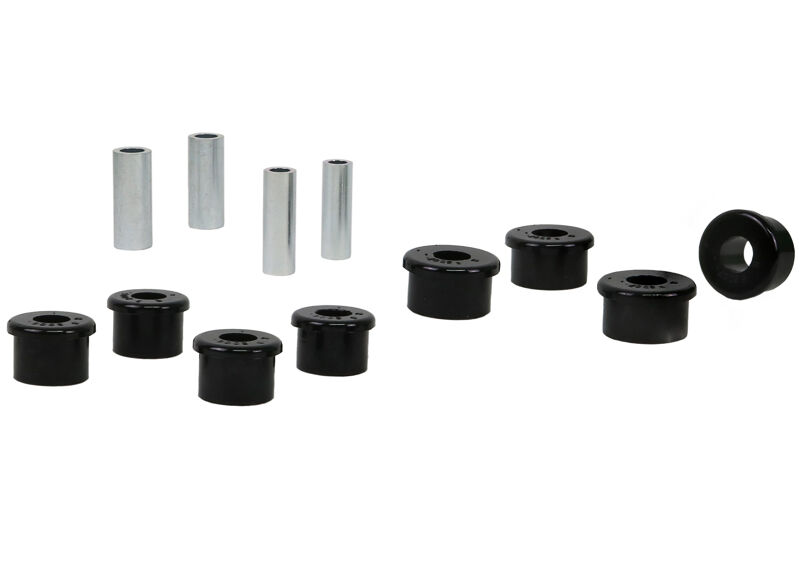

Whiteline Front Lower Control Arm - Bushing Kit to Suit Honda City, Civic and CR-X

SKU: W52006

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

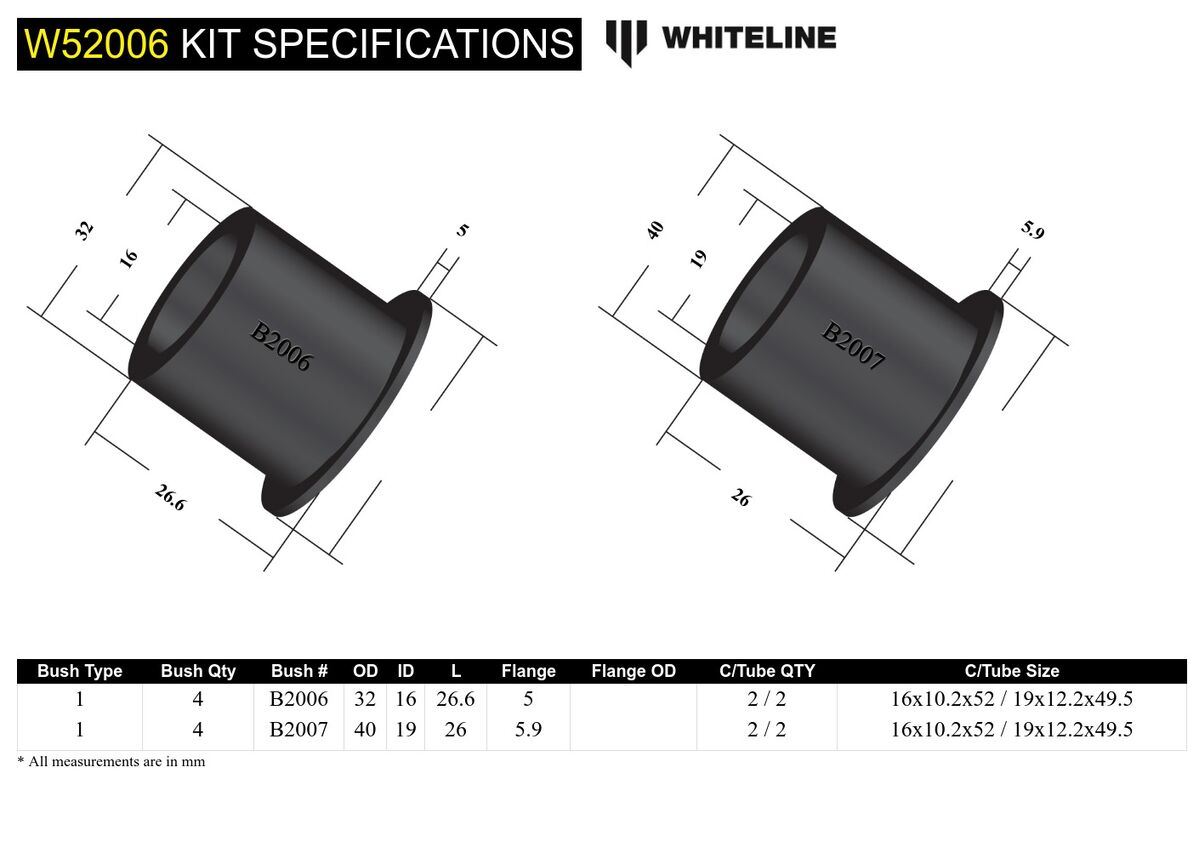

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 32 mm 40 mm
ID (B) 16 mm 19 mm
Length (C) 26.6 mm 26 mm
Flange Thickness (D) 5 mm 5.9 mm
Flange OD (E)
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 16x10.2x52 / 19x12.2x49.5 mm 16x10.2x52 / 19x12.2x49.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 32 40
ID (B) 16 19
Length (C) 26.6 26.0
FL (D) 5 5.9
FLOD (E)
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 16x10.2x52 / 19x12.2x49.5 16x10.2x52 / 19x12.2x49.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.45kg0.99lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW52006
Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924352739
  • Lifetime Warranty
Brand Whiteline
SKU W52006
Unit Of Measure Kit
