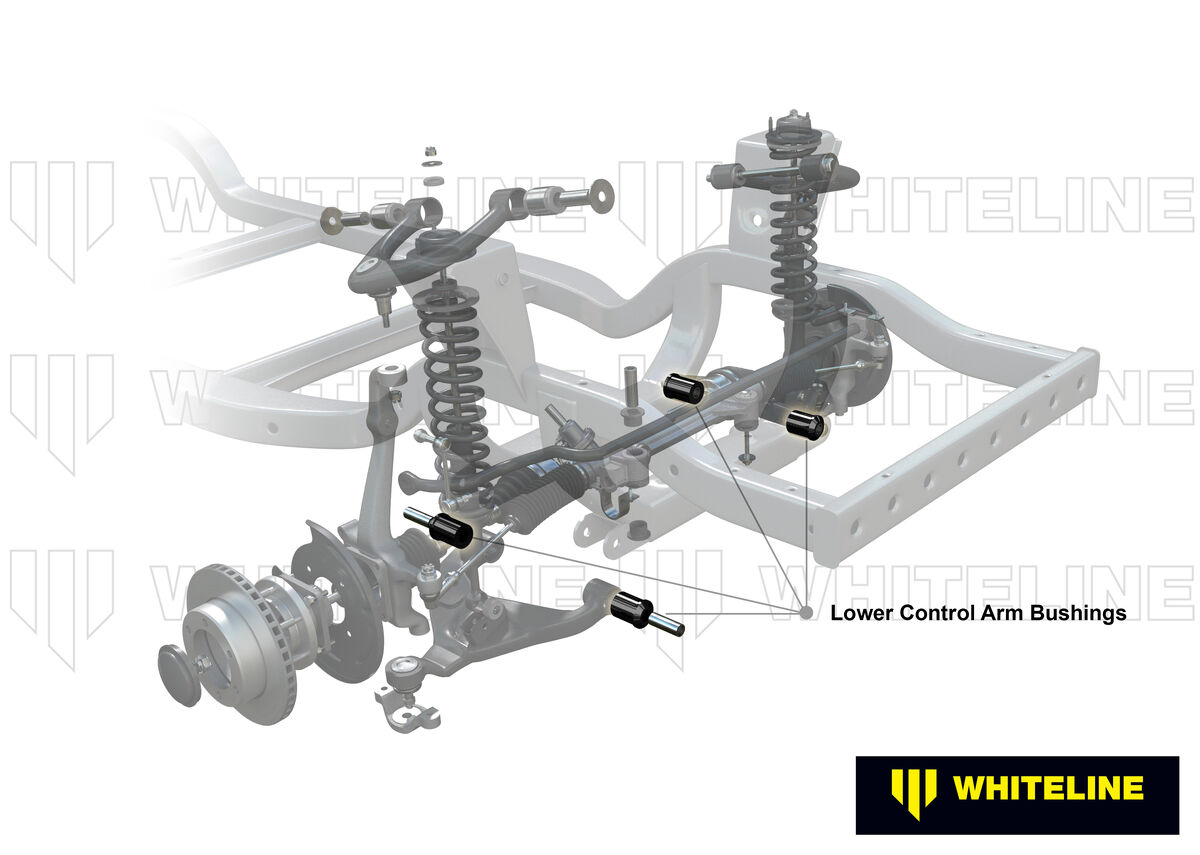

Whiteline Front Lower Control Arm - Bushing Kit to Suit Holden HT-WB and Torana LC-LX

SKU: W51026

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

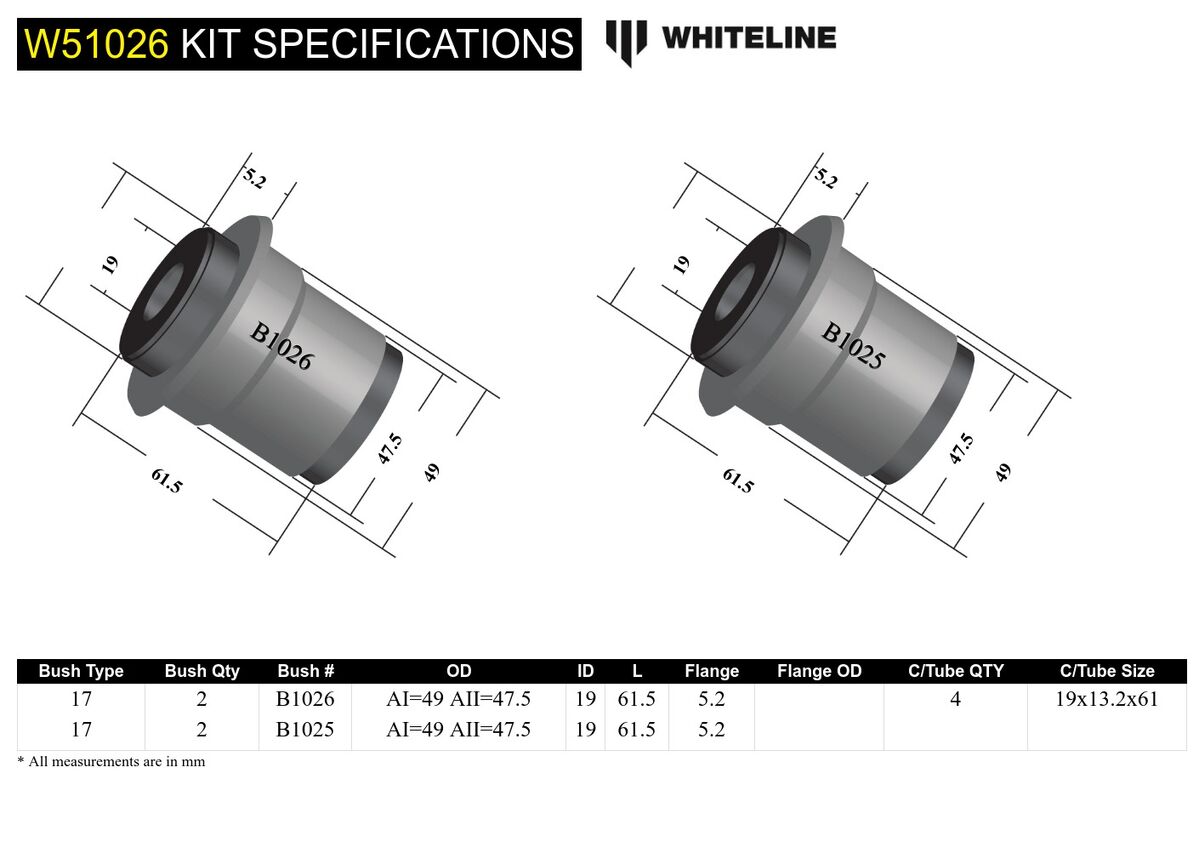

Kit Specifications

Bush Type 17 - Shell With Flange Bushing 17 - Shell With Flange Bushing
Bush Quantity 2 mm 2 mm
OD (A) AI=48.5 AII=47.7 mm AI=48.9 AII=47.4 mm
ID (B) 19 mm 19 mm
Length (C) 61.5 mm 61.5 mm
Flange Thickness (D) DI=6 DII=4 mm DI=6 DII=4 mm
Flange OD (E) EI=51 EII=38 mm EI=51 EII=38 mm
C/Tube Quantity 4
C/Tube ODxIDxL 19x13.2x61 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17 17
QTY 2 2
OD (A) AI=48.5 AII=47.7 AI=48.9 AII=47.4
ID (B) 19 19
Length (C) 61.5 61.5
FL (D) DI=6 DII=4 DI=6 DII=4
FLOD (E) EI=51 EII=38 EI=51 EII=38
C/Tube Qty 4
C/Tube Size 19x13.2x61
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.058kg2.33lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW51026

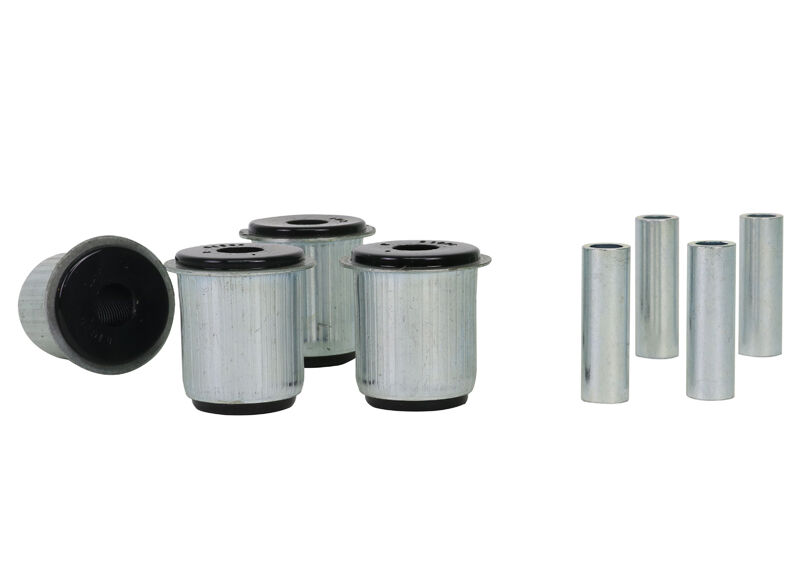

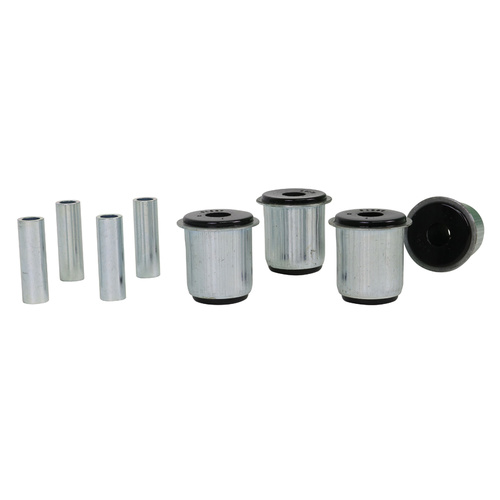

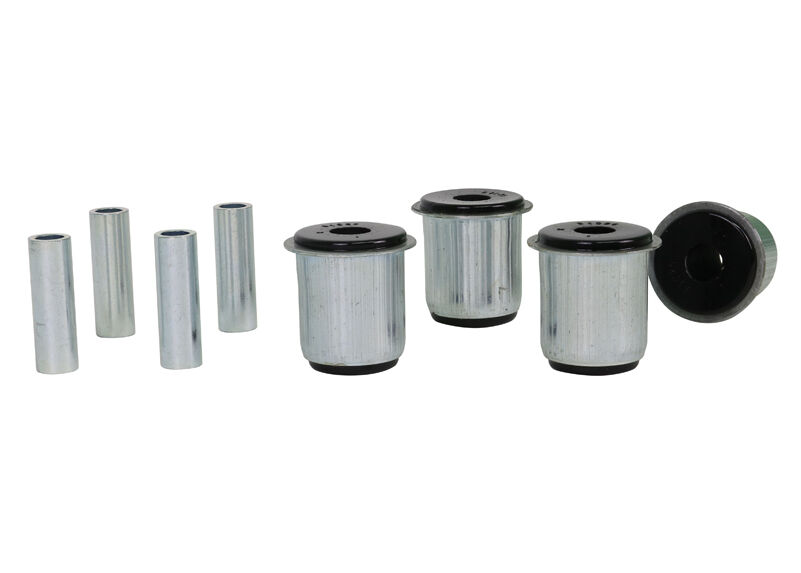

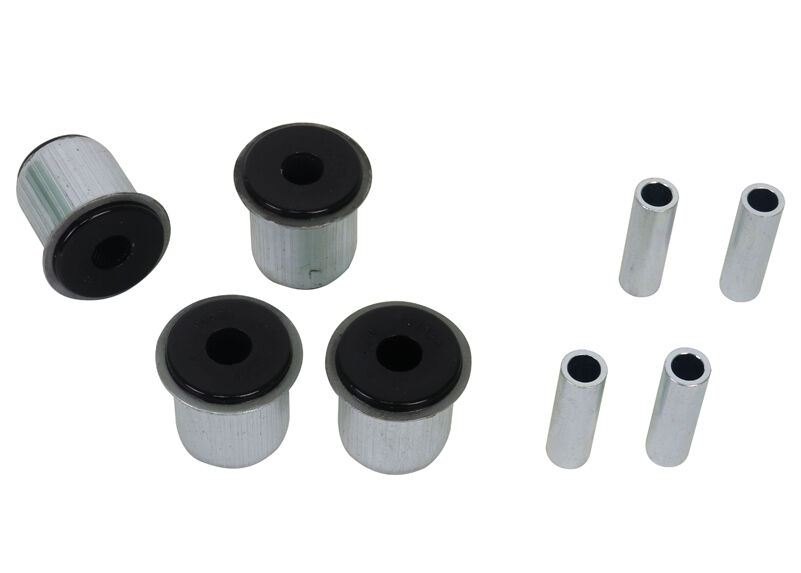

Components Per4 Shell Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes
EAN9319924351534
  • Lifetime Warranty
Brand Whiteline
SKU W51026
Unit Of Measure Kit
