Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

Kit Specifications

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	46.3 mm
ID (B)	31.5 mm
Length (C)	25 mm
Flange Thickness (D)	10 mm
Flange OD (E)	54.2 mm
C/Tube Quantity	2
C/Tube ODxIDxL	31.8x12.3x50 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber	Eccentric	No

Bushing Design Dimensions (mm)

Bush Type	1
QTY	4
OD (A)	46.3
ID (B)	31.5
Length (C)	25.0
FL (D)	10
FLOD (E)	54.2
C/Tube Qty	2
C/Tube Size	31.8x12.3x50
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.685kg	1.51lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	W53347

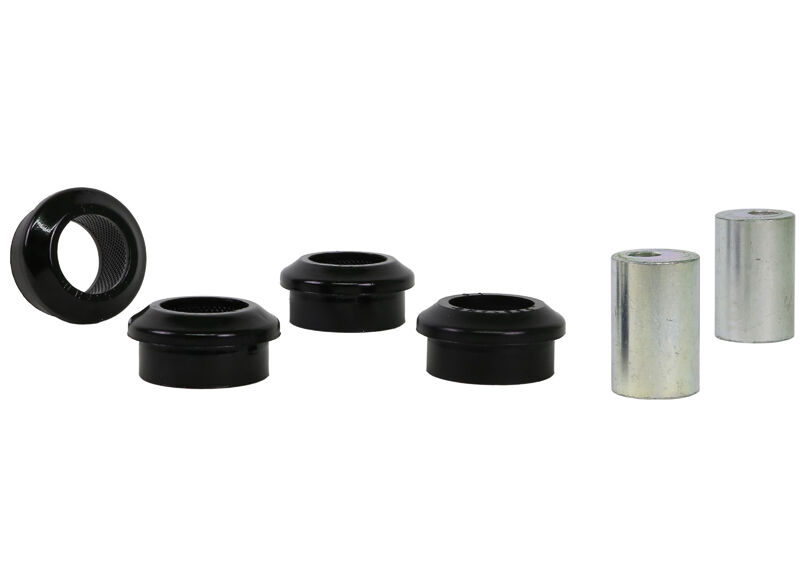

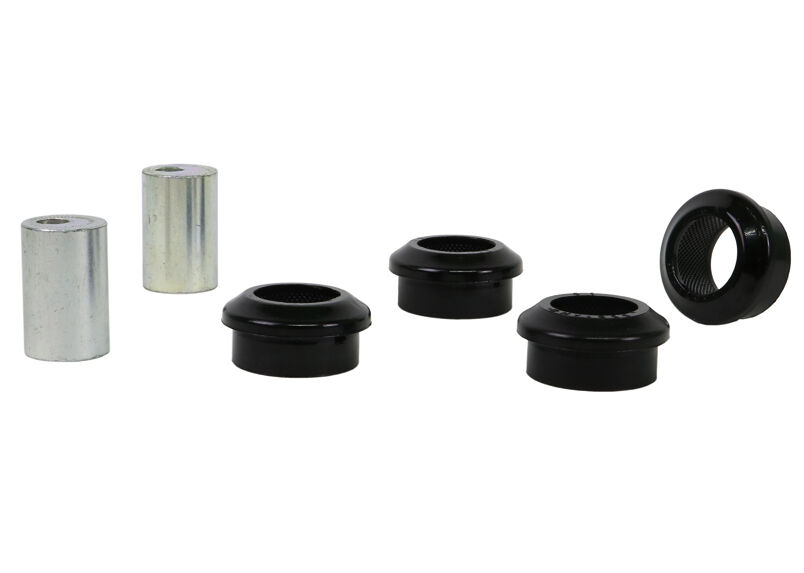

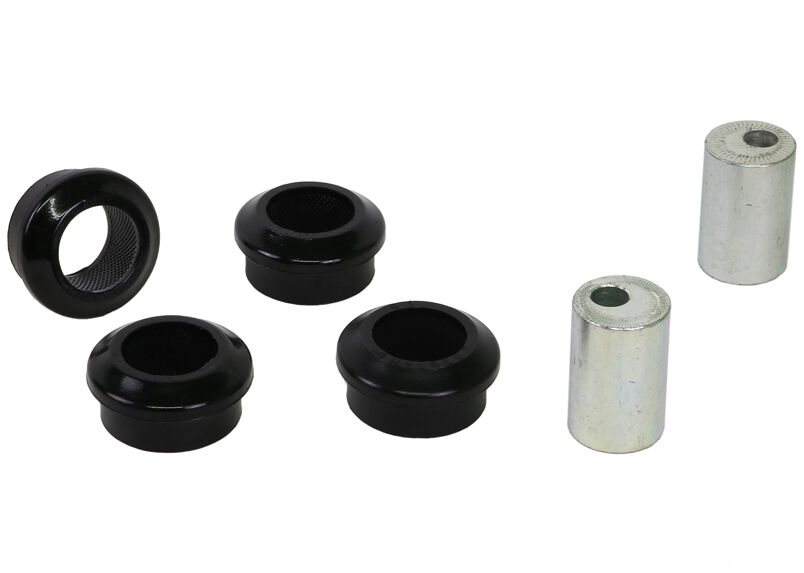

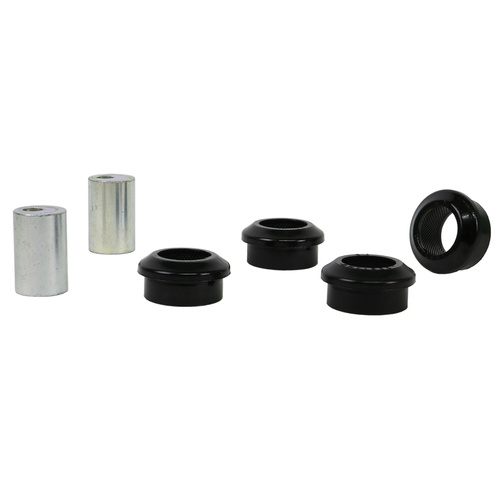

Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Ensures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9319924377213
