Whiteline Front Lower Control Arm - Bushing Kit Double Offset to Suit Holden HQ-WB and Torana LC-LX

SKU: W52491

Benefit Note: Whiteline adjustable camber kits allow for easy on-car adjustment and fine tuning of camber settings resulting in improved traction, increased cornering grip and better tyre life - ultimately improving overall performance. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) AI=49 AII=47.4 mm
ID (B) 30 mm
Length (C) 62 mm
Flange Thickness (D) 6 mm
Flange OD (E)
C/Tube Quantity 4
C/Tube ODxIDxL 30x11.95x61 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Offset No

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) AI=49 AII=47.4
ID (B) 30
Length (C) 62.0
FL (D) 6
FLOD (E)
C/Tube Qty 4
C/Tube Size 30x11.95x61
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.14kg2.51lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW52491

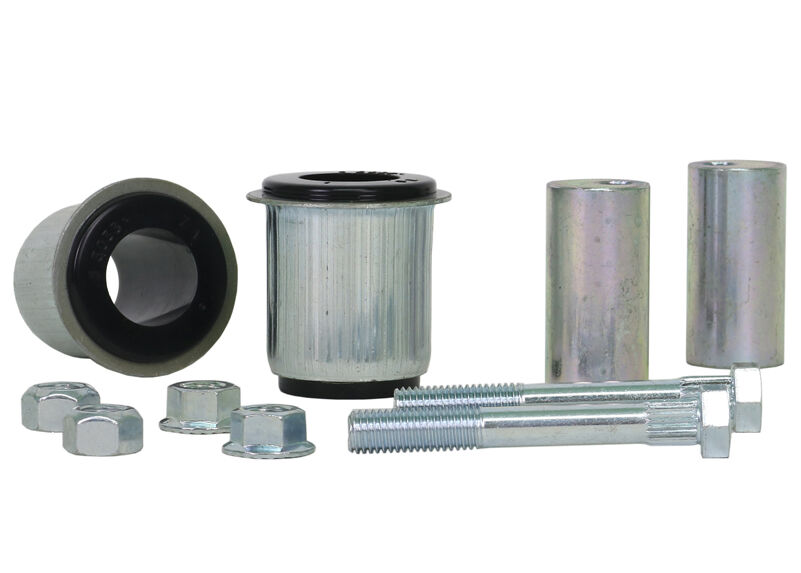

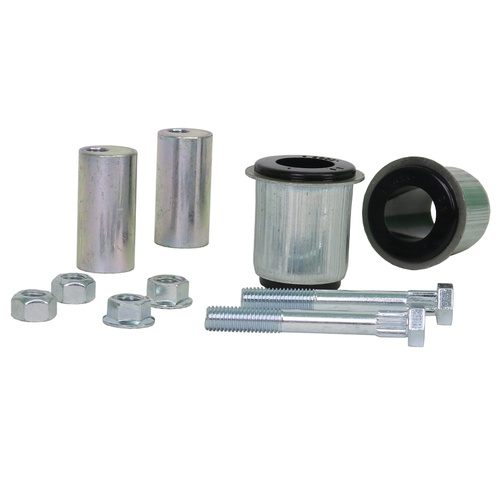

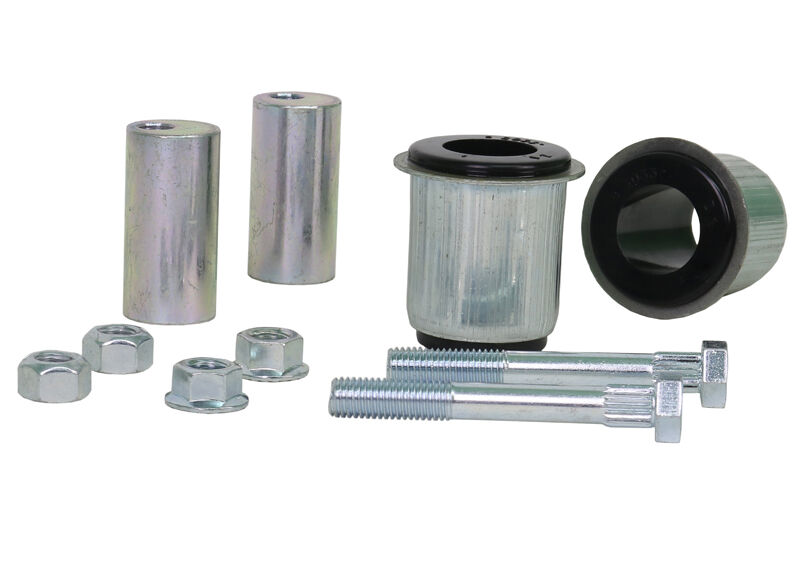

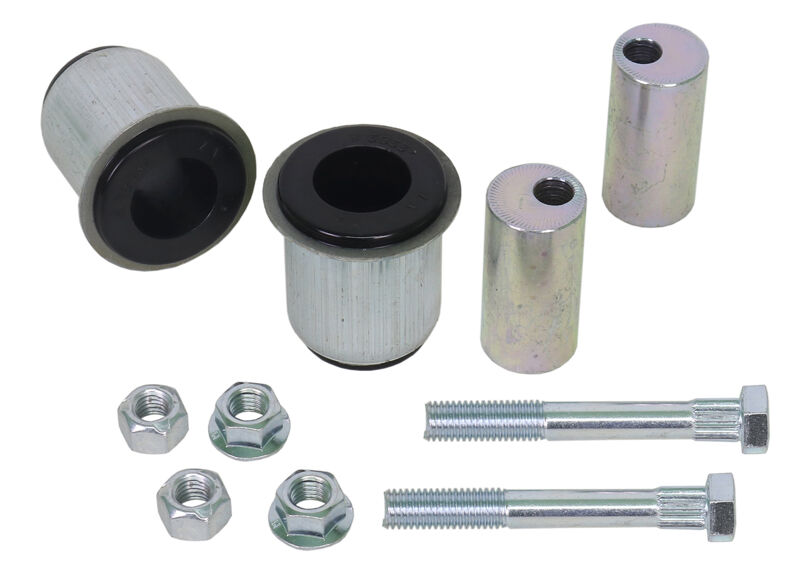

Components Per2 Shell Bushings, 2 Tubes, 2 Bolts, 4 Nuts
Kits Required2
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 2 Bolts & 4 Nuts
EAN9319924353125
  • Lifetime Warranty
Brand Whiteline
SKU W52491
Unit Of Measure Kit
