Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

Kit Specifications

Bush Type	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	2 mm
OD (A)	46.1 mm
ID (B)	22.3 mm
Length (C)	71 mm
Flange Thickness (D)	28 mm
Flange OD (E)	52.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	22x12x71 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber	Eccentric	Yes

Bushing Design Dimensions (mm)

Bush Type	10
QTY	2
OD (A)	46.1
ID (B)	22.3
Length (C)	71.0
FL (D)	28
FLOD (E)	52.5
C/Tube Qty	2
C/Tube Size	22x12x71
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.708kg	1.56lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	KCA431

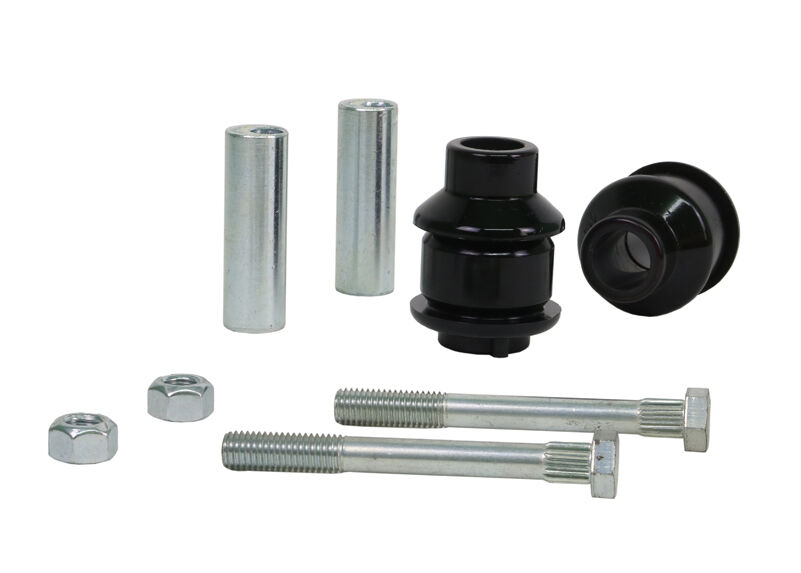

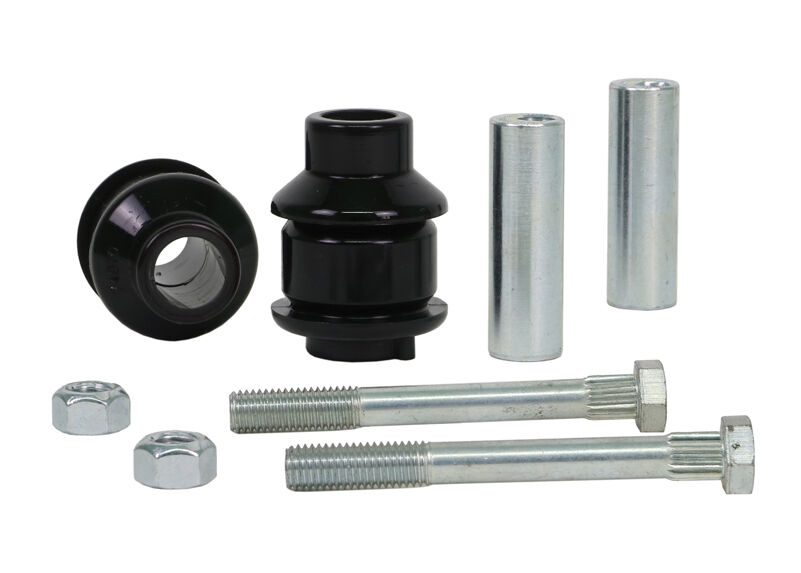

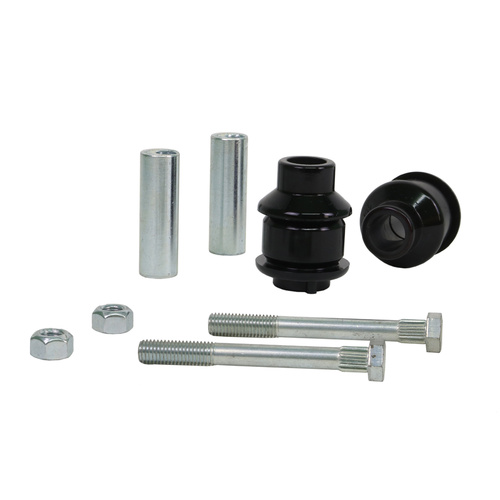

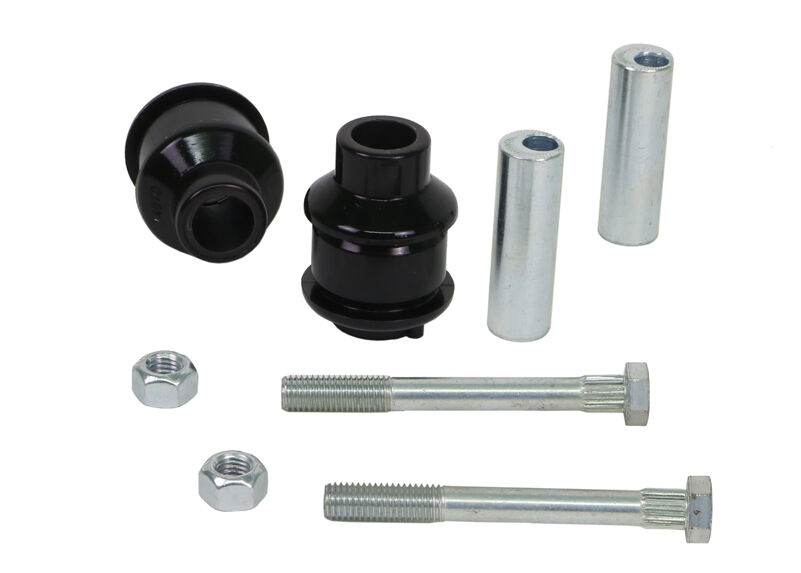

Components Per	2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts
Kits Required	1
Sub brand	Performance
Product Note	Ensures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts
EAN	9319924387649
