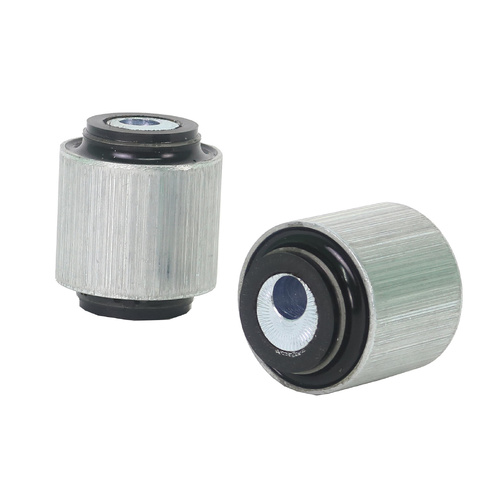

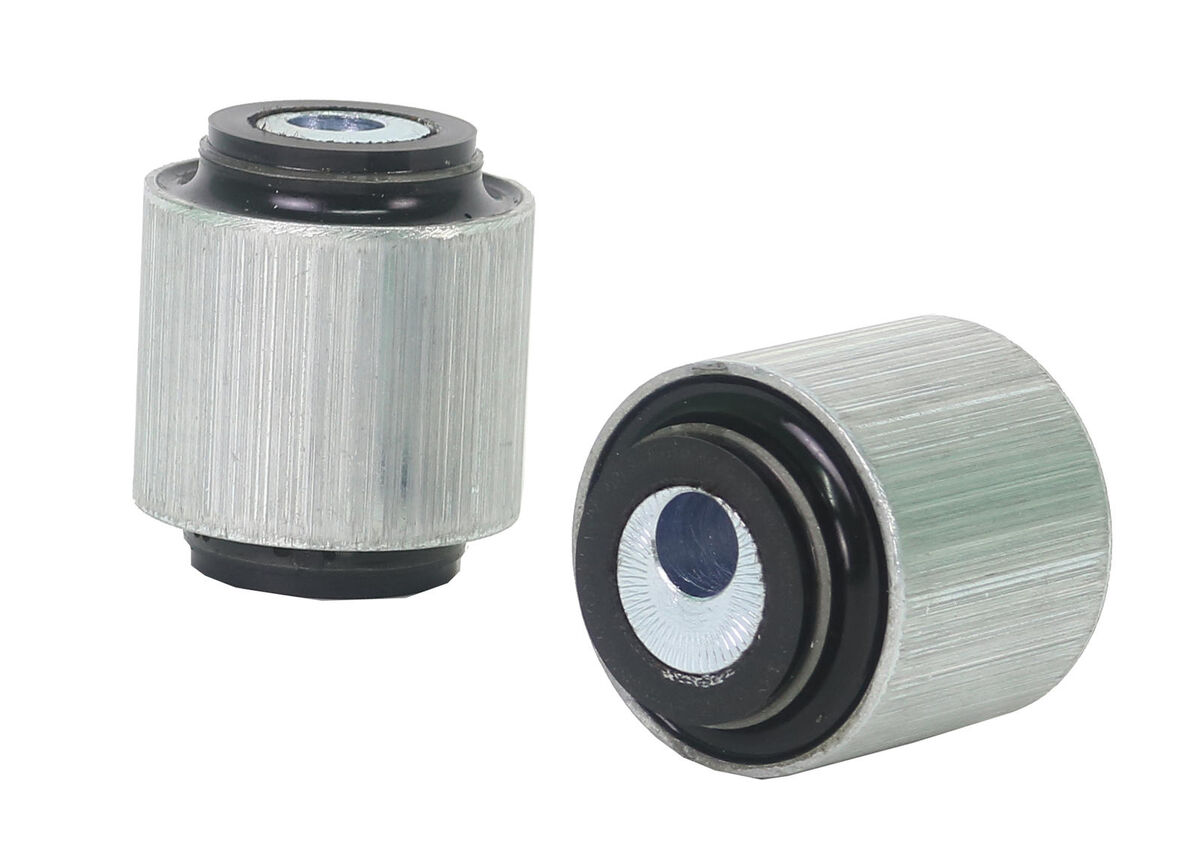

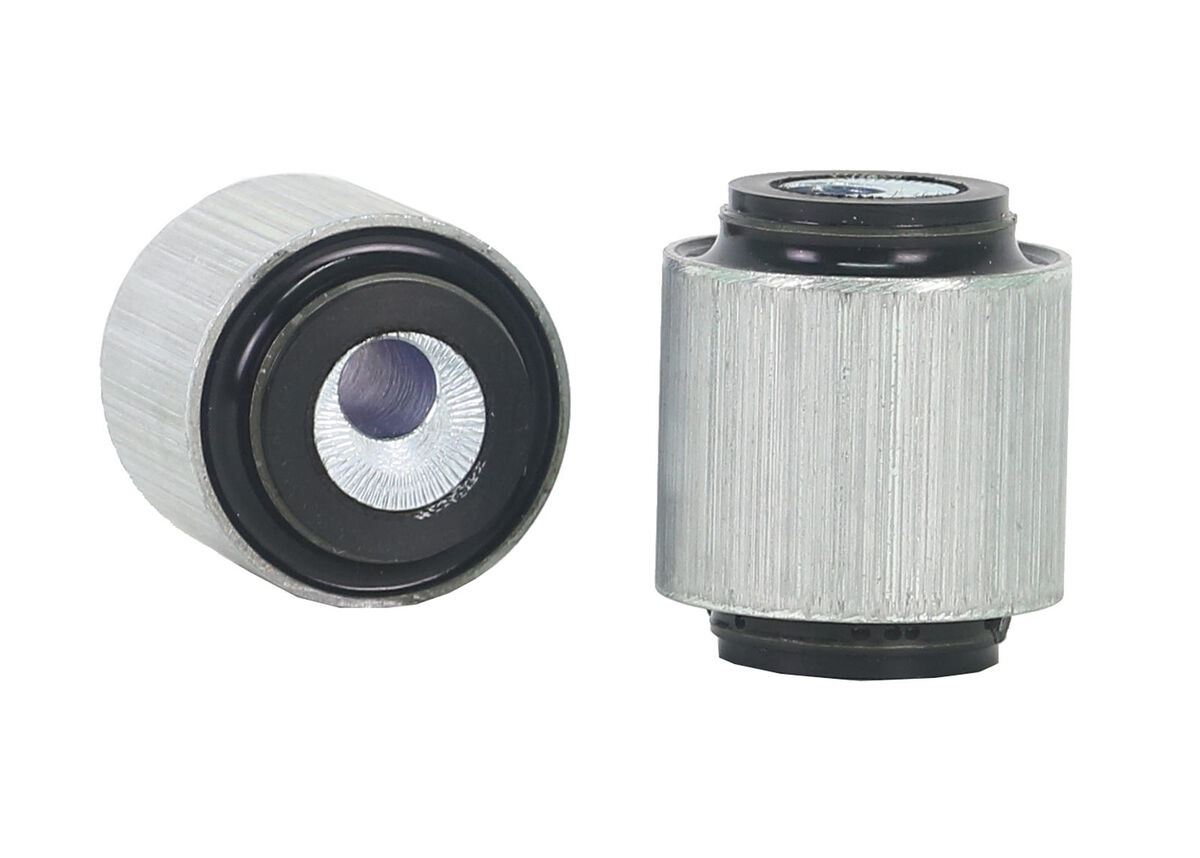

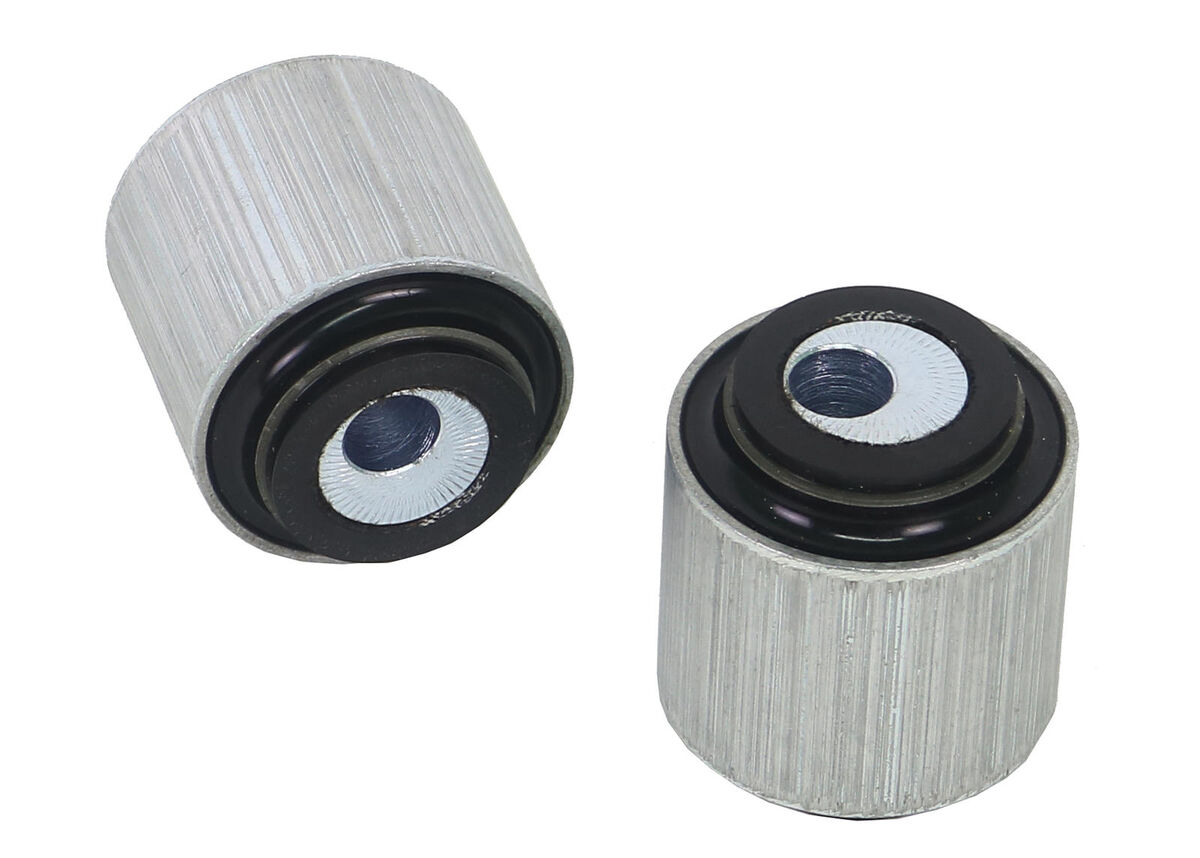

Whiteline Front Lower Control Arm - Bushing Double Offset Camber Kit to Suit Toyota GR Supra A90 and BMW Z4 G29

SKU: KCA497

Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 48 mm
ID (B) 12.2 mm
Length (C) 55.5 mm
Flange Thickness (D) 7.5 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 48
ID (B) 12.2
Length (C) 55.5
FL (D) 7.5
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.62kg1.37lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA497
Components Per2 Shell Bushings
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Shell Bushings
EAN9319924463961
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA497
Unit Of Measure Kit
