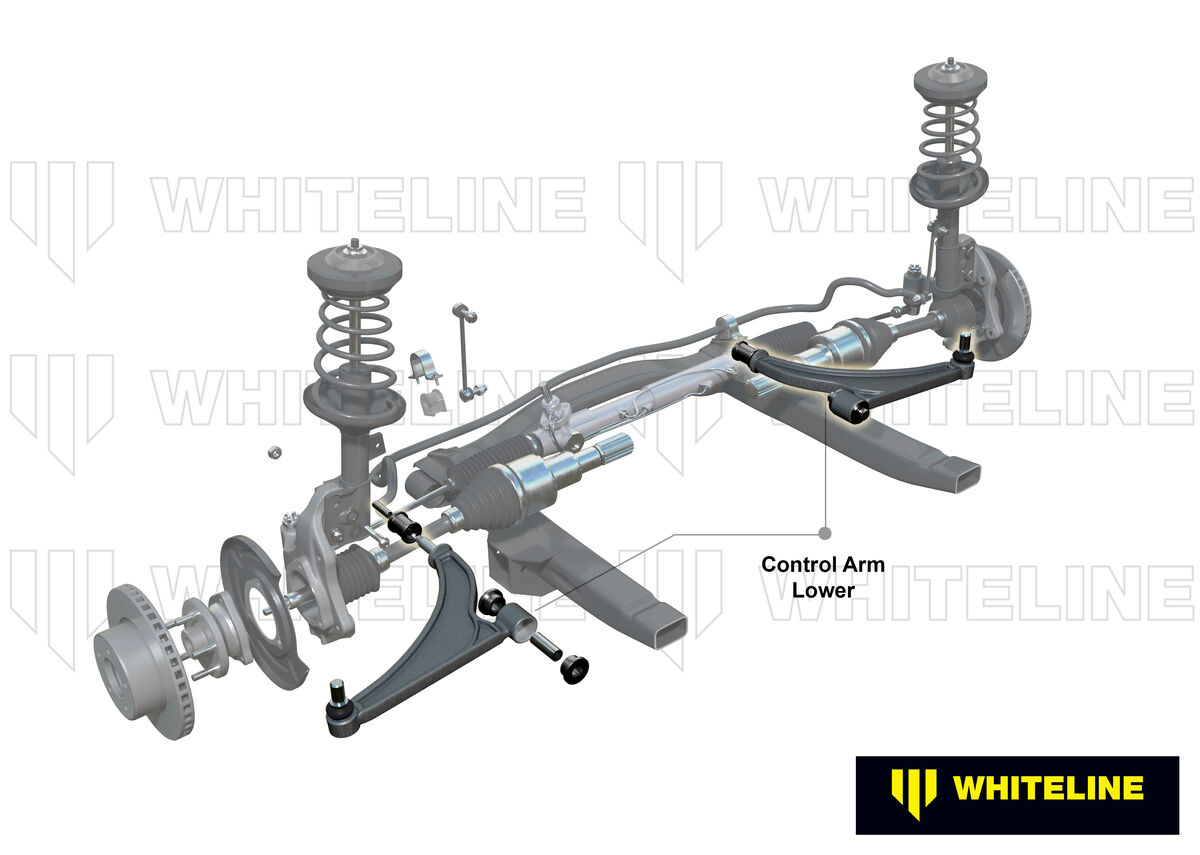

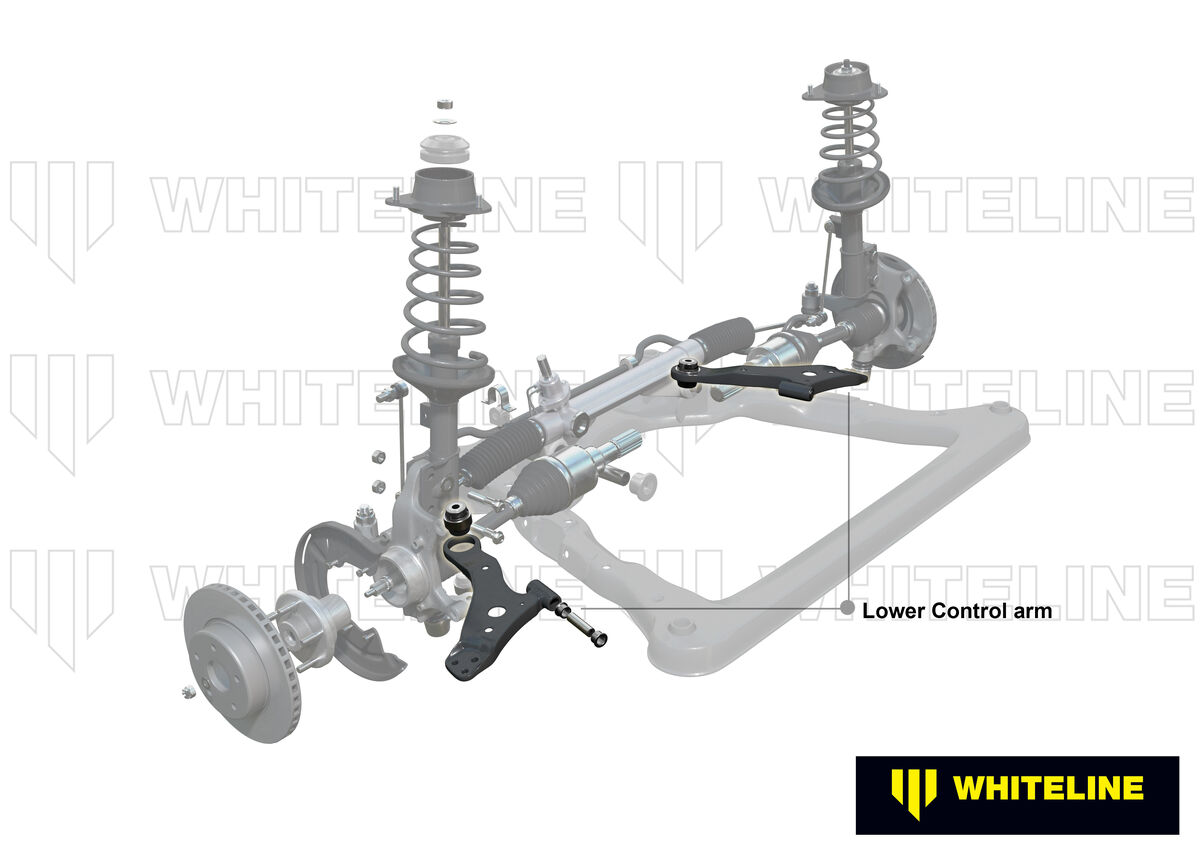

Whiteline Front Lower Control Arm - Arm Service Kit to Suit Whiteline Control Arm KTA262

SKU: KSK132

Benefit Note: Bushing Service kit to suit Whiteline Lower Control Arms


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 4 mm
OD (A) 76.2 mm 36.8 mm
ID (B) 16.5 mm 26.8 mm
Length (C) 33 mm 26 mm
Flange Thickness (D) 4 mm 7 mm
Flange OD (E) 51 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 27x12.2x54 mm 27x12.2x54 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber / Caster Offset No
Camber / Caster Offset No

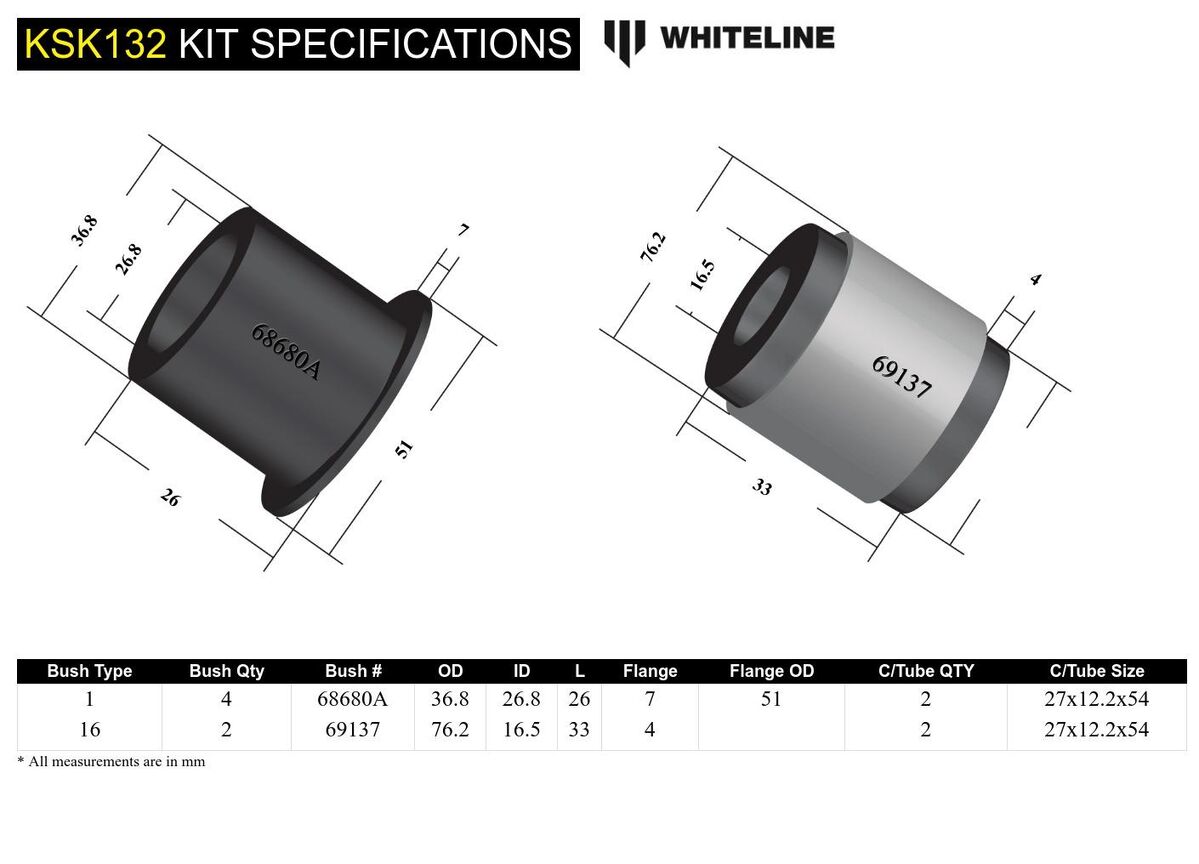

Bushing Design Dimensions (mm)

Bush Type 16 1
QTY 2 4
OD (A) 76.2 36.8
ID (B) 16.5 26.8
Length (C) 33.0 26.0
FL (D) 4 7
FLOD (E) 51
C/Tube Qty 2 2
C/Tube Size 27x12.2x54 27x12.2x54
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.5kg3.31lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKSK132

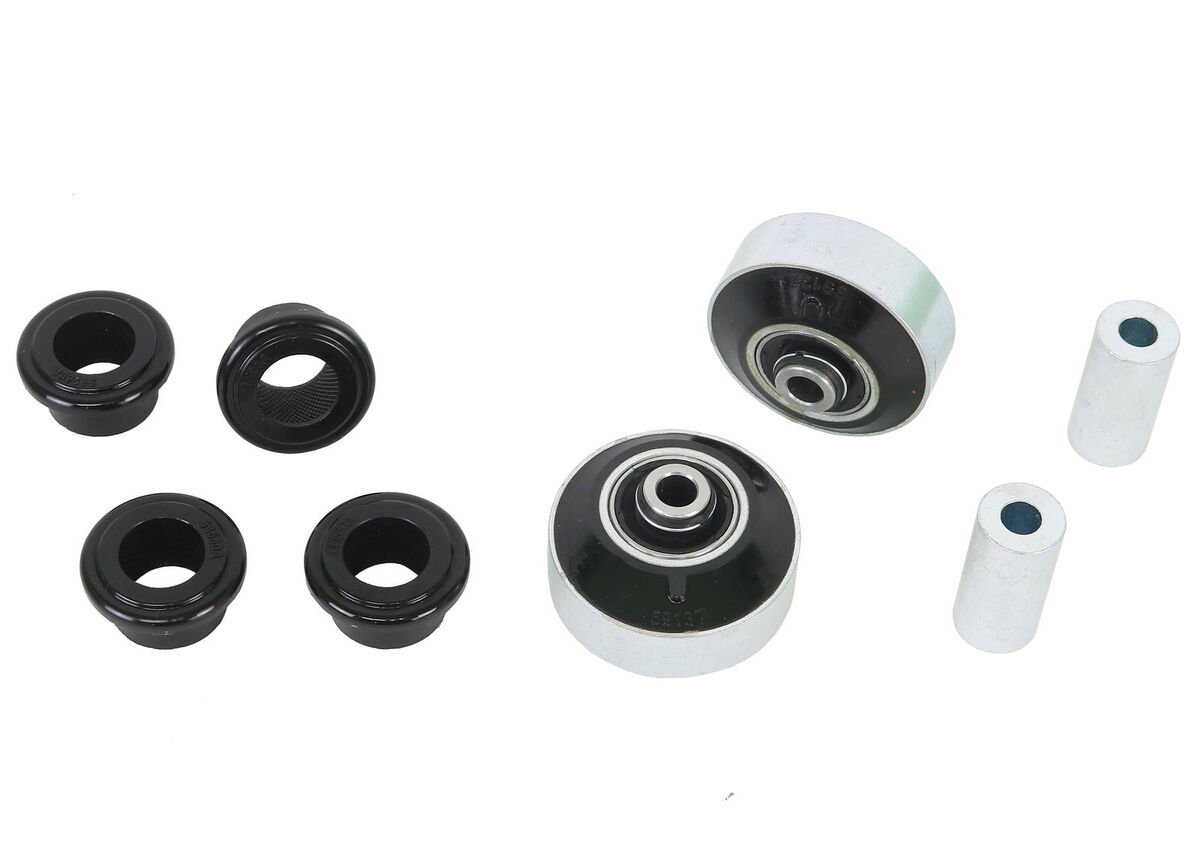

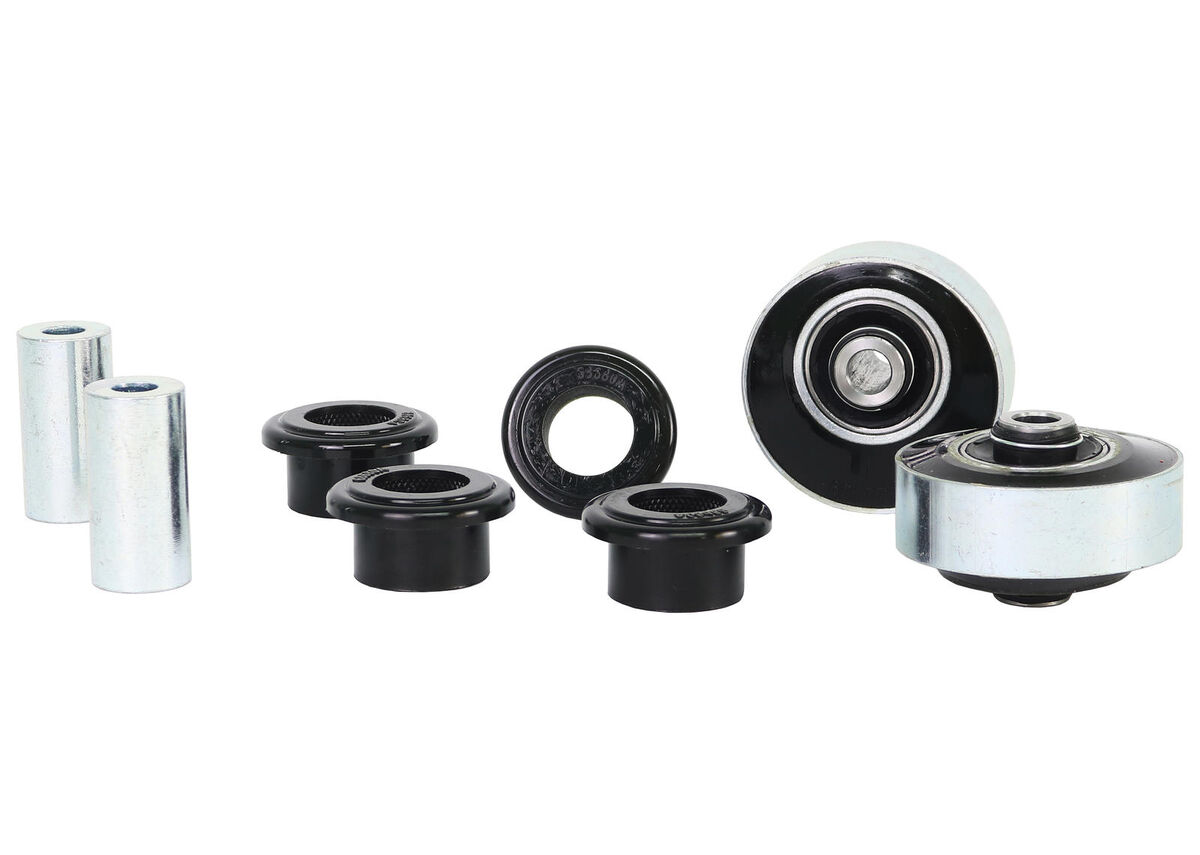

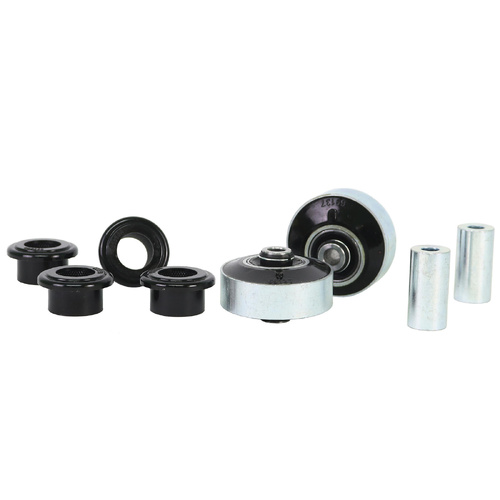

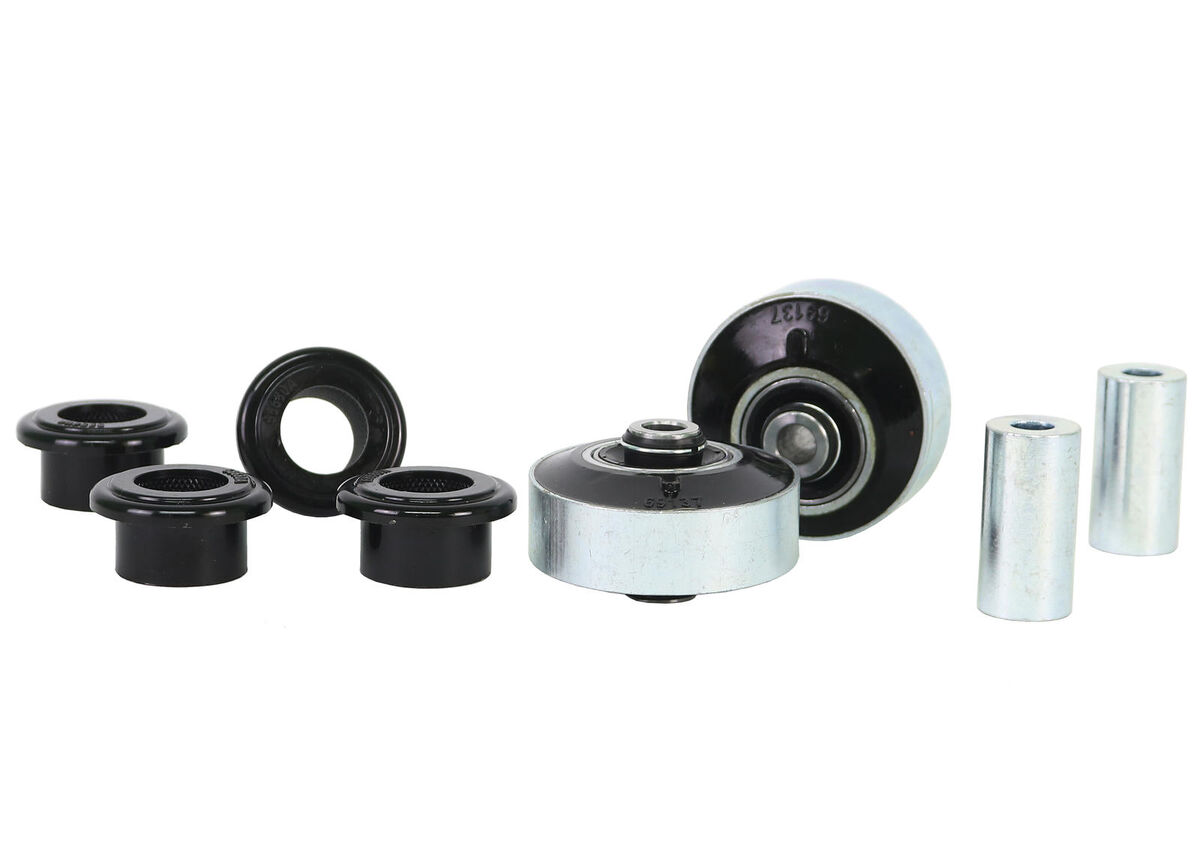

Components Per2 Shell Bushings, 4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes
EAN9319924468478
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KSK132
Unit Of Measure Kit
