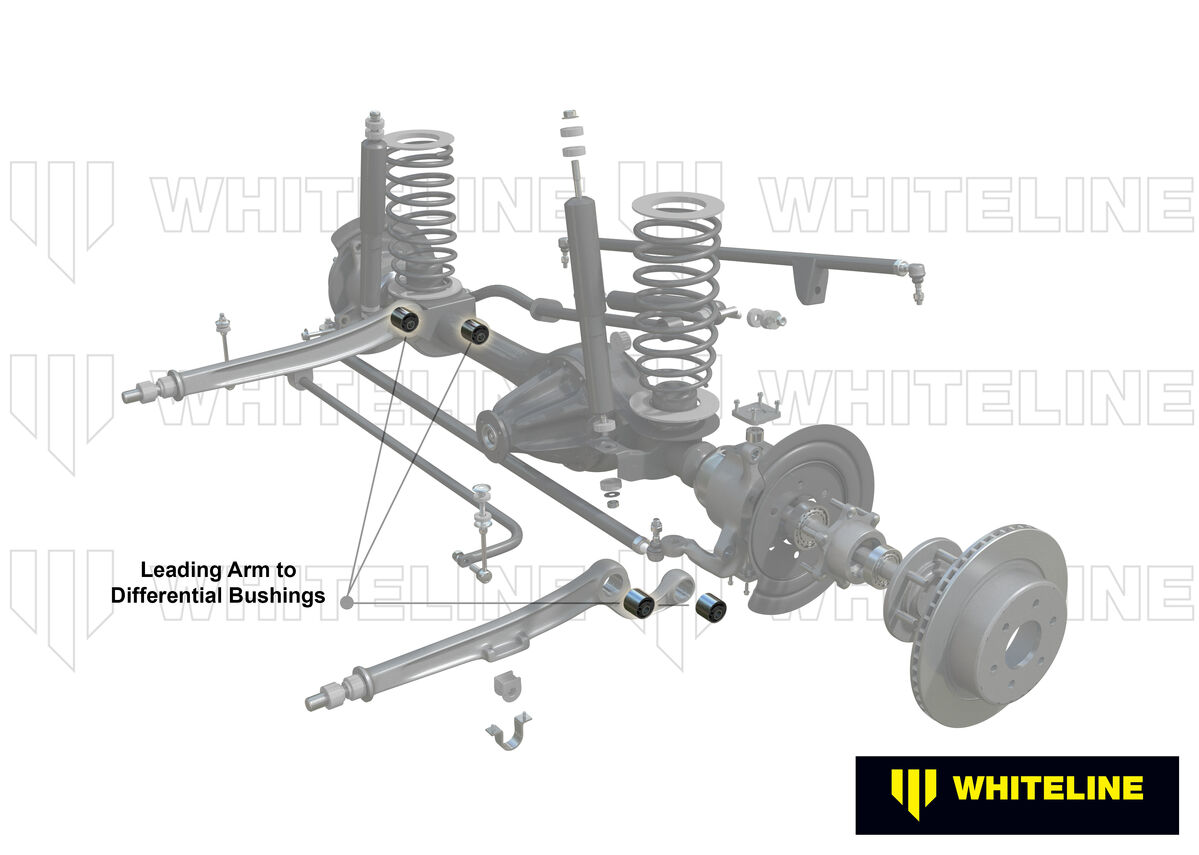

Whiteline Front Leading Arm - To Differential Bushing Kit to Suit Land Rover Defender and Range Rover Classic

SKU: W81650

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. Leading arm bushings in particular tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 8 mm
OD (A) 50.5 mm
ID (B) 22.2 mm
Length (C) 24 mm
Flange Thickness (D) 5.5 mm
Flange OD (E) 61.5 mm
C/Tube Quantity 4
C/Tube ODxIDxL 22.2x16.2x47 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 8
OD (A) 50.5
ID (B) 22.2
Length (C) 24.0
FL (D) 5.5
FLOD (E) 61.5
C/Tube Qty 4
C/Tube Size 22.2x16.2x47
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.682kg1.5lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW81650

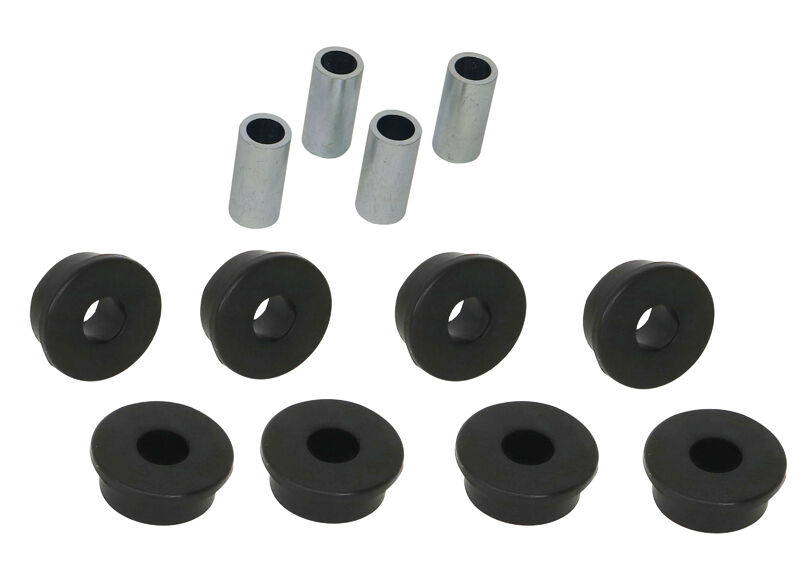

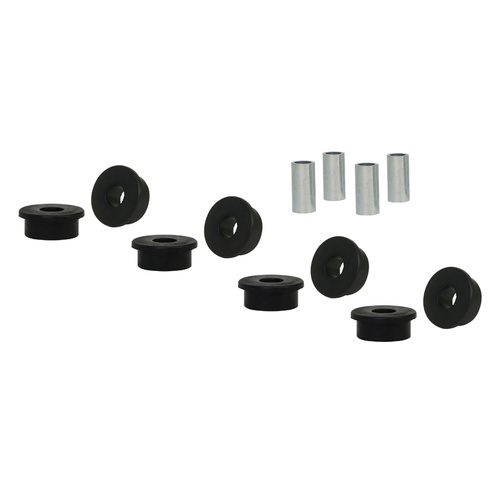

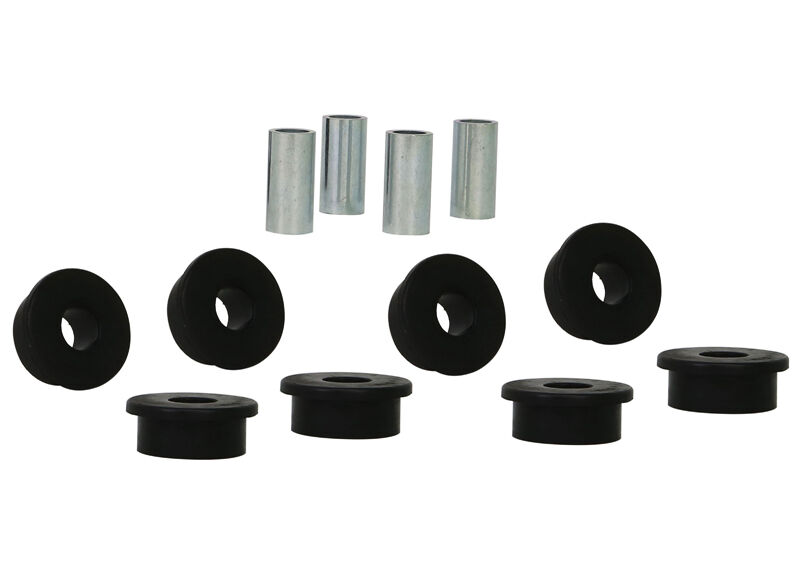

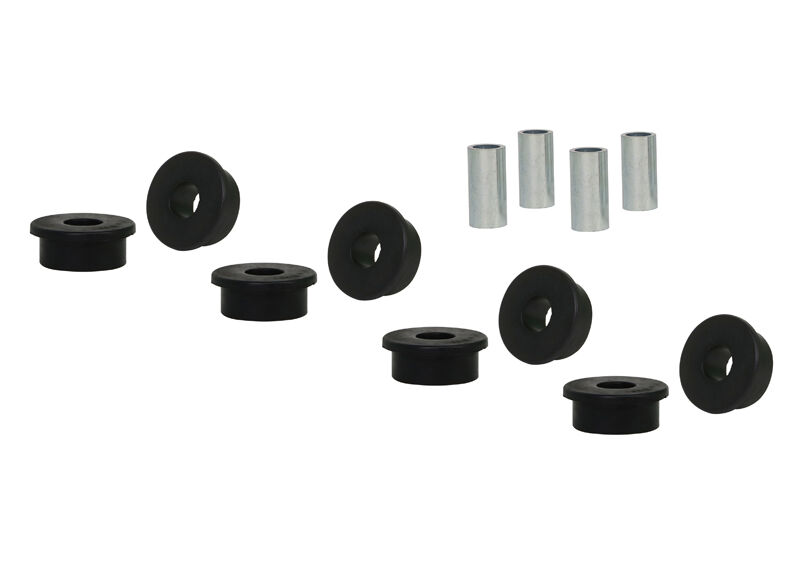

Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924357116
  • Lifetime Warranty
Brand Whiteline
SKU W81650
Unit Of Measure Kit
