Whiteline Front Leading Arm - To Differential Bushing Kit Offset to Suit Suzuki Jimny and Sierra

SKU: W53489

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

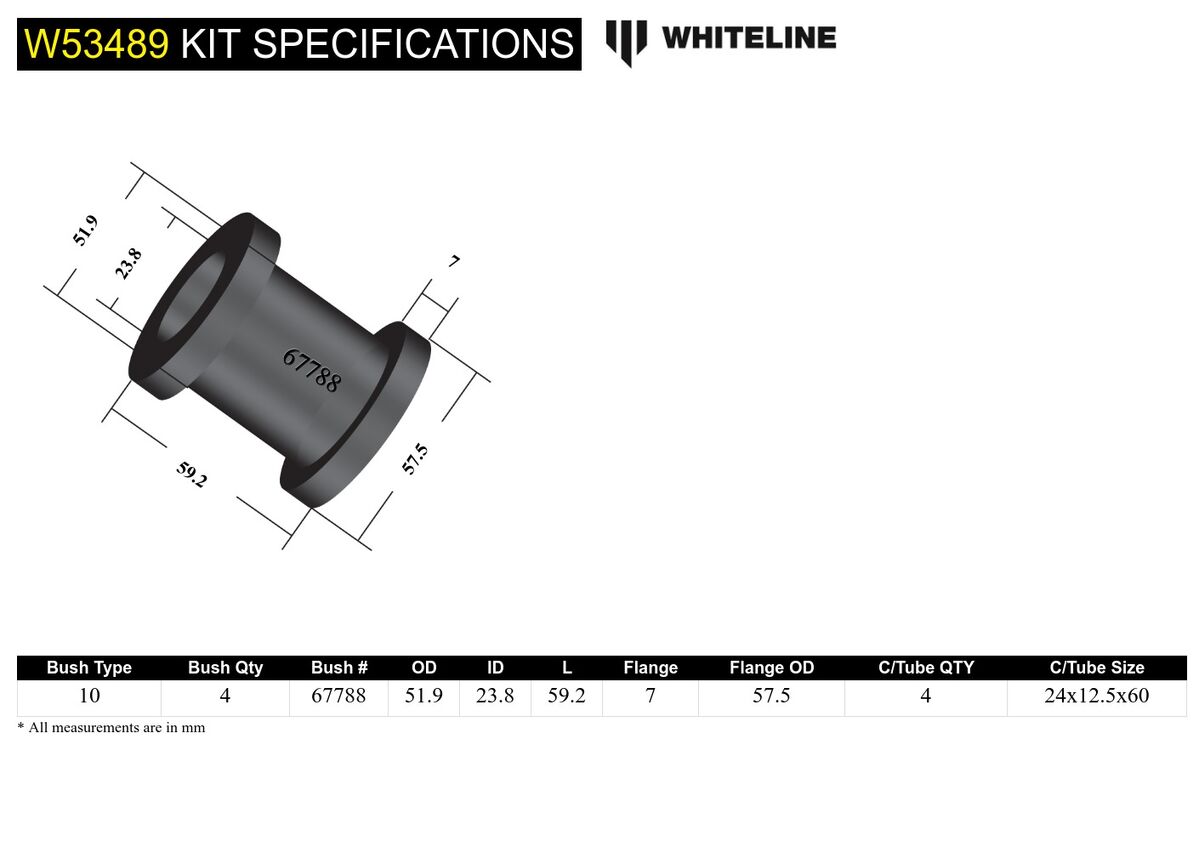

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 4 mm
OD (A) 51.9 mm
ID (B) 23.8 mm
Length (C) 59.2 mm
Flange Thickness (D) 7 mm
Flange OD (E) 57.5 mm
C/Tube Quantity 4
C/Tube ODxIDxL 24x12.5x60 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 10
QTY 4
OD (A) 51.9
ID (B) 23.8
Length (C) 59.2
FL (D) 7
FLOD (E) 57.5
C/Tube Qty 4
C/Tube Size 24x12.5x60
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.074kg2.37lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53489
Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9330074011031
  • Lifetime Warranty
Brand Whiteline
SKU W53489
Unit Of Measure Kit
