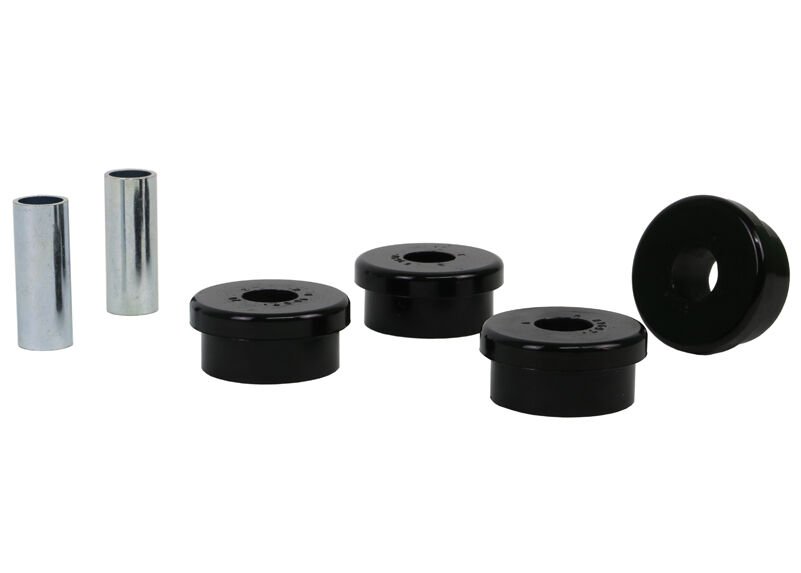

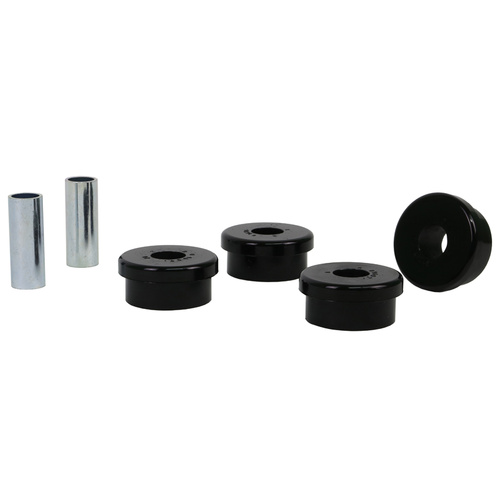

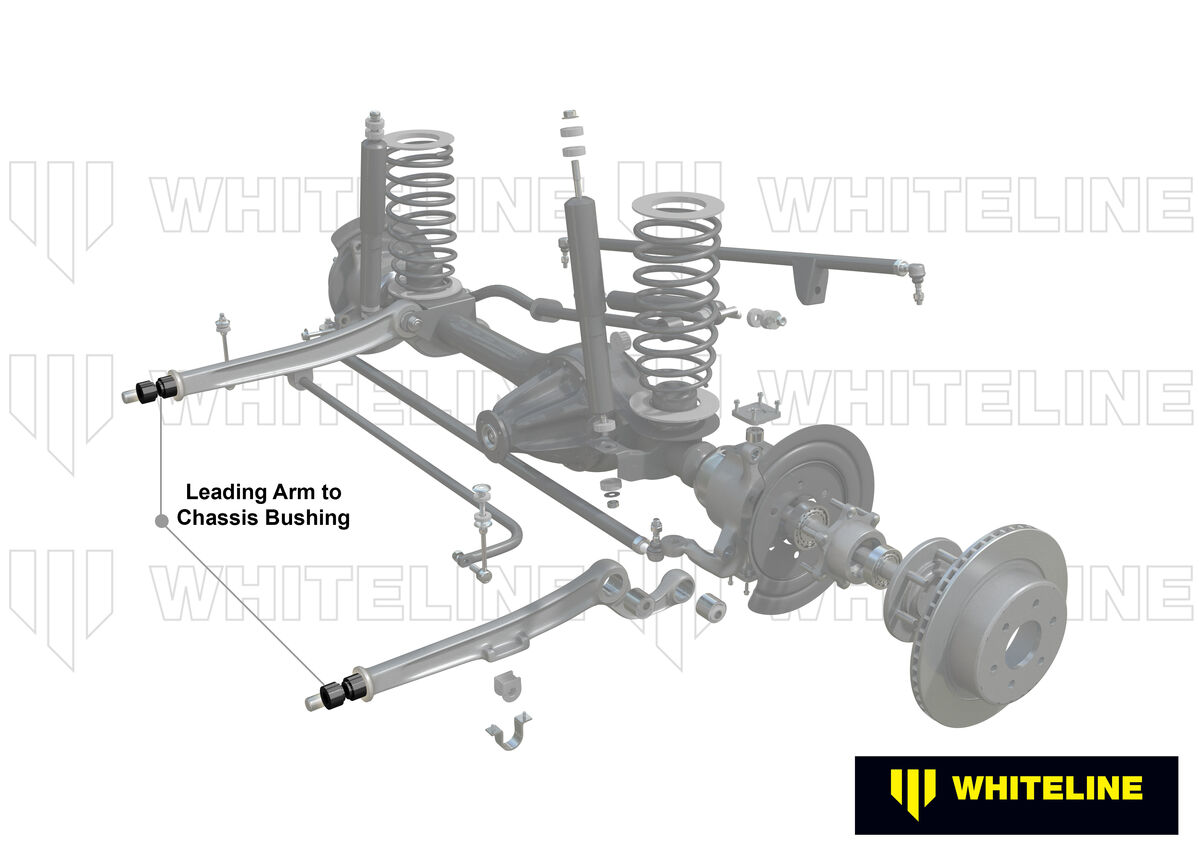

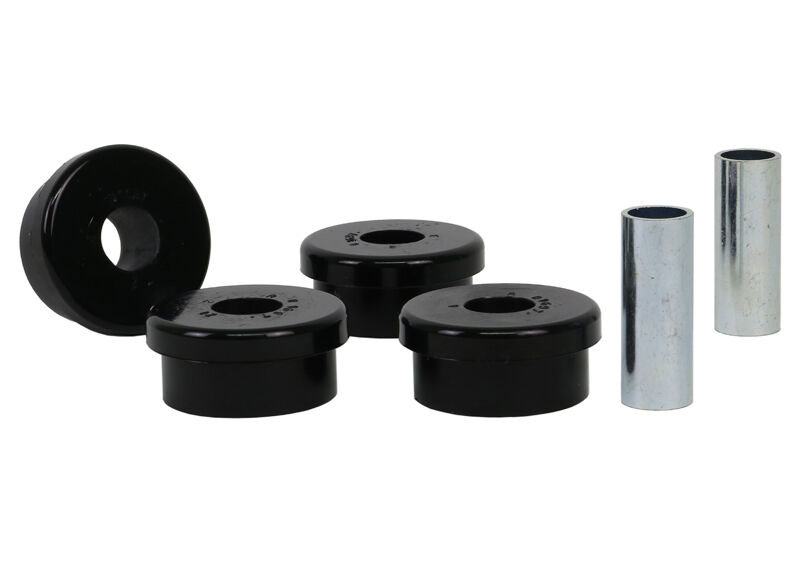

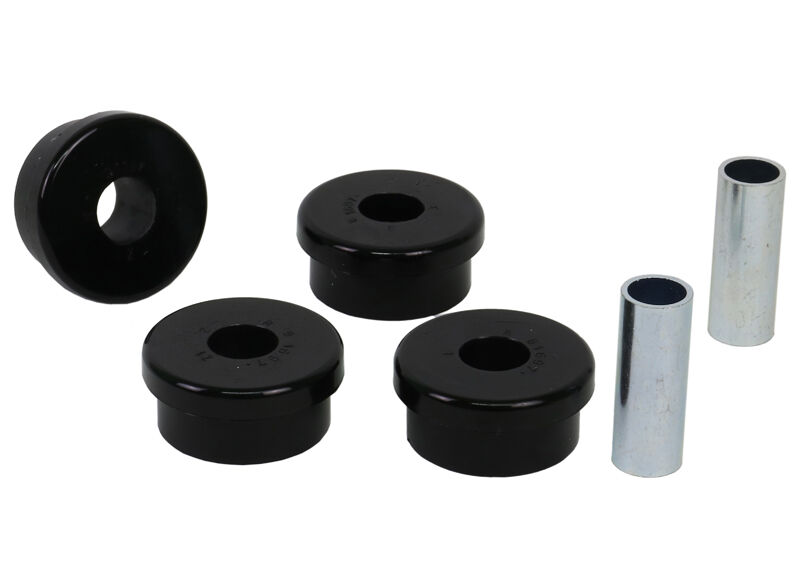

Whiteline Front Leading Arm - To Chassis Bushing Kit to Suit Toyota Land Cruiser 76, 78, 79, 80 and 105 Series

SKU: W81697

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

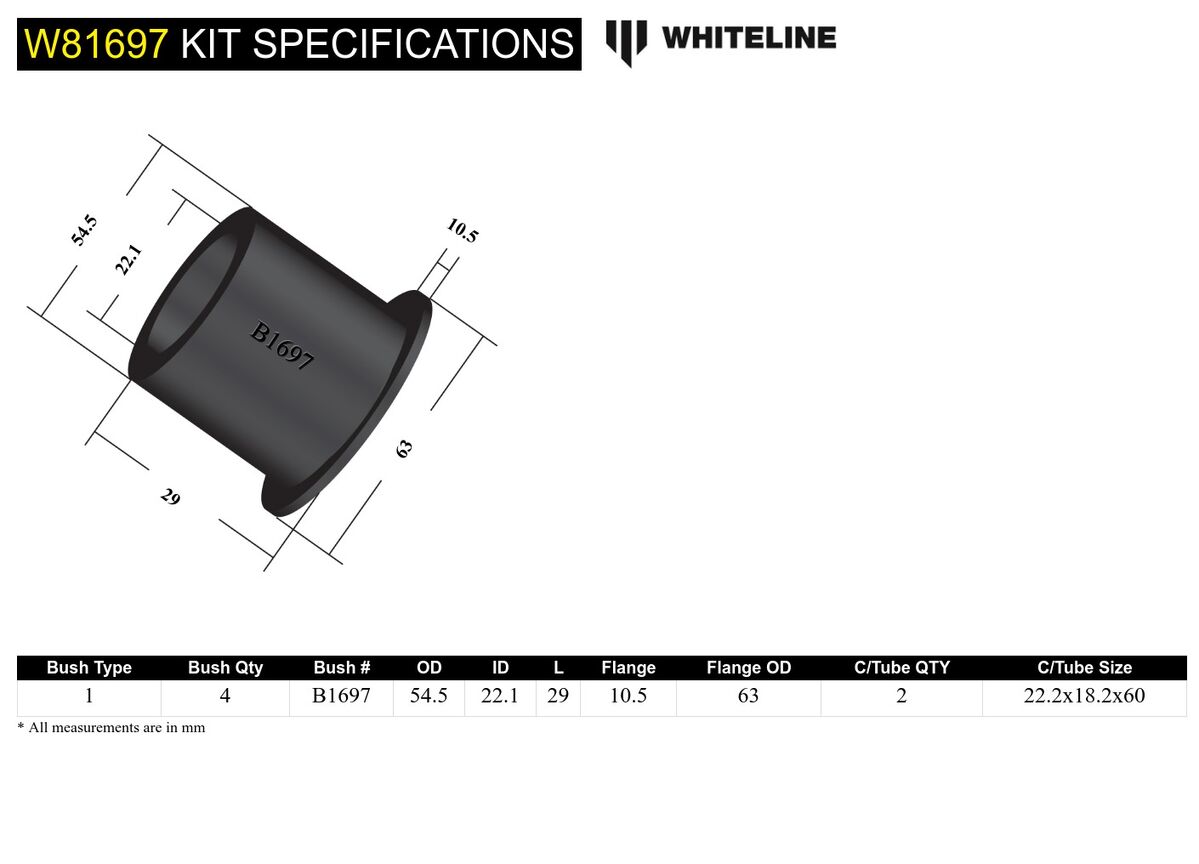

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 54.5 mm
ID (B) 22.1 mm
Length (C) 29 mm
Flange Thickness (D) 10.5 mm
Flange OD (E) 63 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x18.2x60 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 54.5
ID (B) 22.1
Length (C) 29.0
FL (D) 10.5
FLOD (E) 63
C/Tube Qty 2
C/Tube Size 22.2x18.2x60
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.437kg0.96lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW81697
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924357208
  • Lifetime Warranty
Brand Whiteline
SKU W81697
Unit Of Measure Kit
