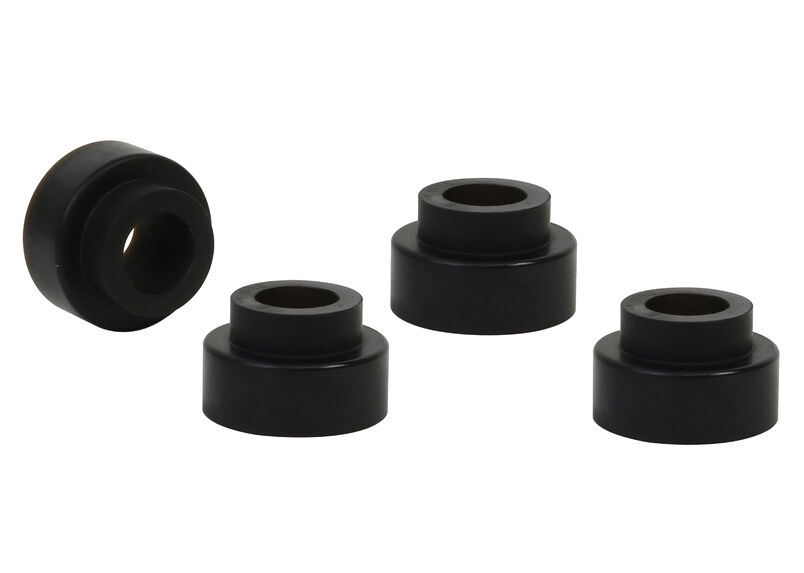

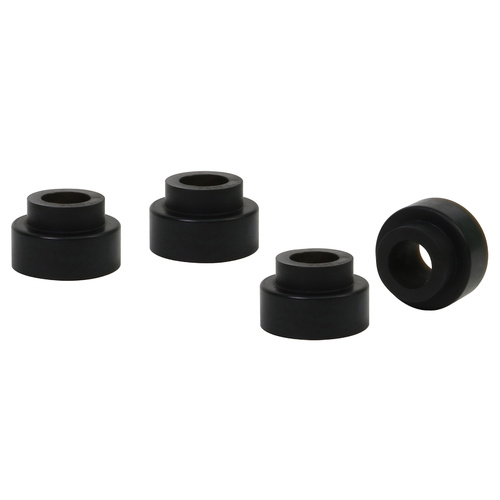

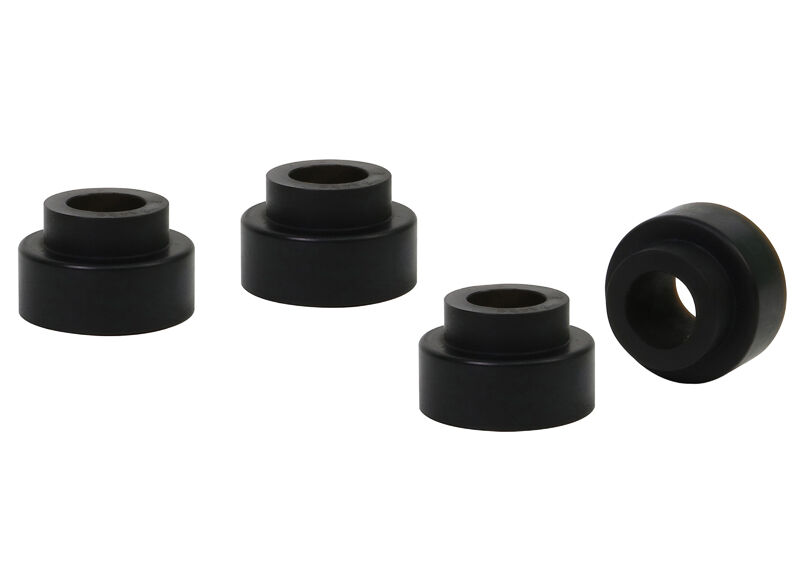

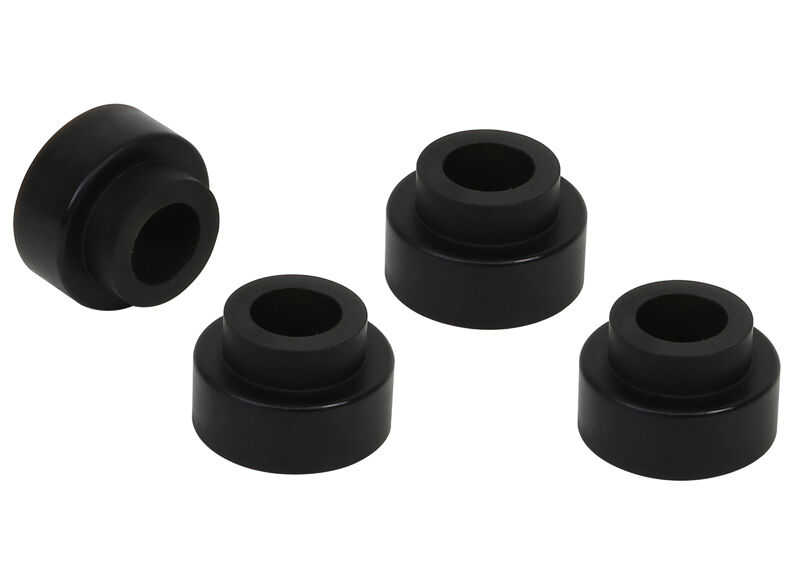

Whiteline Front Leading Arm - To Chassis Bushing Kit to Suit Nissan Patrol GQ, GU and Ford Maverick DA

SKU: W81429

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 38 mm
ID (B) 24 mm
Length (C) 34 mm
Flange Thickness (D) 22 mm
Flange OD (E) 54 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 38
ID (B) 24
Length (C) 34.0
FL (D) 22
FLOD (E) 54
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.244kg0.54lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81429
Components Per4 Bushings
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924356997
  • Lifetime Warranty
Brand Whiteline
SKU W81429
Unit Of Measure Kit
