Say goodbye to vague steering and unpredictable cornering.

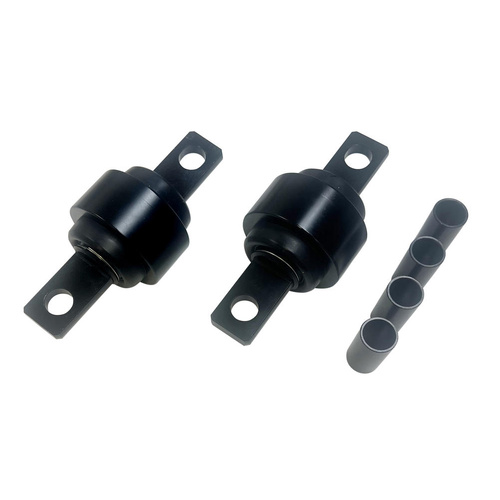

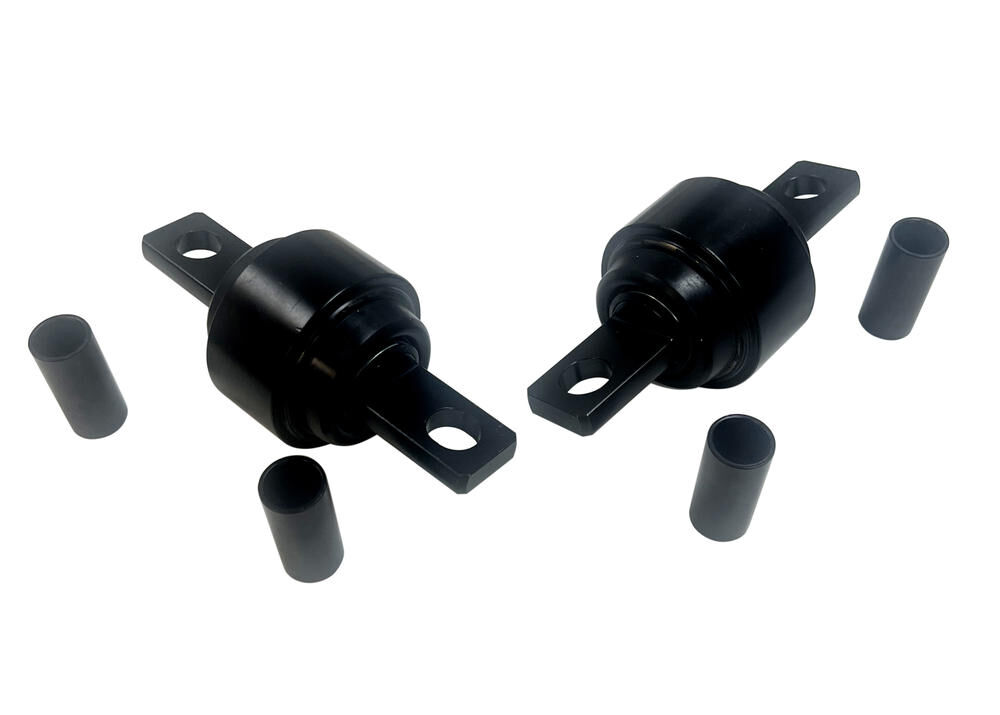

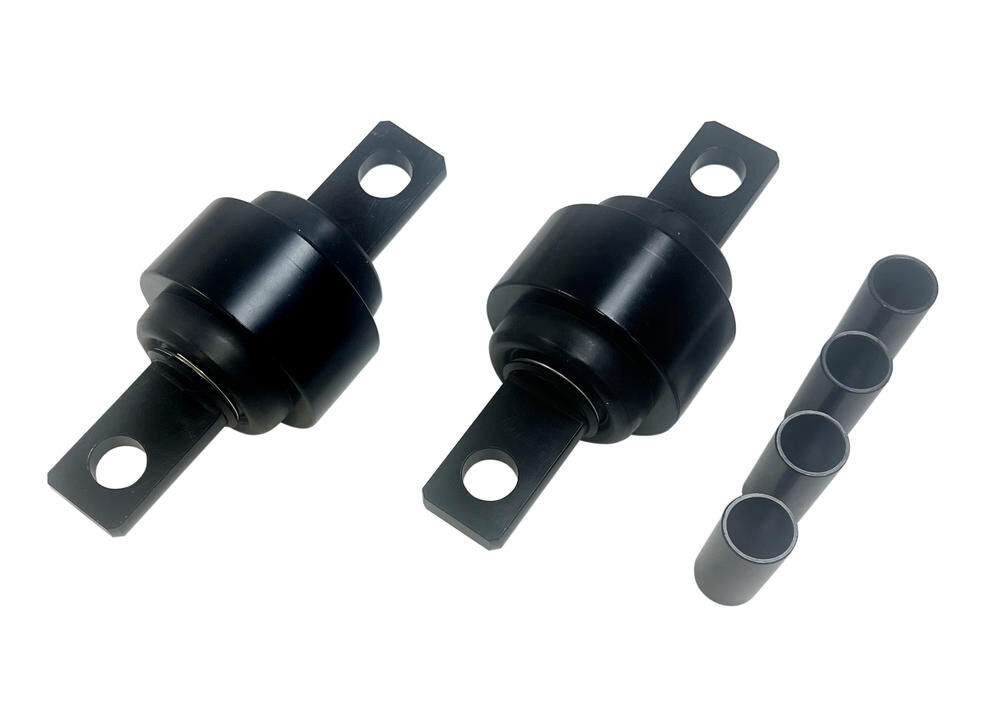

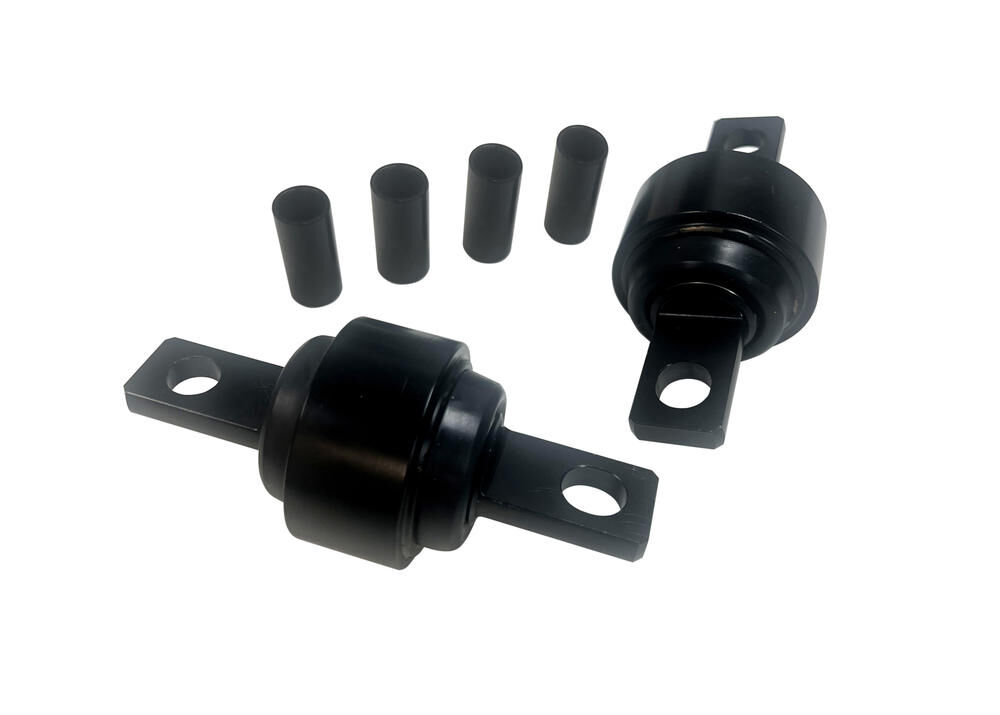

Whiteline's Solid Front Lower Control Arm Bearings for the Tesla Model 3 and Model Y replace the soft factory bushings with sealed spherical bearings, delivering razor-sharp turn-in, improved mid-corner stability, and increased front-end grip.
Engineered for aggressive street driving and track use, our design features integrated crush tube sleeves to prevent bolt loosening a known issue in OE arms under high-load conditions.

This kit is a must-have upgrade for any performance-focused Tesla driver.

Key Benefits
1. High-Precision Bearing Replacement
Replaces the OEM rubber bushing with a premium-quality bearing, delivering improved responsiveness and steering accuracy.

2. Engineered for Real-World Conditions
Through rigorous testing, we identified that polyurethane alternatives were unreliable in this application due to the pin-style bushing and the extensive articulation during steering. Our bearing solution eliminates these limitations for consistent performance.

3. OEM-Grade Design & Manufacturing
Developed with OEM-level quality standards in mind, this bearing utilizes the same engineering principles and manufacturing practices found in factory-original components, ensuring reliability and long service life.

4. Integrated Crush Tubes for Structural Integrity
Testing revealed subframe deflection under load, which caused mounting bolts to loosen. Our solution includes precision crush tubes that reinforce the subframe, preventing flex and maintaining secure mounting under all conditions.

5. Minimal NVH Increase
With minimal longitudinal force acting on this position, our engineering team achieved a conversion from bushing to bearing with negligible impact on noise, vibration, and harshness (NVH), preserving ride comfort while enhancing performance.

Kit Specifications

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	60 mm
ID (B)
Length (C)	109.3 mm
Flange Thickness (D)	12 mm
Flange OD (E)
C/Tube Quantity	2
C/Tube ODxIDxL	32x0x109.3 (pin) mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	16
QTY	2
OD (A)	60
ID (B)
Length (C)	109.3
FL (D)	12
FLOD (E)
C/Tube Qty	2
C/Tube Size	32x0x109.3 (pin)
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	2.2kg	4.85lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	KCA561
Components Per	2 Bearings, 4 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Enhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Bearings, 4 Tubes
EAN	9319924477920
