Benefit Note: Subaru designed the pitch stop mount to assist in controlling the engine and drivetrain forward and aft twisting motion. The pitch stop is inherently soft due to the plastic body and high compliance rubber bushing design and was built for comfort and not responsiveness or feel. Whiteline's Billet 6061-T6 aluminium pitch stop mounting is built to handle the demands of high torque and power output engines by limiting the amount of movement the engine and drivetrain will place upon the pitch stop. Utilising low compliance bushing technology this eliminates the slop, twisting and shudder found in the OEM rubber bushings allowing for a faster, positive, responsive feel of power delivery on and off the throttle.

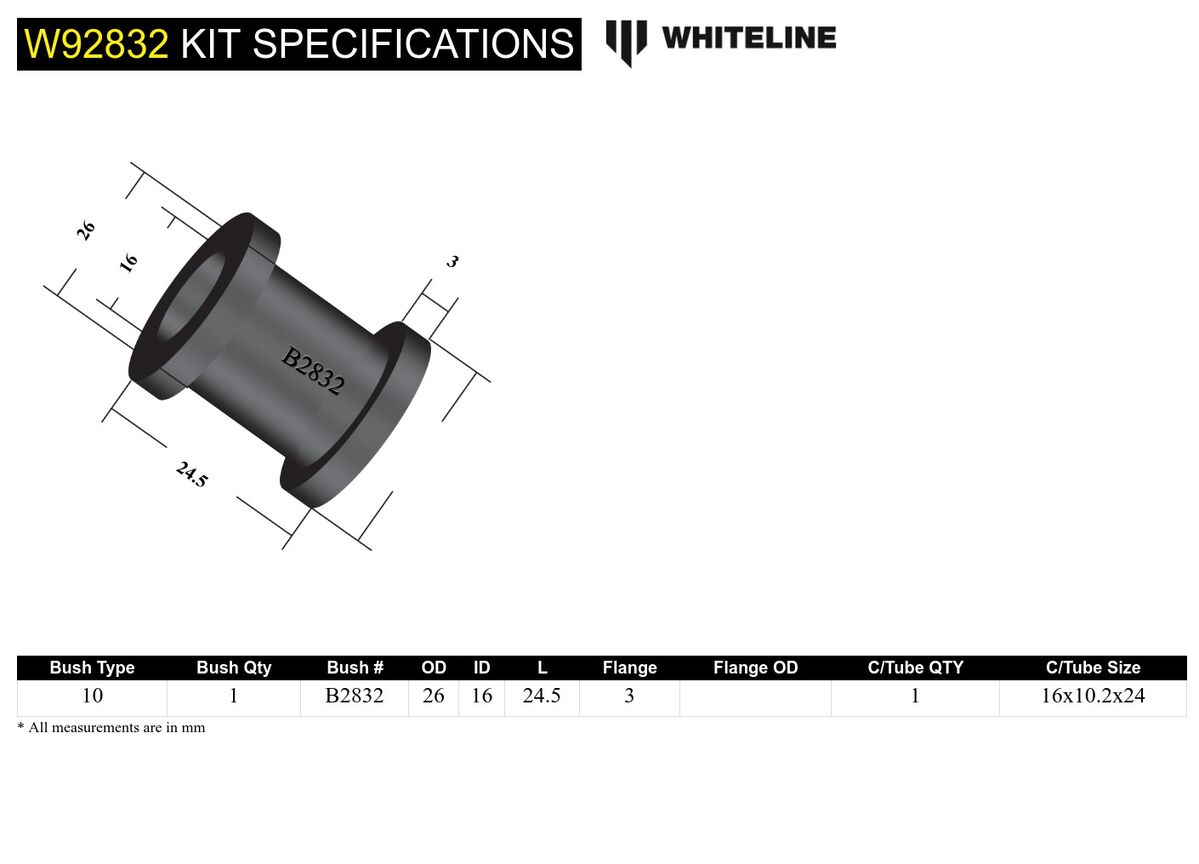

Kit Specifications

Bush Type	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	1 mm
OD (A)	26 mm
ID (B)	16 mm
Length (C)	24.5 mm
Flange Thickness (D)	3 mm
Flange OD (E)
C/Tube Quantity	1
C/Tube ODxIDxL	16x10.2x24 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	10
QTY	1
OD (A)	26
ID (B)	16
Length (C)	24.5
FL (D)	3
FLOD (E)
C/Tube Qty	1
C/Tube Size	16x10.2x24
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.08kg	0.18lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	W92832
Components Per	3 Insert Bushings, 1 Tube
Kits Required	1
Sub brand	Replacement

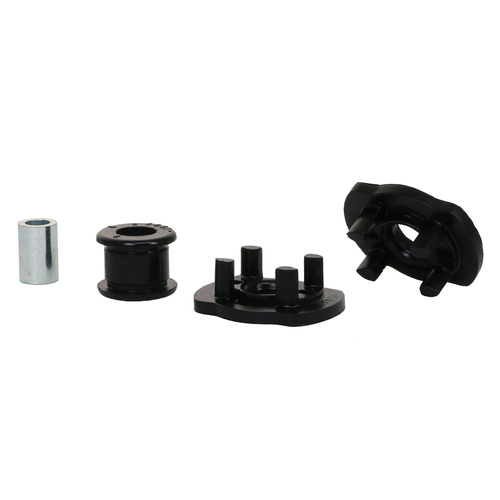

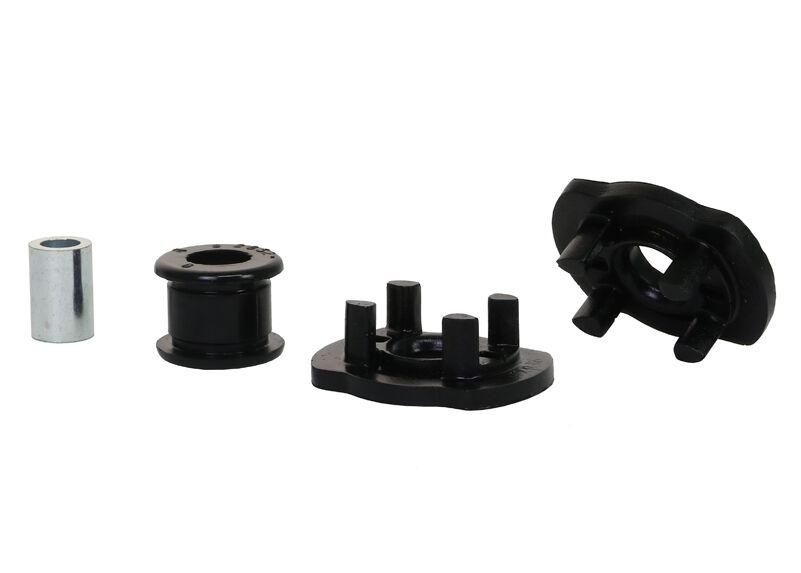

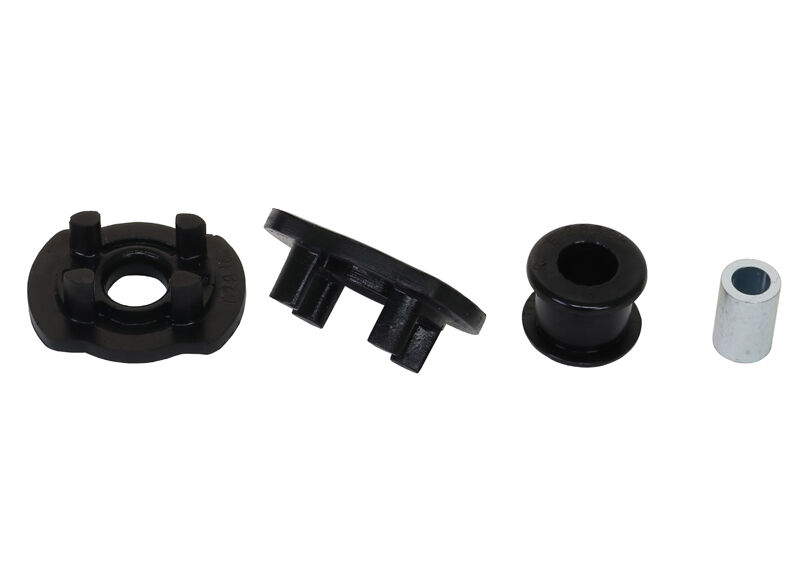

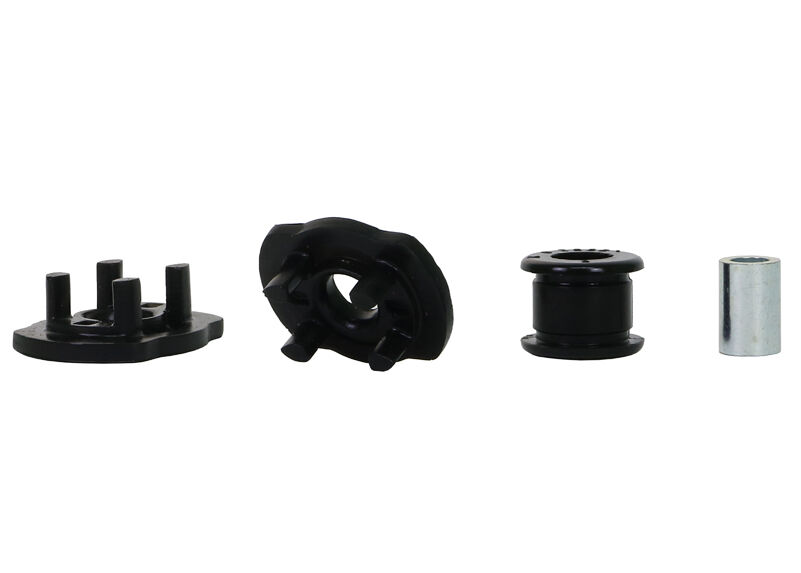

Product Note	Enhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 3 Insert Bushings, 1 Tube
EAN	9319924371884
