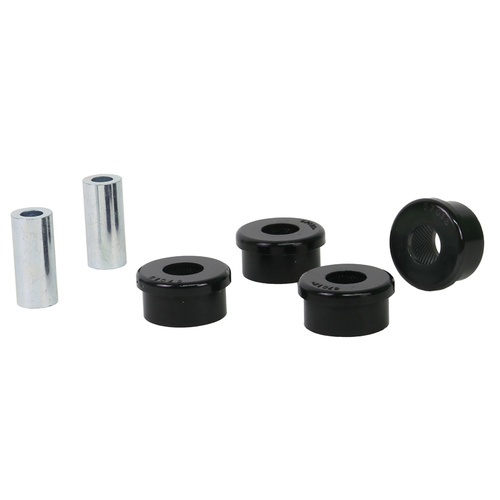

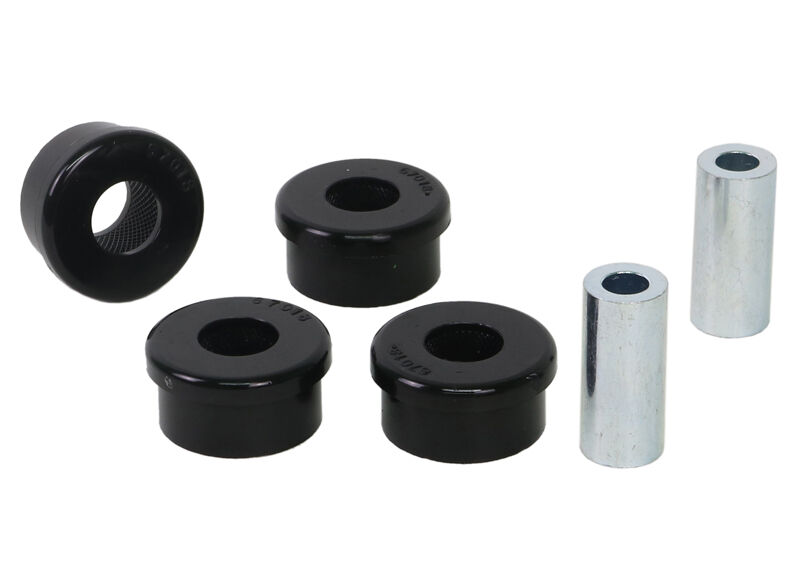

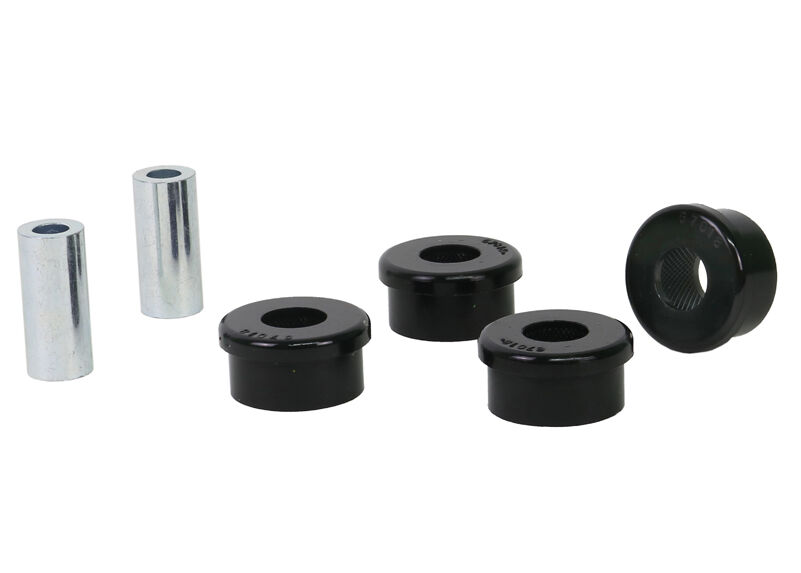

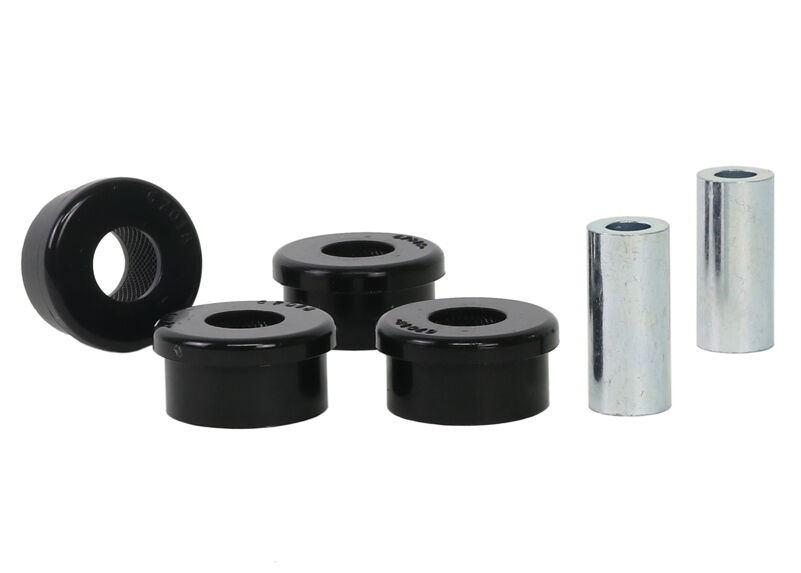

Whiteline Front Engine Mount - Bushing Service Kit to Suit Whiteline Engine Mount W92930

SKU: KSK110

Benefit Note: Replace worn or damaged bushings in your Whiteline engine mount whilst re-using all metal hardware. Designed to fit a Whiteline performance engine mounts.

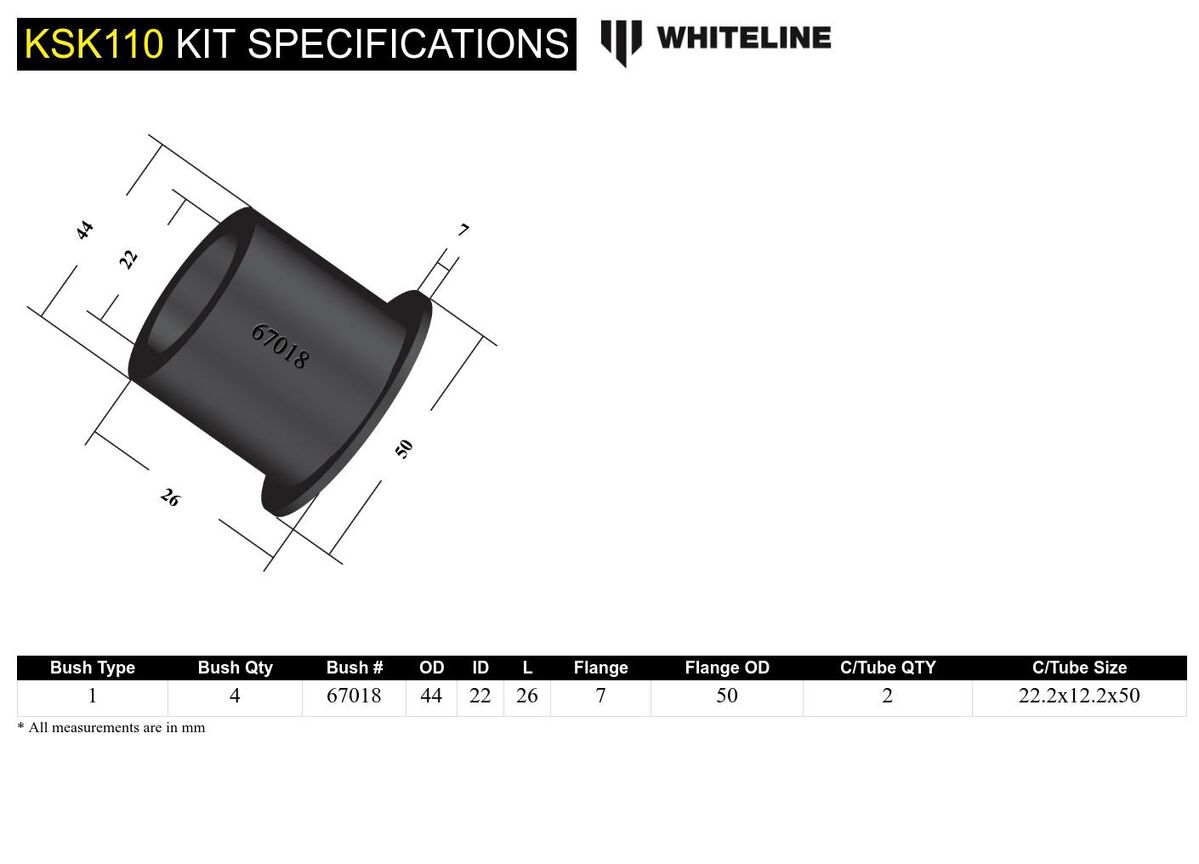

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 44 mm
ID (B) 22 mm
Length (C) 26 mm
Flange Thickness (D) 7 mm
Flange OD (E) 50 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.2x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 44
ID (B) 22
Length (C) 26.0
FL (D) 7
FLOD (E) 50
C/Tube Qty 2
C/Tube Size 22.2x12.2x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.365kg0.8lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKSK110
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924457922
  • Lifetime Warranty
Brand Whiteline
SKU KSK110
Unit Of Measure Kit
