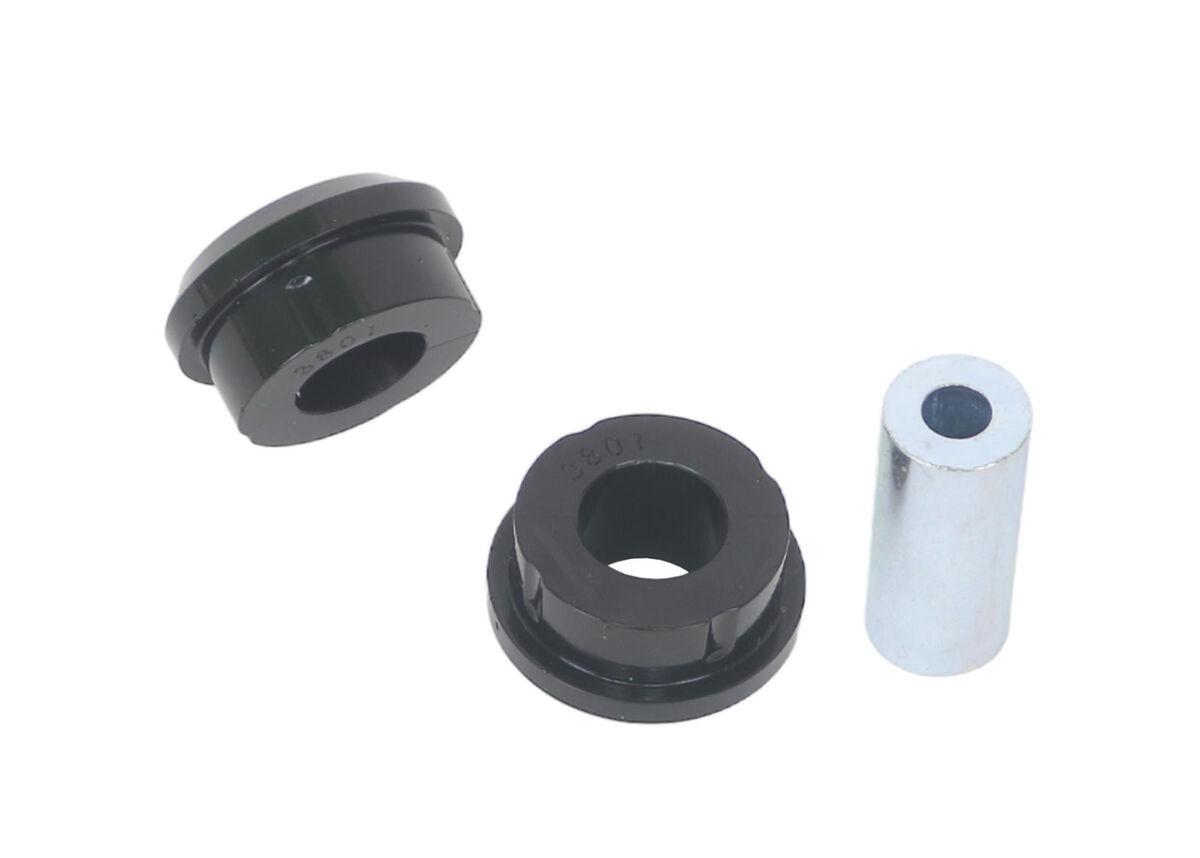

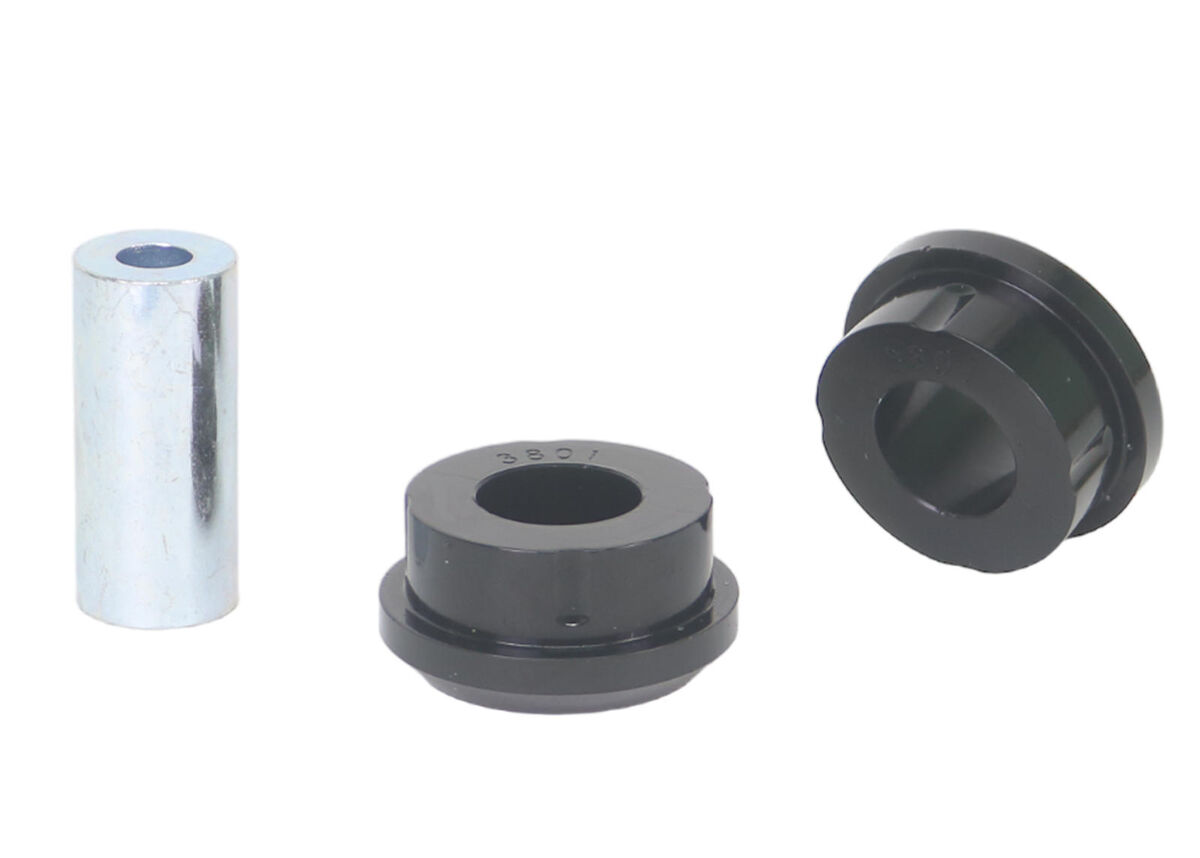

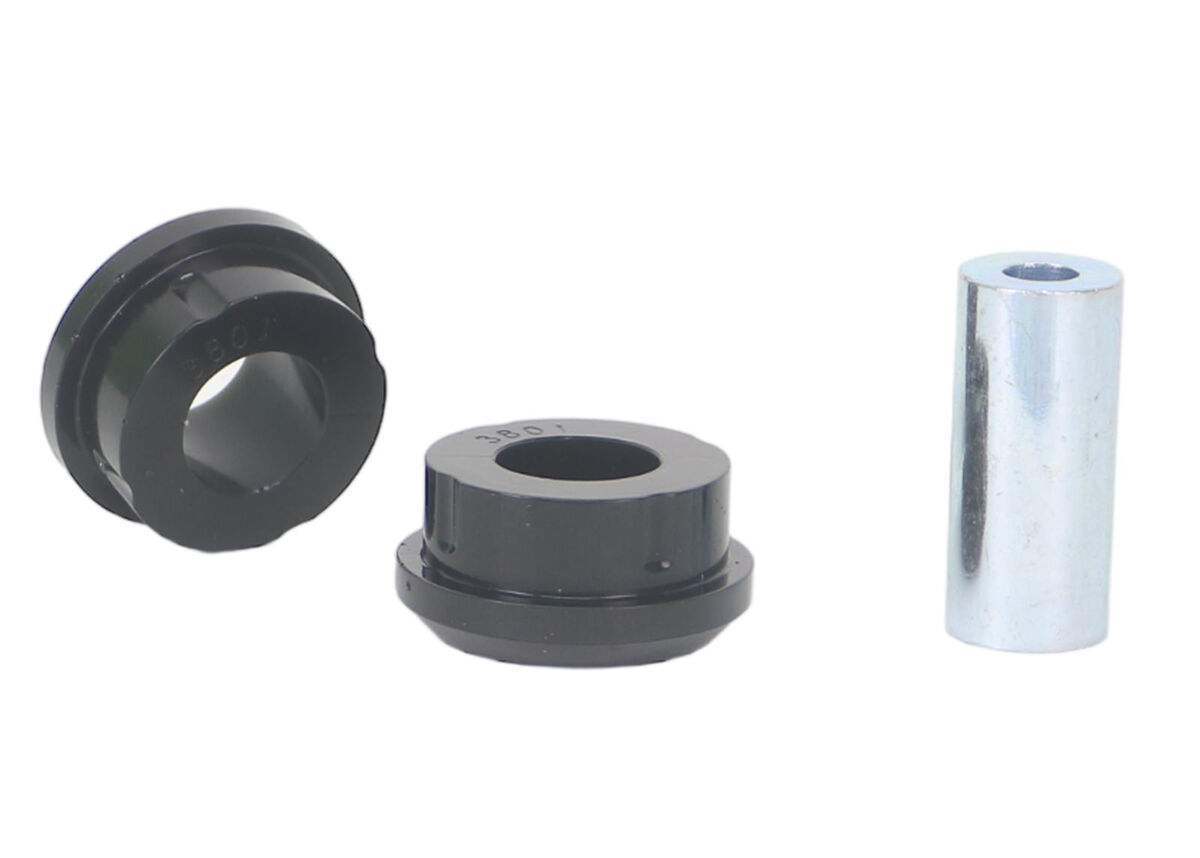

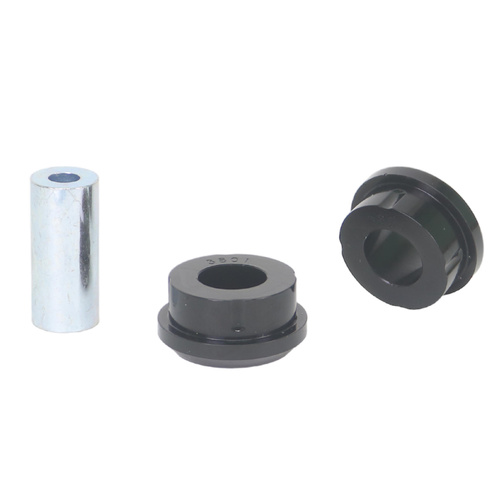

Whiteline Front Differential Mount - Right Bushing Kit to Suit Ford Ranger PX and Mazda BT-50- UP, UR 4WD

SKU: W93515

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 40.8 mm
ID (B) 22.2 mm
Length (C) 23.5 mm
Flange Thickness (D) 10 mm
Flange OD (E) 48 mm
C/Tube Quantity 1
C/Tube ODxIDxL 22.2x10.3x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 40.8
ID (B) 22.2
Length (C) 23.5
FL (D) 10
FLOD (E) 48
C/Tube Qty 1
C/Tube Size 22.2x10.3x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.19kg0.42lbs
Length7cm2.76"
Width14cm5.51"
Height20cm7.87"

Misc. Product Information

More Information
SKUW93515
Components Per2 Bushings, 1 Tubes
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 2 Bushings & 1 Tubes
EAN9319924475193
  • Lifetime Warranty
Brand Whiteline
SKU W93515
Unit Of Measure Kit
