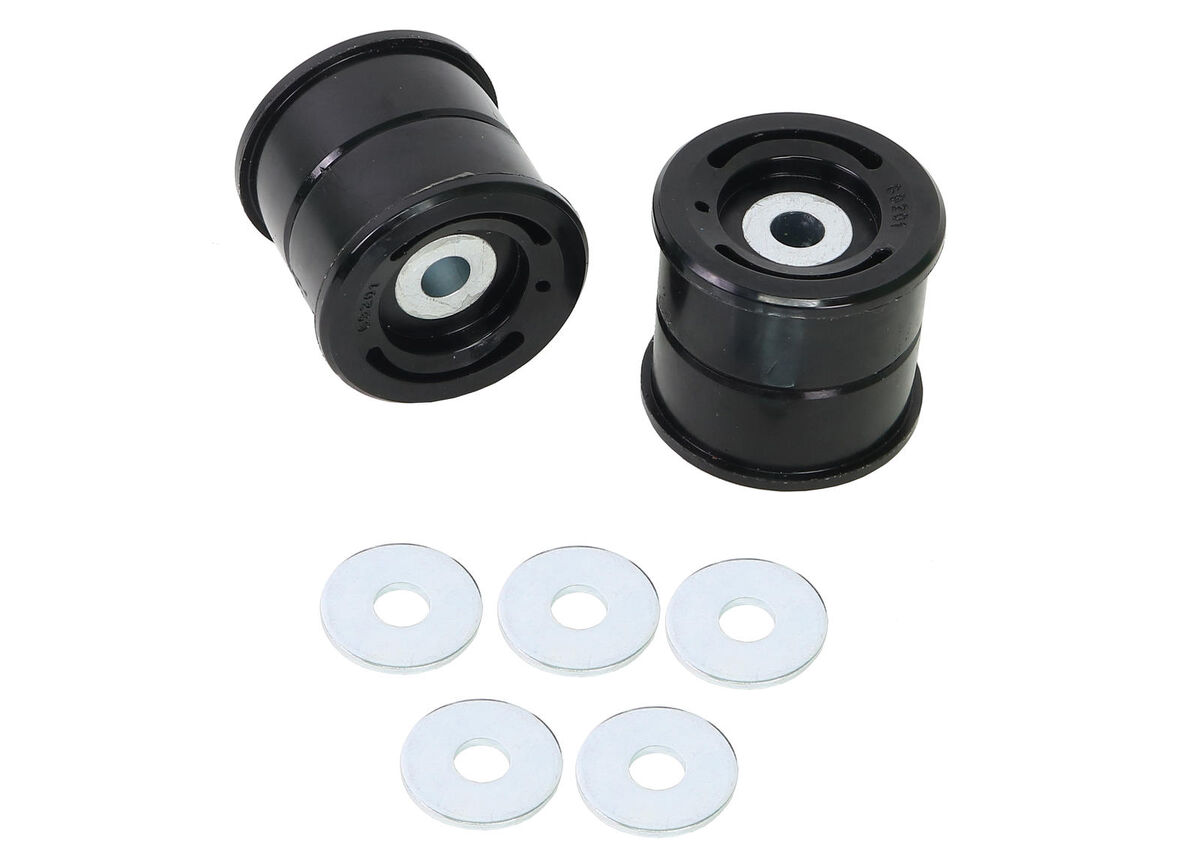

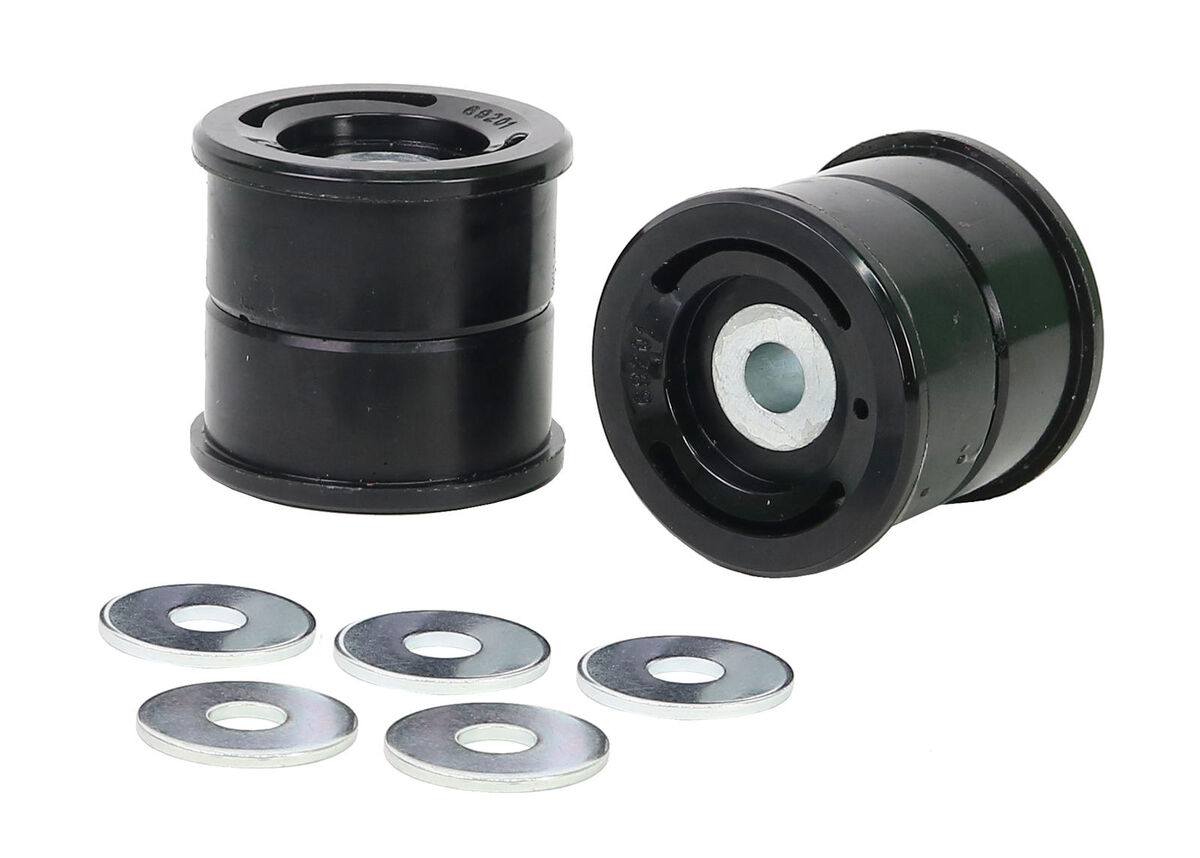

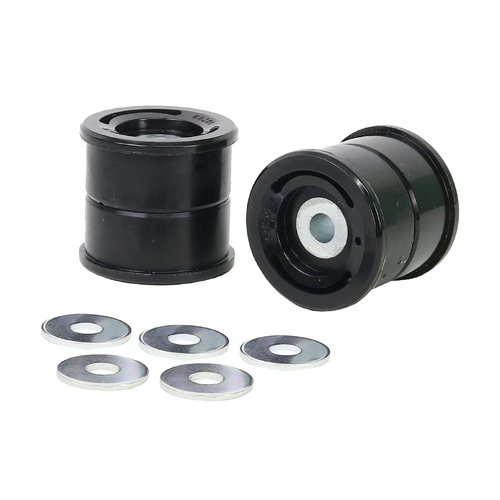

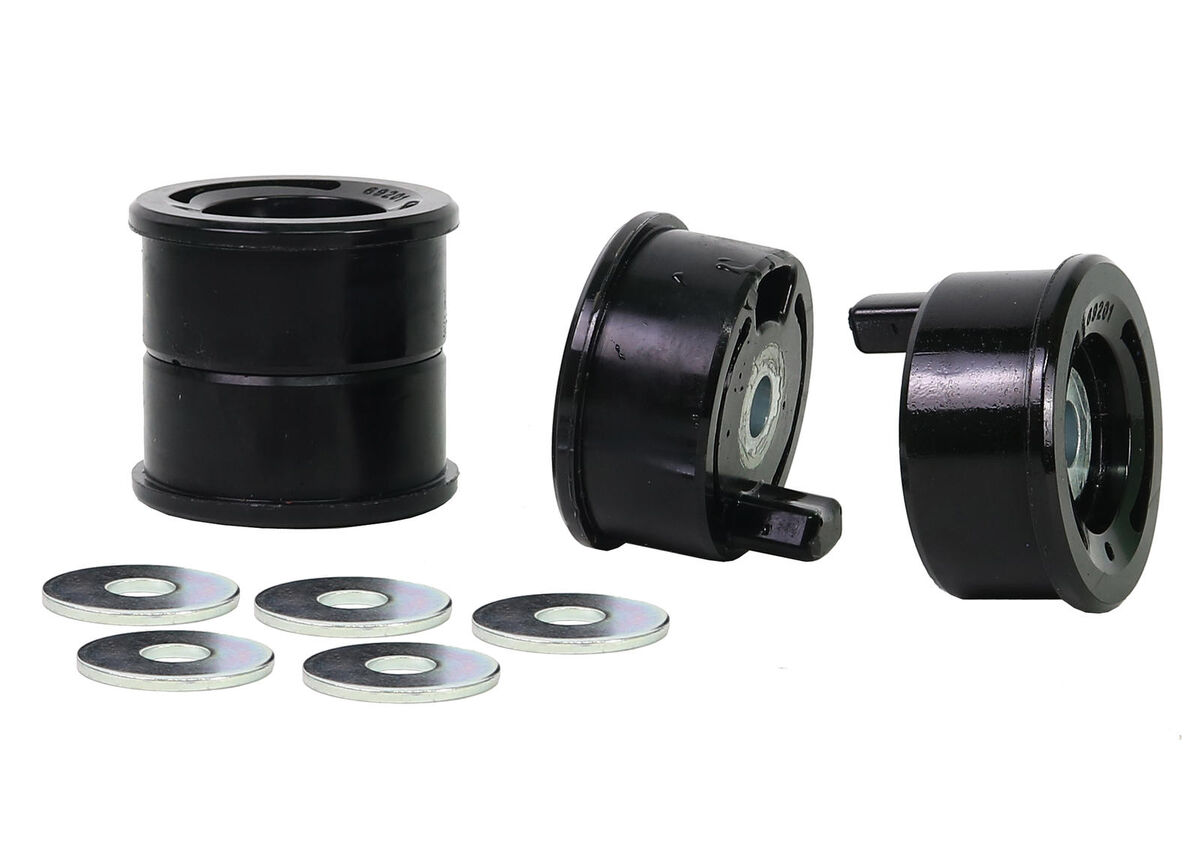

Whiteline Front Differential Mount - Bushing Kit to Suit Ford Territory SX, SY, SZ 4WD

SKU: W93395

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 71.7 mm
ID (B) 29.8 mm
Length (C) 34.2 mm
Flange Thickness (D) 6.1 mm
Flange OD (E) 78.3 mm
C/Tube Quantity 2
C/Tube ODxIDxL 30x14.2x53 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 71.7
ID (B) 29.8
Length (C) 34.2
FL (D) 6.1
FLOD (E) 78.3
C/Tube Qty 2
C/Tube Size 30x14.2x53
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.03kg2.27lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW93395
Components Per4 Bushings, 2 Tubes, 5 Washers
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 5 Washers
EAN9319924384174
  • Lifetime Warranty
Brand Whiteline
SKU W93395
Unit Of Measure Kit
