Whiteline Front Differential Drop - Kit to Suit Toyota Land Cruiser 200 Series

SKU: W93214

Benefit Note: The Whiteline differential drop kit when fitted to lifted vehicles corrects CV shaft angles and eliminates the potential issue of popping or breaking a driveshaft. In turn, wear on the CV boots will be reduced and the kit provides provision for fitting of the original protection bash plates.


Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 6 mm 2 mm 1 mm
OD (A) 25 mm 58 mm 40 mm
ID (B) 10.2 mm 14.4 mm 8.2. mm
Length (C) 24.5 mm 32 mm 31 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

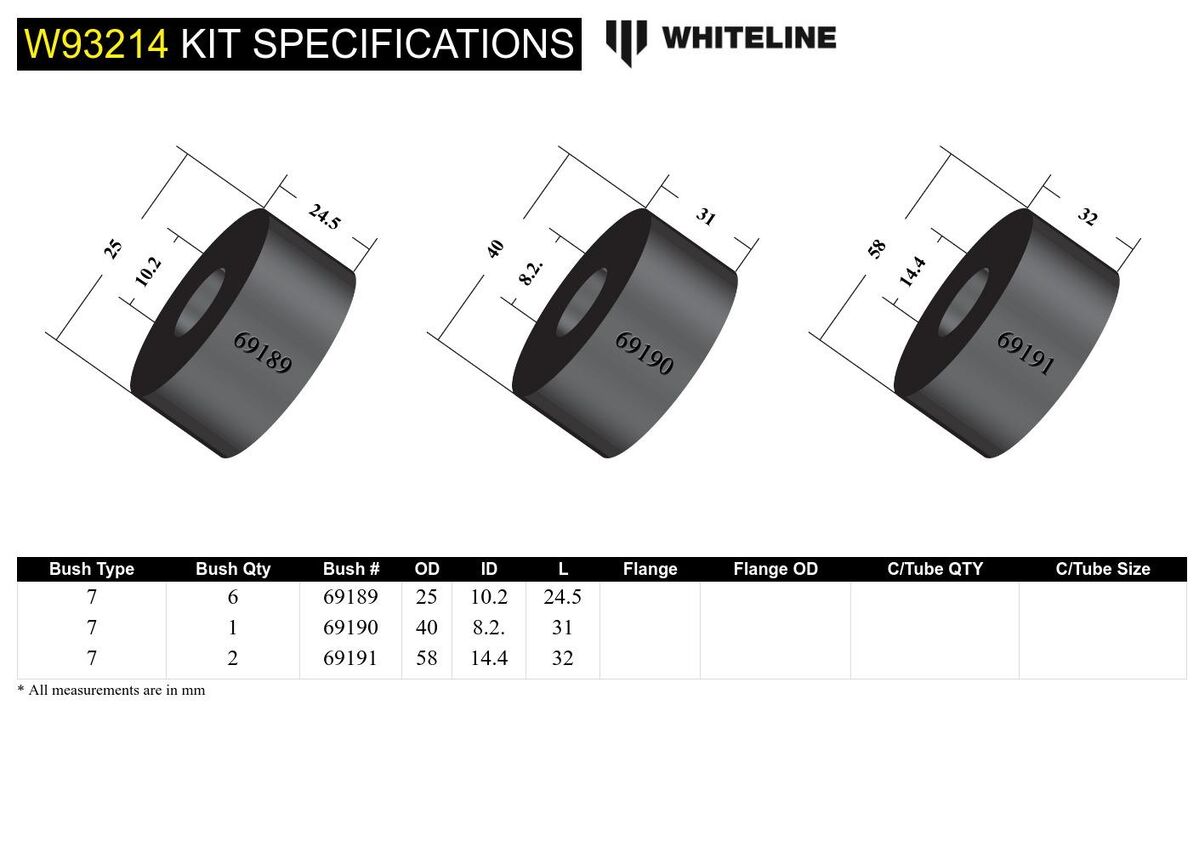

Bushing Design Dimensions (mm)

Bush Type 7 7 7
QTY 6 2 1
OD (A) 25 58 40
ID (B) 10.2 14.4 8.2.
Length (C) 24.5 32.0 31.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.4kg3.09lbs
Length25cm9.84"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW93214

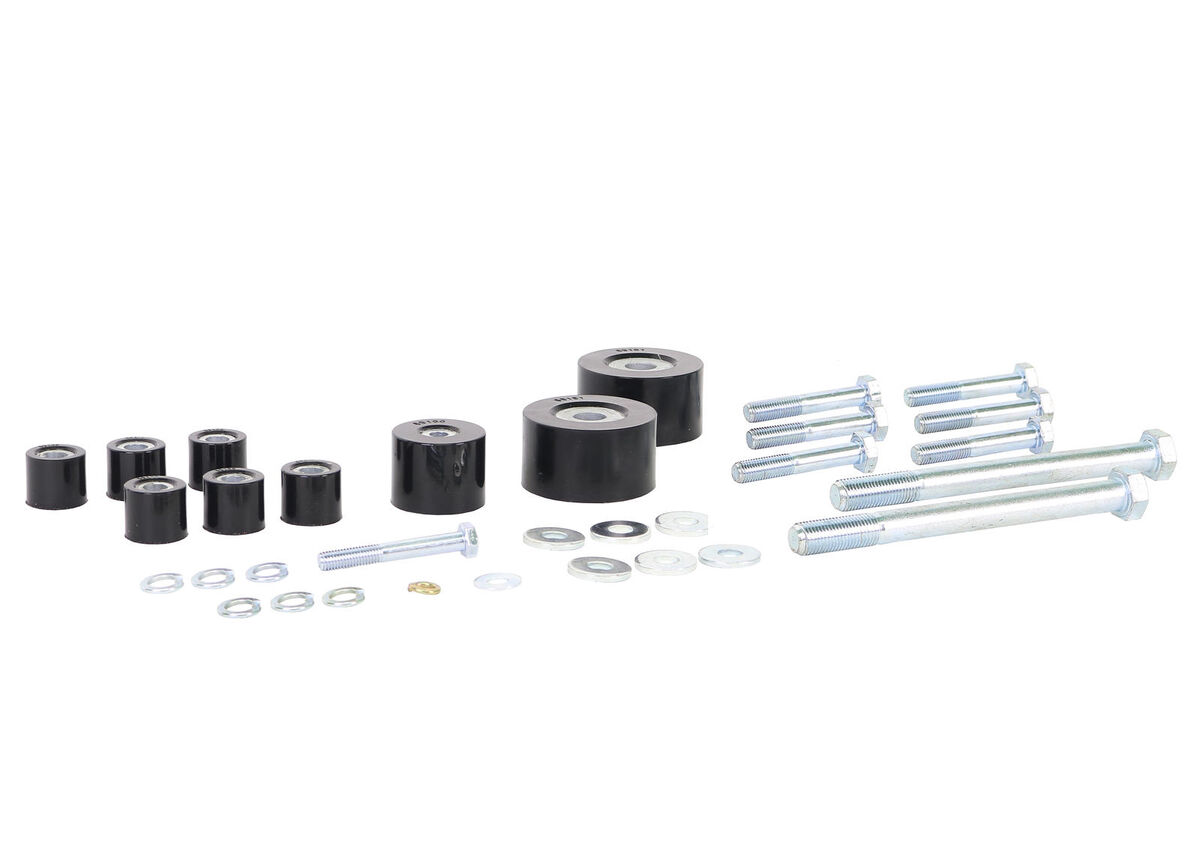

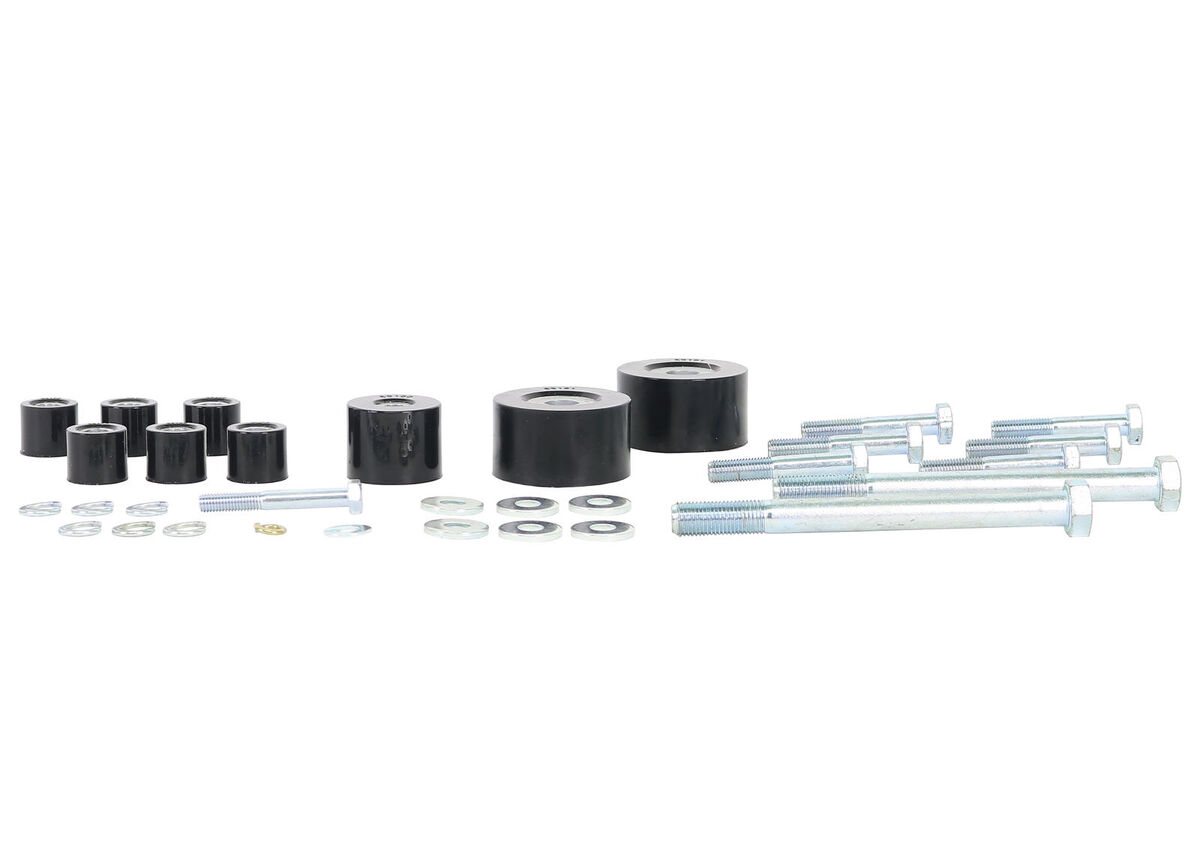

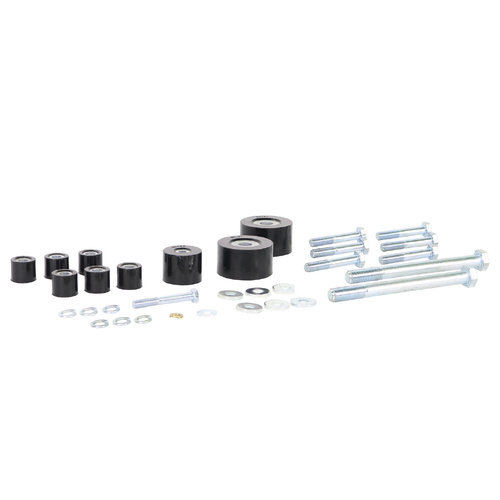

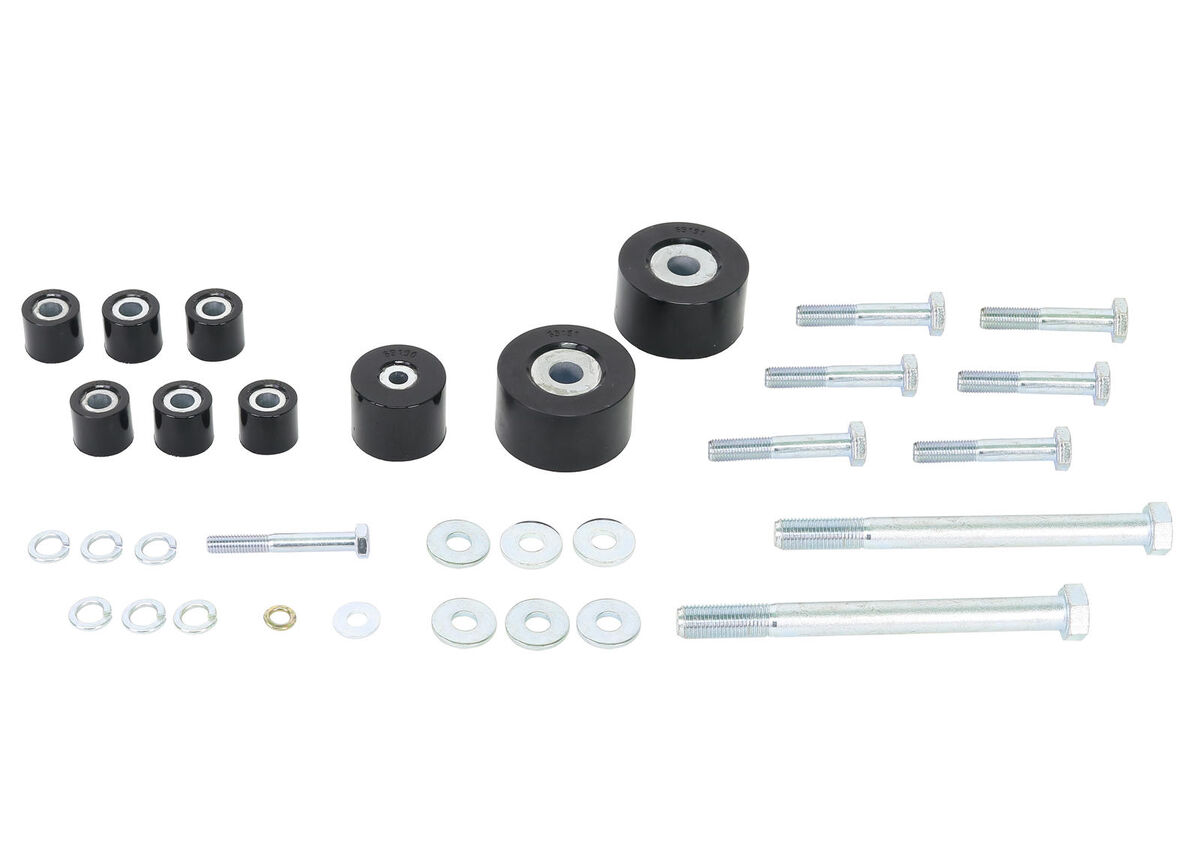

Components Per9 Bushings, 9 Bolts, 14 Washers
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 9 Bushings, 9 Bolts & 14 Washers
EAN9319924461400
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU W93214
Unit Of Measure Kit
