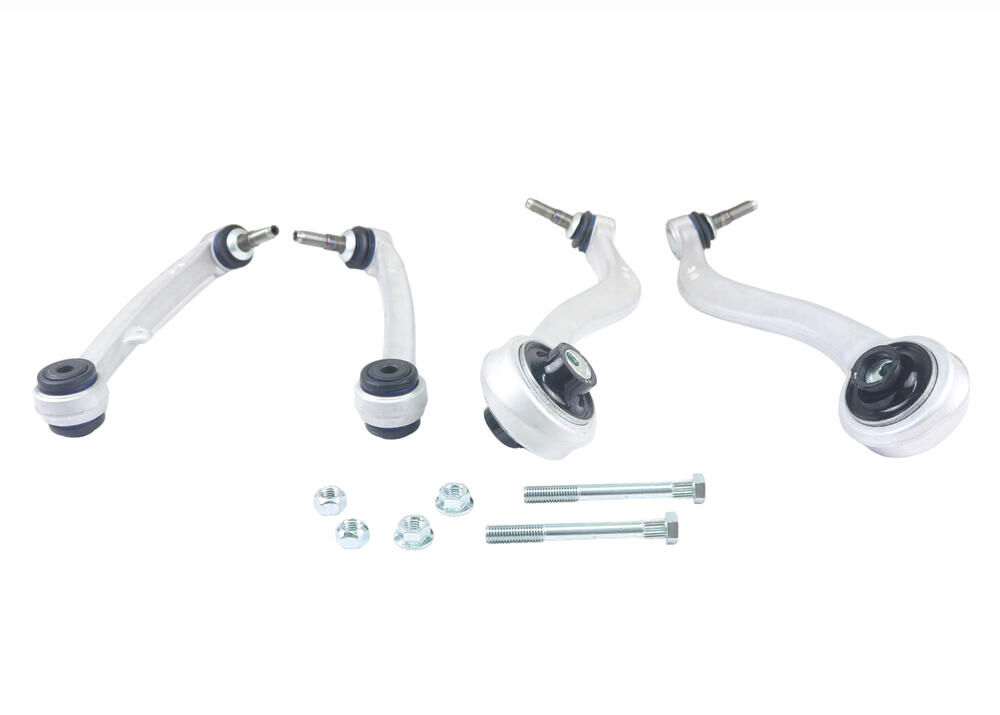

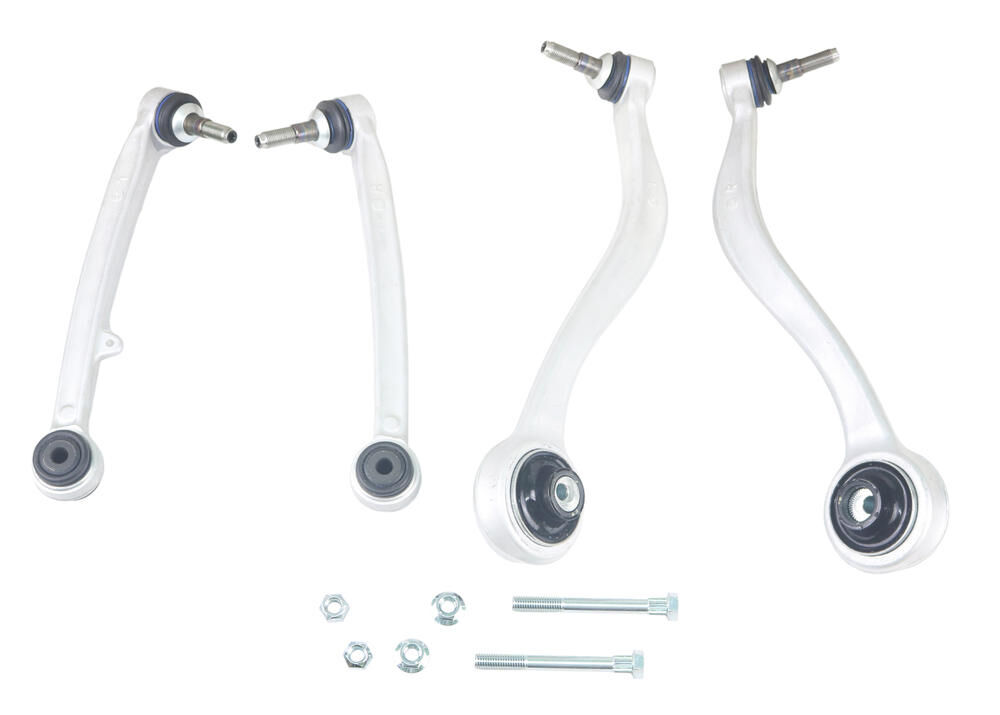

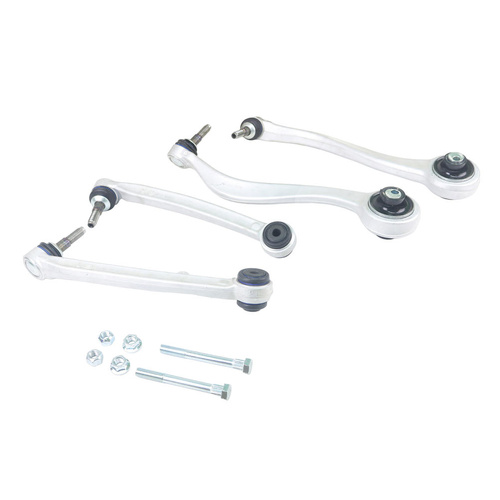

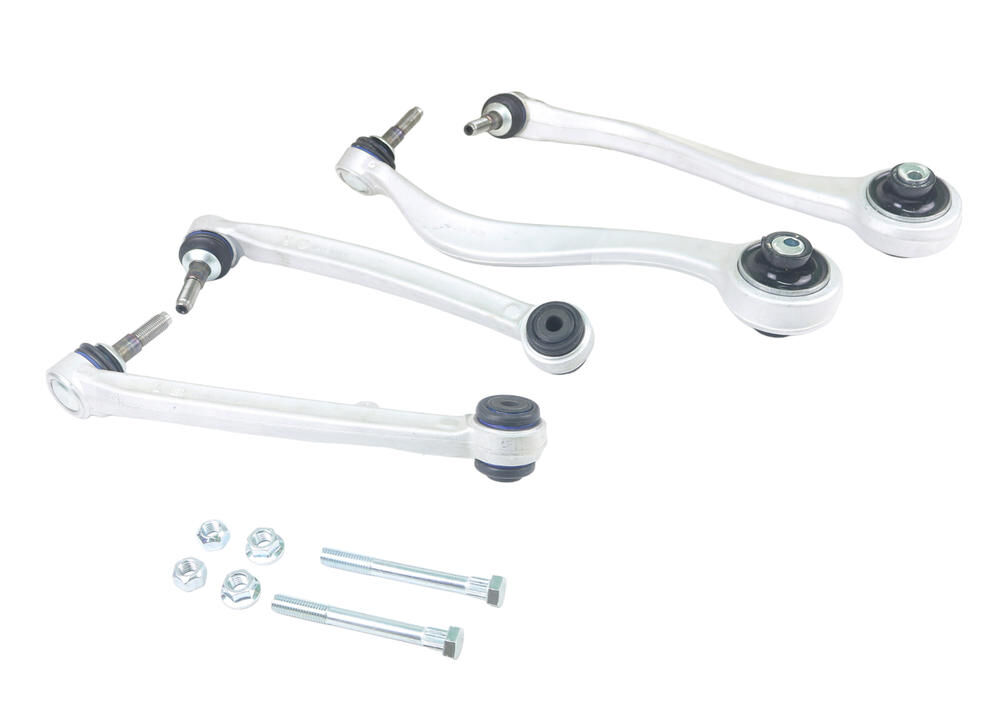

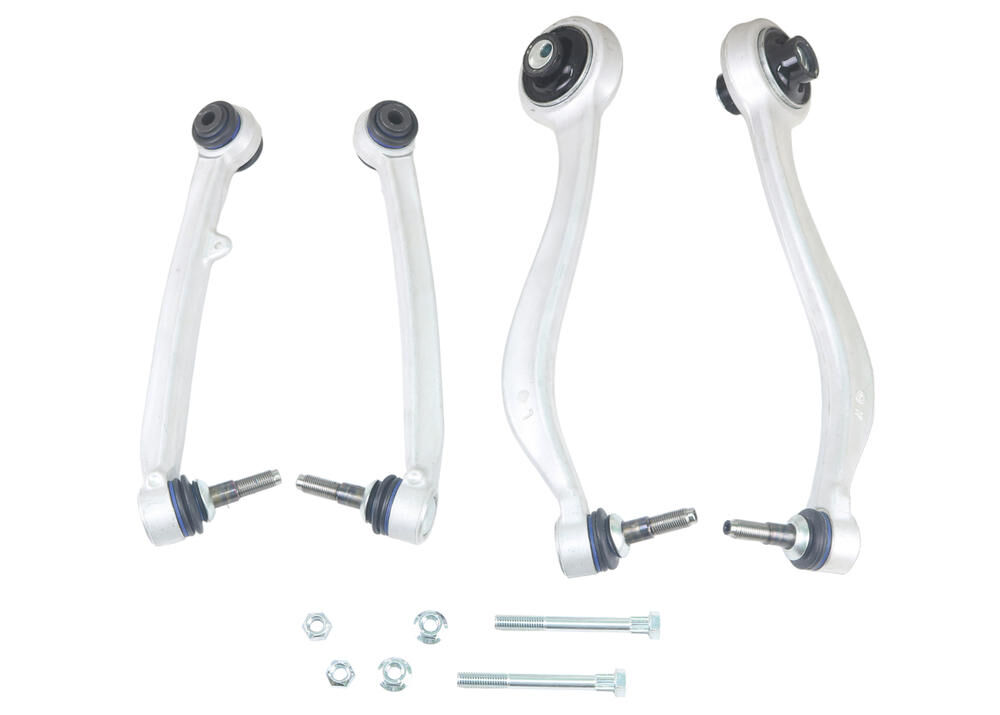

Whiteline Front Control and Strut Tension - Arm Assembly to Suit BMW M2, M3 and M4 Series

SKU: KTA287

Benefit Note: These front lower control arms (also know as "wishbone" by BMW) is a direct fit for the F80 M3, F82/F83 M4 and serves as a popular performance upgrade for the F22 2-Series and F3X 3/4-Series. Unlike standard arms that rely on soft rubber bushings, the M3/M4 wishbone features sealed inner and outer ball joints, providing superior precision, durability, and reduced deflection under load.
The ball joint design allows the control arm to articulate freely with minimal resistance, delivering sharper steering response and more consistent suspension geometry. When installed on F22 and F3X models, this arm increases negative front camber by approximately 0.5 degrees by pushing the lower portion of the wheel outward, while also being slightly lighter than the factory control arm.

This makes it an ideal upgrade for track and autocross applications, improving front-end grip, turn-in, and overall handling without compromising reliability.


Kit Specifications

Arm Type Alignment
Units Set
Ball Joint Included Yes
Adjustable (Arms) Yes
Alignment Type Caster
Adjustment Type Eccentric
On Car Adjustable Yes

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight6.6kg14.55lbs
Length58cm22.83"
Width10cm3.94"
Height43cm16.93"

Misc. Product Information

More Information
SKUKTA287
Components Per4 Arms
Kits Required1
Sub brandPerformance
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Arms
EAN9319924475780
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KTA287
Unit Of Measure Each
