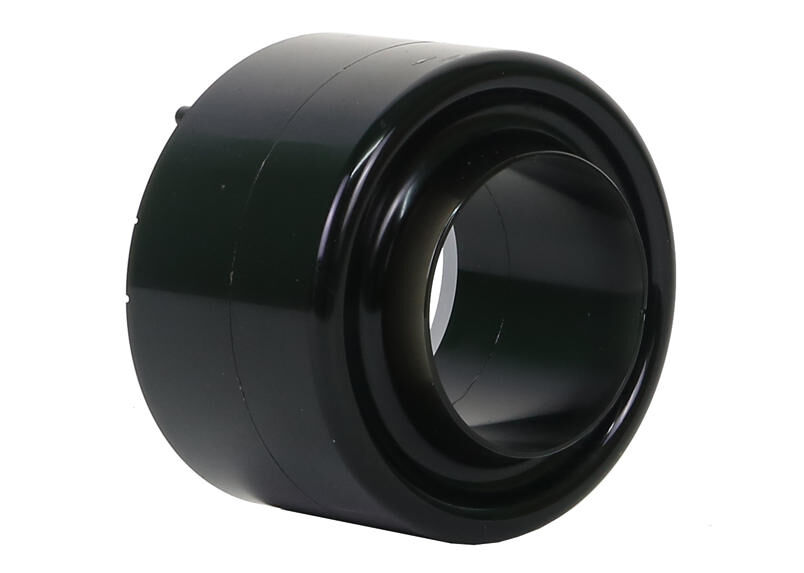

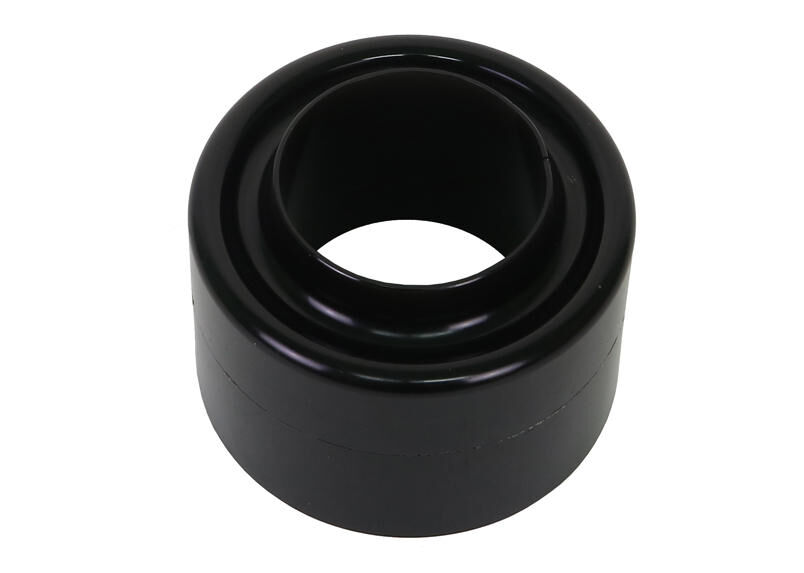

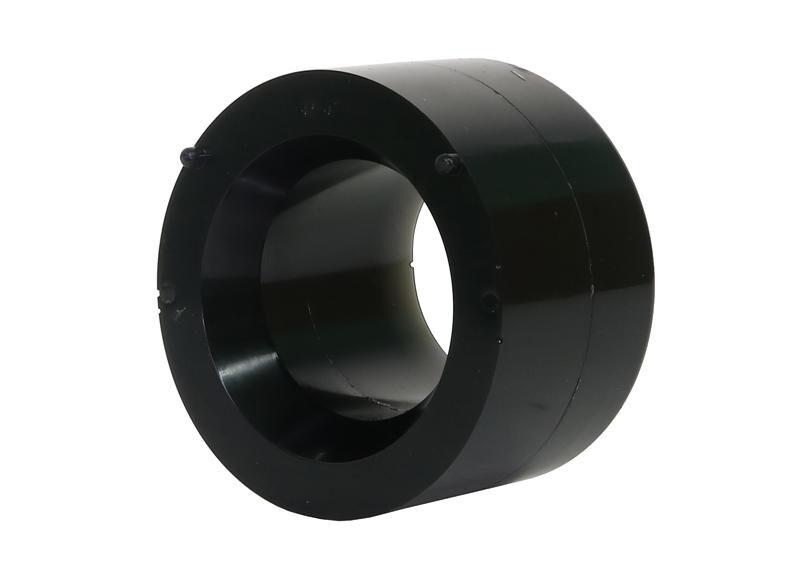

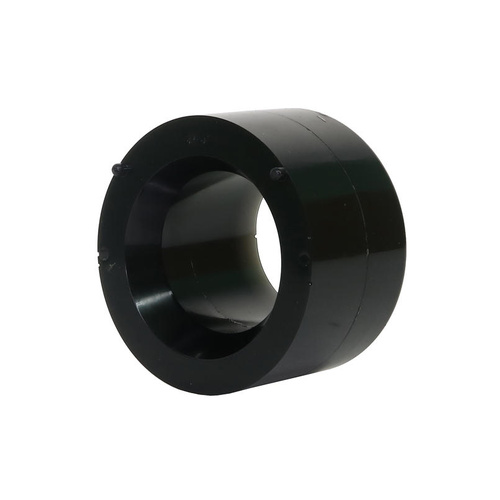

Whiteline Front Coil Spring Pad - Upper Bushing Kit to Suit Jeep Gladiator JT and Wrangler JL

SKU: W73459

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle common to 4x4 or looking to obtain that preferred ride height setting Whiteline spring pads are an economical solution.

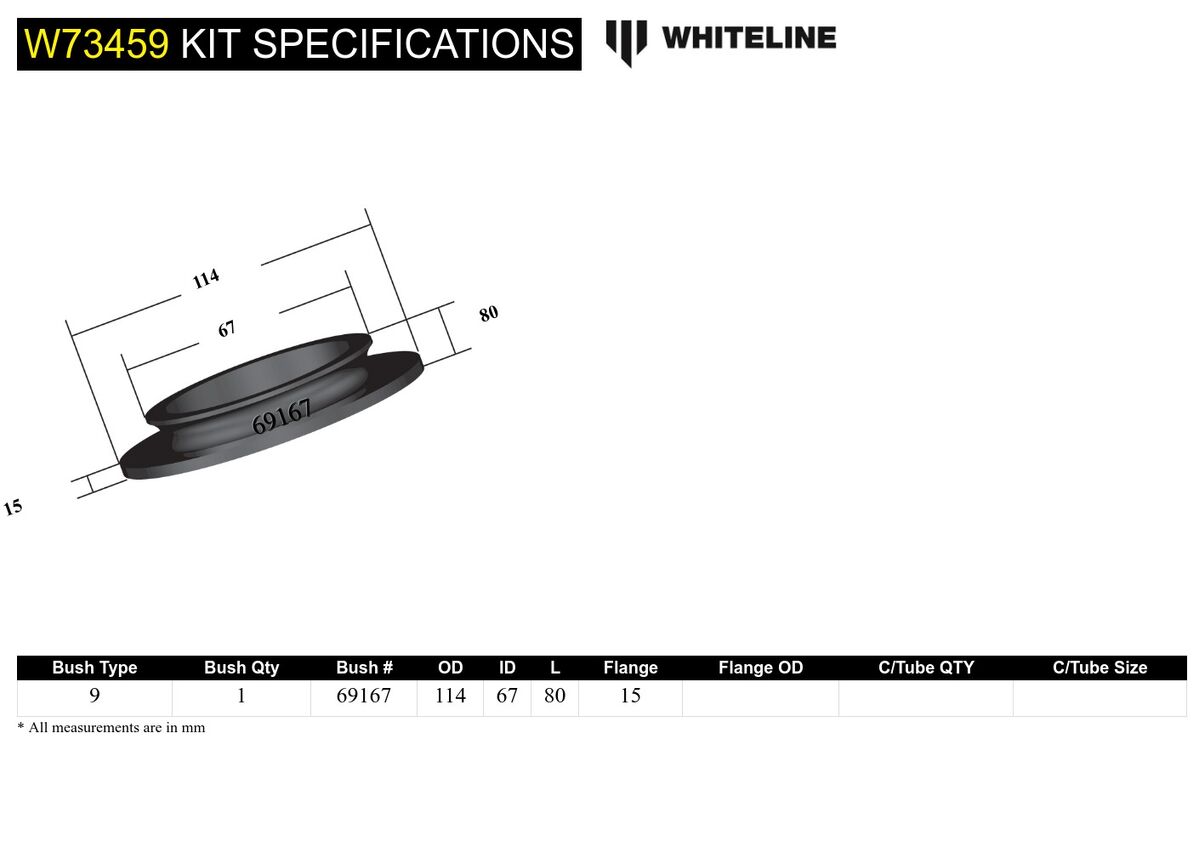

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 1 mm
OD (A) 114 mm
ID (B) 67 mm
Length (C) 80 mm
Flange Thickness (D) 15 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

Bush Type 9
QTY 1
OD (A) 114
ID (B) 67
Length (C) 80.0
FL (D) 15
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.4kg0.88lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW73459
Components Per1 Bushing
Kits Required2
Sub brandReplacement
Product NoteOD=114, ID=67, H=65mm
EAN9319924458738
  • Lifetime Warranty
Brand Whiteline
SKU W73459
Unit Of Measure Kit
