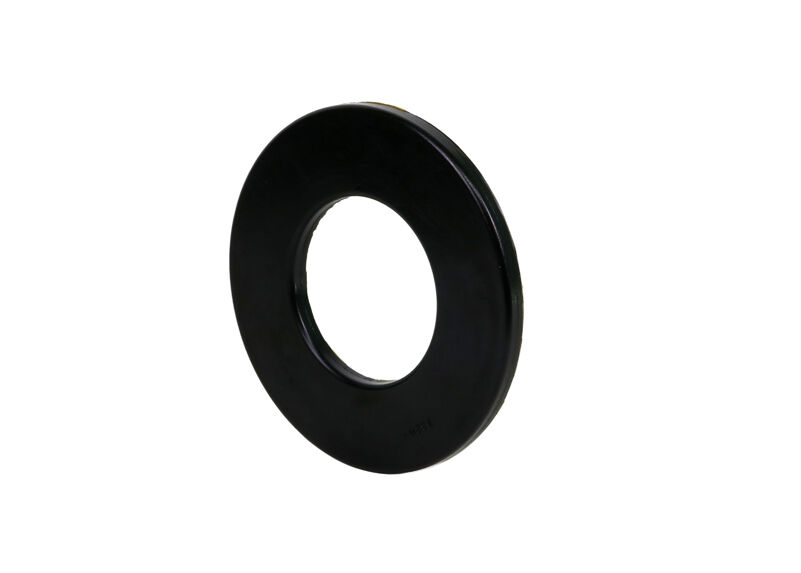

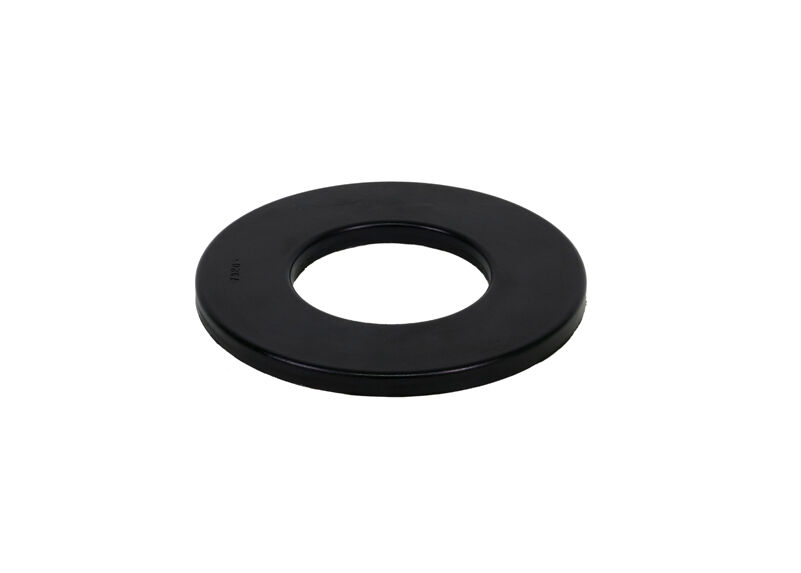

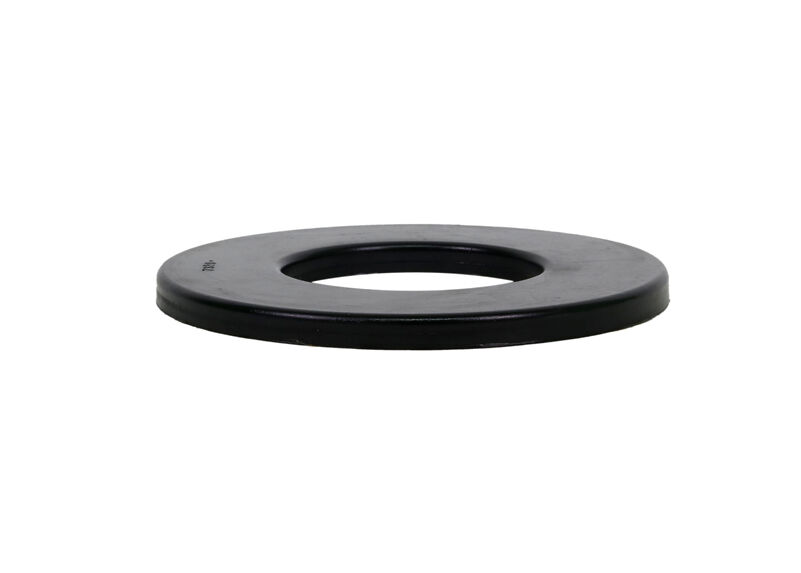

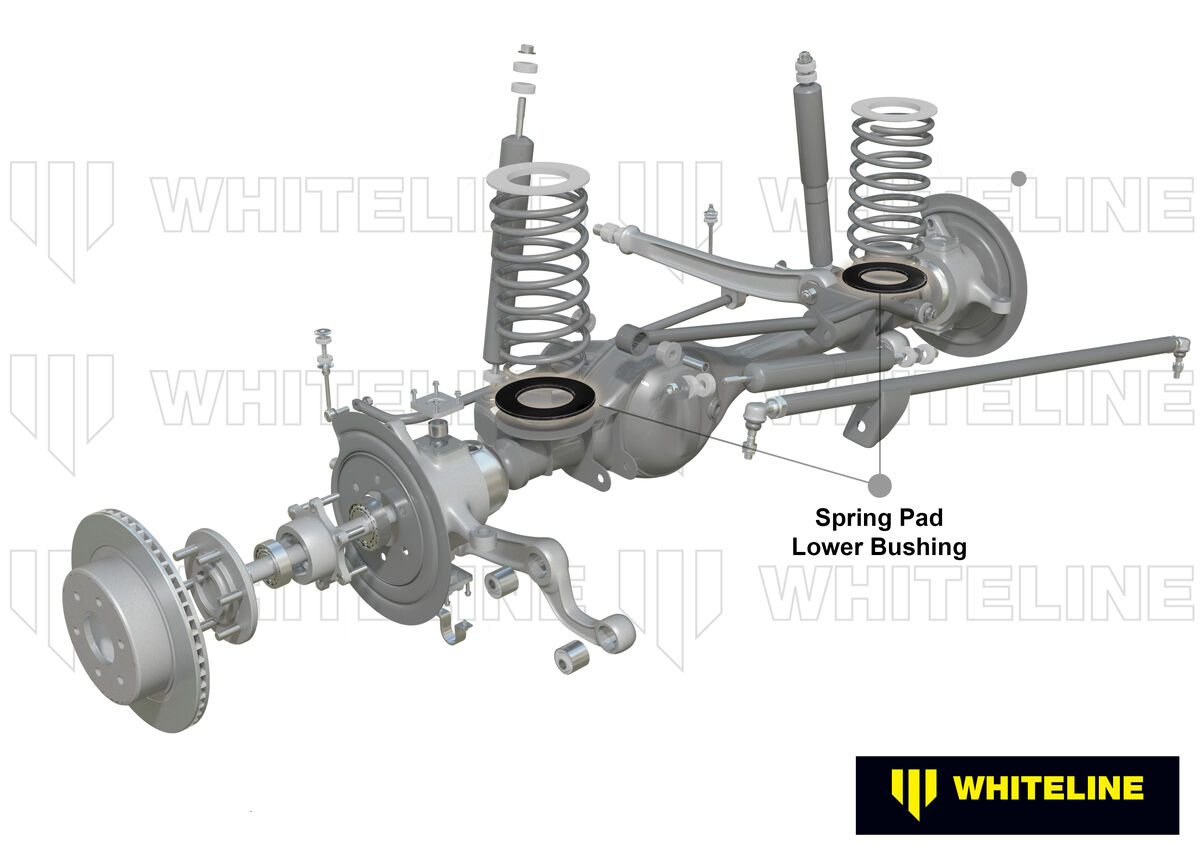

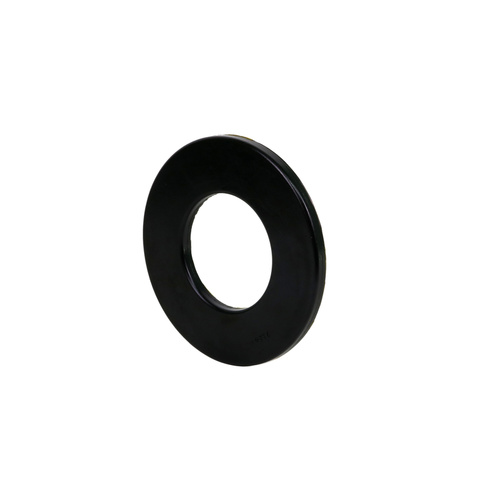

Whiteline Front Coil Spring Pad - Lower Bushing Kit to Suit Nissan Patrol GQ, GU and Ford Maverick DA

SKU: W73419

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle common to 4x4 or looking to obtain that preferred ride height setting Whiteline spring pads are an economical solution.

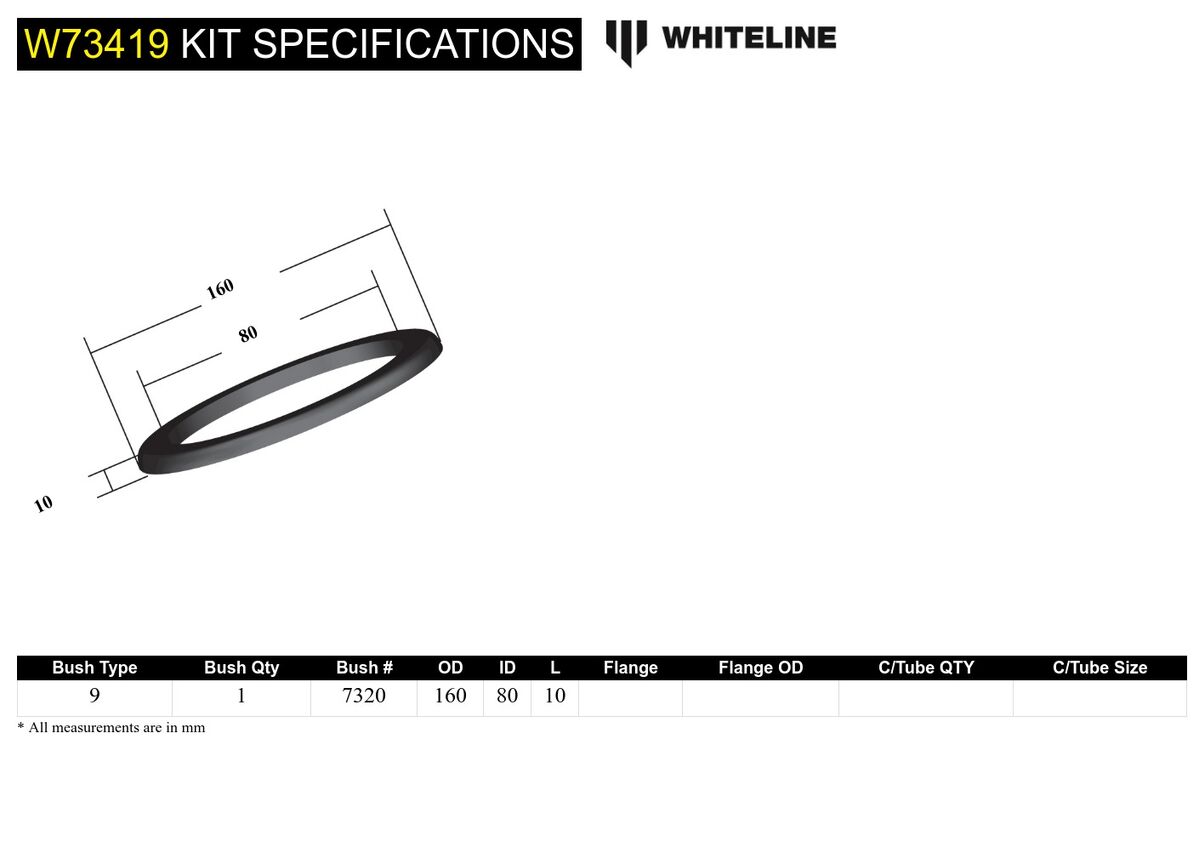

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 1 mm
OD (A) 160 mm
ID (B) 80 mm
Length (C) 10 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

Bush Type 9
QTY 1
OD (A) 160
ID (B) 80
Length (C) 10.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.197kg0.43lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW73419
Components Per1 Bushing
Kits Required2
Sub brandReplacement
Product NoteOD=160, ID=80, H=10mm
EAN9319924391363
  • Lifetime Warranty
Brand Whiteline
SKU W73419
Unit Of Measure Kit
