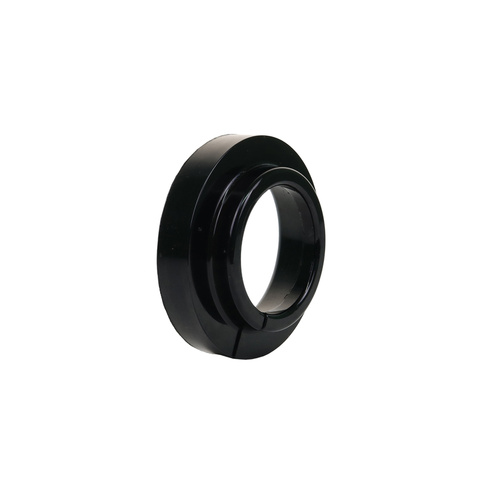

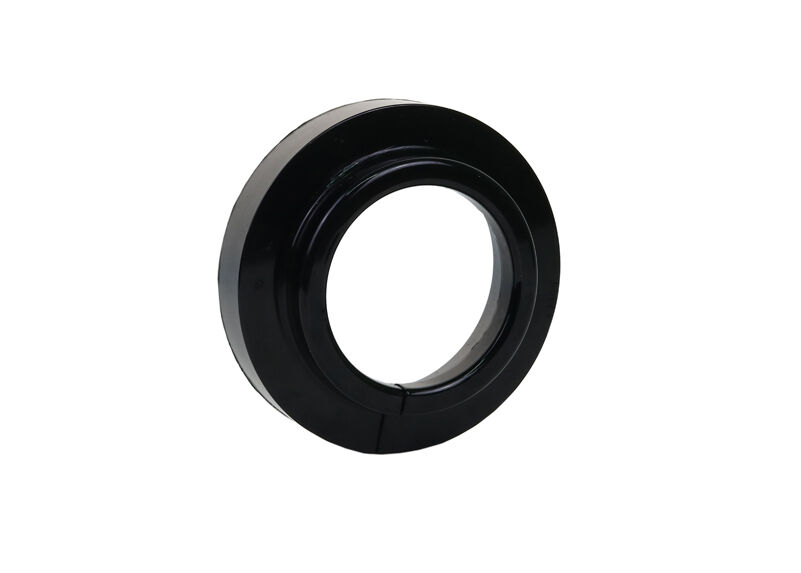

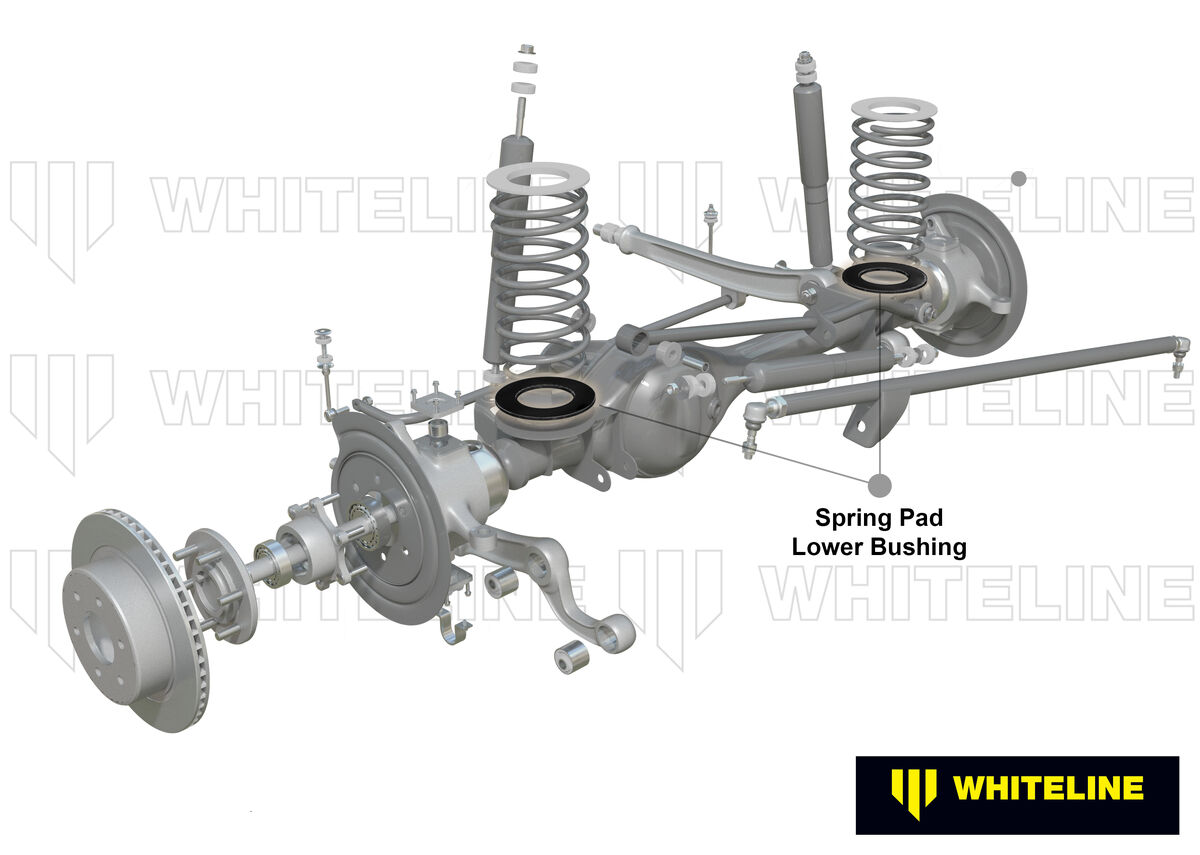

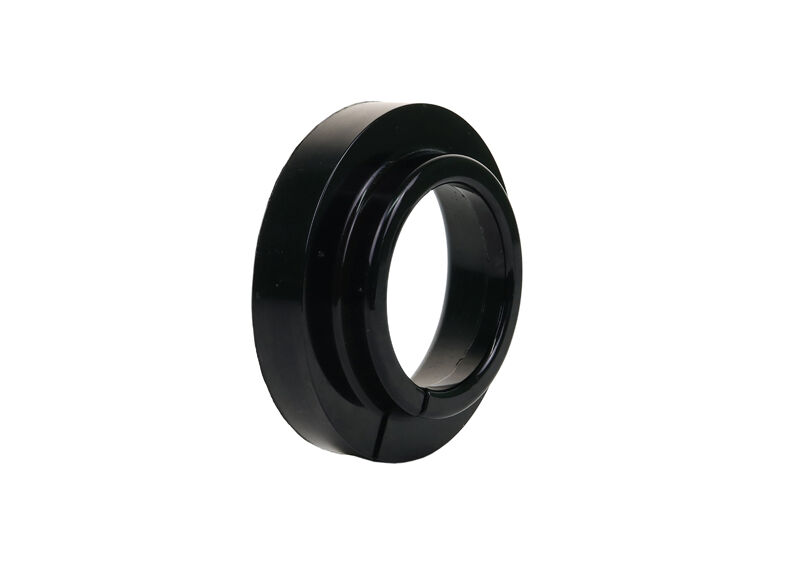

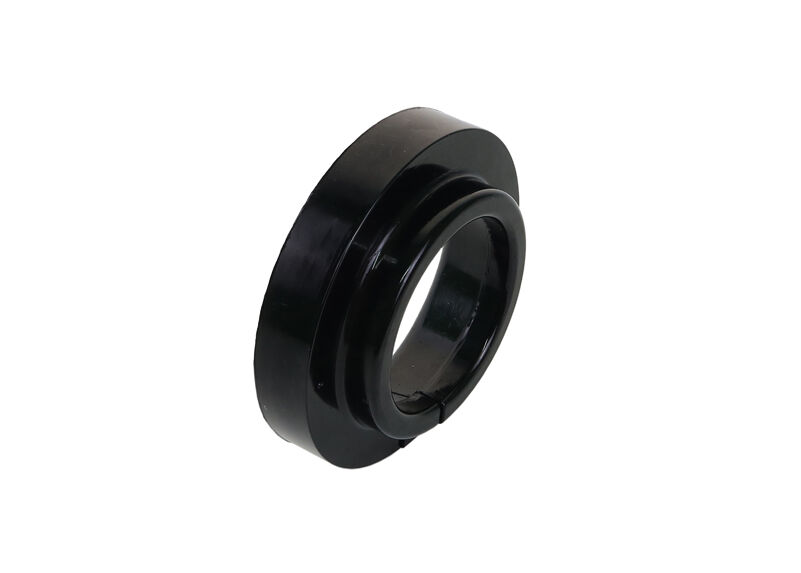

Whiteline Front Coil Spring Pad - Lower Bushing Kit to Suit Nissan Patrol GQ, GU and Ford Maverick DA

SKU: W73405

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle common to 4x4 or looking to obtain that preferred ride height setting Whiteline spring pads are an economical solution.

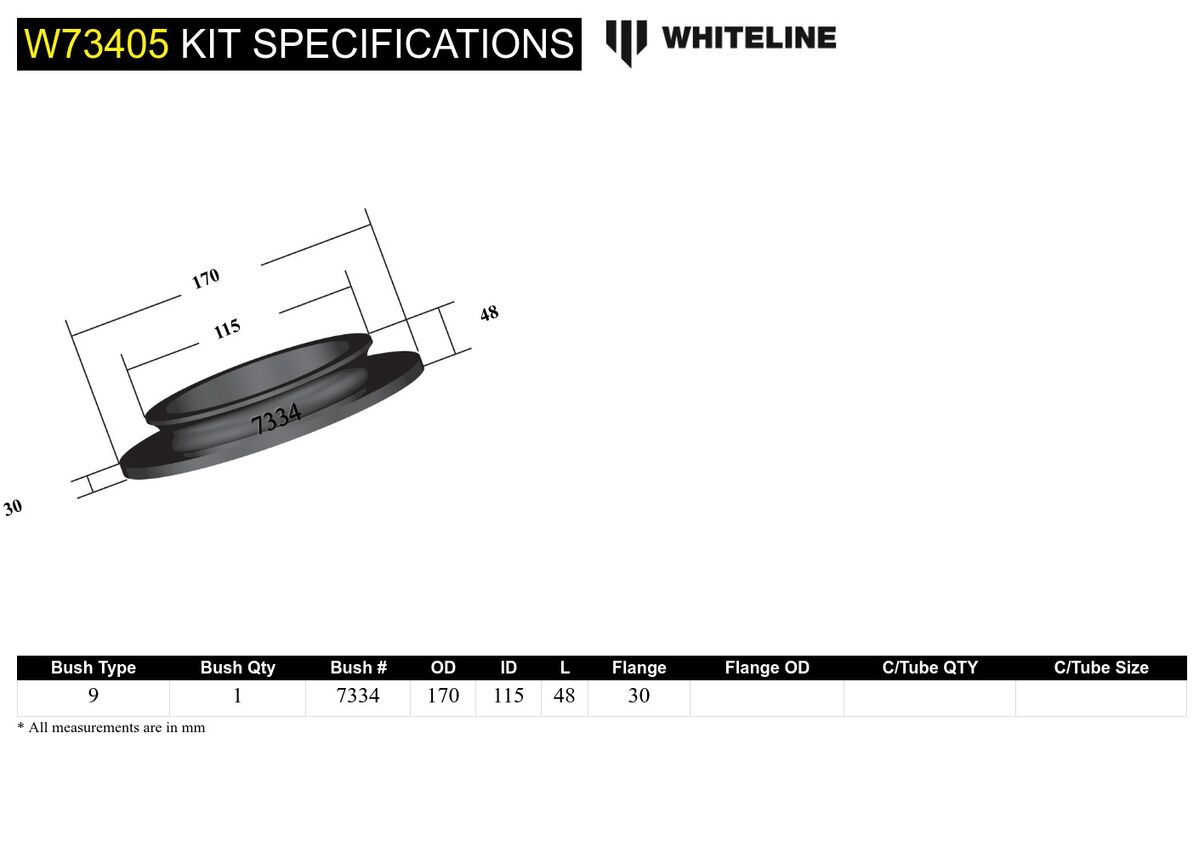

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 1 mm
OD (A) 170 mm
ID (B) 115 mm
Length (C) 48 mm
Flange Thickness (D) 30 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

Bush Type 9
QTY 1
OD (A) 170
ID (B) 115
Length (C) 48.0
FL (D) 30
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.502kg1.11lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW73405
Components Per1 Bushing
Kits Required2
Sub brandReplacement
Product NoteOD=170, ID=122, H=30mm
EAN9319924389681
  • Lifetime Warranty
Brand Whiteline
SKU W73405
Unit Of Measure Kit
