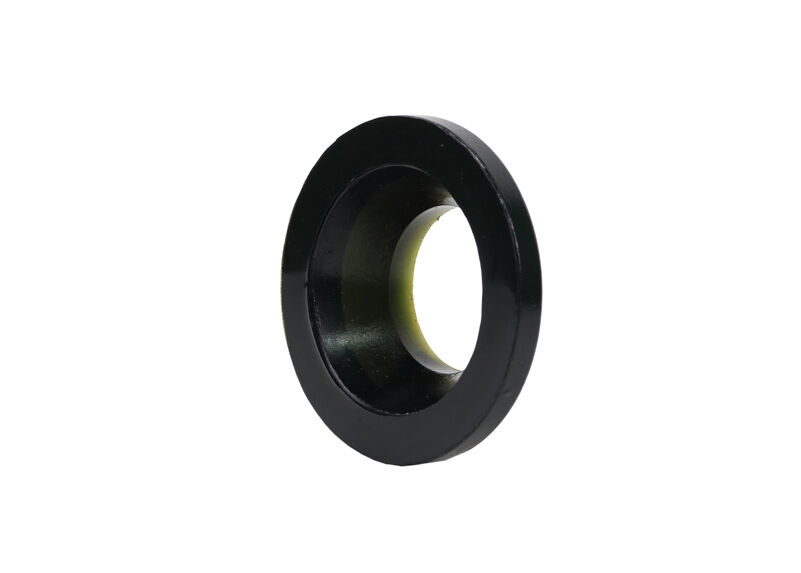

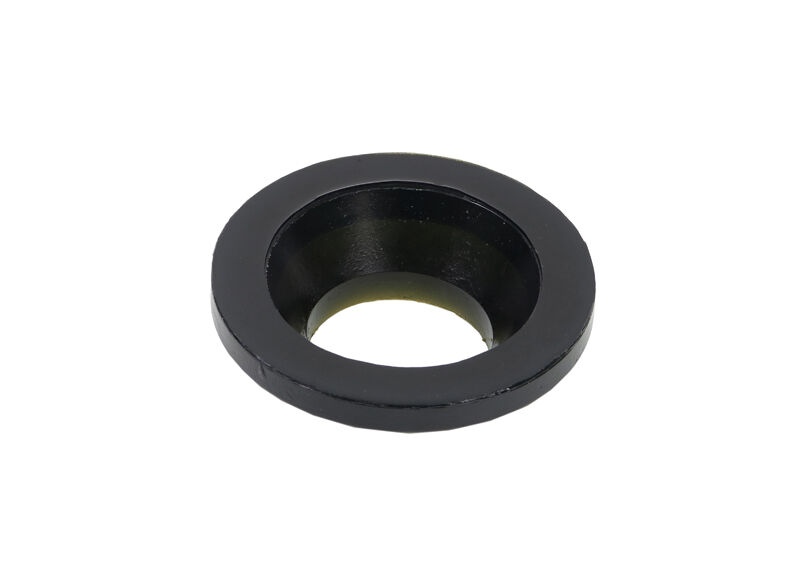

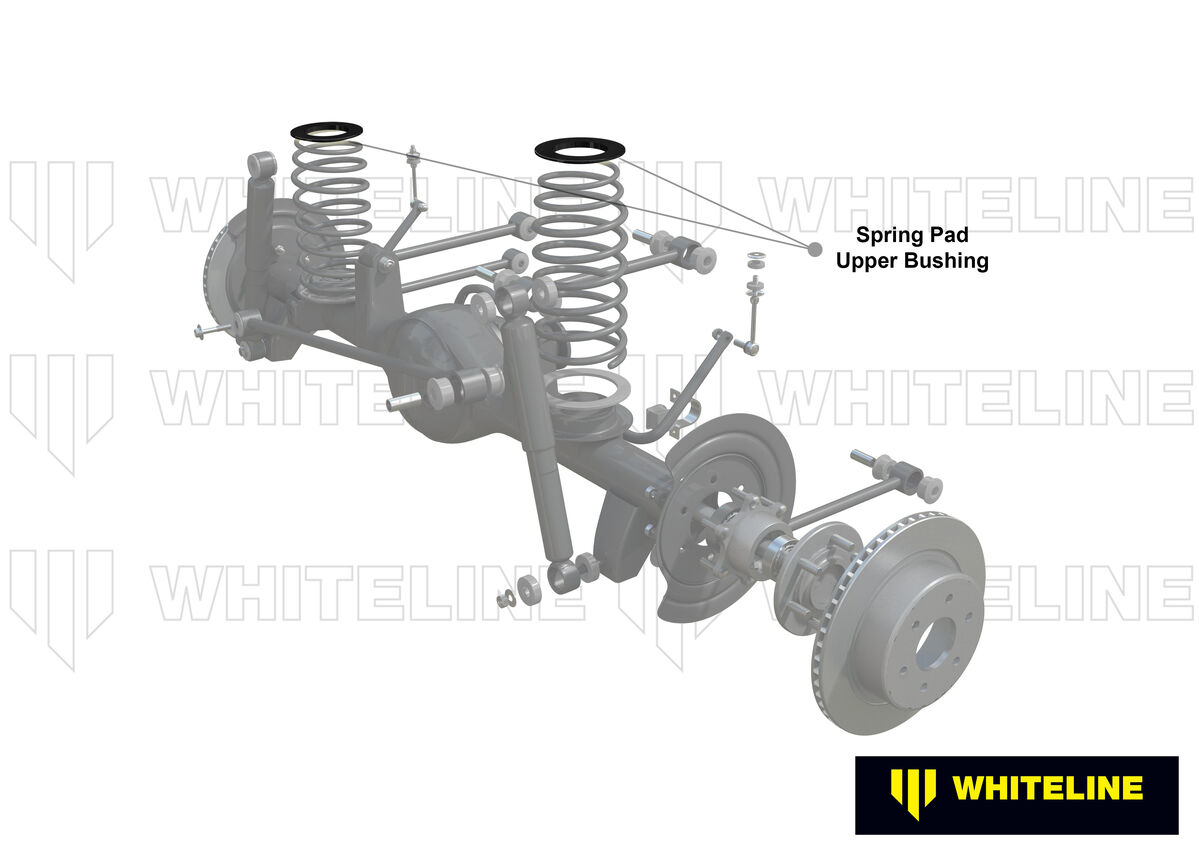

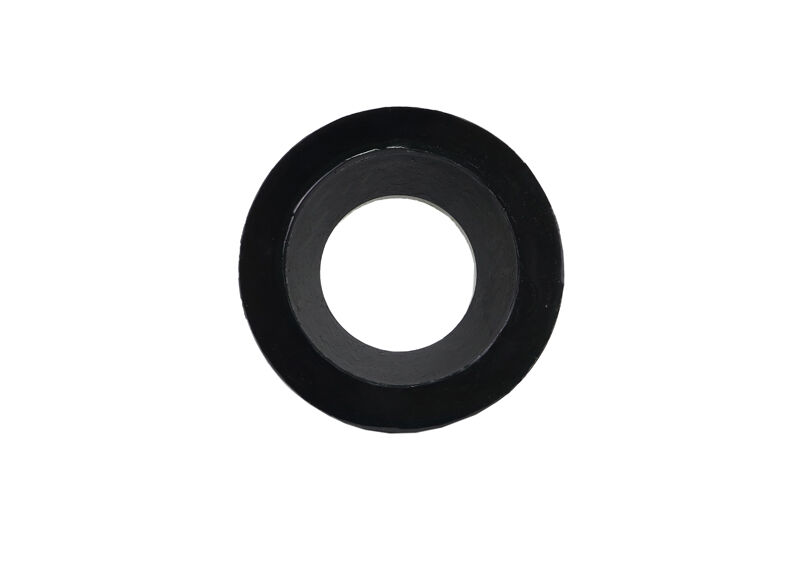

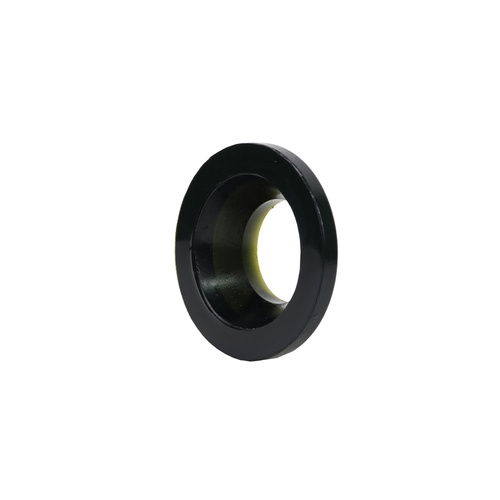

Whiteline Front Coil Spring Pad - Bushing Kit to Suit Jeep Cherokee XJ and Wrangler TJ, JK

SKU: W73445

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle common to 4x4 or looking to obtain that preferred ride height setting Whiteline spring pads are an economical solution.

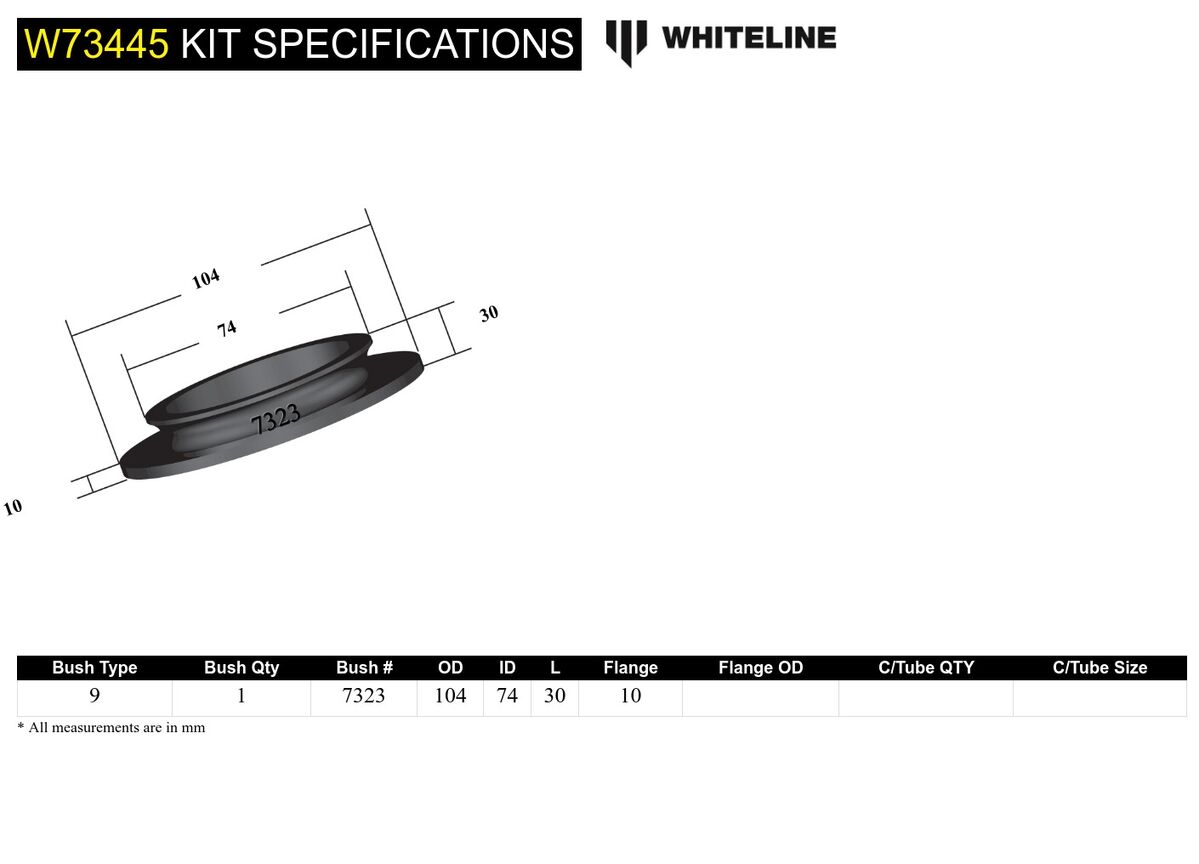

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 1 mm
OD (A) 104 mm
ID (B) 74 mm
Length (C) 30 mm
Flange Thickness (D) 10 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

Bush Type 9
QTY 1
OD (A) 104
ID (B) 74
Length (C) 30.0
FL (D) 10
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.095kg0.21lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW73445
Components Per1 Bushing
Kits Required2
Sub brandReplacement
Product NoteOD=104, ID=74/50, H=10mm
EAN9319924402205
  • Lifetime Warranty
Brand Whiteline
SKU W73445
Unit Of Measure Kit
