Whiteline Front Coil Spring Pad +10mm Ride Height to Suit Ford Falcon/Fairlane XK-XP, Mustang Classic and Holden HQ-WB

SKU: W71476

Benefit Note: Whether its replacing deteriorated original units, to compensate loading one side of a vehicle common to 4x4 or looking to obtain that preferred ride height setting Whiteline spring pads are an economical solution.

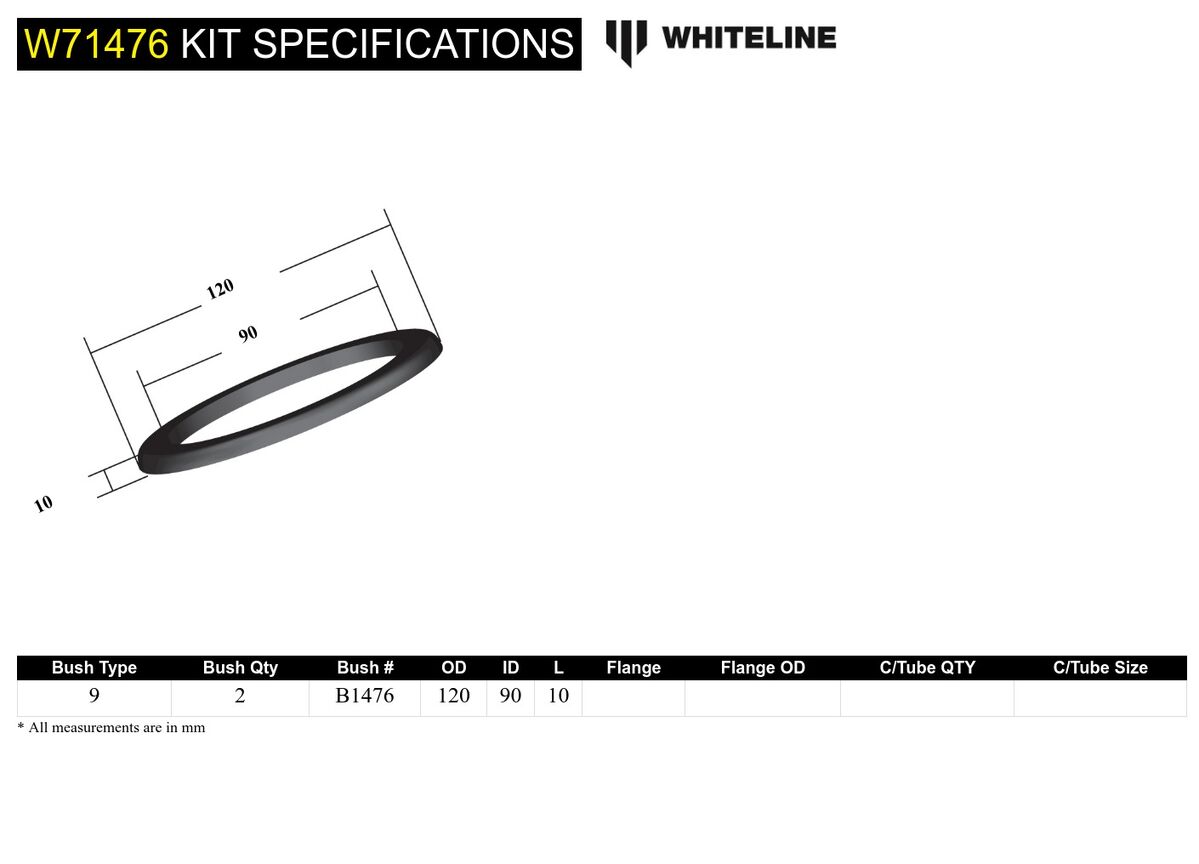

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 2 mm
OD (A) 120 mm
ID (B) 90 mm
Length (C) 10 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

Bush Type 9
QTY 2
OD (A) 120
ID (B) 90
Length (C) 10.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.07kg0.15lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW71476
Components Per1 Bushing
Kits Required2
Sub brandReplacement
Product NoteOD=120, ID=90, H=10mm
EAN9319924355747
  • Lifetime Warranty
Brand Whiteline
SKU W71476
Unit Of Measure Each
