Whiteline Front Bump Steer - Correction Kit to Suit Mitsubishi Lancer Evolution 7 8 9

SKU: KCA387

Benefit Note: Whiteline bump steer kit is designed to change bump steer characteristics depending on driving conditions. For racing it is beneficial to reduce the amount of bump steer to give a more positive feel - sharper handling - reduced understeer.


Kit Specifications

Bush Type 4 - D-bushing With Flange 1 - Shackle Bushing
Bush Quantity 1 mm 4 mm
OD (A) 57 mm 27 mm
ID (B) 48.5 mm 19.8 mm
Length (C) 42 mm 10.4 mm
Flange Thickness (D) 3 mm
Flange OD (E) 3 mm 34 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 20x12x24 mm 20x12x24 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange
Bushing Type 1 - Shackle Bushing

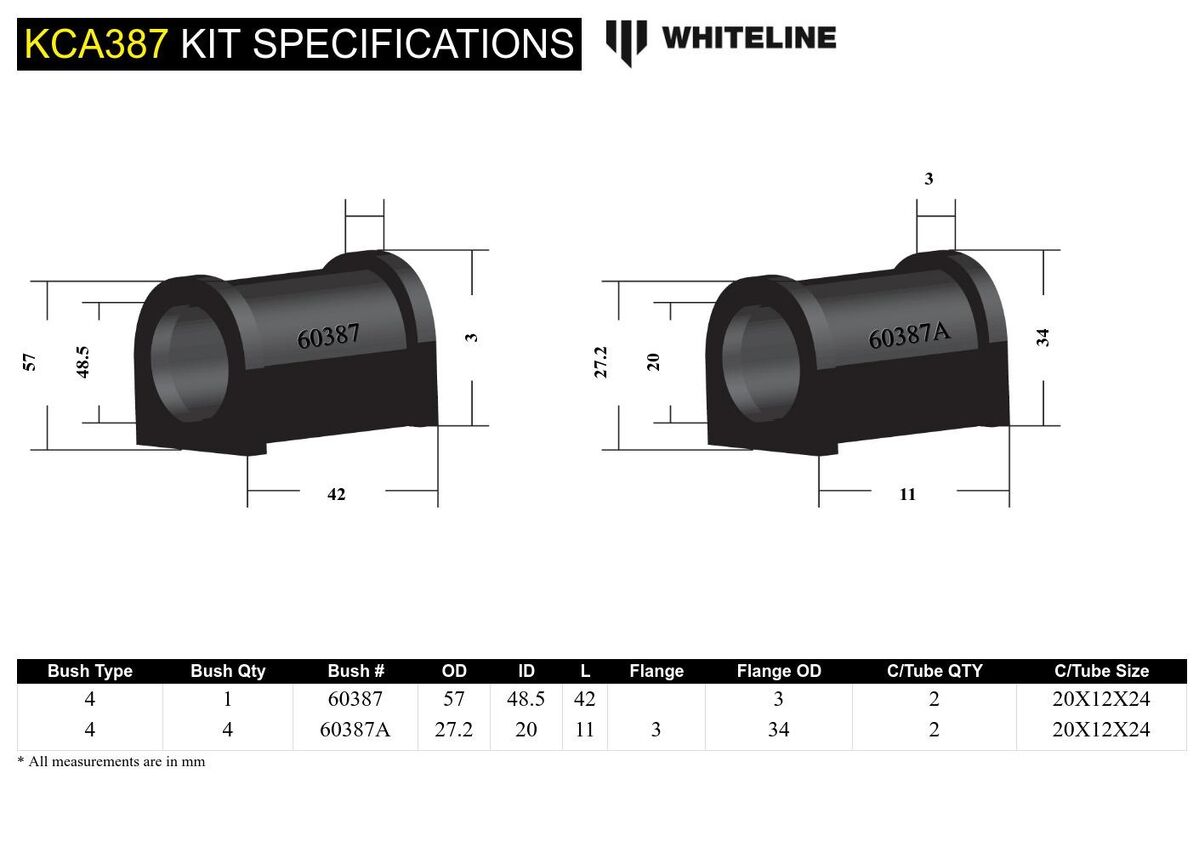

Bushing Design Dimensions (mm)

Bush Type 4 1
QTY 1 4
OD (A) 57 27
ID (B) 48.5 19.8
Length (C) 42.0 10.4
FL (D) 3
FLOD (E) 3 34
C/Tube Qty 2 2
C/Tube Size 20x12x24 20x12x24
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.298kg0.66lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKCA387

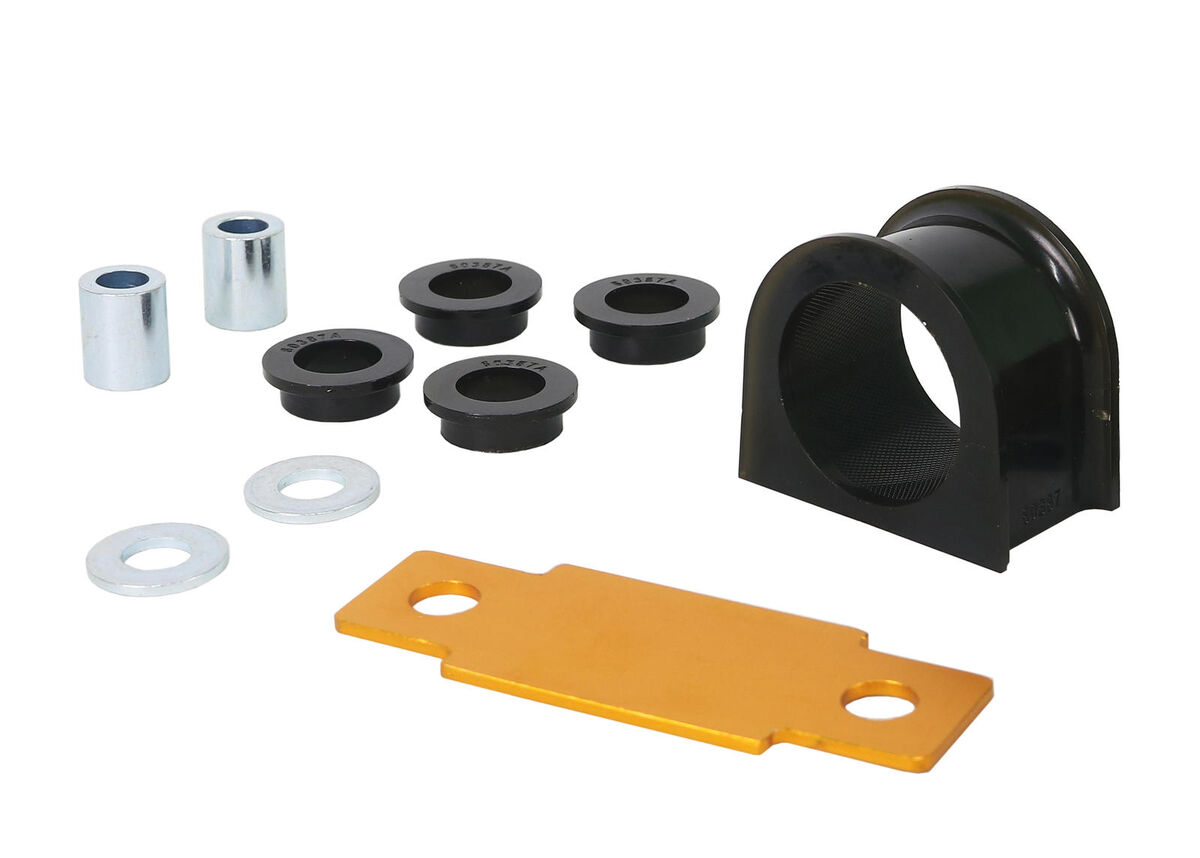

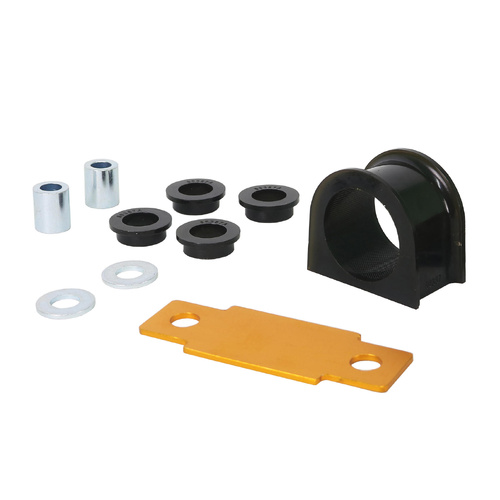

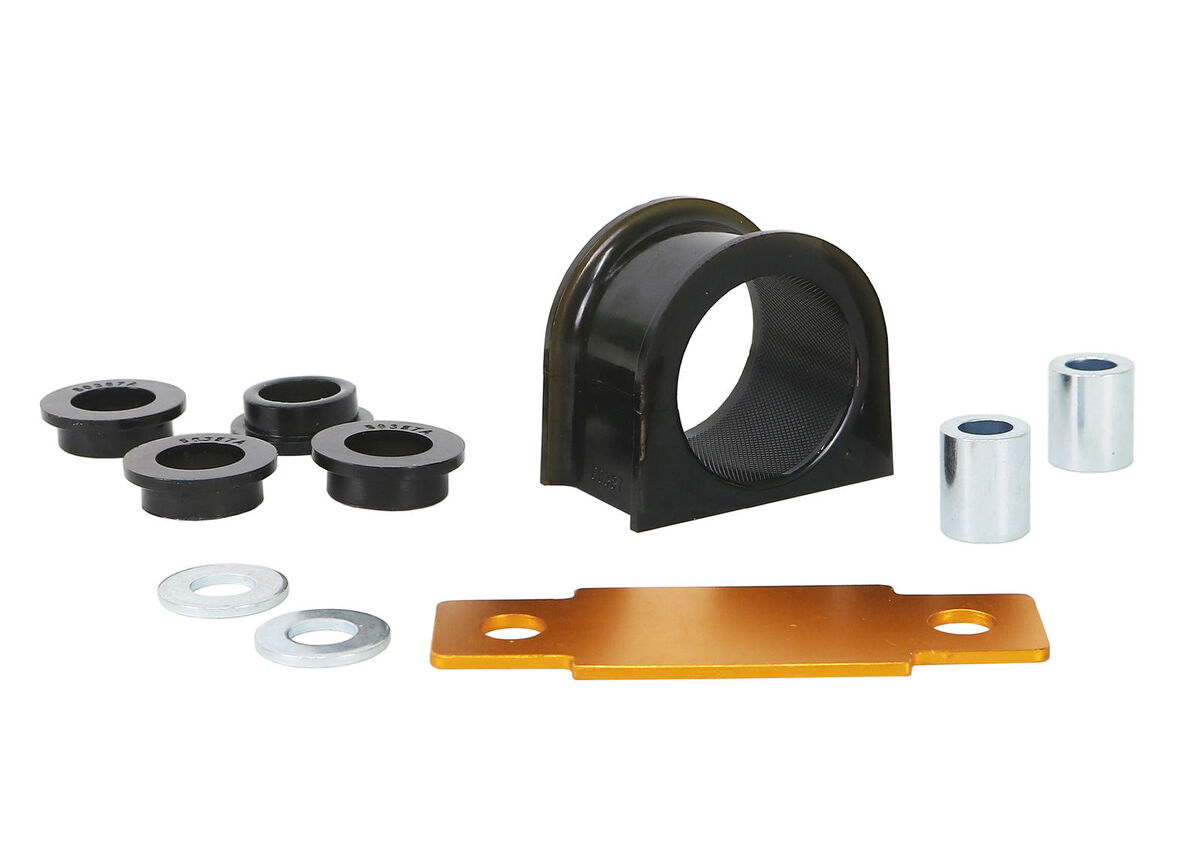

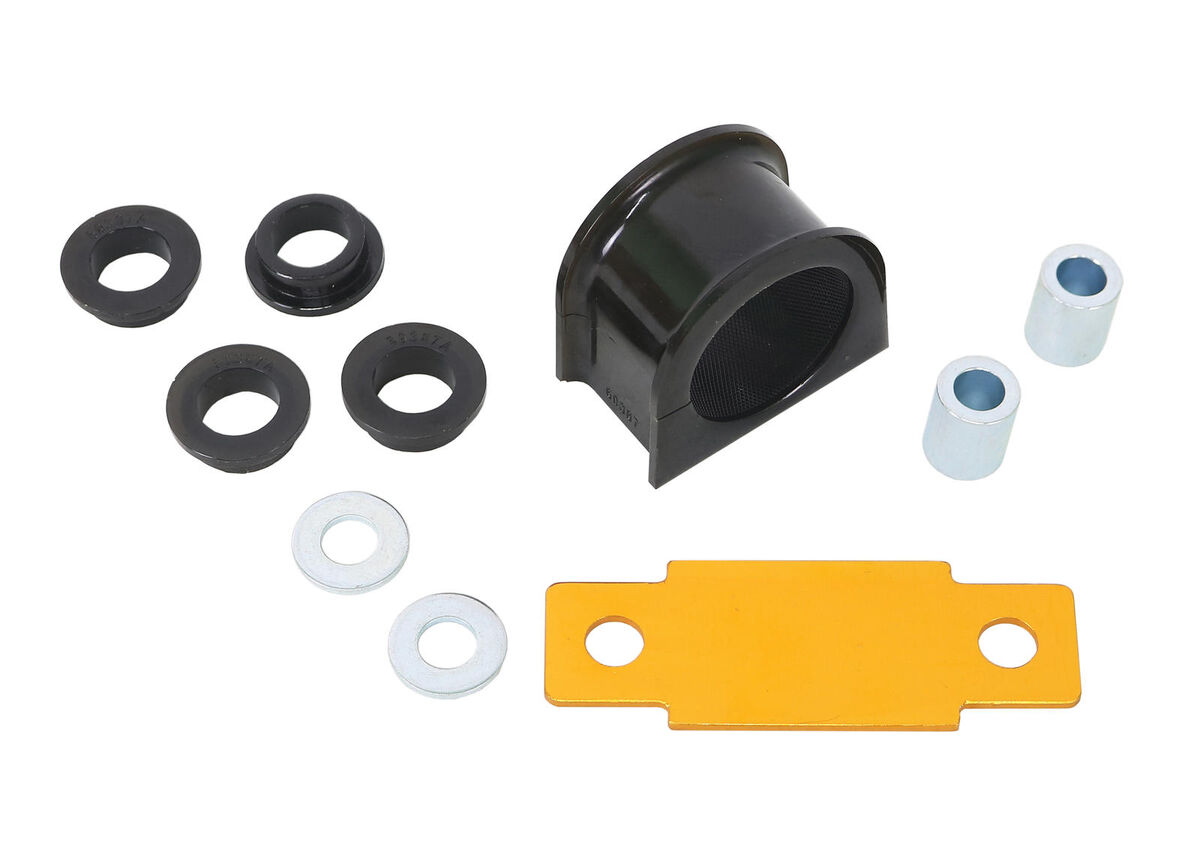

Components Per5 Bushings, 1 Plate, 2 Tubes, 2 Washers
Kits Required1
Sub brandPerformance
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 5 Bushings, 1 Plate, 2 Tubes & 2 Washers
EAN9319924344666
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA387
Unit Of Measure Kit
