Whiteline Front and Rear Sway Bar - Vehicle Kit to Suit Toyota Land Cruiser 80 and 105 Series

SKU: BTK014

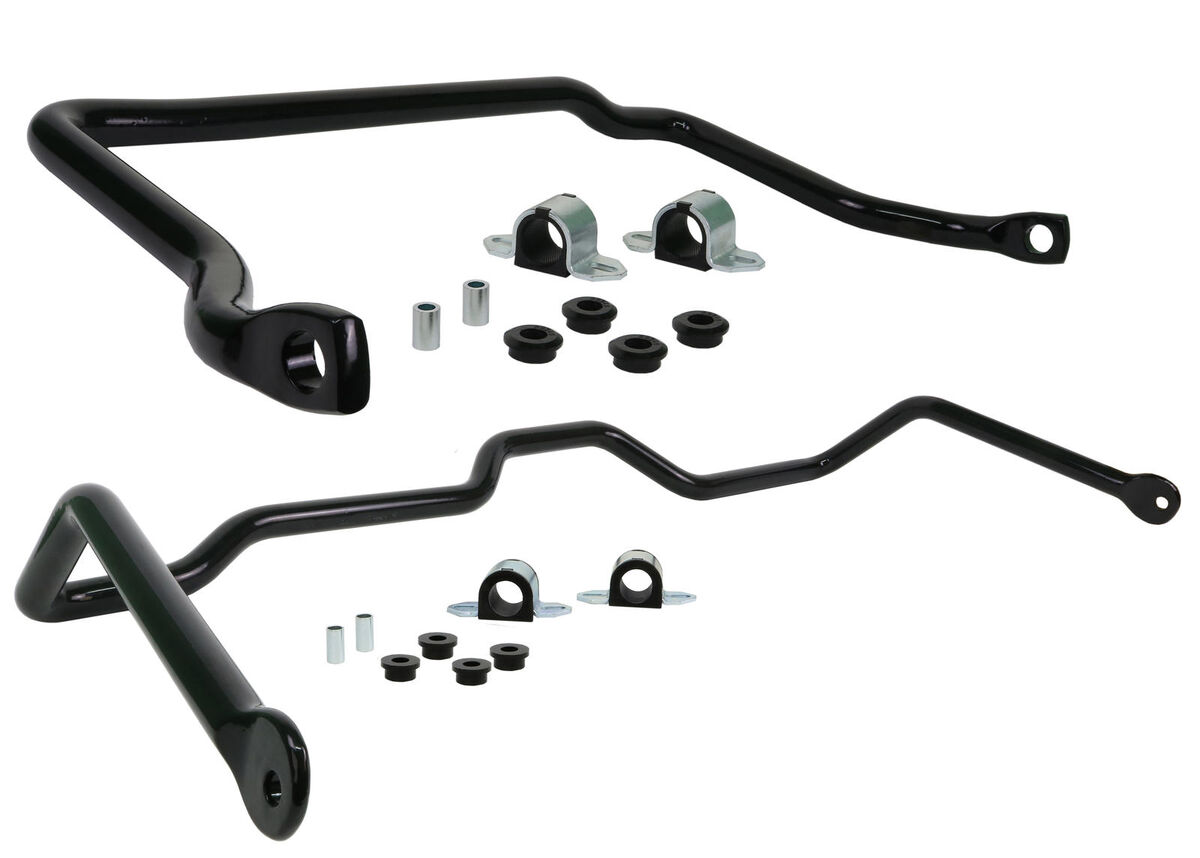

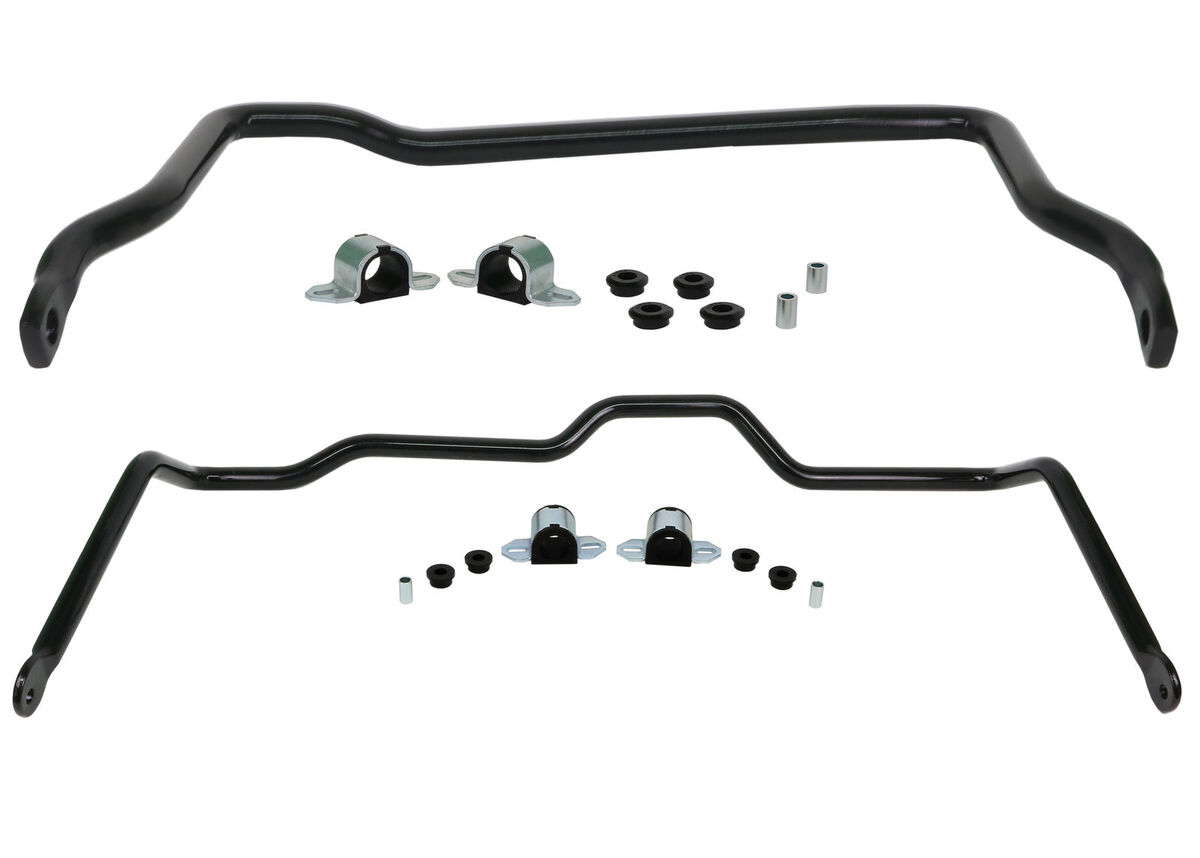

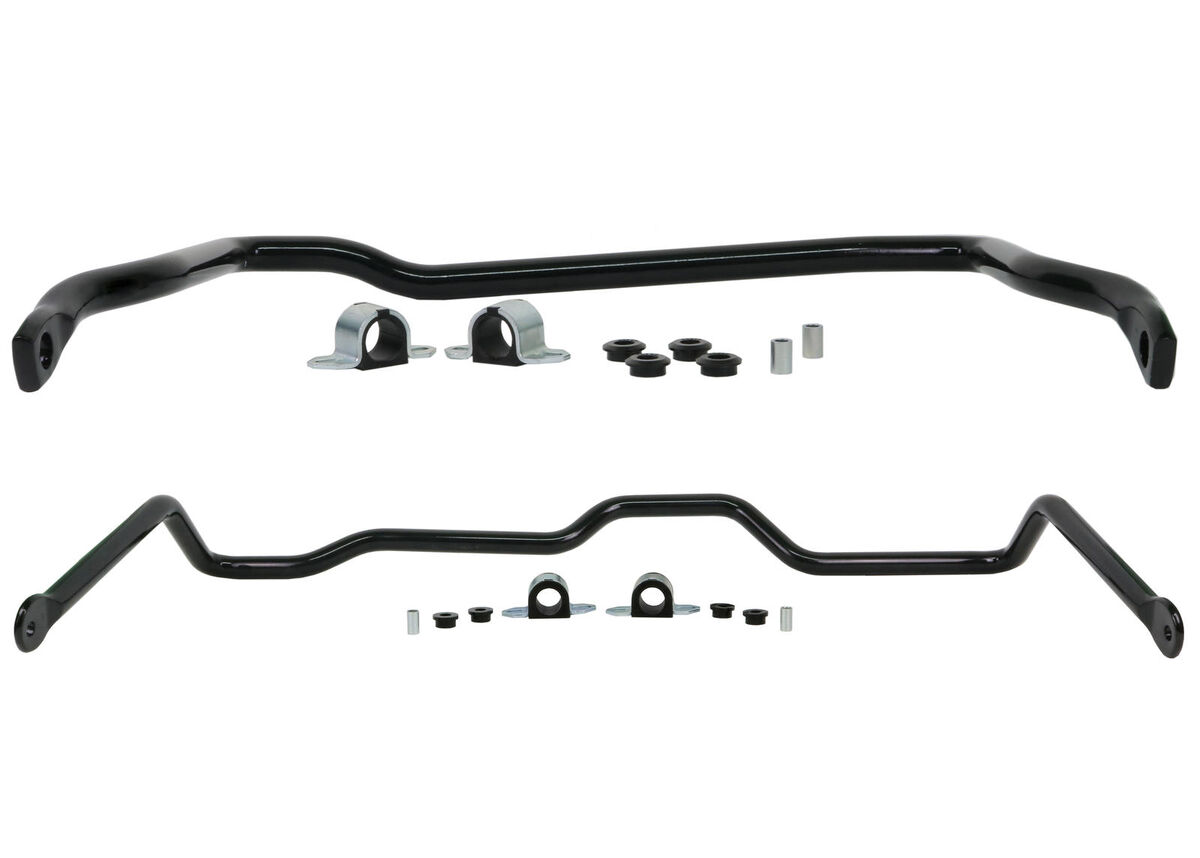

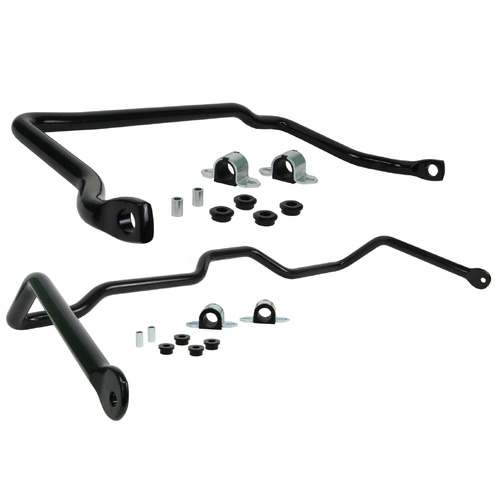

Kit Contains:

BTF66X and BTR46X - essential to 'Activate more grip'

  • Front Sway bar - 33mm non adjustable
  • Rear Sway bar - 30mm non adjustable

Upgrading sway bars is not just limited to sports or passenger vehicles. 4x4's and utility's benefit greatly from larger sway bars particularly where heavier loads, towing and /or highway driving is involved.

Heavy duty 4x4 sway bars assist with;

  • Minimising excess body roll
  • Dramatically improving handling performance
  • Load carrying
  • Steering response
  • Braking stability and response
  • Most importantly improving safety

We recommend fitting this kit, to get a complete handling upgrade.

Benefit Note: Engineered to 'Activate More Grip', BTK014 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 33mm fixed front sway bar and 30mm fixed rear sway bar, the kit is completed with front and rear sway bar links and mounting accessories (where applicable) that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.


Kit Specifications

Location Front Rear
Sway Bar BTF66X BTR46X
Diameter (mm) 33 30
Diameter (in) Fraction 1 19/64" 1 3/16"
Diameter (in) Decimal 1.299 1.181
Material Solid Spring Steel Solid Spring Steel
Sway Bar Adjustment Type Non Adjustable Non Adjustable
Sway Bar Link Included No No

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight23kg50.71lbs
Length120cm47.24"
Width25cm9.84"
Height20cm7.87"

Misc. Product Information

More Information
SKUBTK014
Components Per2 Sway Bars, 8 Bushings, 4 Saddles, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteImproves grip and boosts stability; a complete, premium upgrade. Includes: 33mm non-adjustable Front Sway bar & 30mm non-adjustable Rear Sway bar.
EAN9319924465156
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU BTK014
