Whiteline Front and Rear Sway Bar - Vehicle Kit to Suit Holden Commodore VT, VX, VY and HSV

SKU: BHK004

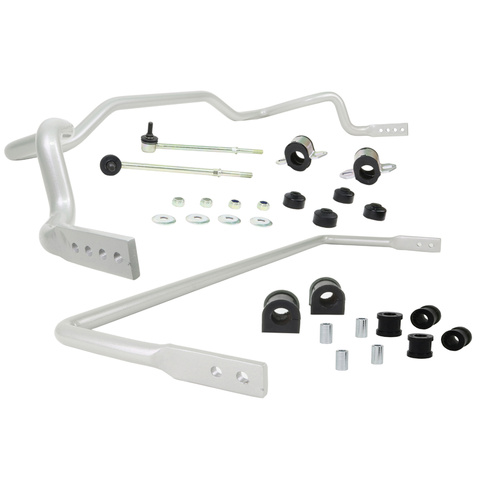

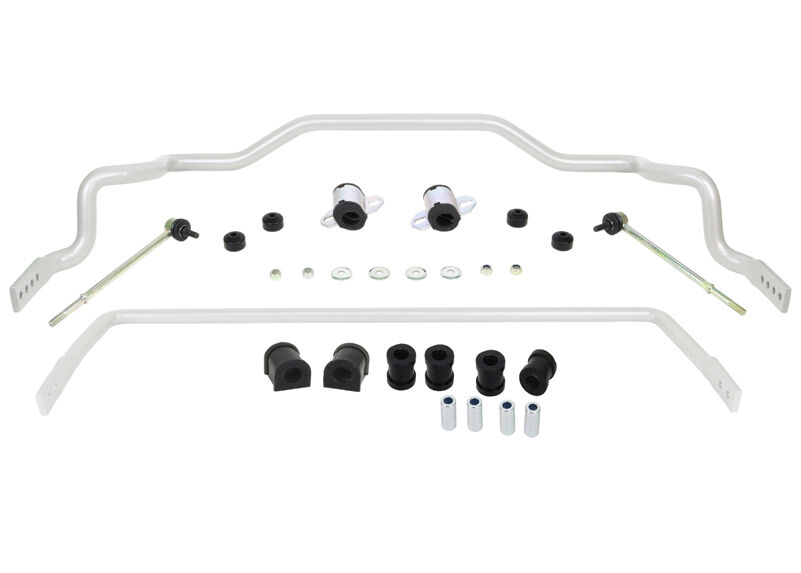

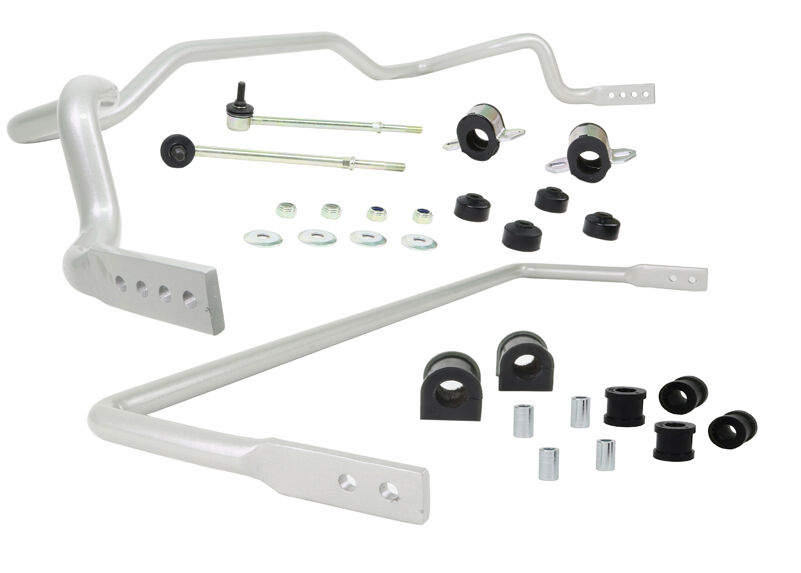

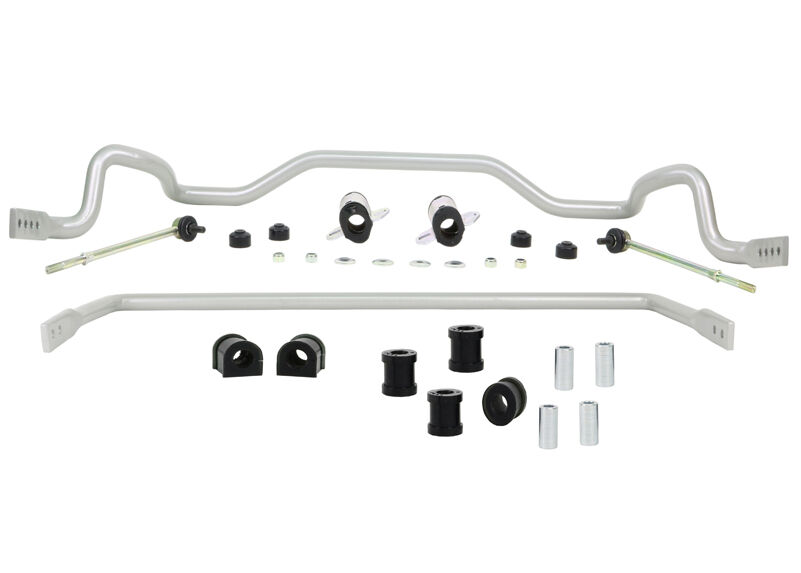

Kit Contains:

BHF43Z, BHR50Z and W23034 x 2 - essential to 'Activate more grip'

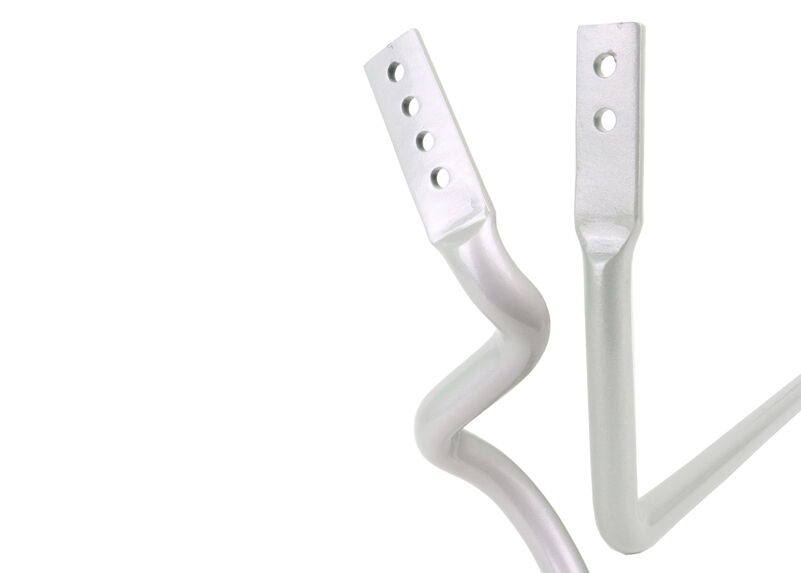

  • Front Sway bar - 30mm 4 point adjustable
  • Rear Sway bar - 18mm 2 point adjustable
  • Rear Sway bar - link bushing kit

Upgrading the sway bars on your vehicle will;

  • Minimising excess body roll
  • Dramatically improving handling performance
  • Tyre life
  • Steering response
  • Braking stability and response
  • No compromise to ride quality, NVH or comfort of the vehicle

We recommend fitting this kit as a complete handling upgrade. Benefit Note: Engineered to 'Activate More Grip', BHK004 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 30mm 4 point adjustable front sway bar and 18mm 2 point adjustable rear sway bar, the kit is completed with front and rear sway bar links and mounting accessories (where applicable) that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.


Kit Specifications

Location Front Rear
Sway Bar BHF43Z BHR50Z
Diameter (mm) 30 18
Diameter (in) Fraction 1 3/16" 23/32"
Diameter (in) Decimal 1.181 0.708
Material Solid Spring Steel Solid Spring Steel
Sway Bar Adjustment Type 4 Point Adjustable 2 Point Adjustable
Sway Bar Link Included Yes No

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight14.2kg31.31lbs
Length114cm44.88"
Width50cm19.69"
Height19cm7.48"

Misc. Product Information

More Information
SKUBHK004
Components Per2 Sway Bars, 2 Links, 12 Bushings, 2 Tubes, 2 Saddles, 4 Washers, 4 Nuts
Kits Required1
Sub brandPerformance
Product NoteEnhances agility without sacrificing ride comfort; a complete, premium upgrade. Includes: 30mm 4 point adjustable Front Sway bar, 18mm 2 point adjustable Rear Sway bar & Rear Sway bar link bushing kit.
EAN9319924397136
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU BHK004
